Extron DTP R DP 4K 230 DisplayPort Twisted Pair Receiver
- • Display-end unit of a DTP 230 DisplayPort extension set, sold on its own
- • Single female DisplayPort output, DisplayPort 1.1a with HDCP 1.4 and 2.3
- • 268 MHz receiver pixel clock; link rated to 10.8 Gbps, 2.7 Gbps per lane
- • 4K/UHD at 30 Hz to 130 ft (40 m); 1080p at 60 Hz to 230 ft (70 m)
- • Analog audio out at 50 ohms unbalanced or 100 ohms balanced on 3.5 mm
- • Audio response 20 Hz to 20 kHz within 0.5 dB, THD plus noise 0.03 percent
- • 5.2 W device draw, 6.6 W with supply; remote powering within 12 W
- • Fanless metal enclosure, 4.3 in wide, 1.0 lb (0.5 kg), no vents
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

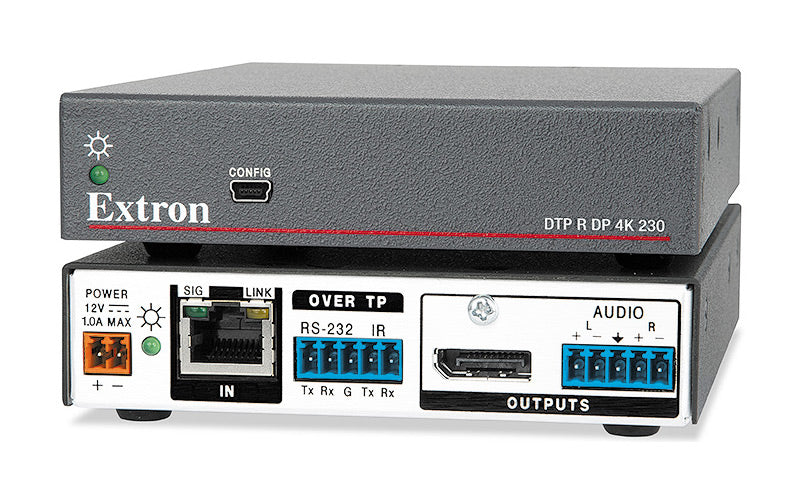

Extron DTP R DP 4K 230 (part number 60-1076-13) — DisplayPort receiver for DTP 230 twisted pair links, listed here under an alternate part reference.
One shielded twisted pair run arrives at this unit and leaves it as a DisplayPort video output, a two-channel analog audio output, and RS-232 and IR signalling for the connected display or projector. Extron builds it as the display-side half of a two-piece extension set; the DTP T DP 4K 230 transmitter is bought separately. Its quarter-rack metal shell has no cooling vents, so it can hide in a sealed cavity behind a panel without a fan.
Key Capabilities
- One female DisplayPort video output conforming to DisplayPort 1.1a with HDCP 1.4 and 2.3, Single Stream Transport.
- 268 MHz maximum pixel clock at the receiver, on a link rated up to 10.8 Gbps or 2.7 Gbps per lane.
- Passes 4K 4096x2160 and UHD 3840x2160 at 30 Hz, and 2560x1600 at 60 Hz with reduced blanking.
- Analog audio output on a 5-pole 3.5 mm captive screw connector, 50 ohms unbalanced or 100 ohms balanced.
- Frequency response of 20 Hz to 20 kHz within 0.5 dB, THD plus noise of 0.03 percent at maximum output.
- RS-232 on a 3-pole captive screw connector from 300 to 115200 baud, plus modulated IR from 30 kHz to 60 kHz.
Where It Is Used
Typical placements are behind wall-mounted panels, inside lecterns, above ceiling-mounted projectors, and at operator positions in control rooms and clinical review areas. Remote powering from the transmitter over the same twisted pair removes the need for a local outlet at awkward display locations.
Specifications at a Glance
- Reach: 230 ft (70 m) at 1080p 60 Hz, 130 ft (40 m) at 2560x1600 60 Hz and 4K/UHD 30 Hz.
- Cable: solid conductor 24 AWG or better; 400 MHz STP recommended, TIA/EIA T568B termination.
- Power: 5.2 watts device, 6.6 watts with supply, 12 watt remote power budget.
- Physical: metal, 1.0 in H x 4.3 in W x 6.0 in D, 1.0 lb (0.5 kg).
- Warranty: 3 years parts and labor; Everlast power supply covered 7 years.
Also referenced as Extron DTPRDP4K230, DTP-R-DP-4K-230, part number 60107613.
