Details
Details

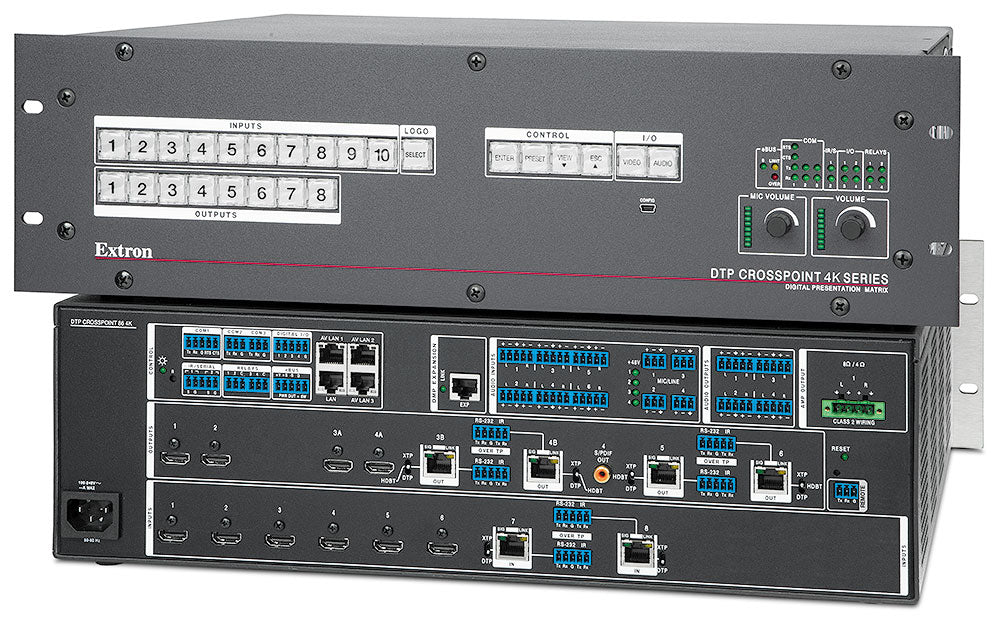

Extron DTP CrossPoint 86 4K IPCP SA (part number 60-1382-12A) pairs the 8x6 4K scaling presentation switcher with a LinkLicense user-interface upgrade, so the built-in control processor can serve a richer operator interface from day one.
The switcher accepts six HDMI sources and two twisted pair sources, then feeds four DTP/XTP/HDBaseT ports and two buffered HDMI ports, each with its own scaler, alongside two non-scaled HDMI matrix outputs. Audio follows video through an 8 x 6 stereo matrix with a four-channel microphone mixer, and the on-board Class D amplifier sends program audio straight to loudspeakers. The LL UI Upgrade extends the control layer without adding hardware.
Key Capabilities
- LinkLicense user-interface upgrade supplied with part number 60-1382-12A
- 8 x 6 seamless switching matrix, 4K at 30 Hz, 300 MHz maximum pixel clock
- Four configurable DTP, XTP or HDBaseT scaled outputs plus two buffered HDMI outputs
- Four mic/line inputs with switchable +48 VDC phantom power and -18 dB to +80 dB gain
- IPCP Pro xi processor with a three-port unmanaged network switch and four relays
- Stereo amplifier delivering 50 watts per channel into a 4 ohm load
Where It Is Used
Integrators specify this configuration for corporate training centers, courtroom AV racks, simulation labs and multipurpose halls that need a polished operator interface on tablets and browsers rather than a hard-coded button panel, with switching, mixing and amplification all handled by the same chassis.
Specifications at a Glance
- Audio routing: 8 x 6 stereo matrix plus 4 x 4 microphone mixing matrix
- Amplifier: Class D, two channels, 4 ohm minimum load
- Twisted pair reach up to 330 ft (100 m) on DTP 330 endpoints
- Control processor memory: 512 MB SDRAM and 4.5 GB flash
- 147 watts power draw, fan cooled, 17 lbs (7.7 kg)
Also referenced as Extron DTPCrossPoint864KIPCPSA, DTP-CrossPoint-86-4K-IPCP-SA, part number 60138212A.
Specifications
Specifications
Part Number: 60-1382-12A
Manufacturer: Extron
Model: DTP CrossPoint 86 4K IPCP SA
Condition: New
Video Routing: 8 x 6 matrix
Maximum Data Rate: 10.2 Gbps (3.4 Gbps per color)
Maximum Pixel Clock: 300 MHz (600 MHz for 4K rates with 4:2:0 chroma subsampling)
Resolution: Up to 2560x1600 (reduced blanking) at 60 Hz, 4K (4096x2160) at 30 Hz, UHD (3840x2160) at 30 Hz; 4K/UHD at 60 Hz with 4:2:0 chroma subsampling, supported only at non-scaled HDMI outputs
Formats: RGB and YCbCr digital video
Standards: DVI 1.0, HDMI 1.4, HDCP 1.4, CEA-861E
Signal Type: HDMI 1.4, HDCP 1.4
Frame Rate: 24, 25, 30, 50, or 60 fps (subject to the maximum data rate limit)
Chroma Sampling: 4:4:4, 4:2:2, or 4:2:0 (subject to the maximum data rate limit)
Color Bit Depth: 8 bits per color
Digital Pixel Data Bit Depth: 8, 10, or 12 bits per channel; 300 MHz pixel clock (HDMI)
Colors: 1.07 billion (10-bit processing)
Video Inputs: 6 HDMI digital video (HDCP compliant); 2 DTP or XTP (configurable)
Video Input Connectors: 6 female HDMI type A; 2 female RJ-45
Video Input Horizontal Frequency: 15 kHz to 100 kHz
Video Input Vertical Frequency: 24 Hz to 75 Hz
Video Input Resolution Range: 640x480 to 1600x1200 and 1920x1200 (reduced blanking); 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, and 2K through 4K at 30 Hz
Matrix Video Outputs (Non-Scaled): 2 HDMI digital video (HDCP compliant)
Matrix Video Output Connectors: 2 female HDMI
Scaled Twisted Pair Outputs: 4 DTP, XTP, or HDBaseT (configurable); 2 buffered HDMI digital video (HDCP compliant)
Scaled Output Connectors: 4 female RJ-45; 2 female HDMI
Video Output Power for Active Cables (HDMI Pin 18): 6.6 W total power for all HDMI ports, 1.1 W per HDMI port max
Logos: 16 logos; resolution range up to 4096x2160; BMP, JPG, PNG, TIFF; effects: transparency, RGB key, level key, alpha key
Twisted Pair Connectors: Female RJ-45
Termination Standard: TIA/EIA T568B
Signal Transmission Distance: Resolutions up to 1920x1200 and 1080p: DTP 330 up to 330 ft (100 m), DTP 230 up to 230 ft (70 m). 2560x1600 (reduced blanking) and 4K at 30 Hz: DTP 330 up to 330 ft (100 m), DTP 230 up to 130 ft (40 m). Shielded twisted pair or XTP DTP 24 TP cable.
Cable Requirements: Solid conductor, 24 AWG or better
Cable Recommendations: 400 MHz bandwidth, STP (shielded twisted pair)
Audio Routing: 8 x 6 stereo switching matrix; 4 x 4 microphone mixing matrix
Audio Gain: Unbalanced output -6 dB; balanced output 0 dB
Audio Frequency Response: 20 Hz to 20 kHz, plus or minus 0.2 dB
Audio Input Impedance: Greater than 10k ohms unbalanced, greater than 20k ohms balanced
Audio THD + Noise: 0.02% at 1 kHz nominal level
Audio Signal to Noise: 105 dB at maximum balanced output (unweighted)
Audio Crosstalk: Less than -90 dB, 20 Hz to 20 kHz, fully loaded
Stereo Channel Separation: Greater than 80 dB, 20 Hz to 20 kHz
Digital Conversion: 24-bit, 48 kHz
HDMI Audio Formats (Pass-Through): LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS-HD Master Audio, DTS-HD, DTS ES Discrete 6.1, DTS ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2 Channel
Audio Inputs: 6 stereo analog line level, balanced or unbalanced; 6 stereo de-embedded from HDMI (PCM only); 2 DTP (de-embedded from HDMI [PCM only] and remote balanced/unbalanced analog) or XTP (embedded digital)
Audio Input Connectors: (6) 3.5 mm captive screw connectors, 5-pole for analog line level inputs; 6 female HDMI type A; 2 female RJ-45
Analog Audio Nominal Level: +4 dBu, -10 dBV adjustable via input gain
Analog Audio Maximum Level: +21 dBu balanced, +15 dBu unbalanced
Analog Audio Input Gain Adjustment: -18 dB to +24 dB, 0.1 dB steps, adjustable per input
Mic/Line Inputs: 4 mono, mic/line, balanced/unbalanced (with phantom power)
Mic/Line Connectors: (4) 3.5 mm captive screw connectors, 3-pole
Mic/Line Impedance: 10k ohms unbalanced, 20k ohms balanced
Mic/Line Nominal Level: -60 dBV, +4 dBu, -10 dBV, adjustable via input gain
Mic/Line Maximum Level: Greater than +21 dBu at rated THD+N when mic gain is set to 0 dB
Equivalent Input Noise: Less than -120 dBV (1.0 uVrms) at +40 dB input gain
CMRR: Greater than 70 dB typical
Mic/Line Input Gain Adjustment: -18 dB to +80 dB, in 0.1 dB steps, adjustable per input
Microphone Volume Range: -100 dB to +12 dB
DC Phantom Power: +48 VDC, plus or minus 10% (inputs 1-4), switched on or off
Audio Outputs: 4 HDMI embedded; 4 DTP (embedded digital and remote balanced/unbalanced analog), XTP (embedded digital), or HDBaseT (embedded digital); 4 stereo balanced/unbalanced analog (variable); 1 SPDIF
Audio Output Connectors: 4 female HDMI; 4 RJ-45; (4) 3.5 mm captive screw, 5-pole; 1 RCA
Audio Output Impedance: Stereo audio 50 ohms unbalanced, 100 ohms balanced; S/PDIF 75 ohms
Audio Output Gain Error: Plus or minus 0.1 dB channel to channel
Audio Output Maximum Level (Hi-Z): Greater than +21 dBu balanced, or +15 dBu unbalanced
Output Volume Range: 0 to -100 dB in 0.1 dB steps
EXP Port: 1 RJ-45, proprietary transmission; 16 channels Rx, 16 channels Tx; 24 bit, 48 kHz sampling, uncompressed; shielded CAT 6 up to 10 meters
Power Amplifier Output: 1 stereo or mono (2 channels total)
Power Amplifier Connector: (1) 5 mm screw lock captive screw connector, 4-pole (accepts 22 AWG to 12 AWG)
Power Amplifier Load Impedance: 4 ohms minimum
Power Amplifier Type: Class D
Power Amplifier Output Power: 25 watts (rms) per channel at 8 ohms, 1 kHz, 0.1% THD; 50 watts per channel at 4 ohms, 1 kHz, 0.1% THD
Power Amplifier Frequency Response: 20 Hz to 20 kHz, +1/-3 dB at 1 watt
Power Amplifier THD + Noise: Less than 0.1%, 1 kHz, 3 dB below clipping
Power Amplifier Signal to Noise: Greater than 90 dB, 20 Hz to 20 kHz, unweighted
Power Amplifier Protection: Clip limiting, thermal, short circuit, DC output
Serial Control Port: 1 bidirectional RS-232, 3.5 mm captive screw connector, 3-pole (rear panel)
Serial Baud Rate and Protocol: 9600 (default) to 115200 baud, 8 data bits, 1 stop bit, no parity (default)
Serial Control Pin Configuration: 1 = Tx, 2 = Rx, 3 = Gnd
USB Control Port: 1 front panel female USB mini-B; USB 2.0, low speed
Ethernet Control Port: 1 female RJ-45 connector
Ethernet Data Rate: 10/100Base-T, half/full duplex with autodetect
Ethernet Protocols: DHCP, DNS, HTTP, HTTPS, IEEE 802.1X, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP, ARP, Telnet
Ethernet Default Settings: Link speed and duplex level autodetected; IP address 192.168.254.254; subnet mask 255.255.0.0; default gateway 0.0.0.0; DHCP off
Web Server: Up to 200 simultaneous sessions; 40.0 MB nonvolatile user memory
Program Control: Extron control/configuration program for Windows; Extron Simple Instruction Set (SIS); Microsoft Internet Explorer; Telnet
Serial Pass-Through Ports (RS-232 over Twisted Pair): Switcher input/TP Tx and switcher output/TP Rx, RS-232 via (2) 3.5 mm 5-pole captive screw connectors each (shared with IR ports); 300 to 115200 baud; 8 or 7 data bits; 1 or 2 stop bits; no parity (default), even, odd, mark, or space parity; pin 1 = Tx, 2 = Rx, 3 = Gnd
IR Pass-Through Control Ports: TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz; (2) 3.5 mm captive screw connectors, 5-pole at input/TP Tx and (2) at output/TP Rx (shared with RS-232 ports); pin 3 = Gnd, 4 = IR Tx, 5 = IR Rx
Control Processor: Built-in Extron IPCP Pro xi control processor
Control Processor SDRAM: 512 MB
Control Processor Flash: 4.5 GB
Control Processor Software: Extron Global Configurator Plus and Professional for Windows
Control Options: GlobalViewer, TouchLink for Web, TouchLink for iPad, or TouchLink Pro touchpanels
Control Processor Network Interface Controllers: 1
Control Processor Network Switch: 1 unmanaged 3 port switch
Control Processor Ethernet Connectors: 3 female RJ-45 connectors
Control Processor Ethernet Data Rate: 10/100/1000Base-T, half/full duplex with autodetect
Control Processor Ethernet Protocols: DHCP, DNS, HTTP, HTTPS, ICMP, IEEE 802.1X, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP
Control Processor Ethernet Default Settings: Link speed and duplex level autodetected; IP address 192.168.254.250; subnet mask 255.255.255.0; gateway 0.0.0.0; DHCP off; DNS 127.0.0.1
Control Processor Serial Ports: 1 bidirectional RS-232, RS-422, RS-485 (port 1); 2 bidirectional RS-232 (ports 2 and 3)
Control Processor Serial Connectors: (1) 3.5 mm captive screw connector, 5-pole; (2) 3.5 mm captive screw connectors, 3-pole
Control Processor Serial Baud Rate and Protocol: 300 to 115200 baud (9600 baud default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits; no parity (default), even, odd, mark, or space parity
Control Processor Serial Pin Configurations: RS-232 (default) pin 1 = Tx, 2 = Rx, 3 = Gnd, 4 = RTS, 5 = CTS; RS-422 pin 1 = Tx-, 2 = Rx-, 3 = Gnd, 4 = Tx+, 5 = Rx+; RS-485 pins 1 and 2 tied together = data-, 3 = Gnd, 4 and 5 tied together = data+; 3-pole pin 1 = Tx, 2 = Rx, 3 = Gnd
Digital I/O Control: 4 digital input/output (configurable); (1) 3.5 mm captive screw connector, 5-pole
Digital Input Voltage Range: 0 to 24 VDC, clamped at +30 VDC
Digital Input Impedance: 29k ohms
Digital Input Programmable Pullup: 1k ohms to +5 VDC
Digital Input Thresholds: Low to high greater than 2.8 VDC; high to low less than 2.0 VDC
Digital Outputs: 250 mA sink from 24 VDC max
Digital I/O Pin Configuration: 1, 2, 3, 4 = digital I/Os 1, 2, 3, 4; 5 = Gnd
IR/Serial Control Ports: 2 programmable: unidirectional RS-232 (plus or minus 5 V), TTL level (0 to 5 V) infrared (carrier and non-carrier) up to 300 kHz; (1) 3.5 mm captive screw connector, 5-pole; 300 to 115200 baud (9600 default); per port pin 1 = signal, 2 = Gnd
IR Output Carrier Frequency: 30 kHz to 300 kHz
Relay Control: 4 normally open relays; (1) captive screw connector, 6-pole; contact rating 24 VDC, 1 A
Power Supply: Internal; input 100-240 VAC, 50-60 Hz
Power Consumption: 147 watts
Remote Power Capability: Supports up to six endpoints (two DTP Tx, four DTP Rx); remote power not available in XTP and HDBaseT modes
Operating Temperature/Humidity: +32 to +122 degrees F (0 to +50 degrees C), 10% to 90% noncondensing
Storage Temperature/Humidity: -40 to +158 degrees F (-40 to +70 degrees C), 10% to 90% noncondensing
Cooling: Fans, air flows from right to left (as viewed from front panel)
Thermal Dissipation: 376 BTU/hr
Mounting: Rack mount
Enclosure Type: Metal
Enclosure Dimensions: 5.25 in H x 17.4 in W x 16 in D (3U high, full rack wide); 13.3 cm H x 44.2 cm W x 40.6 cm D. Depth excludes connectors and knobs; width excludes rack ears.
Product Weight: 17 lbs (7.7 kg)
Regulatory Compliance: CE, C-tick, c-UL, FCC Class A, ICES, UL, KC, VCCI; complies with the appropriate requirements of RoHS and WEEE
Product Warranty: 3 years parts and labor
Everlast Power Supply Warranty: 7 years parts and labor
