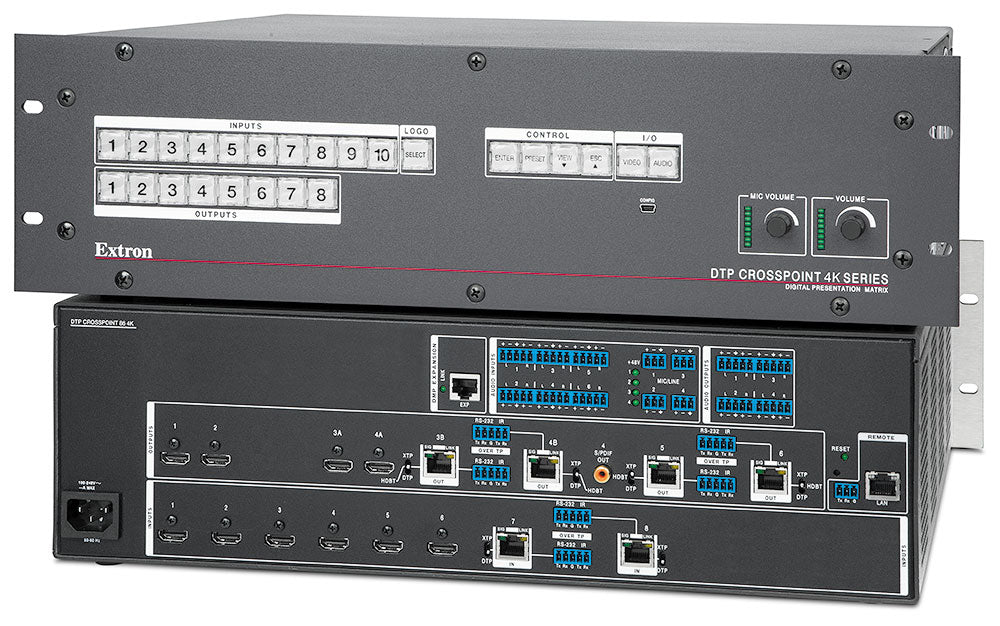

Extron DTP CrossPoint 86 4K IPCP MA 70 (part number 60-1382-23A) bundles the 8x6 scaling matrix, the 70-volt mono amplifier and the LL UI Upgrade into one ordering code, so an entire room can be specified from a single line item.
Behind the front panel sits an IPCP Pro xi processor sharing the chassis with the switcher. It uses a single network interface fronted by an unmanaged three-port Gigabit switch, and adds three serial ports (one of them selectable for RS-232, RS-422 or RS-485), four configurable digital I/O points, two IR or one-way serial ports, and four normally open relays rated 24 VDC at 1 A. Programming happens in Global Configurator Plus or Professional, while operators reach the room through GlobalViewer, a TouchLink Pro panel, an iPad or a browser. The LinkLicense user-interface upgrade supplied with this part widens what that interface can present.
Key Capabilities
- LL UI Upgrade included, extending the LinkLicense operator interface
- Three-port unmanaged Gigabit switch built into the control processor
- Four relays rated 24 VDC at 1 A plus four configurable digital I/O points
- 100 watts rms at 70 V mono, with clip limiting, thermal, short circuit and DC protection
- 8x6 video and 8x6 audio matrices fed by six HDMI and two twisted pair inputs
- Six endpoints powered remotely over DTP, two transmitters and four receivers
Where It Is Used
Distance-learning suites, clustered corporate boardrooms, transit operations centers, medical device training rooms and performing arts complexes specify this build when the control interface must be tailored and the house speakers already sit on a 70-volt distribution line.
Specifications at a Glance
- Control processor with 512 MB SDRAM and 4.5 GB flash
- Eight video inputs, six video outputs, four mic/line channels
- 3U high, full rack wide; 17 lbs; 148 watts
- Operating range +32 to +122 degrees F, 10% to 90% noncondensing
- Three year product warranty and seven year Everlast supply warranty
Also referenced as Extron DTPCrossPoint864KIPCPMA70, DTP-CrossPoint-86-4K-IPCP-MA-70, part number 60138223A.
Specifications
Specifications
Part Number: 60-1382-23A
Manufacturer: Extron
Model: DTP CrossPoint 86 4K IPCP MA 70 with LL UI Upgrade
Condition: New
Video Routing: 8 x 6 matrix
Maximum Data Rate: 10.2 Gbps (3.4 Gbps per color)
Maximum Pixel Clock: 300 MHz (600 MHz for 4K rates with 4:2:0 chroma subsampling)
Resolution: Up to 2560x1600 (reduced blanking) at 60 Hz, or 4K (4096x2160) at 30 Hz and UHD (3840x2160) at 30 Hz; 4K/UHD at 60 Hz with 4:2:0 chroma subsampling is supported only at the non-scaled HDMI outputs
Formats: RGB and YCbCr digital video
Standards: DVI 1.0, HDMI 1.4, HDCP 1.4, CEA-861E
Signal Type: HDMI 1.4, HDCP 1.4
Frame Rate: 24, 25, 30, 50, or 60 fps, subject to the maximum data rate limit
Chroma Sampling: 4:4:4, 4:2:2, or 4:2:0, subject to the maximum data rate limit
Color Bit Depth: 8 bits per color, subject to the maximum data rate limit
Digital Pixel Data Bit Depth: 8, 10, or 12 bits per channel; 300 MHz pixel clock (HDMI)
Colors: 1.07 billion (10-bit processing)
Video Inputs: 6 HDMI digital video (HDCP compliant); 2 DTP or XTP (configurable)
Video Input Connectors: 6 female HDMI type A; 2 female RJ-45
Video Input Horizontal Frequency: 15 kHz to 100 kHz
Video Input Vertical Frequency: 24 Hz to 75 Hz
Video Input Resolution Range: 640x480 to 1600x1200 and 1920x1200 (reduced blanking); 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, and 2K through 4K at 30 Hz
Matrix Video Outputs (Non-Scaled): 2 HDMI digital video (HDCP compliant)
Matrix Video Output Connectors: 2 female HDMI
Scaled Twisted Pair Outputs: 4 DTP, XTP, or HDBaseT (configurable); 2 buffered HDMI digital video (HDCP compliant)
Scaled Output Connectors: 4 female RJ-45; 2 female HDMI
Video Output Power for Active Cables (HDMI Pin 18): 6.6 W total for all HDMI ports, 1.1 W per HDMI port maximum
Logos: 16 logos; resolution range up to 4096x2160; BMP, JPG, PNG, TIFF; transparency, RGB key, level key and alpha key effects
Twisted Pair Connectors: Female RJ-45
Termination Standard: TIA/EIA T568B
Signal Transmission Distance: DTP 330 mode: up to 330 ft (100 m) at resolutions through 1920x1200 and 1080p, and also at 2560x1600 reduced blanking and 4K at 30 Hz. DTP 230 mode: up to 230 ft (70 m) at resolutions through 1920x1200 and 1080p, and up to 130 ft (40 m) at 2560x1600 reduced blanking and 4K at 30 Hz. Distances assume shielded twisted pair cable or XTP DTP 24 TP cable.
Cable Requirements: Solid conductor, 24 AWG or better
Cable Recommendations: 400 MHz bandwidth, STP (shielded twisted pair)
Audio Routing: 8 x 6 stereo switching matrix; 4 x 4 microphone mixing matrix
Audio Gain: Unbalanced output: -6 dB; balanced output: 0 dB
Audio Frequency Response: 20 Hz to 20 kHz, plus or minus 0.2 dB
Audio Input Impedance: Greater than 10k ohms unbalanced, greater than 20k ohms balanced
Audio THD + Noise: 0.02% at 1 kHz nominal level
Audio Signal to Noise: 105 dB at maximum balanced output (unweighted)
Audio Crosstalk: Less than -90 dB, 20 Hz to 20 kHz, fully loaded
Stereo Channel Separation: Greater than 80 dB, 20 Hz to 20 kHz
Digital Conversion: 24-bit, 48 kHz
HDMI Audio Formats (Pass-Through): LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS-HD Master Audio, DTS-HD, DTS ES Discrete 6.1, DTS ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2 Channel
Audio Inputs: 6 stereo analog line level, balanced or unbalanced; 6 stereo de-embedded from HDMI (PCM only); 2 DTP (de-embedded from HDMI [PCM only] and remote balanced/unbalanced analog) or XTP (embedded digital)
Audio Input Connectors: (6) 3.5 mm captive screw connectors, 5-pole for analog line level inputs; 6 female HDMI type A; 2 female RJ-45
Analog Audio Nominal Level: +4 dBu, -10 dBV adjustable via input gain
Analog Audio Maximum Level: +21 dBu balanced, +15 dBu unbalanced
Analog Audio Input Gain Adjustment: -18 dB to +24 dB, 0.1 dB steps, adjustable per input
Mic/Line Inputs: 4 mono, mic/line, balanced or unbalanced, with phantom power
Mic/Line Connectors: (4) 3.5 mm captive screw connectors, 3-pole
Mic/Line Impedance: 10k ohms unbalanced, 20k ohms balanced
Mic/Line Nominal Level: -60 dBV, +4 dBu, -10 dBV, adjustable via input gain
Mic/Line Maximum Level: Greater than +21 dBu at rated THD+N when mic gain is set to 0 dB
Equivalent Input Noise: Less than -120 dBV (1.0 uVrms) at +40 dB input gain
CMRR: Greater than 70 dB typical
Mic/Line Input Gain Adjustment: -18 dB to +80 dB, in 0.1 dB steps, adjustable per input
Microphone Volume Range: -100 dB to +12 dB
DC Phantom Power: +48 VDC, plus or minus 10% (inputs 1-4), switched on or off
Audio Outputs: 4 HDMI embedded; 4 DTP (embedded digital and remote balanced/unbalanced analog), XTP (embedded digital), or HDBaseT (embedded digital); 4 stereo balanced/unbalanced analog (variable); 1 S/PDIF
Audio Output Connectors: 4 female HDMI; 4 RJ-45; (4) 3.5 mm captive screw, 5-pole; 1 RCA
Audio Output Impedance: Stereo audio: 50 ohms unbalanced, 100 ohms balanced; S/PDIF: 75 ohms
Audio Output Gain Error: Plus or minus 0.1 dB channel to channel
Audio Output Maximum Level (Hi-Z): Greater than +21 dBu balanced, or +15 dBu unbalanced
Output Volume Range: 0 to -100 dB in 0.1 dB steps
EXP Port: Proprietary transmission on 1 RJ-45; 16 channels Rx and 16 channels Tx; 24 bit, 48 kHz sampling, uncompressed; shielded CAT 6 up to 10 meters
Power Amplifier Output: 1 mono, 70 V
Power Amplifier Connector: (1) 5 mm screw lock captive screw connector, 2-pole; accepts wires of 22 AWG to 12 AWG
Power Amplifier Load Impedance: 50 ohms minimum
Power Amplifier Type: Class D
Power Amplifier Output Power: 100 watts (rms) at 70 V, 1 kHz, 0.1% THD
Power Amplifier High Pass Filter: 80 Hz, 12 dB/octave roll off
Power Amplifier Frequency Response: 80 Hz to 20 kHz, +1/-3 dB at 1 watt
Power Amplifier THD + Noise: Less than 0.1%, 1 kHz, 3 dB below clipping
Power Amplifier Signal to Noise: Greater than 90 dB, 20 Hz to 20 kHz, unweighted
Power Amplifier Protection: Clip limiting, thermal, short circuit, DC output
Serial Control Port: 1 bidirectional RS-232, 3.5 mm captive screw connector, 3-pole (rear panel)
Serial Baud Rate and Protocol: 9600 (default) to 115200 baud, 8 data bits, 1 stop bit, no parity (default)
Serial Control Pin Configuration: 1 = Tx, 2 = Rx, 3 = Gnd
USB Control Port: 1 front panel female USB mini-B; USB 2.0, low speed
Ethernet Control Port: 1 female RJ-45 connector
Ethernet Data Rate: 10/100Base-T, half/full duplex with autodetect
Ethernet Protocols: DHCP, DNS, HTTP, HTTPS, IEEE 802.1X, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP, ARP, Telnet
Ethernet Default Settings: Link speed and duplex level autodetected; IP address 192.168.254.254; subnet mask 255.255.0.0; default gateway 0.0.0.0; DHCP off
Web Server: Up to 200 simultaneous sessions; 40.0 MB nonvolatile user memory
Program Control: Extron control and configuration program for Windows; Extron Simple Instruction Set (SIS); web browser; Telnet
Serial Pass-Through Ports (RS-232 over Twisted Pair): RS-232 via (2) 3.5 mm 5-pole captive screw connectors at the switcher inputs/TP Tx and (2) at the switcher outputs/TP Rx, shared with the IR ports; 300 to 115200 baud; 8 or 7 data bits; 1 or 2 stop bits; no parity (default), even, odd, mark, or space parity; pin 1 = Tx, 2 = Rx, 3 = Gnd
IR Pass-Through Control Ports: TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz via (2) 3.5 mm 5-pole captive screw connectors at the inputs/TP Tx and (2) at the outputs/TP Rx, shared with the RS-232 ports; pin 3 = Gnd, 4 = IR Tx, 5 = IR Rx
Control Processor: Built-in Extron IPCP Pro xi control processor
Control Processor SDRAM: 512 MB
Control Processor Flash: 4.5 GB
Control Processor Software: Extron Global Configurator Plus and Professional for Windows
Control Options: GlobalViewer, TouchLink for Web, TouchLink for iPad, or TouchLink Pro touchpanels
Control Processor Network Interface Controllers: 1
Control Processor Network Switch: 1 unmanaged 3 port switch
Control Processor Ethernet Connectors: 3 female RJ-45 connectors
Control Processor Ethernet Data Rate: 10/100/1000Base-T, half/full duplex with autodetect
Control Processor Ethernet Protocols: DHCP, DNS, HTTP, HTTPS, ICMP, IEEE 802.1X, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP
Control Processor Ethernet Default Settings: Link speed and duplex level autodetected; IP address 192.168.254.250; subnet mask 255.255.255.0; gateway 0.0.0.0; DHCP off; DNS 127.0.0.1
Control Processor Serial Ports: 1 bidirectional RS-232, RS-422, RS-485 (port 1); 2 bidirectional RS-232 (ports 2 and 3)
Control Processor Serial Connectors: (1) 3.5 mm captive screw connector, 5-pole; (2) 3.5 mm captive screw connectors, 3-pole
Control Processor Serial Baud Rate and Protocol: 300 to 115200 baud (9600 baud default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits; no parity (default), even, odd, mark, or space parity
Control Processor Serial Pin Configurations: 5-pole captive screw, RS-232 (default): pin 1 = Tx, 2 = Rx, 3 = Gnd, 4 = RTS, 5 = CTS. RS-422: pin 1 = Tx-, 2 = Rx-, 3 = Gnd, 4 = Tx+, 5 = Rx+. RS-485: pins 1 and 2 tied together = data-, 3 = Gnd, pins 4 and 5 tied together = data+. 3-pole captive screw: pin 1 = Tx, 2 = Rx, 3 = Gnd.
Digital I/O Control: 4 digital input/output (configurable); (1) 3.5 mm captive screw connector, 5-pole
Digital Input Voltage Range: 0 to 24 VDC, clamped at +30 VDC
Digital Input Impedance: 29k ohms
Digital Input Programmable Pullup: 1k ohms to +5 VDC
Digital Input Thresholds: Low to high: greater than 2.8 VDC; high to low: less than 2.0 VDC
Digital Outputs: 250 mA sink from 24 VDC maximum
Digital I/O Pin Configuration: 1, 2, 3, 4 = digital I/Os 1, 2, 3, 4; 5 = Gnd
IR/Serial Control Ports: 2 programmable: unidirectional RS-232 (plus or minus 5 V) or TTL level (0 to 5 V) infrared, carrier and non-carrier, up to 300 kHz; (1) 3.5 mm captive screw connector, 5-pole; 300 to 115200 baud (9600 baud default); for each port, pin 1 = signal, 2 = Gnd
IR Output Carrier Frequency: 30 kHz to 300 kHz
Relay Control: 4 normally open relays; (1) 6-pole captive screw connector; contact rating 24 VDC, 1 A
Power Supply: Internal; input 100-240 VAC, 50-60 Hz
Power Consumption: 148 watts
Remote Power Capability: Supports up to six endpoints (two DTP Tx, four DTP Rx); remote power is not available in XTP and HDBaseT modes
Operating Temperature/Humidity: +32 to +122 degrees F (0 to +50 degrees C), 10% to 90% noncondensing
Storage Temperature/Humidity: -40 to +158 degrees F (-40 to +70 degrees C), 10% to 90% noncondensing
Cooling: Fans; air flows from right to left as viewed from the front panel
Thermal Dissipation: 375 BTU/hr
Mounting: Rack mount
Enclosure Type: Metal
Enclosure Dimensions: 5.25 in H x 17.4 in W x 16 in D (3U high, full rack wide); 13.3 cm H x 44.2 cm W x 40.6 cm D. Depth excludes connectors and knobs; width excludes rack ears.
Product Weight: 17 lbs (7.7 kg)
Regulatory Compliance: CE, C-tick, c-UL, FCC Class A, ICES, UL, KC, VCCI; complies with the appropriate requirements of RoHS and WEEE
Product Warranty: 3 years parts and labor
Everlast Power Supply Warranty: 7 years parts and labor

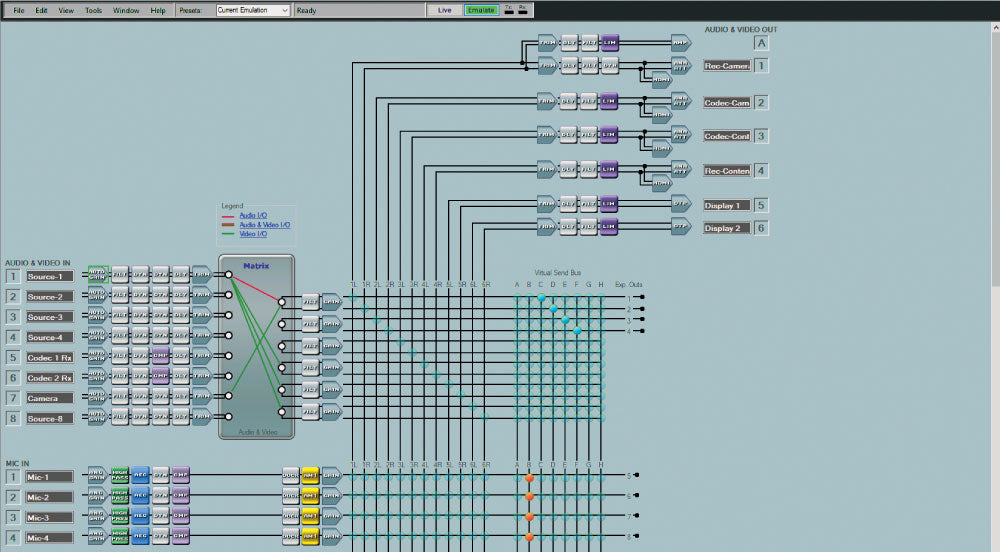

Diagram
Diagram
Resources
Resources
Brochure | DTP CrossPoint 86 4K IPCP MA 70 60-1382-23A | Everlast Power Supplies
Brochure | DTP CrossPoint 86 4K IPCP MA 70 60-1382-23A | Extron Government Solutions
Brochure | DTP CrossPoint 86 4K IPCP MA 70 60-1382-23A | Alimentatori Everlast
Brochure | DTP CrossPoint 86 4K IPCP MA 70 60-1382-23A | DTP CrossPoint 4K 系列
Brochure | DTP CrossPoint 86 4K IPCP MA 70 60-1382-23A | DTP CrossPoint 4K-Serie
Brochure | DTP CrossPoint 86 4K IPCP MA 70 60-1382-23A | Everlast 电源
Brochure | DTP CrossPoint 86 4K IPCP MA 70 60-1382-23A | Everlast-Netzteile
Brochure | DTP CrossPoint 86 4K IPCP MA 70 60-1382-23A | Extron-Lösungen für Behörden
Brochure | DTP CrossPoint 86 4K IPCP MA 70 60-1382-23A | Fuentes de alimentación Everlast
Brochure | DTP CrossPoint 86 4K IPCP MA 70 60-1382-23A | Gamme DTP CrossPoint 4K
Brochure | DTP CrossPoint 86 4K IPCP MA 70 60-1382-23A | Soluzioni Extron per ambienti governativi
Brochure | DTP CrossPoint 86 4K IPCP MA 70 60-1382-23A | Sources d'alimentation Everlast
Brochure | DTP CrossPoint 86 4K IPCP MA 70 60-1382-23A | Серия DTP CrossPoint 4K
Manual | DTP CrossPoint 86 4K IPCP MA 70 60-1382-23A | Cleaning Instruction Card
Manual | DTP CrossPoint 86 4K IPCP MA 70 60-1382-23A | DTP Compatibility Guide
Manual | DTP CrossPoint 86 4K IPCP MA 70 60-1382-23A | DTP CrossPoint 4K Series Setup Guide
Manual | DTP CrossPoint 86 4K IPCP MA 70 60-1382-23A | DTP CrossPoint 4K Series User Guide
Manual | DTP CrossPoint 86 4K IPCP MA 70 60-1382-23A | IPCP Pro Q xi and xi Series User Guide
Manual | DTP CrossPoint 86 4K IPCP MA 70 60-1382-23A | DTP互換性ガイド
Panel Drawing | DTP CrossPoint 86 4K IPCP MA 70 60-1382-23A | DTP CrossPoint 86 4K
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Extron DTP CrossPoint 86 4K IPCP MA 70 8x6 4K Matrix Switcher 60-1382-23A
Extron DTP CrossPoint 86 4K IPCP MA 70 8x6 4K Matrix Switcher 60-1382-23A
Manufacturer: Extron
Type: DTP Systems
Extron DTP CrossPoint 86 4K IPCP MA 70 8x6 4K Matrix Switcher
- • Includes the LL UI Upgrade for an extended LinkLicense operator interface
- • 8x6 seamless 4K matrix switching in a 3U full-rack chassis
- • 100 watts rms at 70 V mono from a Class D amplifier stage
- • IPCP Pro xi processor: 512 MB SDRAM, 4.5 GB flash, 3-port Gigabit switch
- • Four 24 VDC 1 A relays and four configurable digital I/O points
- • Remote power for six DTP endpoints, two Tx and four Rx
- • 148 watts consumption and 375 BTU/hr thermal dissipation
- • 17 lbs metal enclosure with 3 year and 7 year Everlast warranties
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron DTP CrossPoint 86 4K IPCP MA 70 (part number 60-1382-23A) bundles the 8x6 scaling matrix, the 70-volt mono amplifier and the LL UI Upgrade into one ordering code, so an entire room can be specified from a single line item.
Behind the front panel sits an IPCP Pro xi processor sharing the chassis with the switcher. It uses a single network interface fronted by an unmanaged three-port Gigabit switch, and adds three serial ports (one of them selectable for RS-232, RS-422 or RS-485), four configurable digital I/O points, two IR or one-way serial ports, and four normally open relays rated 24 VDC at 1 A. Programming happens in Global Configurator Plus or Professional, while operators reach the room through GlobalViewer, a TouchLink Pro panel, an iPad or a browser. The LinkLicense user-interface upgrade supplied with this part widens what that interface can present.
Key Capabilities
- LL UI Upgrade included, extending the LinkLicense operator interface
- Three-port unmanaged Gigabit switch built into the control processor
- Four relays rated 24 VDC at 1 A plus four configurable digital I/O points
- 100 watts rms at 70 V mono, with clip limiting, thermal, short circuit and DC protection
- 8x6 video and 8x6 audio matrices fed by six HDMI and two twisted pair inputs
- Six endpoints powered remotely over DTP, two transmitters and four receivers
Where It Is Used
Distance-learning suites, clustered corporate boardrooms, transit operations centers, medical device training rooms and performing arts complexes specify this build when the control interface must be tailored and the house speakers already sit on a 70-volt distribution line.
Specifications at a Glance
- Control processor with 512 MB SDRAM and 4.5 GB flash
- Eight video inputs, six video outputs, four mic/line channels
- 3U high, full rack wide; 17 lbs; 148 watts
- Operating range +32 to +122 degrees F, 10% to 90% noncondensing
- Three year product warranty and seven year Everlast supply warranty
Also referenced as Extron DTPCrossPoint864KIPCPMA70, DTP-CrossPoint-86-4K-IPCP-MA-70, part number 60138223A.
Specifications
Specifications
Part Number: 60-1382-23A
Manufacturer: Extron
Model: DTP CrossPoint 86 4K IPCP MA 70 with LL UI Upgrade
Condition: New
Video Routing: 8 x 6 matrix
Maximum Data Rate: 10.2 Gbps (3.4 Gbps per color)
Maximum Pixel Clock: 300 MHz (600 MHz for 4K rates with 4:2:0 chroma subsampling)
Resolution: Up to 2560x1600 (reduced blanking) at 60 Hz, or 4K (4096x2160) at 30 Hz and UHD (3840x2160) at 30 Hz; 4K/UHD at 60 Hz with 4:2:0 chroma subsampling is supported only at the non-scaled HDMI outputs
Formats: RGB and YCbCr digital video
Standards: DVI 1.0, HDMI 1.4, HDCP 1.4, CEA-861E
Signal Type: HDMI 1.4, HDCP 1.4
Frame Rate: 24, 25, 30, 50, or 60 fps, subject to the maximum data rate limit
Chroma Sampling: 4:4:4, 4:2:2, or 4:2:0, subject to the maximum data rate limit
Color Bit Depth: 8 bits per color, subject to the maximum data rate limit
Digital Pixel Data Bit Depth: 8, 10, or 12 bits per channel; 300 MHz pixel clock (HDMI)
Colors: 1.07 billion (10-bit processing)
Video Inputs: 6 HDMI digital video (HDCP compliant); 2 DTP or XTP (configurable)
Video Input Connectors: 6 female HDMI type A; 2 female RJ-45
Video Input Horizontal Frequency: 15 kHz to 100 kHz
Video Input Vertical Frequency: 24 Hz to 75 Hz
Video Input Resolution Range: 640x480 to 1600x1200 and 1920x1200 (reduced blanking); 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, and 2K through 4K at 30 Hz
Matrix Video Outputs (Non-Scaled): 2 HDMI digital video (HDCP compliant)
Matrix Video Output Connectors: 2 female HDMI
Scaled Twisted Pair Outputs: 4 DTP, XTP, or HDBaseT (configurable); 2 buffered HDMI digital video (HDCP compliant)
Scaled Output Connectors: 4 female RJ-45; 2 female HDMI
Video Output Power for Active Cables (HDMI Pin 18): 6.6 W total for all HDMI ports, 1.1 W per HDMI port maximum
Logos: 16 logos; resolution range up to 4096x2160; BMP, JPG, PNG, TIFF; transparency, RGB key, level key and alpha key effects
Twisted Pair Connectors: Female RJ-45
Termination Standard: TIA/EIA T568B
Signal Transmission Distance: DTP 330 mode: up to 330 ft (100 m) at resolutions through 1920x1200 and 1080p, and also at 2560x1600 reduced blanking and 4K at 30 Hz. DTP 230 mode: up to 230 ft (70 m) at resolutions through 1920x1200 and 1080p, and up to 130 ft (40 m) at 2560x1600 reduced blanking and 4K at 30 Hz. Distances assume shielded twisted pair cable or XTP DTP 24 TP cable.
Cable Requirements: Solid conductor, 24 AWG or better
Cable Recommendations: 400 MHz bandwidth, STP (shielded twisted pair)
Audio Routing: 8 x 6 stereo switching matrix; 4 x 4 microphone mixing matrix
Audio Gain: Unbalanced output: -6 dB; balanced output: 0 dB
Audio Frequency Response: 20 Hz to 20 kHz, plus or minus 0.2 dB
Audio Input Impedance: Greater than 10k ohms unbalanced, greater than 20k ohms balanced
Audio THD + Noise: 0.02% at 1 kHz nominal level
Audio Signal to Noise: 105 dB at maximum balanced output (unweighted)
Audio Crosstalk: Less than -90 dB, 20 Hz to 20 kHz, fully loaded
Stereo Channel Separation: Greater than 80 dB, 20 Hz to 20 kHz
Digital Conversion: 24-bit, 48 kHz
HDMI Audio Formats (Pass-Through): LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS-HD Master Audio, DTS-HD, DTS ES Discrete 6.1, DTS ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2 Channel
Audio Inputs: 6 stereo analog line level, balanced or unbalanced; 6 stereo de-embedded from HDMI (PCM only); 2 DTP (de-embedded from HDMI [PCM only] and remote balanced/unbalanced analog) or XTP (embedded digital)
Audio Input Connectors: (6) 3.5 mm captive screw connectors, 5-pole for analog line level inputs; 6 female HDMI type A; 2 female RJ-45
Analog Audio Nominal Level: +4 dBu, -10 dBV adjustable via input gain
Analog Audio Maximum Level: +21 dBu balanced, +15 dBu unbalanced
Analog Audio Input Gain Adjustment: -18 dB to +24 dB, 0.1 dB steps, adjustable per input
Mic/Line Inputs: 4 mono, mic/line, balanced or unbalanced, with phantom power
Mic/Line Connectors: (4) 3.5 mm captive screw connectors, 3-pole
Mic/Line Impedance: 10k ohms unbalanced, 20k ohms balanced
Mic/Line Nominal Level: -60 dBV, +4 dBu, -10 dBV, adjustable via input gain
Mic/Line Maximum Level: Greater than +21 dBu at rated THD+N when mic gain is set to 0 dB
Equivalent Input Noise: Less than -120 dBV (1.0 uVrms) at +40 dB input gain
CMRR: Greater than 70 dB typical
Mic/Line Input Gain Adjustment: -18 dB to +80 dB, in 0.1 dB steps, adjustable per input
Microphone Volume Range: -100 dB to +12 dB
DC Phantom Power: +48 VDC, plus or minus 10% (inputs 1-4), switched on or off
Audio Outputs: 4 HDMI embedded; 4 DTP (embedded digital and remote balanced/unbalanced analog), XTP (embedded digital), or HDBaseT (embedded digital); 4 stereo balanced/unbalanced analog (variable); 1 S/PDIF
Audio Output Connectors: 4 female HDMI; 4 RJ-45; (4) 3.5 mm captive screw, 5-pole; 1 RCA
Audio Output Impedance: Stereo audio: 50 ohms unbalanced, 100 ohms balanced; S/PDIF: 75 ohms
Audio Output Gain Error: Plus or minus 0.1 dB channel to channel
Audio Output Maximum Level (Hi-Z): Greater than +21 dBu balanced, or +15 dBu unbalanced
Output Volume Range: 0 to -100 dB in 0.1 dB steps
EXP Port: Proprietary transmission on 1 RJ-45; 16 channels Rx and 16 channels Tx; 24 bit, 48 kHz sampling, uncompressed; shielded CAT 6 up to 10 meters
Power Amplifier Output: 1 mono, 70 V
Power Amplifier Connector: (1) 5 mm screw lock captive screw connector, 2-pole; accepts wires of 22 AWG to 12 AWG
Power Amplifier Load Impedance: 50 ohms minimum
Power Amplifier Type: Class D
Power Amplifier Output Power: 100 watts (rms) at 70 V, 1 kHz, 0.1% THD
Power Amplifier High Pass Filter: 80 Hz, 12 dB/octave roll off
Power Amplifier Frequency Response: 80 Hz to 20 kHz, +1/-3 dB at 1 watt
Power Amplifier THD + Noise: Less than 0.1%, 1 kHz, 3 dB below clipping
Power Amplifier Signal to Noise: Greater than 90 dB, 20 Hz to 20 kHz, unweighted
Power Amplifier Protection: Clip limiting, thermal, short circuit, DC output
Serial Control Port: 1 bidirectional RS-232, 3.5 mm captive screw connector, 3-pole (rear panel)
Serial Baud Rate and Protocol: 9600 (default) to 115200 baud, 8 data bits, 1 stop bit, no parity (default)
Serial Control Pin Configuration: 1 = Tx, 2 = Rx, 3 = Gnd
USB Control Port: 1 front panel female USB mini-B; USB 2.0, low speed
Ethernet Control Port: 1 female RJ-45 connector
Ethernet Data Rate: 10/100Base-T, half/full duplex with autodetect
Ethernet Protocols: DHCP, DNS, HTTP, HTTPS, IEEE 802.1X, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP, ARP, Telnet
Ethernet Default Settings: Link speed and duplex level autodetected; IP address 192.168.254.254; subnet mask 255.255.0.0; default gateway 0.0.0.0; DHCP off
Web Server: Up to 200 simultaneous sessions; 40.0 MB nonvolatile user memory
Program Control: Extron control and configuration program for Windows; Extron Simple Instruction Set (SIS); web browser; Telnet
Serial Pass-Through Ports (RS-232 over Twisted Pair): RS-232 via (2) 3.5 mm 5-pole captive screw connectors at the switcher inputs/TP Tx and (2) at the switcher outputs/TP Rx, shared with the IR ports; 300 to 115200 baud; 8 or 7 data bits; 1 or 2 stop bits; no parity (default), even, odd, mark, or space parity; pin 1 = Tx, 2 = Rx, 3 = Gnd
IR Pass-Through Control Ports: TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz via (2) 3.5 mm 5-pole captive screw connectors at the inputs/TP Tx and (2) at the outputs/TP Rx, shared with the RS-232 ports; pin 3 = Gnd, 4 = IR Tx, 5 = IR Rx
Control Processor: Built-in Extron IPCP Pro xi control processor
Control Processor SDRAM: 512 MB
Control Processor Flash: 4.5 GB
Control Processor Software: Extron Global Configurator Plus and Professional for Windows
Control Options: GlobalViewer, TouchLink for Web, TouchLink for iPad, or TouchLink Pro touchpanels
Control Processor Network Interface Controllers: 1
Control Processor Network Switch: 1 unmanaged 3 port switch
Control Processor Ethernet Connectors: 3 female RJ-45 connectors
Control Processor Ethernet Data Rate: 10/100/1000Base-T, half/full duplex with autodetect
Control Processor Ethernet Protocols: DHCP, DNS, HTTP, HTTPS, ICMP, IEEE 802.1X, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP
Control Processor Ethernet Default Settings: Link speed and duplex level autodetected; IP address 192.168.254.250; subnet mask 255.255.255.0; gateway 0.0.0.0; DHCP off; DNS 127.0.0.1
Control Processor Serial Ports: 1 bidirectional RS-232, RS-422, RS-485 (port 1); 2 bidirectional RS-232 (ports 2 and 3)
Control Processor Serial Connectors: (1) 3.5 mm captive screw connector, 5-pole; (2) 3.5 mm captive screw connectors, 3-pole
Control Processor Serial Baud Rate and Protocol: 300 to 115200 baud (9600 baud default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits; no parity (default), even, odd, mark, or space parity
Control Processor Serial Pin Configurations: 5-pole captive screw, RS-232 (default): pin 1 = Tx, 2 = Rx, 3 = Gnd, 4 = RTS, 5 = CTS. RS-422: pin 1 = Tx-, 2 = Rx-, 3 = Gnd, 4 = Tx+, 5 = Rx+. RS-485: pins 1 and 2 tied together = data-, 3 = Gnd, pins 4 and 5 tied together = data+. 3-pole captive screw: pin 1 = Tx, 2 = Rx, 3 = Gnd.
Digital I/O Control: 4 digital input/output (configurable); (1) 3.5 mm captive screw connector, 5-pole
Digital Input Voltage Range: 0 to 24 VDC, clamped at +30 VDC
Digital Input Impedance: 29k ohms
Digital Input Programmable Pullup: 1k ohms to +5 VDC
Digital Input Thresholds: Low to high: greater than 2.8 VDC; high to low: less than 2.0 VDC
Digital Outputs: 250 mA sink from 24 VDC maximum
Digital I/O Pin Configuration: 1, 2, 3, 4 = digital I/Os 1, 2, 3, 4; 5 = Gnd
IR/Serial Control Ports: 2 programmable: unidirectional RS-232 (plus or minus 5 V) or TTL level (0 to 5 V) infrared, carrier and non-carrier, up to 300 kHz; (1) 3.5 mm captive screw connector, 5-pole; 300 to 115200 baud (9600 baud default); for each port, pin 1 = signal, 2 = Gnd
IR Output Carrier Frequency: 30 kHz to 300 kHz
Relay Control: 4 normally open relays; (1) 6-pole captive screw connector; contact rating 24 VDC, 1 A
Power Supply: Internal; input 100-240 VAC, 50-60 Hz
Power Consumption: 148 watts
Remote Power Capability: Supports up to six endpoints (two DTP Tx, four DTP Rx); remote power is not available in XTP and HDBaseT modes
Operating Temperature/Humidity: +32 to +122 degrees F (0 to +50 degrees C), 10% to 90% noncondensing
Storage Temperature/Humidity: -40 to +158 degrees F (-40 to +70 degrees C), 10% to 90% noncondensing
Cooling: Fans; air flows from right to left as viewed from the front panel
Thermal Dissipation: 375 BTU/hr
Mounting: Rack mount
Enclosure Type: Metal
Enclosure Dimensions: 5.25 in H x 17.4 in W x 16 in D (3U high, full rack wide); 13.3 cm H x 44.2 cm W x 40.6 cm D. Depth excludes connectors and knobs; width excludes rack ears.
Product Weight: 17 lbs (7.7 kg)
Regulatory Compliance: CE, C-tick, c-UL, FCC Class A, ICES, UL, KC, VCCI; complies with the appropriate requirements of RoHS and WEEE
Product Warranty: 3 years parts and labor
Everlast Power Supply Warranty: 7 years parts and labor
Diagram
Diagram
Resources
Resources
Brochure | DTP CrossPoint 86 4K IPCP MA 70 60-1382-23A | Everlast Power Supplies
Brochure | DTP CrossPoint 86 4K IPCP MA 70 60-1382-23A | Extron Government Solutions
Brochure | DTP CrossPoint 86 4K IPCP MA 70 60-1382-23A | Alimentatori Everlast
Brochure | DTP CrossPoint 86 4K IPCP MA 70 60-1382-23A | DTP CrossPoint 4K 系列
Brochure | DTP CrossPoint 86 4K IPCP MA 70 60-1382-23A | DTP CrossPoint 4K-Serie
Brochure | DTP CrossPoint 86 4K IPCP MA 70 60-1382-23A | Everlast 电源
Brochure | DTP CrossPoint 86 4K IPCP MA 70 60-1382-23A | Everlast-Netzteile
Brochure | DTP CrossPoint 86 4K IPCP MA 70 60-1382-23A | Extron-Lösungen für Behörden
Brochure | DTP CrossPoint 86 4K IPCP MA 70 60-1382-23A | Fuentes de alimentación Everlast
Brochure | DTP CrossPoint 86 4K IPCP MA 70 60-1382-23A | Gamme DTP CrossPoint 4K
Brochure | DTP CrossPoint 86 4K IPCP MA 70 60-1382-23A | Soluzioni Extron per ambienti governativi
Brochure | DTP CrossPoint 86 4K IPCP MA 70 60-1382-23A | Sources d'alimentation Everlast
Brochure | DTP CrossPoint 86 4K IPCP MA 70 60-1382-23A | Серия DTP CrossPoint 4K
Manual | DTP CrossPoint 86 4K IPCP MA 70 60-1382-23A | Cleaning Instruction Card
Manual | DTP CrossPoint 86 4K IPCP MA 70 60-1382-23A | DTP Compatibility Guide
Manual | DTP CrossPoint 86 4K IPCP MA 70 60-1382-23A | DTP CrossPoint 4K Series Setup Guide
Manual | DTP CrossPoint 86 4K IPCP MA 70 60-1382-23A | DTP CrossPoint 4K Series User Guide
Manual | DTP CrossPoint 86 4K IPCP MA 70 60-1382-23A | IPCP Pro Q xi and xi Series User Guide
Manual | DTP CrossPoint 86 4K IPCP MA 70 60-1382-23A | DTP互換性ガイド
Panel Drawing | DTP CrossPoint 86 4K IPCP MA 70 60-1382-23A | DTP CrossPoint 86 4K
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
