Extron DTP CrossPoint 84 4K IPCP SA 8x4 Scaling Presentation Matrix Switcher
- • Includes the LinkLicense user-interface upgrade with the 2 x 50 W amp build
- • 8x4 matrix switching, seamless scaling, 4096x2160 at 30 Hz maximum
- • Class D amplifier delivers 25 W per channel at 8 ohms, 50 W at 4 ohms
- • IPCP control processor with 512 MB SDRAM and 4.5 GB flash memory
- • 8x4 stereo audio matrix plus a 4x4 mic mixing matrix in one chassis
- • Three-port 10/100/1000 AV LAN switch for control processor networking
- • 2U full rack width, 3.5 x 17.4 x 15.3 in., 14 lbs (6.4 kg)
- • Extron 3-year parts and labor warranty; 7-year Everlast supply warranty
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

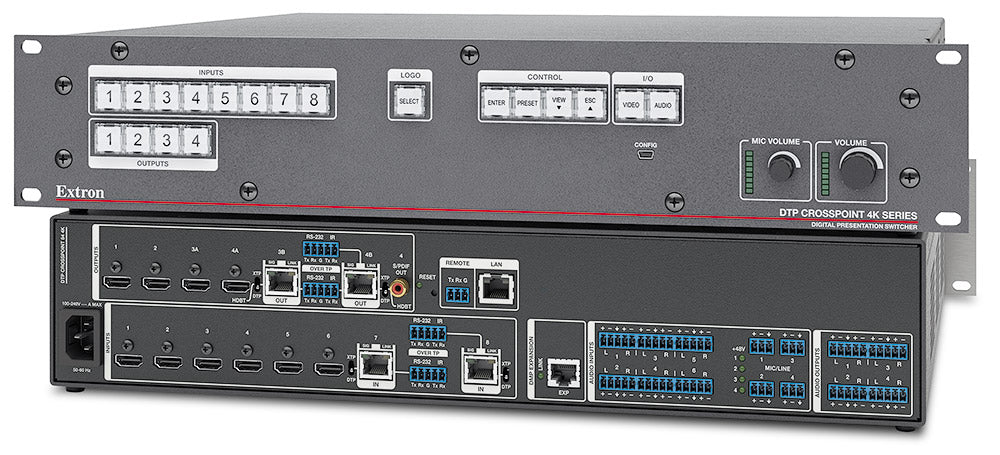

Extron DTP CrossPoint 84 4K IPCP SA (part number 60-1515-22A) — the 2 x 50 W stereo amplifier build of this 8x4 scaling matrix switcher, supplied together with the LinkLicense user-interface upgrade.
Two ordering decisions are folded into this single dash number: the amplified SA chassis, and the LinkLicense entitlement that expands the user interface. Underneath, the hardware is the standard 84 4K IPCP SA — eight inputs, four outputs, seamless switching, an audio matrix with microphone mixing, and a control processor sitting on its own three-port network switch. Specifying it this way keeps the licence tied to the same purchase order as the hardware.
Key Capabilities
- LinkLicense user-interface upgrade supplied alongside the 2 x 50 W amplifier configuration.
- 8 x 4 matrix switching with seamless transitions and a 4096x2160 at 30 Hz ceiling.
- Class D amplification delivering 25 watts rms per channel into 8 ohms and 50 watts into 4 ohms.
- IPCP control processor with 512 MB SDRAM and 4.5 GB flash memory.
- 8 x 4 stereo audio matrix plus a 4 x 4 microphone mixing matrix in the same chassis.
- Unmanaged three-port 10/100/1000 AV LAN switch for control processor networking.
Where It Is Used
Teaching hospitals, biomedical training centers, corporate learning rooms, council chambers and multipurpose halls that are commissioned once and expected to run for years, where the operator-facing interface matters as much as the switching underneath it.
Specifications at a Glance
- 8 x 4 video and 8 x 4 stereo audio routing; 4 x 4 mic mix
- Six HDMI plus two DTP/XTP inputs; two HDMI and two scaled TP outputs
- 136 watts power consumption; 355 BTU/hr thermal dissipation
- 2U full rack width; 3.5 in. H x 17.4 in. W x 15.3 in. D; 14 lbs (6.4 kg)
- Extron 3-year parts and labor warranty; 7-year Everlast supply warranty
Also referenced as Extron DTPCrossPoint844KIPCPSA, DTP-CrossPoint-84-4K-IPCP-SA, part number 60151522A.
