Extron DTP CrossPoint 84 4K IPCP SA 8x4 Scaling Presentation Matrix Switcher
- • Routes eight sources to four destinations with independent output scaling
- • Four HDMI embedded, two DTP, four analog stereo and one S/PDIF audio output
- • 512 MB SDRAM and 4.5 GB flash on the built-in IPCP control processor
- • Class D amplifier rated 50 watts per channel into a 4 ohm load
- • Four mic/line inputs with +48 VDC phantom power, switchable per input
- • Consumes 136 watts and dissipates 355 BTU/hr in SA configuration
- • Rack mounts in 2U at 3.5 in. H x 17.4 in. W x 15.3 in. D
- • Everlast internal power supply covered for 7 years parts and labor
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

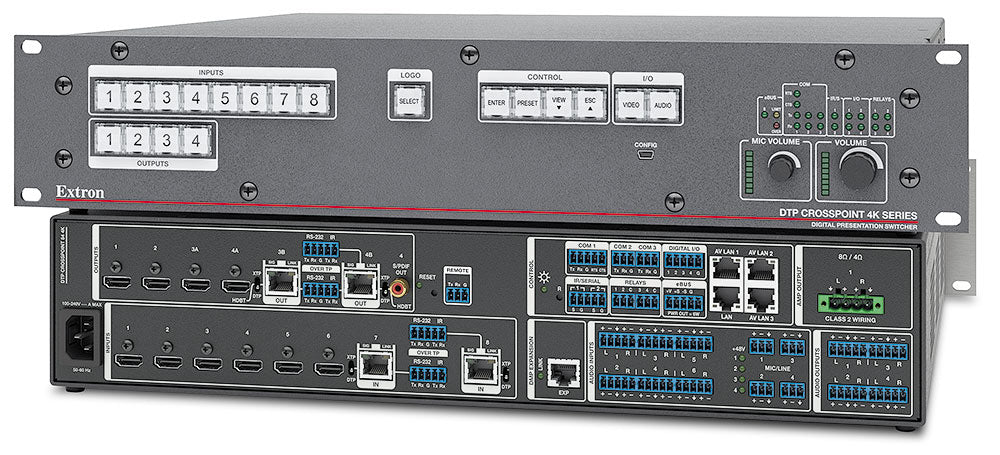

Extron DTP CrossPoint 84 4K IPCP SA (part number 60-1515-12A) — a 2U presentation matrix that routes eight sources to four destinations, scales the twisted pair outputs, mixes microphones and drives loudspeakers from one chassis.
The value here is consolidation. A room built around this unit does not need a separate scaler, a separate mixer-amplifier or a separate control processor: the switching fabric, the 4 x 4 microphone mix, the Class D amplifier and the IPCP controller share one power supply and one network drop. Commissioning happens through Global Configurator, and operators reach the system from a touchpanel or a browser.
Key Capabilities
- Eight inputs — six HDMI and two DTP or XTP twisted pair — feeding a 8 x 4 routing matrix.
- Audio outputs cover four HDMI embedded streams, two DTP, four analog stereo pairs and one S/PDIF.
- 512 MB SDRAM and 4.5 GB flash on the integrated IPCP control processor.
- Four mic/line inputs with per-input +48 VDC phantom power and gain from -18 dB to +80 dB.
- Class D amplification rated at 50 watts per channel into a 4 ohm load.
- Four relays, four configurable digital I/O points and three serial ports for device control.
Where It Is Used
Hospital auditoriums, medical device training rooms, higher-education seminar spaces, corporate divisible rooms and emergency operations centers, where reliability matters more than feature sprawl and every rack unit saved is a rack unit available for something else.
Specifications at a Glance
- 8 x 4 video matrix; 8 x 4 stereo audio matrix; 4 x 4 mic mixing matrix
- 136 watts consumed; 355 BTU/hr dissipated
- Rack mounts in 2U: 3.5 in. H x 17.4 in. W x 15.3 in. D
- Product weight 14 lbs (6.4 kg); metal enclosure
- Everlast internal power supply carries a 7-year parts and labor warranty
Also referenced as Extron DTPCrossPoint844KIPCPSA, DTP-CrossPoint-84-4K-IPCP-SA, part number 60151512A.
