Extron DTP CrossPoint 84 4K IPCP SA 8x4 Scaling Presentation Matrix Switcher
- • 8x4 presentation matrix switcher with seamless scaling to 4K at 30 Hz
- • Six HDMI inputs plus two configurable DTP or XTP twisted pair inputs
- • IPCP control processor with 512 MB SDRAM and 4.5 GB flash storage
- • Two HDMI matrix outputs and two scaled DTP, XTP or HDBaseT outputs
- • Integrated Class D stereo amplifier, 25 W per channel into 8 ohms
- • 8x4 stereo audio matrix with a 4x4 microphone mixing matrix built in
- • 2U full-rack-width metal enclosure weighing 14 lbs (6.4 kg)
- • Three-year parts and labor warranty from Extron
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

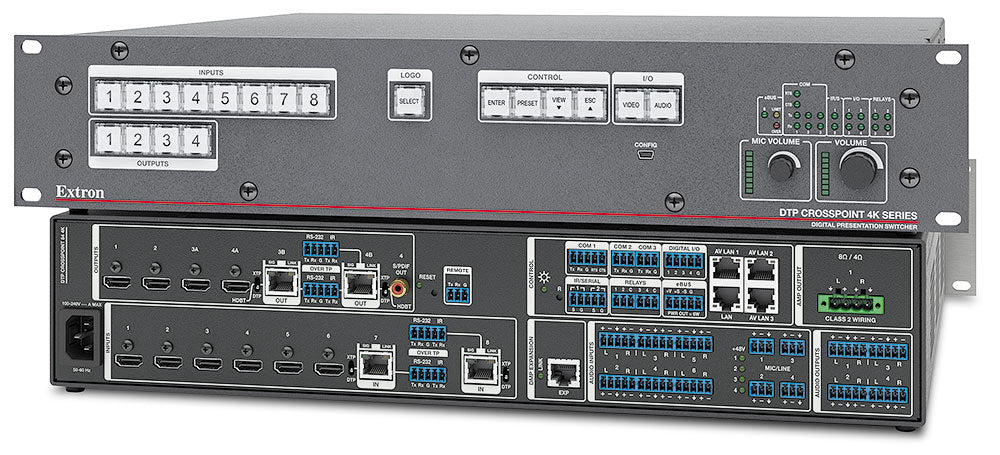

Extron DTP CrossPoint 84 4K IPCP SA (part number 60-1515-12) — an 8x4 presentation matrix switcher that pairs seamless 4K scaling with an onboard IPCP control processor and a stereo power amplifier.
Rather than stacking a switcher, a mixer, a controller and an amplifier into four separate rack spaces, this model puts all four functions behind one front panel. The eight inputs cover six HDMI connections and two twisted pair ports that can be set to DTP or XTP, so laptops at the table and a remote source across the building arrive at the same matrix. Output scaling runs independently on each twisted pair destination.
Key Capabilities
- 8 x 4 video routing with seamless switching and independent scaling on the twisted pair outputs.
- Six HDMI inputs plus two configurable DTP or XTP twisted pair inputs.
- Two HDMI matrix outputs, two scaled DTP/XTP/HDBaseT outputs and two buffered HDMI outputs.
- IPCP control processor with 512 MB of SDRAM and 4.5 GB of flash, four relays, four digital I/O points and three serial ports.
- 8 x 4 stereo audio matrix layered with a 4 x 4 microphone mixing matrix and four mic/line inputs.
- Class D stereo amplifier producing 25 watts rms per channel into 8 ohms.
Where It Is Used
Mid-size conference rooms, teaching hospitals, university lecture theatres, government briefing rooms and corporate training suites — rooms that need several displays fed at different rates, a live microphone mix routed to ceiling speakers, and a control system reachable over the building network.
Specifications at a Glance
- Maximum resolution 4096x2160 at 30 Hz; 10.2 Gbps data rate
- Twisted pair reach up to 330 ft (100 m) in DTP 330 mode
- 136 watts consumption; 355 BTU/hr dissipation
- 2U full-rack-width metal chassis, 14 lbs (6.4 kg)
- 3 years parts and labor; Everlast power supply covered 7 years
Also referenced as Extron DTPCrossPoint844KIPCPSA, DTP-CrossPoint-84-4K-IPCP-SA, part number 60151512.
