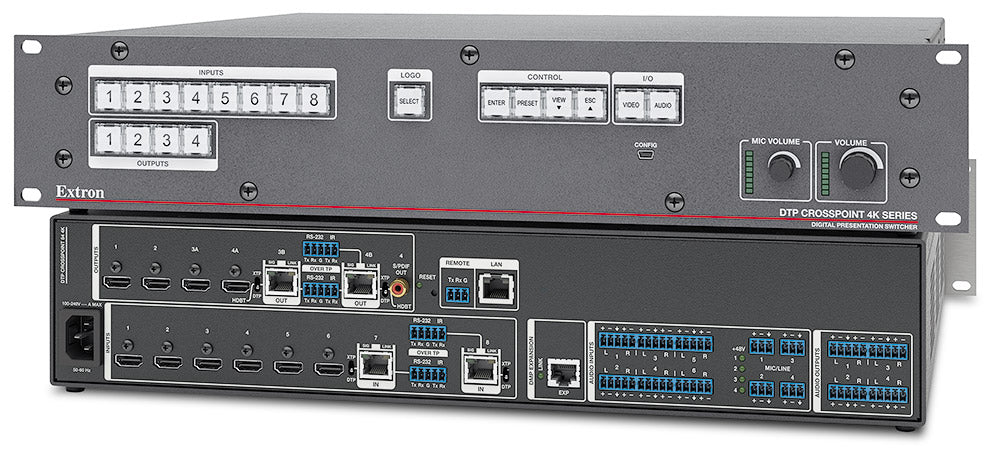

Extron DTP CrossPoint 84 4K 8x4 Matrix Switcher
- • Extron DTP CrossPoint 84 4K 8x4 matrix switcher preamp
- • Preamp-level outputs for use with an external amp
- • Vector 4K scaling on every DTP output
- • Sales, replacement and exchange
- • Part# 60-1515-01 / 60151501
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron DTP CrossPoint 84 4K (part number 60-1515-01) - an all-in-one 8x4 4K matrix switcher, scaler, audio DSP, and preamp-output chassis built to replace a rack of separate boxes.
Rooms that need multiple displays, sound reinforcement, and centralized control usually end up with a switcher, a scaler, a DSP, an amplifier and a control processor stacked in a rack. The DTP CrossPoint 84 4K folds those into a single 2U chassis with six HDMI inputs and two DTP twisted-pair inputs, switching to two HDMI outputs plus two independently scaled DTP outputs, Extron's Vector 4K scaling engine on every DTP output, and a full ProDSP audio engine with four channels of acoustic echo cancellation for conferencing. This unit carries no integrated power amplifier - unamplified preamp-level outputs for use with an external amp and no built-in control processor.
Key Capabilities
- 8x4 4K matrix switching with Vector 4K scaling on every DTP output
- Six HDMI and two DTP/XTP-configurable inputs, HDCP compliant throughout
- Preamp-level outputs with no built-in amplifier, for pairing with an external amp
- Ships without a control processor for use with an external Extron controller
- Four-channel AEC and automixing for up to eight microphone zones
- DTP extension up to 330 ft (100 m) to DTP 330 endpoints over shielded twisted pair
The DTP CrossPoint 84 4K is built for boardrooms, divisible classrooms, houses of worship and control rooms that need 8x4 video switching, sound reinforcement, and centralized AV control from a single rack space, without wiring together a switcher, scaler, amplifier and controller separately.
Specifications at a Glance
- Matrix: 8x4 with 4K scaling on DTP outputs
- Inputs: 6 HDMI + 2 DTP/XTP (configurable)
- Amplifier: no integrated power amplifier - unamplified preamp-level outputs for use with an external amp
- Control: no built-in control processor
- Enclosure: 2U rack mount, metal
Also referenced as Extron DTPCrossPoint844K, DTP-CrossPoint-84-4K, part number 60151501.
Frequently asked questions about the Extron DTP CrossPoint 84 4K 8x4 Matrix Switcher Preamp
Does Ampronix sell the Extron DTP CrossPoint 84 4K 8x4 Matrix Switcher Preamp?
Yes. Ampronix is an authorized Extron distributor and sells the Extron DTP CrossPoint 84 4K 8x4 Matrix Switcher Preamp (60-1515-01). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron DTP CrossPoint 84 4K 8x4 Matrix Switcher Preamp?
Yes. Ampronix provides sales, replacement and exchange for the Extron DTP CrossPoint 84 4K 8x4 Matrix Switcher Preamp. Call Ampronix for a quote.
What are the key features of the Extron DTP CrossPoint 84 4K 8x4 Matrix Switcher Preamp?
Key points: 8x4 4K matrix switching with Vector 4K scaling on every DTP output; Six HDMI and two DTP/XTP-configurable inputs, HDCP compliant throughout; Preamp-level outputs with no built-in amplifier, for pairing with an external amp; Ships without a control processor for use with an external Extron controller. Call Ampronix to confirm details for your application.
