Part Number: 60-1583-01
Manufacturer: Extron

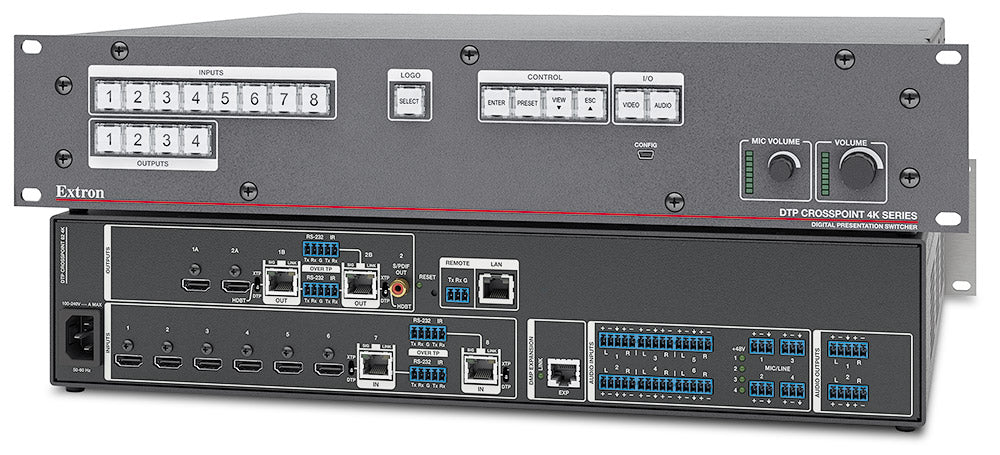

Model: DTP CrossPoint 82 4K
Condition: New
Video routing: 8 x 2 matrix
Signal type: HDMI 1.4, HDCP 1.4; also conforms to DVI 1.0 and CEA-861E
Maximum data rate: 10.2 Gbps (3.4 Gbps per color)
Maximum pixel clock: 300 MHz (600 MHz for 4K rates with 4:2:0 chroma subsampling)
Resolution: Up to 2560x1600 @ 60 Hz (reduced blanking), 4K (4096x2160) @ 30 Hz and UHD (3840x2160) @ 30 Hz. Extron restricts 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling to non-scaled HDMI outputs, which this model does not provide.
Formats: RGB and YCbCr digital video
Frame rate: 24, 25, 30, 50 or 60 fps
Chroma sampling: 4:4:4, 4:2:2 or 4:2:0
Color bit depth: 8 bits per color
Video inputs: 6 HDMI digital video (HDCP compliant) and 2 DTP or XTP (configurable)
Video input connectors: 6 female HDMI type A; 2 female RJ-45
Input resolution range: 640x480 to 1600x1200 and 1920x1200 (reduced blanking); 480i, 480p, 576i, 576p, 720p, 1080i, 1080p and 2K through 4K @ 30 Hz
Horizontal / vertical frequency: 15 kHz to 100 kHz / 24 Hz to 75 Hz
Video processing: 8, 10 or 12 bits per channel with a 300 MHz pixel clock (HDMI); 1.07 billion colors, 10-bit processing
Non-scaled matrix video outputs: 0 (not provided on this model)
Scaled TP outputs: 2 DTP, XTP or HDBaseT (configurable) plus 2 buffered HDMI digital video (HDCP compliant)
Scaled output connectors: 2 female RJ-45; 2 female HDMI
Scaled output resolutions: 640x480 through 4096x2160, including 800x600, 1024x768, 1280x800, 1280x1024, 1366x768, 1400x1050, 1440x900, 1600x1200, 1680x1050, 1920x1200, 2048x1080, 2048x1536, 2048x2160, 2560x1440, 2560x1600, 3840x2160 and 3840x2400, plus HDTV 480p, 576p, 720p, 1080i and 1080p. Supported rates run from 23.98 Hz to 60 Hz and vary by resolution.
Video output power for active cables (HDMI pin 18): 6.6 W total across all HDMI ports, 1.1 W per HDMI port maximum
Logos: 16 logos up to 4096x2160 in BMP, JPG, PNG or TIFF, with transparency, RGB key, level key and alpha key effects
Twisted pair connectors: Female RJ-45, TIA/EIA T568B termination
Signal transmission distance, up to 1920x1200 and 1080p: 330' (100 m) with DTP 330 endpoints; 230' (70 m) with DTP 230 endpoints
Signal transmission distance, 2560x1600 (reduced blanking) and 4K @ 30 Hz: 330' (100 m) with DTP 330 endpoints; 130' (40 m) with DTP 230 endpoints
Cable requirements: Solid conductor, 24 AWG or better; 400 MHz bandwidth STP (shielded twisted pair) recommended
Audio routing: 8 x 2 stereo switching matrix and 4 x 4 microphone mixing matrix
Audio performance: 20 Hz to 20 kHz, plus/minus 0.2 dB; THD+N 0.02% at 1 kHz nominal level; S/N 105 dB at maximum balanced output (unweighted); crosstalk below -90 dB fully loaded; stereo separation above 80 dB
Gain: Unbalanced output -6 dB, balanced output 0 dB; gain error 0.1 dB channel to channel
Digital conversion: 24-bit, 48 kHz
Audio pass-through formats: HDMI carries LPCM up to 7.1/24-bit/192 kHz plus Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 and 2/0 Surround, DTS-HD Master Audio, DTS-HD, DTS ES Discrete 6.1, DTS ES Matrix 6.1, DTS Digital Surround 5.1 and DTS 2 Channel; analog connectors carry stereo audio; DTP carries audio de-embedded from HDMI (PCM only) or remote balanced/unbalanced analog
Audio inputs: 6 stereo analog line level (balanced or unbalanced), 6 stereo de-embedded from HDMI (PCM only), and 2 DTP (de-embedded from HDMI [PCM only] and remote balanced/unbalanced analog) or XTP (embedded digital)
Audio input connectors: (6) 3.5 mm captive screw, 5-pole; 6 female HDMI type A; 2 female RJ-45
Analog audio input level: Nominal +4 dBu or -10 dBV adjustable via input gain; maximum +21 dBu balanced, +15 dBu unbalanced; gain adjustable -18 dB to +24 dB in 0.1 dB steps per input
Mic/line inputs: 4 mono mic/line, balanced or unbalanced, with phantom power; (4) 3.5 mm captive screw connectors, 3-pole; 10k ohms unbalanced, 20k ohms balanced
Mic/line level: Nominal -60 dBV, +4 dBu or -10 dBV via input gain; maximum above +21 dBu at rated THD+N with mic gain at 0 dB; gain adjustable -18 dB to +80 dB in 0.1 dB steps per input
Equivalent input noise / CMRR: Below -120 dBV (1.0 uVrms) at +40 dB input gain / above 70 dB typical
Microphone volume range: -100 dB to +12 dB
DC phantom power: +48 VDC, plus/minus 10%, on inputs 1-4, switchable on or off
Audio outputs: 2 HDMI embedded; 2 DTP (embedded digital and remote balanced/unbalanced analog), XTP or HDBaseT (embedded digital); 2 stereo balanced/unbalanced analog (variable); 1 S/PDIF
Audio output connectors: 2 female HDMI; 2 RJ-45; (2) 3.5 mm captive screw, 5-pole; 1 RCA
Audio output impedance: 50 ohms unbalanced / 100 ohms balanced stereo; 75 ohms S/PDIF
Audio output level and range: Maximum above +21 dBu balanced or +15 dBu unbalanced (Hi-Z); volume 0 to -100 dB in 0.1 dB steps
EXP expansion port: 1 RJ-45, proprietary transmission, 16 channels Rx and 16 channels Tx, 24 bit 48 kHz uncompressed, shielded CAT 6 up to 10 meters
Serial control port: 1 bidirectional RS-232 on a 3.5 mm 3-pole captive screw connector (rear panel); 9600 (default) to 115200 baud, 8 data bits, 1 stop bit, no parity by default; pin 1 = Tx, 2 = Rx, 3 = Gnd
USB control port: 1 front panel female USB mini-B, USB 2.0 low speed
Ethernet control port: 1 female RJ-45, 10/100Base-T half or full duplex with autodetect; DHCP, DNS, HTTP, HTTPS, IEEE 802.1X, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP, ARP and Telnet; default IP address 192.168.254.254, subnet mask 255.255.0.0, DHCP off
Web server: Up to 200 simultaneous sessions with 40.0 MB nonvolatile user memory
Program control: Extron control and configuration program for Windows, Extron Simple Instruction Set (SIS), Microsoft Internet Explorer and Telnet
RS-232 and IR pass-through: (2) 3.5 mm 5-pole captive screw connectors at the switcher input/TP Tx and (2) at the switcher output/TP Rx, shared between RS-232 and IR; 300 to 115200 baud, 8 or 7 data bits, 1 or 2 stop bits, selectable parity; IR is TTL level (0 to 5 V) modulated control from 30 kHz up to 60 kHz, pin 3 = Gnd, 4 = IR Tx, 5 = IR Rx
Power supply: Internal; input 100-240 VAC, 50-60 Hz
Power consumption: 91.2 watts
Thermal dissipation: 248 BTU/hr
Remote power capability: Supports up to four endpoints (two DTP Tx, two DTP Rx); not available in XTP or HDBaseT modes
Temperature/humidity: Storage -40 to +158 F (-40 to +70 C), 10% to 90% noncondensing; operating +32 to +122 F (0 to +50 C), 10% to 90% noncondensing
Cooling: Fans, air flows right to left as viewed from the front panel
Mounting: Rack mountable, metal enclosure
Enclosure dimensions: 3.5 in H x 17.4 in W x 15.3 in D (2U high, full rack wide); 8.9 cm H x 44.2 cm W x 38.9 cm D. Depth excludes connectors and knobs; width excludes rack ears.
Product weight: 14 lbs (6.4 kg)
Shipping dimensions and weight: 8.25 in H x 21.75 in W x 23.0 in D (21.0 x 55.2 x 58.4 cm), 15.0 lbs (6.8 kg)
Regulatory compliance: CE, C-tick, c-UL, FCC Class A, ICES, UL, KC, VCCI; complies with the appropriate requirements of RoHS and WEEE
Product warranty: 3 years parts and labor
Everlast power supply warranty: 7 years parts and labor
