Extron DTP CrossPoint 108 4K IPCP SA with AV LAN Switch
- • Dedicated three-port AV LAN switch isolates AV devices from the main network
- • Class D stereo amplifier: 2 x 50 W into 4 ohms, 2 x 25 W into 8 ohms
- • 10x8 matrix, six HDMI and four DTP inputs at up to 4K
- • Four independently scaled DTP outputs with Vector 4K scaling
- • Integrated IP Link Pro control processor with 4 relays and 4 digital I/O
- • Four mic/line inputs with +48 VDC phantom power and four AEC channels
- • DTP extension up to 330 ft (100 m) over shielded twisted pair
- • Power consumption 179 W; 17 lbs 3U full-rack metal chassis
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

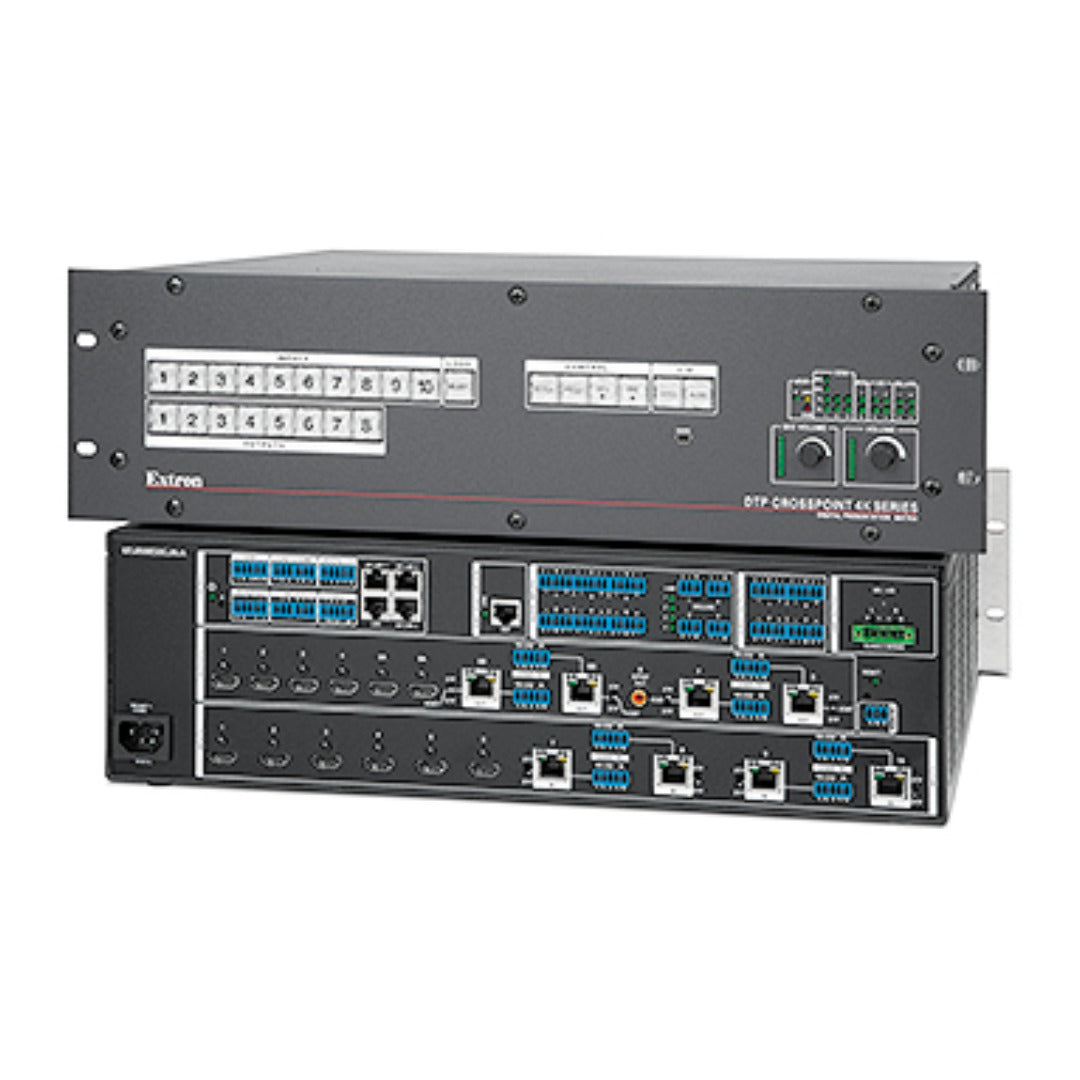

Extron DTP CrossPoint 108 4K IPCP SA (part number 60-1381-22) — a 10x8 seamless 4K scaling presentation matrix switcher with a 2 x 50 watt stereo amplifier, an integrated IP Link Pro control processor and a dedicated AV LAN switch.
What sets this part number apart from the earlier 60-1381-12 is the AV LAN. The control processor gets its own unmanaged three-port gigabit switch alongside the standard Ethernet port, so touchpanels, displays and other controlled devices sit on a network segment that is separated from the corporate LAN. Everything else is the complete DTP CrossPoint 108 4K package: 10x8 matrix switching, four Vector 4K scalers, ProDSP audio with four AEC channels, and a Class D stereo amplifier rated 50 watts per channel into 4 ohms.
Key Capabilities
- Dedicated three-port AV LAN switch isolates local AV devices from the building network.
- Class D stereo amplifier: 50 W rms per channel into 4 ohms, 25 W into 8 ohms at 0.1% THD.
- 10x8 matrix switching of six HDMI and four DTP inputs at resolutions up to 4K.
- Four independently scaled DTP outputs, two with mirrored HDMI for local monitoring.
- Four mic/line inputs with +48 VDC phantom power, four AEC channels and an eight-group automixer.
- Control ports: three serial, four digital I/O, two IR/serial and four relays.
Where It Is Used
Corporate boardrooms, university lecture halls, government briefing rooms and any installation where IT policy requires AV control traffic to stay off the main network. This is a retired Extron part number; the current equivalent is the IPCP Q SA version.
Specifications at a Glance
- Matrix: 10 x 8, 6 HDMI + 4 DTP inputs, 4 HDMI + 4 scaled DTP outputs
- Amplifier: 2 x 50 W @ 4 ohms, 20 Hz to 20 kHz +1/-3 dB
- Audio S/N 105 dB, THD+Noise 0.02% at 1 kHz nominal, 24-bit/48 kHz
- Power consumption 179 W, thermal dissipation 486 BTU/hr
- Enclosure 5.25 in H x 17.4 in W x 16 in D, 17 lbs (7.7 kg)
Also referenced as Extron DTPCrossPoint1084KIPCPSA, DTP-CrossPoint-108-4K-IPCP-SA, part number 60138122.
