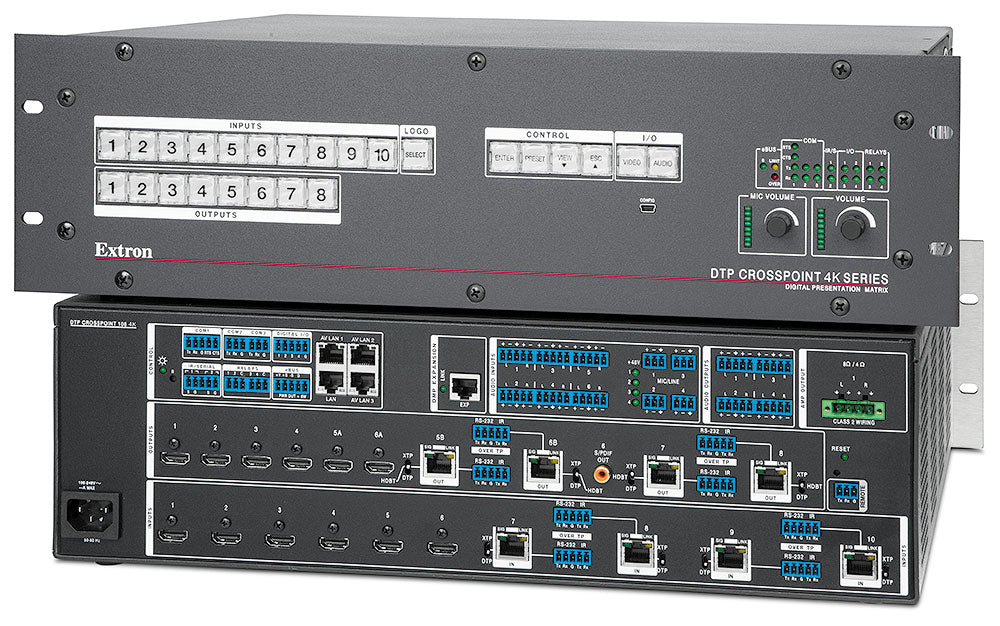

Part Number: 60-1381-12A
Manufacturer: Extron
Model: DTP CrossPoint 108 4K IPCP SA
Condition: New
Version: 2 x 50 Watt Stereo Power Amplifier, LL UI Upgrade (retired part number)
LinkLicense: LinkLicense for User Interfaces upgrade included
Video Routing: 10 x 8 matrix
Signal Type: HDMI 1.4, HDCP 1.4
Standards: DVI 1.0, HDMI 1.4, HDCP 1.4, CEA-861E
Maximum Data Rate: 10.2 Gbps (3.4 Gbps per color)
Maximum Pixel Clock: 300 MHz (600 MHz for 4K rates with 4:2:0 chroma subsampling)
Resolution: Up to 2560x1600 (reduced blanking) at 60 Hz, or 4K (4096x2160) and UHD (3840x2160) at 30 Hz; 4K/UHD at 60 Hz with 4:2:0 chroma subsampling at the non-scaled HDMI outputs
Frame Rate: 24, 25, 30, 50 or 60 fps
Chroma Sampling: 4:4:4, 4:2:2 or 4:2:0
Color Bit Depth: 8 bits per color
Video Formats: RGB and YCbCr digital video
Video Inputs: 6 HDMI digital video (HDCP compliant); 4 DTP or XTP (configurable)
Video Input Connectors: 6 female HDMI type A; 4 female RJ-45
Matrix Video Outputs (Non-Scaled): 4 HDMI digital video (HDCP compliant) on 4 female HDMI connectors
Scaled Twisted Pair Outputs: 4 DTP, XTP or HDBaseT (configurable) on 4 female RJ-45; 2 buffered HDMI digital video (HDCP compliant) on 2 female HDMI
Video Input Resolution Range: 640x480 to 1600x1200 and 1920x1200 (reduced blanking); 480i, 480p, 576i, 576p, 720p, 1080i, 1080p and 2K through 4K at 30 Hz
Video Processing: 8, 10 or 12 bits per channel, 300 MHz pixel clock; 1.07 billion colors (10-bit processing)
Logo Keying: 16 logos up to 4096x2160 in BMP, JPG, PNG or TIFF; transparency, RGB key, level key and alpha key
Signal Transmission Distance: DTP 330 endpoints up to 330 ft (100 m); DTP 230 endpoints up to 230 ft (70 m); at 2560x1600 reduced blanking and 4K at 30 Hz, DTP 230 up to 130 ft (40 m)
Cable Requirements: Solid conductor, 24 AWG or better; 400 MHz bandwidth shielded twisted pair recommended
Audio Routing: 10 x 8 stereo switching matrix; 4 x 4 microphone mixing matrix
Audio Gain: Unbalanced output -6 dB; balanced output 0 dB
Audio Frequency Response: 20 Hz to 20 kHz, ±0.2 dB
THD + Noise: 0.02% at 1 kHz nominal level
S/N: 105 dB at maximum balanced output (unweighted)
Crosstalk: <-90 dB @ 20 Hz to 20 kHz, fully loaded
Stereo Channel Separation: >80 dB @ 20 Hz to 20 kHz
Digital Conversion: 24-bit, 48 kHz
Audio Inputs: 6 stereo analog line level, balanced or unbalanced; 6 stereo de-embedded from HDMI (PCM only); 4 DTP or XTP
Audio Input Connectors: (6) 3.5 mm captive screw connectors, 5-pole; 6 female HDMI type A; 4 female RJ-45
Analog Audio Input Impedance: >10k ohms unbalanced, >20k ohms balanced
Analog Audio Nominal Level: +4 dBu, -10 dBV adjustable via input gain
Analog Audio Maximum Level: +21 dBu balanced, +15 dBu unbalanced
Analog Audio Input Gain Adjustment: -18 dB to +24 dB in 0.1 dB steps, adjustable per input
Mic/Line Inputs: 4 mono, mic/line, balanced/unbalanced, with phantom power
Mic/Line Input Connectors: (4) 3.5 mm captive screw connectors, 3-pole
Mic/Line Input Impedance: 10k ohms unbalanced, 20k ohms balanced
Mic/Line Nominal Level: -60 dBV, +4 dBu, -10 dBV, adjustable via input gain
Mic/Line Maximum Level: >+21 dBu at rated THD+N when mic gain is set to 0 dB
Equivalent Input Noise: <-120 dBV (1.0 µVrms) at +40 dB input gain
CMRR: >70 dB typical
Mic/Line Input Gain Adjustment: -18 dB to +80 dB in 0.1 dB steps, adjustable per input
Microphone Volume Range: -100 dB to +12 dB
Phantom Power: +48 VDC, ±10% (inputs 1-4), switched on or off
Audio Outputs: 6 HDMI embedded; 4 DTP, XTP or HDBaseT; 4 stereo balanced/unbalanced analog (variable); 1 S/PDIF
Audio Output Connectors: 6 female HDMI; 4 RJ-45; (4) 3.5 mm captive screw, 5-pole; 1 RCA
Audio Output Impedance: 50 ohms unbalanced, 100 ohms balanced; S/PDIF 75 ohms
Audio Output Gain Error: ±0.1 dB channel to channel
Audio Output Maximum Level (Hi-Z): >+21 dBu balanced or +15 dBu unbalanced
Output Volume Range: 0 to -100 dB in 0.1 dB steps
EXP Port: Proprietary transmission on 1 RJ-45; 16 channels Rx, 16 channels Tx; 24-bit, 48 kHz uncompressed; shielded CAT 6 up to 10 meters
Power Amplifier: 1 stereo or mono (2 channels total), Class D
Amplifier Connector: (1) 5 mm screw lock captive screw connector, 4-pole; accepts 22 AWG to 12 AWG wire
Amplifier Load Impedance: 4 ohms minimum
Amplifier Output Power: 25 watts rms per channel into 8 ohms; 50 watts per channel into 4 ohms, 1 kHz, 0.1% THD
Amplifier Frequency Response: 20 Hz to 20 kHz, +1/-3 dB at 1 watt
Amplifier THD + Noise: <0.1%, 1 kHz, 3 dB below clipping
Amplifier S/N: >90 dB, 20 Hz to 20 kHz, unweighted
Amplifier Protection: Clip limiting, thermal, short circuit, DC output
Serial Control Port: 1 bidirectional RS-232, 3.5 mm captive screw connector, 3-pole (rear panel); 9600 (default) to 115200 baud, 8 data bits, 1 stop bit, no parity
USB Control Port: 1 front panel female USB mini-B, USB 2.0 low speed
Ethernet Control Port: 1 female RJ-45, 10/100Base-T, half/full duplex with autodetect
Ethernet Protocols: DHCP, DNS, HTTP, HTTPS, IEEE 802.1X, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP, ARP, Telnet
Ethernet Default Settings: IP address 192.168.254.254, subnet mask 255.255.0.0, default gateway 0.0.0.0, DHCP off
Web Server: Up to 200 simultaneous sessions; 40.0 MB nonvolatile user memory
Program Control: Extron control/configuration software for Windows, Extron Simple Instruction Set (SIS), web browser, Telnet
Control Processor: Integrated Extron IP Link Pro control processor
Control Processor Memory: 512 MB SDRAM, 4.5 GB flash
Control Processor Software: Extron Global Configurator Plus and Professional for Windows
Control Options: GlobalViewer, TouchLink for Web, TouchLink for iPad, or TouchLink Pro touchpanels
Control Processor Network: 1 network interface controller; 1 unmanaged 3-port switch on 3 female RJ-45; 10/100/1000Base-T
Control Processor Default Settings: IP address 192.168.254.250, subnet mask 255.255.255.0, gateway 0.0.0.0, DHCP off, DNS 127.0.0.1
Control Processor Serial Ports: 1 bidirectional RS-232/RS-422/RS-485 on a 5-pole captive screw; 2 bidirectional RS-232 on 3-pole captive screws; 300 to 115200 baud
Control Processor Digital I/O: 4 configurable ports on (1) 3.5 mm 5-pole captive screw; input 0 to 24 VDC clamped at +30 VDC, 29k ohms, programmable 1k ohm pullup to +5 VDC; outputs sink 250 mA from 24 VDC max
Control Processor IR/Serial Ports: 2 programmable ports: unidirectional RS-232 or TTL level infrared, carrier 30 kHz to 300 kHz
Control Processor Relays: 4 normally open, rated 24 VDC at 1 A
Power Supply: Internal, 100-240 VAC, 50-60 Hz
Power Consumption: 179 watts
Thermal Dissipation: 486 BTU/hr
Remote Power Capability: Supports up to eight endpoints (four DTP Tx, four DTP Rx); remote power is not available in XTP and HDBaseT modes
Temperature/Humidity: Storage -40 to +158 °F (-40 to +70 °C), 10% to 90% noncondensing; Operating +32 to +122 °F (0 to +50 °C), 10% to 90% noncondensing
Cooling: Fans, air flows from right to left as viewed from the front panel
Rack Mount: Yes
Enclosure Type: Metal
Enclosure Dimensions: 5.25 in H x 17.4 in W x 16 in D (3U high, full rack wide); 13.3 cm H x 44.2 cm W x 40.6 cm D; depth excludes connectors and knobs, width excludes rack ears
Product Weight: 17 lbs (7.7 kg)
Regulatory Compliance: CE, C-tick, c-UL, FCC Class A, ICES, UL, KC, VCCI; complies with the appropriate requirements of RoHS and WEEE
Product Warranty: 3 years parts and labor
Everlast Power Supply Warranty: 7 years parts and labor
