Extron DTP CrossPoint 108 4K IPCP MA 70 with AV LAN Switch
- • Class D 70 volt mono amplifier rated 100 watts rms at 0.1% THD
- • Dedicated three-port AV LAN switch isolates AV devices from the main network
- • 80 Hz high pass filter, 12 dB per octave, for distributed speakers
- • 10x8 matrix, six HDMI and four DTP inputs at up to 4K
- • Four independently scaled DTP outputs with Vector 4K scaling
- • Integrated IP Link Pro control processor with 4 relays and 4 digital I/O
- • Four mic/line inputs with +48 VDC phantom power and four AEC channels
- • Power consumption 184 W; 17 lbs 3U full-rack metal chassis
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

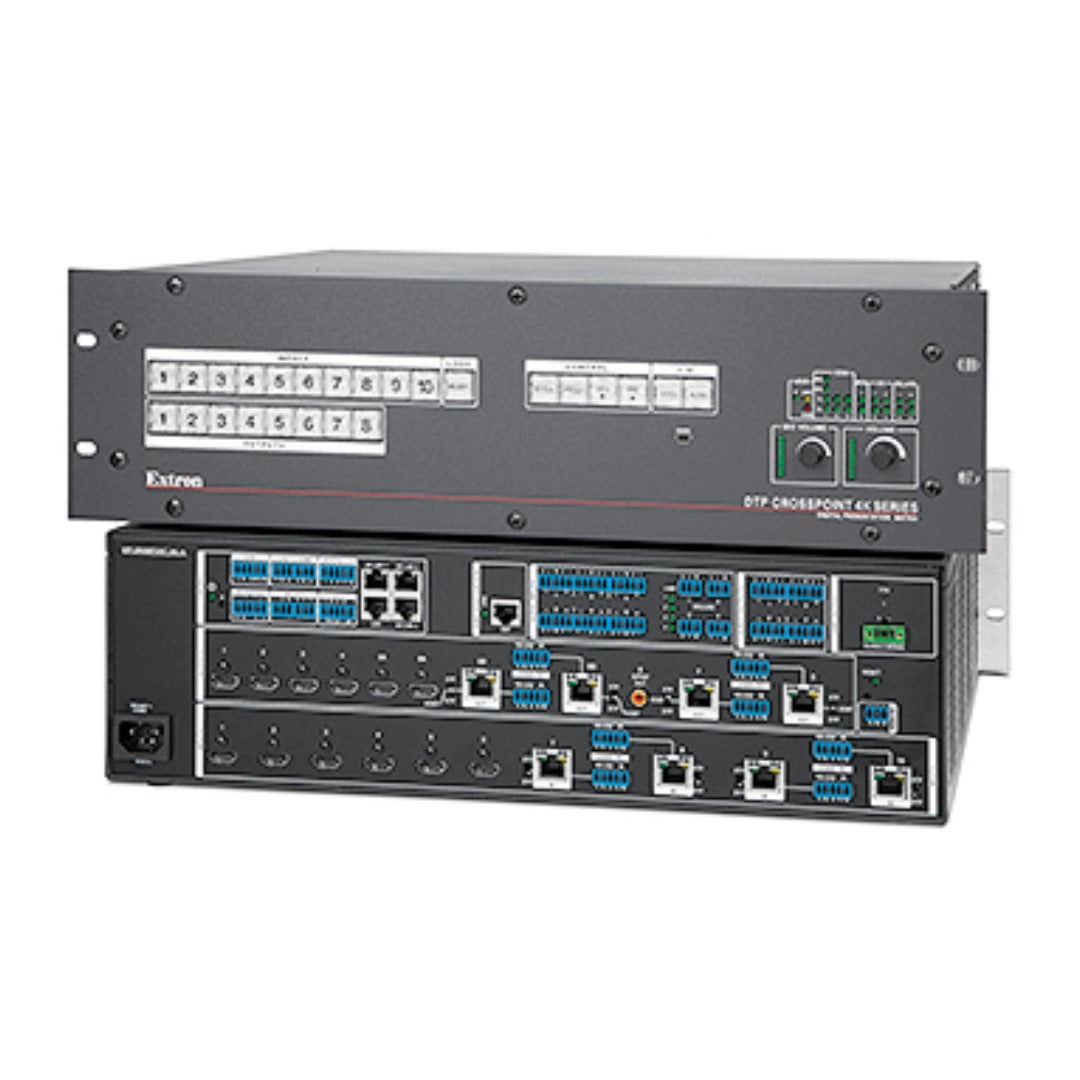

Extron DTP CrossPoint 108 4K IPCP MA 70 (part number 60-1381-23) — a 10x8 seamless 4K scaling presentation matrix switcher with a 100 watt 70 volt mono amplifier, an IP Link Pro control processor and a dedicated AV LAN switch.
Two design decisions define this configuration. The 70 volt mono amplifier drives a distributed loudspeaker line rather than a single pair of speakers, which is how large or oddly shaped rooms get even coverage from one amplifier channel. The AV LAN gives the on-board control processor its own three-port gigabit switch, so touchpanels, projectors and other controlled devices live on a segment separated from the corporate network. Around those two features sits the full DTP CrossPoint: 10x8 matrix switching, four Vector 4K scalers and ProDSP audio with echo cancellation.
Key Capabilities
- Class D 70 volt mono amplifier delivering 100 watts rms at 1 kHz, 0.1% THD, into 50 ohms minimum.
- 80 Hz high pass filter with 12 dB per octave roll-off on the amplifier output.
- Dedicated three-port AV LAN switch for secure local AV device control.
- 10x8 matrix switching of six HDMI and four DTP inputs at resolutions up to 4K.
- Four independently scaled DTP outputs, two with mirrored HDMI for local monitoring.
- Four mic/line inputs with +48 VDC phantom power and four channels of AEC.
Where It Is Used
Lecture halls, gymnasiums, cafeterias, worship spaces and large multipurpose rooms wired for 70 volt distributed audio, in organizations that keep AV control traffic off the main network. This is a retired Extron part number; the current equivalent is the IPCP Q MA 70 version.
Specifications at a Glance
- Matrix: 10 x 8, 6 HDMI + 4 DTP inputs, 4 HDMI + 4 scaled DTP outputs
- Amplifier: 100 W rms at 70 V, 80 Hz to 20 kHz +1/-3 dB
- Audio S/N 105 dB, THD+Noise 0.02% at 1 kHz nominal, 24-bit/48 kHz
- Power consumption 184 W, thermal dissipation 499 BTU/hr
- Enclosure 5.25 in H x 17.4 in W x 16 in D, 17 lbs (7.7 kg)
Also referenced as Extron DTPCrossPoint1084KIPCPMA70, DTP-CrossPoint-108-4K-IPCP-MA-70, part number 60138123.
