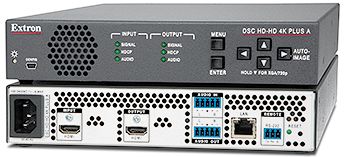

Manufacturer: Extron | Model: DSC HD-HD 4K Plus A | Part number: 60-1573-01 (also written 60157301)

The Extron DSC HD-HD 4K Plus A (60-1573-01) is a new HDCP 2.2-compliant HDMI-to-HDMI scaler available through Ampronix, supporting resolutions up to 4K/60 4:4:4 at 18 Gbps. The Vector 4K scaling engine handles critical 4K applications including full-motion video and detailed computer graphics. This single-path model converts between HDMI resolutions with audio embedding and de-embedding, on-screen display, and logo keying. For the dual-path 4K model, see the DSC HD-HD 4K Plus A xi (60-1573-02).

Key capabilities

• Scales HDMI input to HDMI output at resolutions up to 4K/60 4:4:4
• 18 Gbps HDMI 2.0 connections, HDCP 2.2 compliant
• Extron Vector 4K scaling engine for single-path 4K at 60 Hz with 4:4:4
• Stereo audio embedding and de-embedding
• On-screen display, internal test patterns, and custom logo keying

Where it is used

Conference rooms, lecture halls, and production environments that need to convert between HDMI resolutions while maintaining 4K/60 4:4:4 quality without an external scaler or separate audio processor.

Specifications at a glance

• Input/output: HDMI 2.0, 18 Gbps, HDCP 2.2
• Max resolution: 4K/60 4:4:4
• Warranty: 3-year product, 7-year Everlast power supply

Frequently asked questions

• Is the Extron DSC HD-HD 4K Plus A 60-1573-01 available new or refurbished? - Ampronix stocks the DSC HD-HD 4K Plus A (60-1573-01) as a new unit through its authorized Extron distribution agreement.
• What is the difference between the DSC HD-HD 4K Plus A and the xi model 60-1573-02? - The 60-1573-01 handles a single 4K/60 signal path; the xi variant (60-1573-02) adds dual-path capability for installations requiring two simultaneous 4K/60 4:4:4 signal paths through one chassis.
• Does Ampronix offer support for the Extron DSC HD-HD 4K Plus A? - Yes. Ampronix provides repair, exchange, and replacement services for the DSC HD-HD 4K Plus A and the broader Extron DSC scaler line.

Ampronix is an authorized Extron distributor. Need support for your Extron DSC HD-HD 4K Plus A? Ampronix offers professional repair, exchange, and replacement services for this product and the broader Extron DSC scaler line.

Also referenced as Extron DSCHDHD4KPlusA, DSC-HD-HD-4K-Plus-A, part number 60157301.
