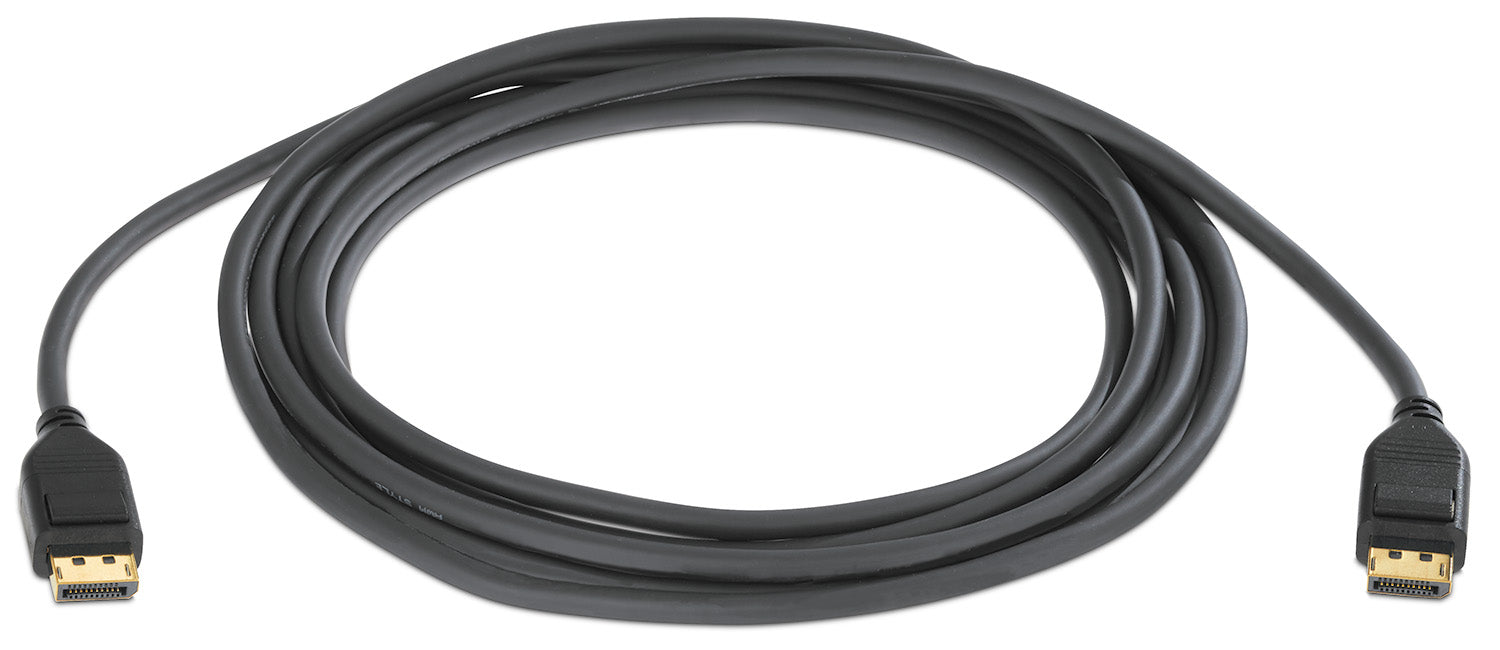

Extron DP Ultra Plus/12 (part number 26-757-12) — a 12 ft (3.6 m) ultra-flexible 4K DisplayPort cable with latching connectors at both ends.

This is the long member of the DP Ultra Plus family, and it is rated differently from its shorter siblings: where the 9 ft and under cables run HBR3, the 12 ft version runs HBR2 at 5.4 Gbps per lane for 21.6 Gbps total and conforms to the DisplayPort 1.2 standard. That still covers 4096 x 2160 and 3840 x 2160 at 60 Hz with 4:4:4 chroma — the resolutions most rooms actually run — with the extra three feet of reach an installer often needs. Construction is the same Extron 28 AWG cable: 0.24 in across, 0.87 in bend radius, latching gold-plated connectors.

Key Capabilities

• 12 ft (3.6 m) — the longest length Extron builds in the DP Ultra Plus Series.
• HBR2 at 5.4 Gbps per lane, 21.6 Gbps total; resolutions to 4096 x 2160 at 60 Hz.
• Conforms to the DisplayPort 1.2 standard; series standards up to DisplayPort 1.4 and HDCP 2.3.
• 4K at 4:4:4 chroma, 8 bits per color, at both 4096 x 2160 and 3840 x 2160.
• Multi-Stream Transport (MST), EDID and HDCP pass-through, DSC 1.2 support.
• 0.24 in (6.2 mm) outer diameter with a 0.87 in (22 mm) bend radius.
• Certified for use with Extron AVEdge, Cable Cubby and HSA Hideaway Surface Access enclosures.

Where It Is Used

Connections that need more than nine feet at 4K: credenza to wall display, lectern to a ceiling projector, floor box to a monitor arm, and rack-to-panel runs in classrooms, meeting rooms, waiting areas and digital signage positions.

Specifications at a Glance

• Length: 12 ft (3.6 m)
• Video: up to 4096 x 2160 at 60 Hz; 21.6 Gbps maximum data rate (HBR2)
• Construction: 28 AWG tinned copper conductors, PVC jacket, latching DisplayPort ends
• Compliance: CE, RoHS, UL-CMX, WEEE; limited lifetime performance warranty

Also referenced as Extron DPUltraPlus12, DP-Ultra-Plus-12, part number 2675712.
