Extron DP Pro P/50 8K DisplayPort Optical Plenum Cable 50 ft 26-727-50
Extron DP Pro P/50 8K DisplayPort Optical Plenum Cable 50 ft 26-727-50
Extron DP Pro P/50 8K DisplayPort Optical Plenum Cable
- • Extron DP Pro P/50 50 ft 8K plenum cable
- • 50 ft (15.2 m) active hybrid optical-copper cable
- • DisplayPort 1.4, 32.4 Gbps, HDCP 2.3 and HDR
- • Sales, replacement and exchange
- • Part# 26-727-50 / 2672750
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

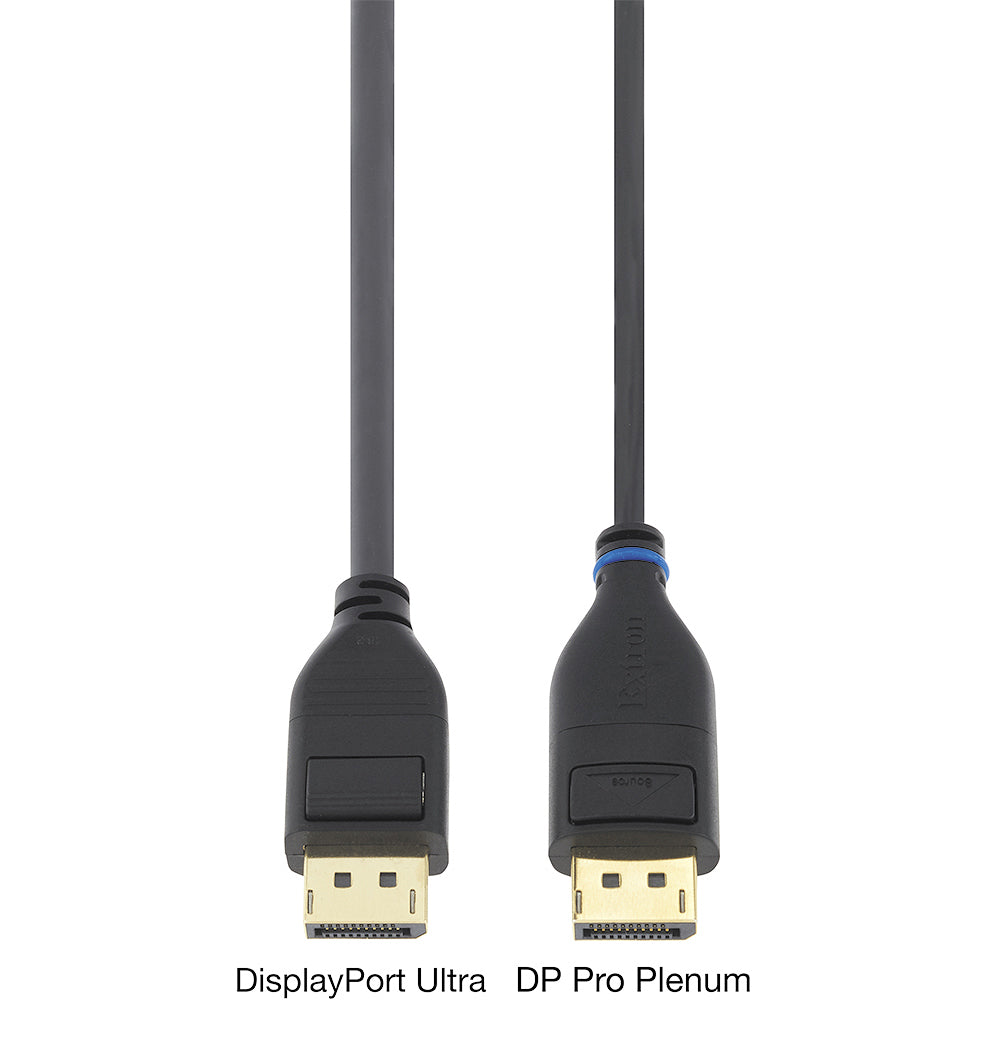

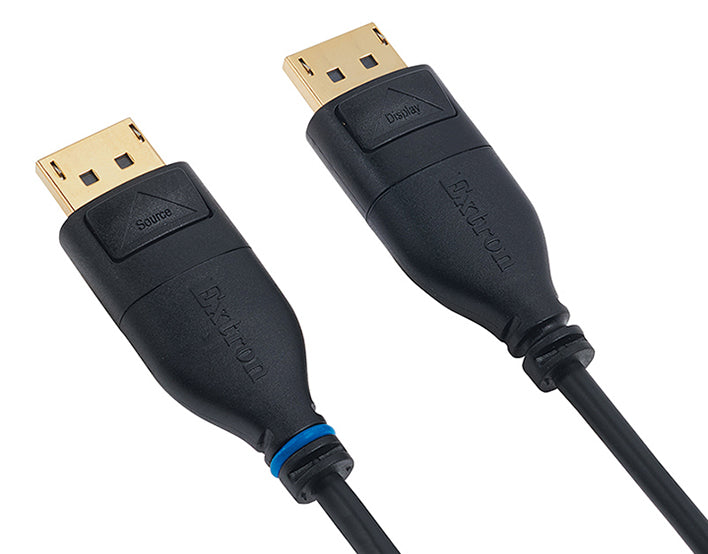

Extron DP Pro P/50 (part number 26-727-50) - a 50 ft (15.2 m) active hybrid optical-copper DisplayPort cable from the DP Pro Plenum Series, NEC CMP rated.
At 50 feet there is no copper-only DisplayPort option worth specifying for 8K work, which is the whole reason this cable exists. Multimode optical fibers carry the four high-speed lanes; 24 AWG tinned copper carries the auxiliary and hot-plug channels. The result is a DisplayPort 1.4 link that holds 32.4 Gbps end to end with HDCP 2.3, HDR, EDID, CEC and 32 channels of audio, in a jacket just 0.18 in across. The plenum rating means it can be pulled above a ceiling grid, and because the electronics live in the connectors there is no power supply to find a home for.
Key Capabilities
- DisplayPort 1.4 with HDCP 1.4, HDCP 2.3 and HDR; EDID, CEC and 32 audio channels carried.
- Maximum video data rate of 32.4 Gbps, 8.1 Gbps per lane.
- 8K (7680 x 4320) at 30 Hz with 4:4:4 chroma, or at 60 Hz with 4:2:0, 8 bits per color.
- 4K (3840 x 2160) at up to 120 Hz with 4:4:4 chroma.
- 0.18 in (4.6 mm) outer diameter, 0.79 in (20 mm) bend radius, 500 N tensile strength.
- NEC CMP plenum rated; CE and UL-CMP compliant.
- Unidirectional and self-powered from the connected DisplayPort devices.
Where It Is Used
Room-to-closet and floor-to-ceiling 8K runs: operating-room and imaging displays fed from a remote rack, control-room video walls, museum and visitor-centre installations, university visualization labs, and conference centres where the projector hangs well away from the equipment room.
Specifications at a Glance
- Length: 50 ft (15.2 m)
- Signal: DisplayPort 1.4, HDCP 1.4/2.3, HDR; 32.4 Gbps maximum
- Construction: multimode fibers plus 24 AWG tinned copper, PVC jacket, male DisplayPort ends
- Power: 375 mW at 3.3 V drawn from the connected devices; 3-year Extron warranty
Also referenced as Extron DPProP50, DP-Pro-P-50, part number 2672750.
Frequently asked questions about the Extron DP Pro P/50 8K DisplayPort Optical Plenum Cable 50 ft
Does Ampronix sell the Extron DP Pro P/50 8K DisplayPort Optical Plenum Cable 50 ft?
Yes. Ampronix is an authorized Extron distributor and sells the Extron DP Pro P/50 8K DisplayPort Optical Plenum Cable 50 ft (26-727-50). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron DP Pro P/50 8K DisplayPort Optical Plenum Cable 50 ft?
Yes. Ampronix provides sales, replacement and exchange for the Extron DP Pro P/50 8K DisplayPort Optical Plenum Cable 50 ft. Call Ampronix for a quote.
What are the key features of the Extron DP Pro P/50 8K DisplayPort Optical Plenum Cable 50 ft?
Key points: DisplayPort 1.4 with HDCP 1.4, HDCP 2.3 and HDR; EDID, CEC and 32 audio channels carried; Maximum video data rate of 32.4 Gbps, 8.1 Gbps per lane; 8K (7680 x 4320) at 30 Hz with 4:4:4 chroma, or at 60 Hz with 4:2:0, 8 bits per color; 4K (3840 x 2160) at up to 120 Hz with 4:4:4 chroma. Call Ampronix to confirm details for your application.
Related: Extron products, Video Solutions.
