Extron DP Pro P/35 8K DisplayPort Optical Plenum Cable 35 ft 26-727-35
Extron DP Pro P/35 8K DisplayPort Optical Plenum Cable 35 ft 26-727-35
Extron DP Pro P/35 8K DisplayPort Optical Plenum Cable
- • Extron DP Pro P/35 35 ft 8K plenum cable
- • 35 ft (10.6 m) active hybrid optical-copper cable
- • DisplayPort 1.4, 32.4 Gbps, HDCP 2.3 and HDR
- • Sales, replacement and exchange
- • Part# 26-727-35 / 2672735
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

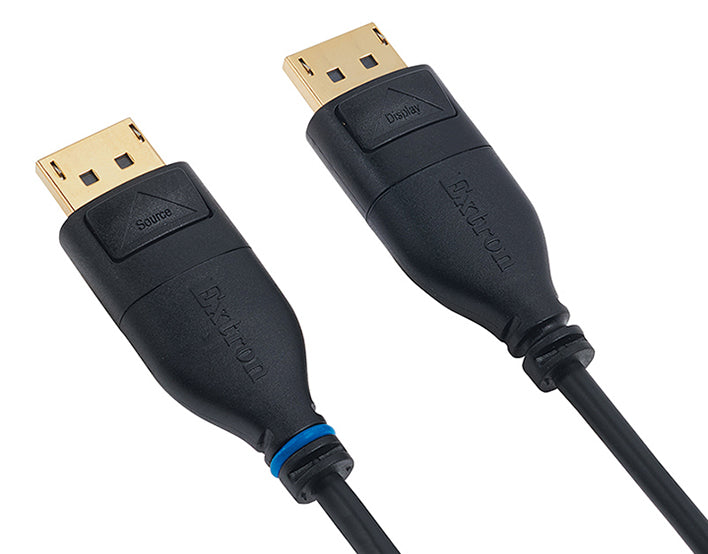

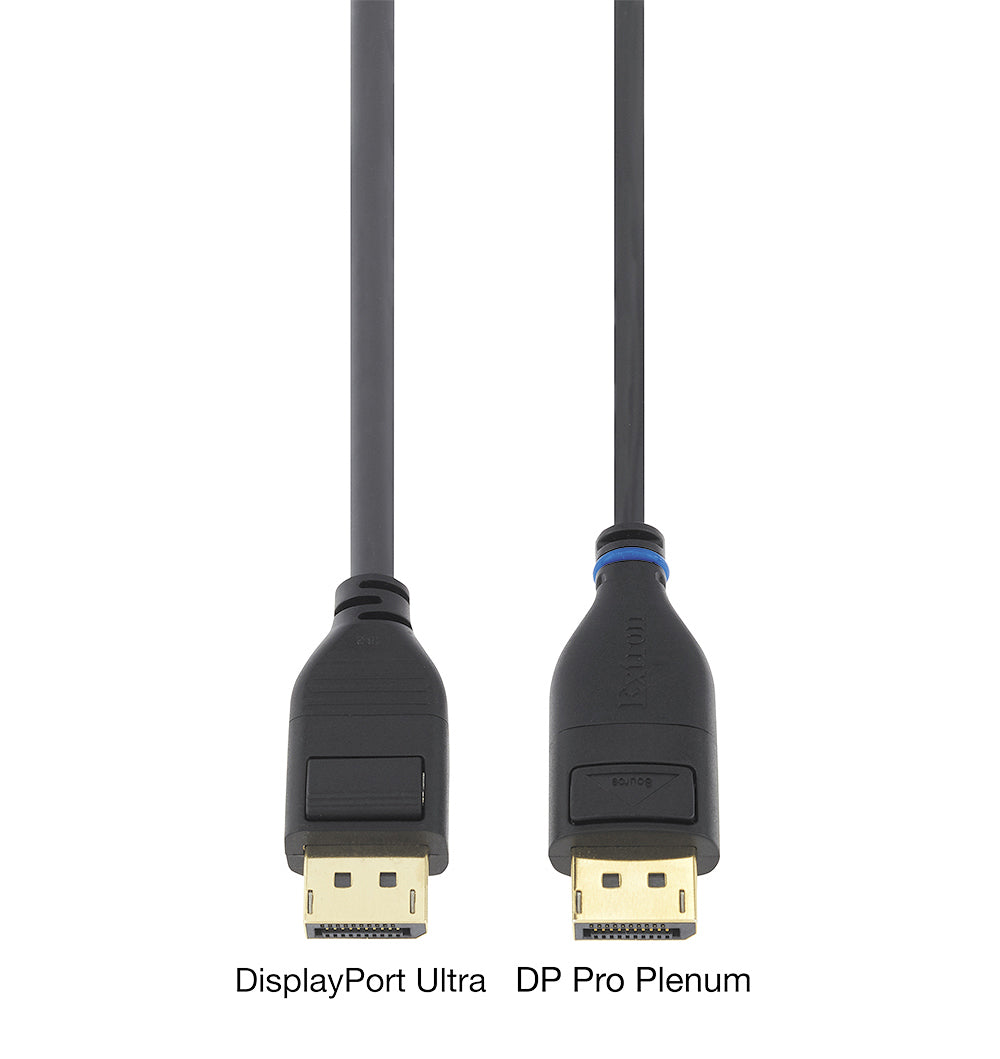

Extron DP Pro P/35 (part number 26-727-35) - a 35 ft (10.6 m) active hybrid optical-copper DisplayPort cable from the DP Pro Plenum Series, NEC CMP rated.
Thirty-five feet is the step up from the 25 ft version when a rack sits in a closet rather than in the room. Extron's hybrid construction - multimode optical fibers for the high-speed lanes, 24 AWG tinned copper for the auxiliary and low-speed channels - keeps a full 32.4 Gbps DisplayPort 1.4 signal intact over that distance, complete with HDCP 2.3 and HDR. The finished cable is only 0.18 in across and bends to a 0.79 in radius, so it threads through a ceiling or a stud bay like a control cable rather than a video trunk, and the CMP rating clears it for plenum spaces.
Key Capabilities
- DisplayPort 1.4 with HDCP 1.4, HDCP 2.3 and HDR; EDID, CEC and 32 audio channels carried.
- Maximum video data rate of 32.4 Gbps, 8.1 Gbps per lane.
- 8K (7680 x 4320) at 30 Hz with 4:4:4 chroma, or at 60 Hz with 4:2:0, 8 bits per color.
- Frame rates from 24 Hz to 240 Hz within the data rate ceiling.
- 0.18 in (4.6 mm) outer diameter with a 0.79 in (20 mm) bend radius.
- NEC CMP plenum rated; CE and UL-CMP compliant.
- Unidirectional, with a blue ring identifying the source connector; no power supply required.
Where It Is Used
Rack-in-closet installations feeding a single high-resolution display: radiology and surgical suites, air traffic and utility control rooms, design and simulation labs, esports and studio monitoring, and executive briefing rooms where the source equipment is out of sight.
Specifications at a Glance
- Length: 35 ft (10.6 m)
- Signal: DisplayPort 1.4, HDCP 1.4/2.3, HDR; 32.4 Gbps maximum
- Construction: multimode fibers plus 24 AWG tinned copper, PVC jacket, male DisplayPort ends
- Power: 375 mW at 3.3 V drawn from the connected devices; 3-year Extron warranty
Also referenced as Extron DPProP35, DP-Pro-P-35, part number 2672735.
Frequently asked questions about the Extron DP Pro P/35 8K DisplayPort Optical Plenum Cable 35 ft
Does Ampronix sell the Extron DP Pro P/35 8K DisplayPort Optical Plenum Cable 35 ft?
Yes. Ampronix is an authorized Extron distributor and sells the Extron DP Pro P/35 8K DisplayPort Optical Plenum Cable 35 ft (26-727-35). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron DP Pro P/35 8K DisplayPort Optical Plenum Cable 35 ft?
Yes. Ampronix provides sales, replacement and exchange for the Extron DP Pro P/35 8K DisplayPort Optical Plenum Cable 35 ft. Call Ampronix for a quote.
What are the key features of the Extron DP Pro P/35 8K DisplayPort Optical Plenum Cable 35 ft?
Key points: DisplayPort 1.4 with HDCP 1.4, HDCP 2.3 and HDR; EDID, CEC and 32 audio channels carried; Maximum video data rate of 32.4 Gbps, 8.1 Gbps per lane; 8K (7680 x 4320) at 30 Hz with 4:4:4 chroma, or at 60 Hz with 4:2:0, 8 bits per color; Frame rates from 24 Hz to 240 Hz within the data rate ceiling. Call Ampronix to confirm details for your application.
Related: Extron products, Video Solutions.
