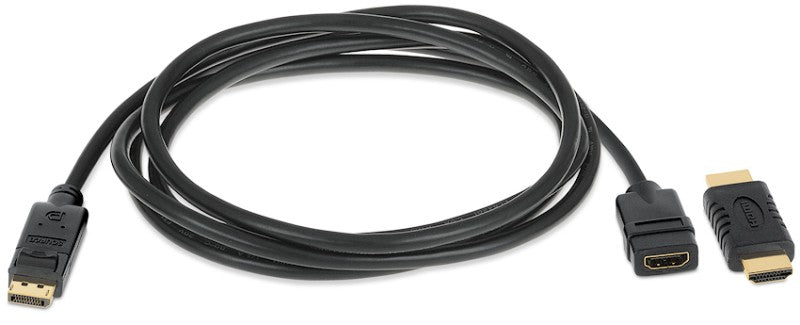

Extron DP-HDMIF/6 DisplayPort to HDMI Active Adapter Cable
- • Extron DP-HDMIF/6 DisplayPort to HDMI adapter cable
- • Active conversion from dual-mode DP source to HDMI
- • Female HDMI end takes a standard HDMI cable
- • Sales, replacement and exchange
- • Part# 26-680-06 / 2668006
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron DP-HDMIF/6 (part number 26-680-06) - a 6 ft (1.8 m) active adapter cable carrying a dual-mode DisplayPort source to a female HDMI connection. Extron has retired this part number; the suggested replacement is the DPM-HDF/6 4K PLUS.
The female HDMI end is the detail that makes this cable useful: it lands as a receptacle rather than a plug, so an existing HDMI cable can plug straight into it at the display or wallplate without an extra coupler. Active circuitry inside the DisplayPort connector handles the format conversion from a dual-mode source, and EDID is passed back to that source so it sees the display's real capabilities. At 0.26 in outer diameter with a 0.95 in bend radius the assembly is certified to live inside an AVEdge, Cable Cubby or HSA surface access enclosure.
Key Capabilities
- Active conversion from a dual-mode DisplayPort source to HDMI.
- Female HDMI termination accepts a standard HDMI cable directly.
- EDID passed through from the display back to the source.
- HDMI data rate of up to 2.5 Gbps per lane; 100 ohms ±10 ohms pair impedance.
- Latching male DisplayPort connector with gold-plated contacts.
- 0.26 in (6.5 mm) outer diameter with a 0.95 in (24.1 mm) bend radius.
- Certified for AVEdge, Cable Cubby and HSA surface access enclosures.
Where It Is Used
Table boxes and furniture enclosures where a captive DisplayPort tail has to accept guest HDMI cables, laptop connectivity panels in conference and training rooms, lectern connection plates, and legacy systems still built around a DisplayPort source and an HDMI switcher input.
Specifications at a Glance
- Length: 6 ft (1.8 m); connectors 1 male latching DisplayPort to 1 female HDMI
- Connector sizes: DisplayPort 2.09 in L, HDMI 1.56 in L (excluding cable)
- Construction: 32 AWG tinned copper conductors, 28 AWG drain, tinned copper shield, PVC jacket
- Temperature rating -25 °C to +85 °C; UL safety; limited lifetime performance warranty
Also referenced as Extron DPHDMIF6, DP-HDMIF-6, part number 2668006.
Frequently asked questions about the Extron DP-HDMIF/6 DisplayPort to HDMI Active Adapter Cable 6 ft
Does Ampronix sell the Extron DP-HDMIF/6 DisplayPort to HDMI Active Adapter Cable 6 ft?
Yes. Ampronix is an authorized Extron distributor and sells the Extron DP-HDMIF/6 DisplayPort to HDMI Active Adapter Cable 6 ft (26-680-06). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron DP-HDMIF/6 DisplayPort to HDMI Active Adapter Cable 6 ft?
Yes. Ampronix provides sales, replacement and exchange for the Extron DP-HDMIF/6 DisplayPort to HDMI Active Adapter Cable 6 ft. Call Ampronix for a quote.
What are the key features of the Extron DP-HDMIF/6 DisplayPort to HDMI Active Adapter Cable 6 ft?
Key points: Active conversion from a dual-mode DisplayPort source to HDMI; Female HDMI termination accepts a standard HDMI cable directly; EDID passed through from the display back to the source; HDMI data rate of up to 2.5 Gbps per lane; 100 ohms ±10 ohms pair impedance. Call Ampronix to confirm details for your application.
Related: Extron products, Video Solutions.
