Extron DP-HDMI SM/12 (part number 26-689-12) — a 12 ft DisplayPort-to-HDMI Show Me cable rated for 1080p/60 in Extron TeamWork collaboration systems.

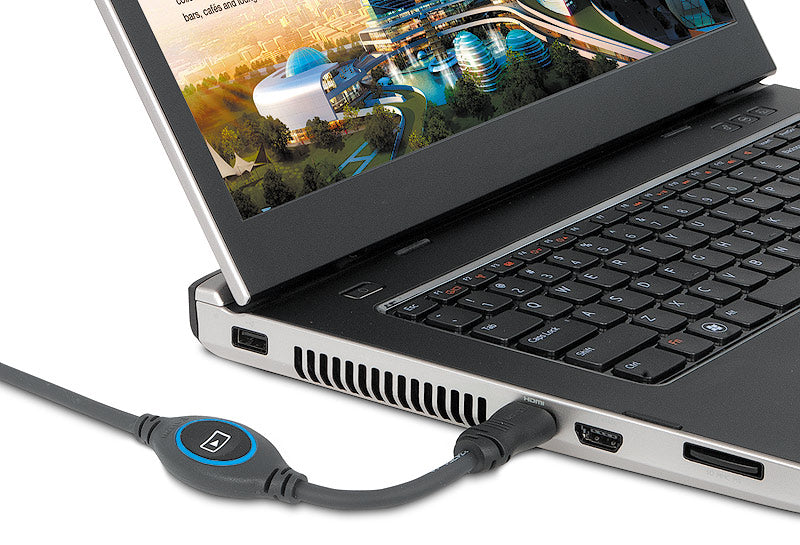

This active, one-way adapter cable lets a DisplayPort-equipped laptop plug into a TeamWork switcher's HDMI input at full 1080p/60 without a separate video converter box. A lit Share button on the cable body doubles as the source-select control, and a built-in three-conductor pigtail carries contact-closure and tally signals back to the switcher, so no additional control wiring is required at the table.

Key Capabilities

• Active DisplayPort to HDMI signal conversion, up to 1080p @ 60 Hz

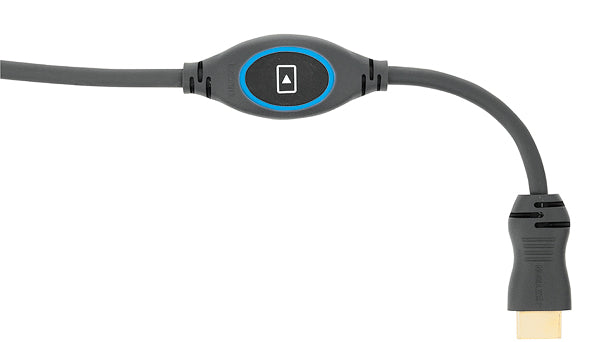

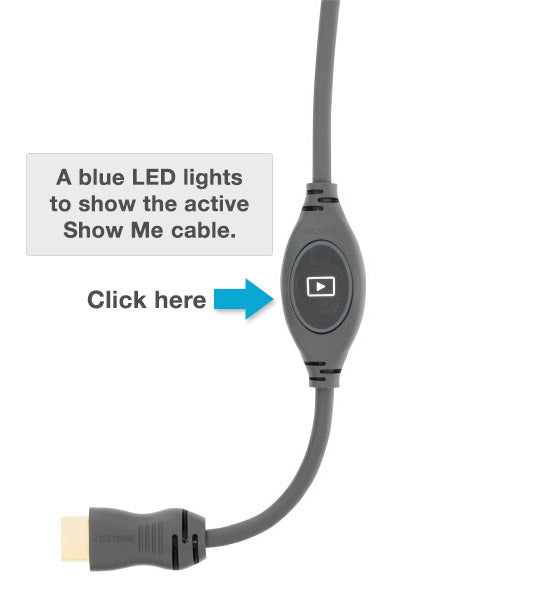

• Illuminated Share button for one-touch source switching at the table

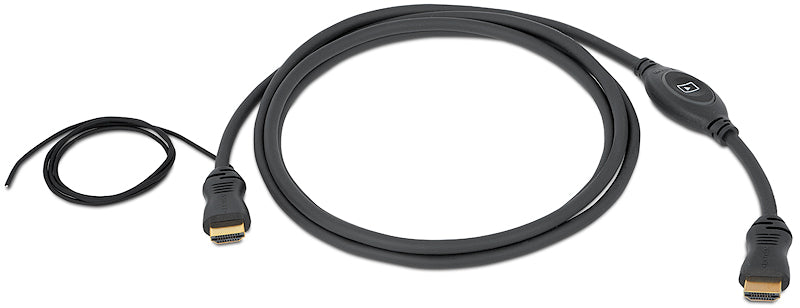

• Built-in 24" control/tally pigtail, no separate control cable needed
• Rated for continuous use at up to 80 °C

Where It Is Used

Legacy Extron TeamWork installations with DisplayPort laptops at the table use this 12 ft cable to reach switchers mounted further away, matching a 1080p native-resolution display without adding an outboard scaler.

Specifications at a Glance

• Length: 12 ft (3.6 m)
• Connector: DisplayPort male to HDMI type A male, active
• Resolution: up to 1080p @ 60 Hz
• Voltage: 30 V, UL listed

Also referenced as Extron DPHDMISM12, DP-HDMI-SM-12, part number 2668912.
