Manufacturer: Extron; Model: DP DA2; Part number: 60-1221-01 (also written 60122101)

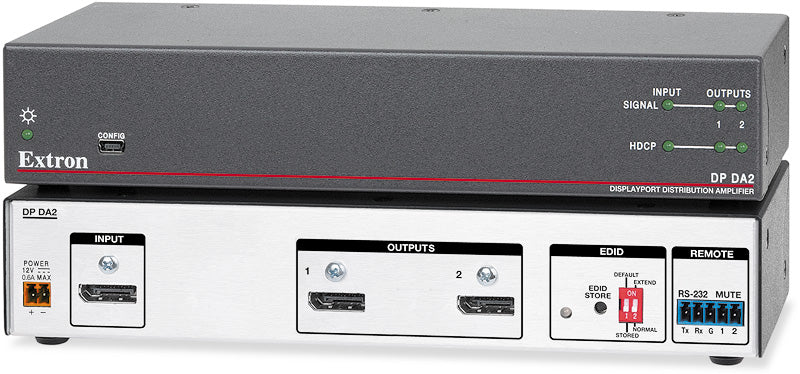

The Extron DP DA2 (60-1221-01) is a new 1x2 DisplayPort distribution amplifier available through Ampronix. 10.8 Gbps, 268 MHz pixel clock. Supports 2560x1600 at 60 Hz (normal mode) and 3840x1080 at 60 Hz (desktop extend). Key Minder (HDCP) and EDID Minder. Auto input cable equalization (up to 25 ft on Extron DisplayPort cable). Both outputs support Dual-mode DisplayPort (HDMI, DVI, VGA via adapter). Per-output mute (RS-232 or contact closure). Front USB-B and rear RS-232 SIS control. External 12 VDC, 4.3 W. Half-rack 1U, 1.75 x 8.75 x 3.0 in, 0.5 lbs. 3-year warranty.

Key capabilities

1 DisplayPort in, 2 DisplayPort out; 10.8 Gbps, 268 MHz; 2560x1600 at 60 Hz
Key Minder (HDCP) and EDID Minder; auto input equalization; Dual-mode DP outputs
Per-output mute; RS-232 and USB SIS control; 4.3 W fanless; half-rack 1U, 0.5 lbs

Where it is used

Boardrooms feeding presenter display and confidence monitor, classrooms mirroring PC to projector and front panel, control rooms duplicating workstation to overview screen, and clinical review areas pairing a diagnostic and secondary display.

Specifications at a glance

I/O: 1 DP in, 2 DP out; data rate: 10.8 Gbps; enclosure: 1.75 x 8.75 x 3.0 in, 0.5 lbs
Power: 12 VDC, 4.3 W; warranty: 3-year

Frequently asked questions about the Extron DP DA2 1x2 DisplayPort Distribution Amplifier

Is the Extron DP DA2 60-1221-01 available new or refurbished?

As an authorized Extron distributor, Ampronix offers the DP DA2 (60-1221-01) as a new unit.

Can the DP DA2 feed HDMI or DVI displays?

Yes. Both outputs support Dual-mode DisplayPort, so HDMI, DVI, or VGA displays can be connected via the appropriate adapter.

Does Ampronix offer replacement and exchange for Extron DisplayPort distribution amplifiers?

Ampronix supplies the Extron DP DA2 and related DisplayPort signal distribution products.

Ampronix is an authorized Extron distributor and carries a full range of Extron DisplayPort and HDMI distribution amplifiers.

Also referenced as Extron DPDA2, DP-DA2, part number 60122101.

Specifications

Part Number: 60-1221-01

Manufacturer: Extron

Model: DP DA2

Condition: New

Maximum Data Rate: Up to 10.8 Gbps (2.7 Gbps per lane)

Maximum Pixel Clock: 268 MHz

Resolution Range: Up to 2560x1600 @ 60 Hz (Normal) and up to 3840x1080 @ 60 Hz (Extend)

Formats: RGB and YCbCr digital video

Standards: DisplayPort 1.1a, HDCP, VGA, HDMI, DVI 1.0. VGA, HDMI and DVI are available only in Dual Mode.

Video Input: 1 DisplayPort on 1 female DisplayPort connector

Input Cable Length: Up to 25' (7.6 m)

Video Output: 2 DisplayPort on 2 female DisplayPort connectors

Output Cable Length: 25' (7.6 m)

Serial Control Port: 1 RS-232, 3.5 mm, 5-pole captive screw connector (shared with mute)

Baud Rate and Protocol: 9600 baud, 8 data bits, 1 stop bit, no parity

Serial Control Pin Configuration: 1 = Tx, 2 = Rx, 3 = GND

Contact Closure: (1) 3.5 mm, 5-pole captive screw connector (shared with RS-232) for video mute

Contact Closure Pin Configuration: 3 = GND, 4 = mute 1, 5 = mute 2. Pins 4 and/or 5 (labeled 1 and 2) shorted to G mute the video output.

USB Control Port: 1 female mini USB B, front panel

USB Standards: USB 2.0, low speed

Program Control: Extron Simple Instruction Set (SIS)

Power Supply: External; input 100-240 VAC, 50-60 Hz; output 12 VDC, 1 A, 12 watts

Power Consumption: Device 4.3 watts; device and power supply 5.4 watts

Temperature/Humidity: Storage -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing; operating +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Cooling: Convection, unvented

Thermal Dissipation: Device 13.9 BTU/hr; device and power supply 17.7 BTU/hr

Rack Mount: Yes, with optional rack shelf kit

Enclosure Type: Metal

Enclosure Dimensions: 1.75" H x 8.75" W x 3.0" D (half rack wide) (4.4 cm H x 22.2 cm W x 7.6 cm D). Depth excludes connectors.

Product Weight: 0.5 lbs (0.2 kg)

Shipping Weight: 2 lbs (1 kg)

Vibration: ISTA 1A in carton (International Safe Transit Association)

Safety: CE, c-UL, UL

EMI/EMC: CE, C-tick, FCC Class A, ICES, VCCI

Environmental: Complies with the appropriate requirements of RoHS and WEEE

Warranty: 3 years parts and labor

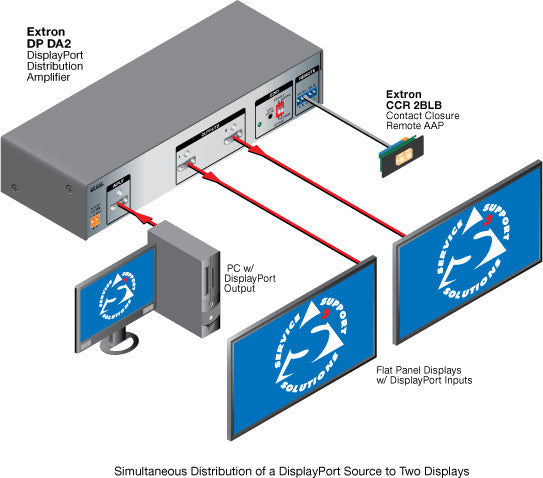

Diagram
