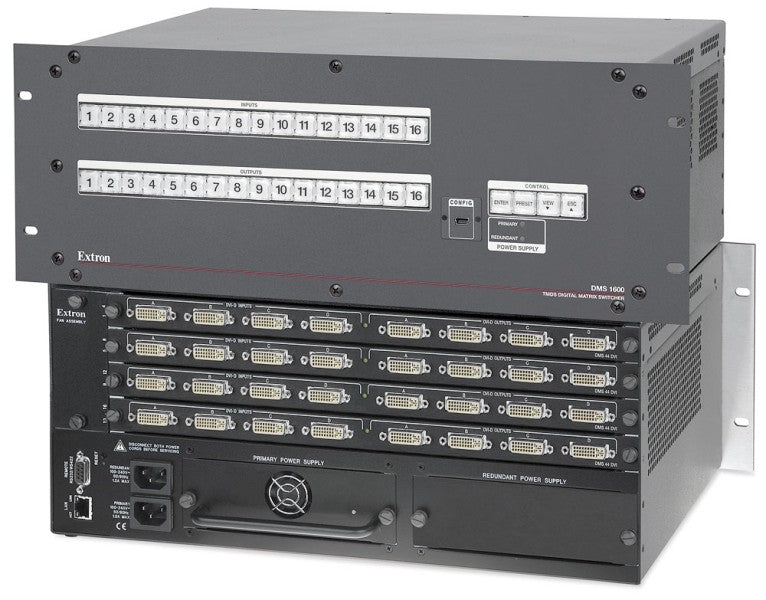

Extron DMS 1600 Frame (part number 60-1091-01) — the 4-slot, 4U chassis that anchors a modular DMS 1600 DVI matrix build.

Integrators fill this frame with any mix of DMS DVI or fiber I/O boards to reach a matrix as small as 4x4 or as large as 16x16, adding four inputs and four outputs at a time as the system grows. Every DVI board path runs at up to 4.95 Gbps with automatic EDID/DDC buffering, so sources and displays negotiate correctly without manual EDID management. A single Ethernet port, RS-232/RS-422, and USB give three independent ways to drive the switcher, and an optional second power supply adds redundancy for installations that cannot tolerate downtime.

Key Capabilities

Scales from 4x4 to 16x16 in steps of 4x4
4.95 Gbps single-link DVI signal path with active EDID/DDC buffering
Ethernet, RS-232/RS-422, and USB control in one chassis
Optional redundant power supply for critical installs
Accepts any mix of DVI and multimode fiber I/O boards

Where It Is Used

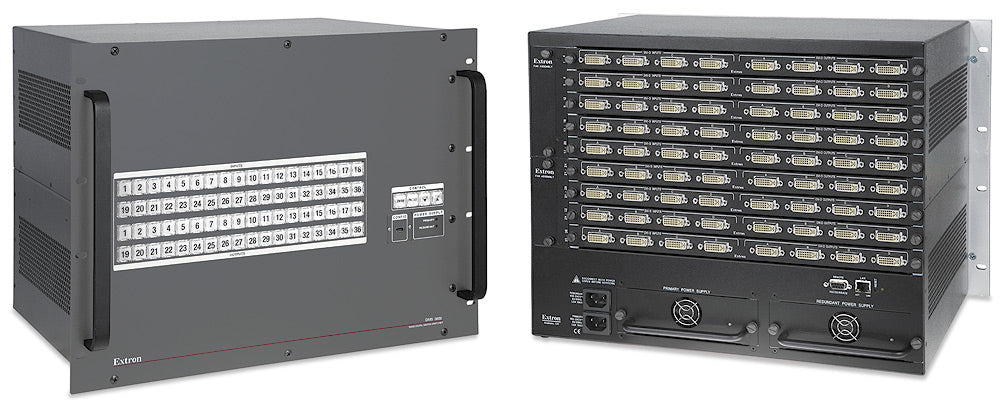

Control rooms, broadcast facilities, and command centers that need a mid-size, field-configurable DVI matrix without committing to the larger 8U DMS 3600 frame.

Specifications at a Glance

Routing: 4x4 to 16x16, expandable in 4x4 increments
Enclosure: 7.0 in H x 17.0 in W x 12 in D, 4U, metal
Power: 97 W primary, 107 W with redundant supply, fully loaded
Weight: 26.9-27.9 lbs with boards installed
Warranty: 3 years parts and labor

Also referenced as Extron DMS1600Frame, DMS-1600-Frame, part number 60109101.

Specifications

Part Number: 60-1091-01

Manufacturer: Extron

Model: DMS 1600 Frame

Condition: New

Routing: 4x4 to 16x16 matrix, expandable in increments of 4 inputs and 4 outputs

Gain: Unity

Resolution Range: Up to 1080p (HDTV) or 1920x1200 (highest single-link DVI resolution) @ 48, 50, or 60 Hz

Signal Type: Single-link DVI digital video

Digital Video: RGB digital video (DVI and HDMI standards) or Y, Cr, Cb digital component video (HDMI), actively buffered. Not compatible with HDMI directly (adapter required); not HDCP compliant.

Digital Audio: Embedded audio from HDMI sources can be passed if not HDCP encrypted

Consumer Electronics Control (CEC): Not supported

EDID and DDC: Supports EDID and DDC over DVI and HDMI standards, actively buffered

HDCP: Not supported

HPD: Supports hot plug detection of the display as a pass-through signal

Maximum Data Rate: 4.95 Gbps (1.65 Gbps per color)

Maximum Pixel Clock: 165 MHz

Standards: DVI 1.0

Switching Speed: 200 ns, max

Video Input (DMS 44/4i DVI Boards): 4 digital RGB single-link DVI-D per input board, 4 female DVI-I connectors, automatic equalization, 100 ft (30 m) cable length at 1920x1200 @ 48/50/60 Hz or 1080p, 8-bit color

Video Output (DMS 44/4o DVI Boards): 4 digital RGB single-link DVI-D per output board, 4 female DVI-I connectors, automatic re-clocking, 50 ft (15.24 m) cable length, 250 mA peripheral device power per output

Fiber Optic Boards: 4 multimode Tx/Rx per I/O board, 4 or 8 LC connectors, 300 m (985 ft) operating distance, 850 nm nominal wavelength, -5 dBm typical transmission power, -12 dBm typical maximum receiver sensitivity, 8 dB maximum optical loss budget, 6.25 Gbps maximum channel data rate. Requires DFX 100 Tx/Rx.

Serial Host Control Port: 1 bidirectional RS-232 or RS-422, rear panel 9-pin female D connector (RS-232: 2=Tx, 3=Rx, 5=Gnd; RS-422: 2=Tx-, 3=Rx-, 5=Gnd, 7=Rx+, 8=Tx+)

Baud Rate and Protocol: 9600 (default), 19200, 38400, 115200 baud, adjustable; 8 data bits, 1 stop bit, no parity

USB Control Port: 1 front panel female mini USB B, USB 2.0 low speed

Ethernet Control Port: 1 RJ-45 female, 10/100Base-T half/full duplex with autodetect

Ethernet Protocol: ARP, ICMP (ping), IP, TCP, DHCP, HTTP, SMTP, Telnet

Ethernet Default Settings: IP address 192.168.254.254, subnet mask 255.255.0.0, gateway 0.0.0.0, DHCP off

Web Server: Up to 200 simultaneous sessions, 7.0 MB nonvolatile user memory

Program Control: Extron control/configuration program for Windows, Extron SIS, web browser, Telnet

Power Supply: Internal, 1 or 2 (positive-negative); redundant supply optional. Input: 100-240 VAC, 50-60 Hz

Power Consumption: Primary power supply: 97 watts. Primary and redundant supplies: 107 watts. Measured fully loaded with (4) 4x4 I/O boards.

Power Consumption per Board: 4x4 I/O: 18 W; 4 input: 10 W; 4 output: 7 W

Temperature/Humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing. Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Cooling: Fan, right to left (as viewed from front panel)

Rack Mount: Yes

Enclosure Type: Metal

Thermal Dissipation, Full Load: Primary power supply: 332 BTU/hr. Primary and redundant supplies: 366 BTU/hr. Measured fully loaded with (4) 4x4 I/O boards.

Enclosure Dimensions: 7.0" H x 17.0" W x 12" D (4U high, full rack wide) (17.8 cm H x 43.2 cm W x 30.5 cm D). Depth excludes connectors and buttons; width excludes rack ears.

Product Weight: With primary power supply only: 26.9 lbs (12.2 kg). With both primary and redundant supplies: 27.9 lbs (12.6 kg)

Shipping Weight: 32 lbs (15 kg)

Safety: CE, c-UL, UL

EMI/EMC: CE, C-tick, FCC Class A, ICES, KC, VCCI

Environmental: Complies with the appropriate requirements of RoHS, WEEE

Warranty: 3 years parts and labor

Diagram

Resources

Brochure | DMS 1600 Frame 60-1091-01 | DMS Series

Brochure | DMS 1600 Frame 60-1091-01 | DMS 系列

Brochure | DMS 1600 Frame 60-1091-01 | DMS-Serie

Brochure | DMS 1600 Frame 60-1091-01 | DMSシリーズ

Brochure | DMS 1600 Frame 60-1091-01 | Gamme DMS

Brochure | DMS 1600 Frame 60-1091-01 | Serie DMS

Manual | DMS 1600 Frame 60-1091-01 | Cleaning Instruction Card

Manual | DMS 1600 Frame 60-1091-01 | DMS 1600, DMS 2000, DMS 3200, and DMS 3600 Setup Guide

Manual | DMS 1600 Frame 60-1091-01 | DMS 1600, DMS 2000, DMS 3200, and DMS 3600 User Guide

Specifications | DMS 1600 Frame 60-1091-01 | DMS 1600 Series

Specifications | DMS 1600 Frame 60-1091-01 | DMS 1600, DMS 2000, DMS 3200, and DMS 3600 Series

Specifications | DMS 1600 Frame 60-1091-01 | DMS 3600 Series

Panel Drawing | DMS 1600 Frame 60-1091-01 | DMS 1600 and DMS 3600
