Manufacturer: Extron; Model: DMP 64 Plus C AT; Part number: 60-1823-10 (also written 60182310)

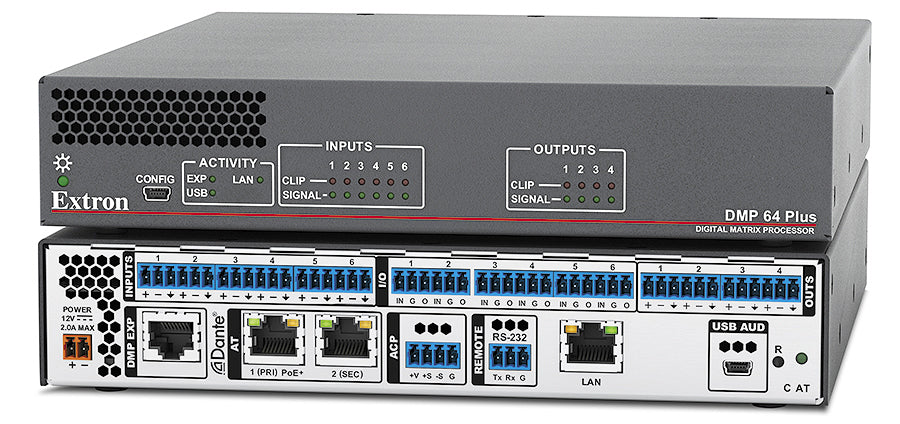

The Extron DMP 64 Plus C AT (60-1823-10) is a new half-rack 6x4 ProDSP digital matrix processor available through Ampronix with AEC and Dante/AES-67 networking. 6 AEC channels (all FlexInputs). 6 mono/3 stereo mic/line inputs (all phantom); 4 mono/2 stereo line outputs. Dante/AES-67: 32 ch Rx, 16 ch Tx on 2-port 1 Gbps switch. PoE+ power (IEEE 802.3at) or external 12 VDC PS 1220. AEC tail >200 ms; convergence up to 60 dB/sec. USB audio; EXP port. 1.7 x 8.7 x 9.5 in, 2.35 lbs. 3-year warranty.

Key capabilities

6 AEC FlexInput channels; 6 mic/line in (all phantom); 4 mono/2 stereo out
Dante/AES-67: 32 ch Rx / 16 ch Tx on 2-port 1 Gbps switch; PoE+ or 12 VDC PS 1220
USB audio; EXP port; AEC tail >200 ms; half-rack 1.7 x 8.7 x 9.5 in, 2.35 lbs; 3-year warranty

Where it is used

Zoom and Teams rooms with Dante ceiling or table microphone arrays, collaboration spaces, classrooms, and telehealth rooms on a campus Dante backbone. Single Ethernet cable delivers both audio and power via PoE+.

Specifications at a glance

Matrix: 6 in x 4 out; AEC: 6 ch FlexInput; Dante: 32 Rx/16 Tx; power: PoE+ or 18.2 W with PS 1220
Enclosure: 1.7 x 8.7 x 9.5 in, 2.35 lbs; warranty: 3-year

Frequently asked questions about the Extron DMP 64 Plus C AT 6x4 ProDSP AEC Dante Processor

Is the Extron DMP 64 Plus C AT 60-1823-10 available new or refurbished?

As an authorized Extron distributor, Ampronix offers the DMP 64 Plus C AT (60-1823-10) as a new unit.

What is the difference between the DMP 64 Plus C AT and the C V AT (60-1824-10)?

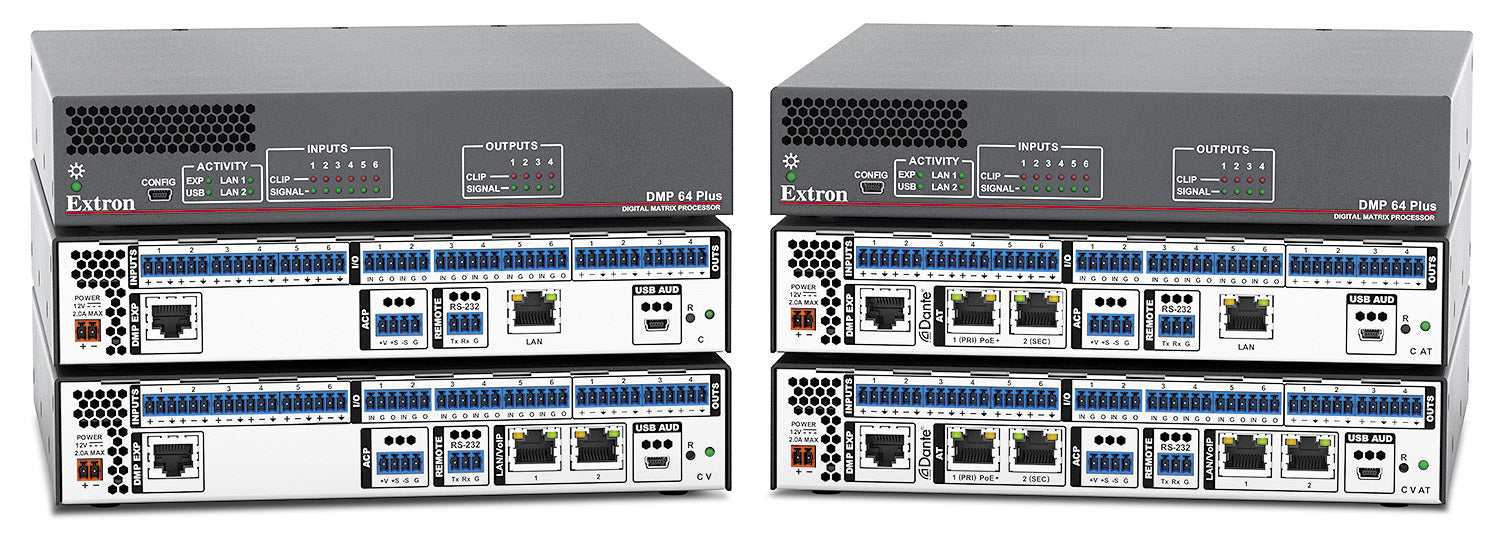

The C AT has AEC and Dante but no VoIP; the C V AT adds up to 8 SIP telephone extensions. Choose C AT for Dante-only rooms; choose C V AT when telephone dialing is also required.

Does Ampronix offer replacement and exchange for Extron DMP 64 Plus processors?

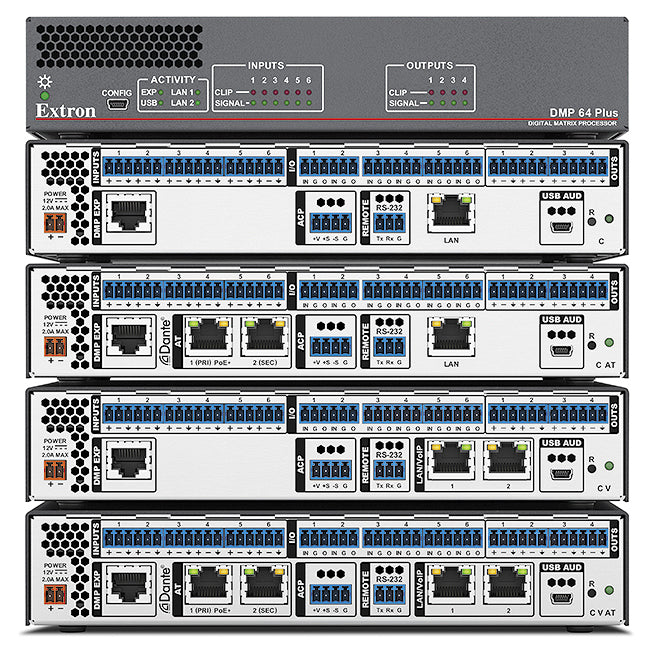

Ampronix supplies the full Extron DMP 64 Plus C/C AT/C V/C V AT family and related DSP accessories.

Ampronix is an authorized Extron distributor and carries a full range of Extron DMP ProDSP audio matrix processors.

Also referenced as Extron DMP64PlusCAT, DMP-64-Plus-C-AT, part number 60182310.

Specifications

Part Number: 60-1823-10

Manufacturer: Extron

Model: DMP 64 Plus C AT

Condition: New

Gain: Balanced output: 0 dB, unbalanced output: -6 dB

Frequency Response: 20 Hz to 20 kHz, ±0.2 dB

THD + Noise: <0.02%, 20 Hz to 20 kHz, at maximum level

S/N, Analog In to Analog Out: >109 dB, 20 Hz to 20 kHz, at maximum balanced output (unweighted)

S/N, Analog In to Digital Out: 110 dB, 20 Hz to 20 kHz, at full-scale output (unweighted)

S/N, Digital In to Analog Out: 115 dB, 20 Hz to 20 kHz, at maximum balanced output (unweighted)

Crosstalk: <-90 dB @ 20 Hz to 20 kHz, fully loaded

Volume Control: -100 dB to 0 dB (control 0 to 100 in 0.1 dB steps)

A/D, D/A Conversion: 24-bit, 48 kHz

AEC Tail Length: >200 msec

AEC Convergence: Up to 60 dB/sec

Noise Cancellation: Up to 20 dB, software selectable

Audio Inputs: 6 mono (or 3 stereo), mic/line, balanced/unbalanced, 6 with phantom power

Audio Input Connectors: (3) 3.5 mm captive screw, 6 pole, mono, balanced/unbalanced

Audio Input Impedance: >10k ohms balanced/unbalanced

Audio Input Nominal Level: -60 dBV, +4 dBu, -10 dBV adjustable via input gain

Audio Input Maximum Level: +21 dBu at rated THD+N when mic gain is set to 0 dB

Equivalent Input Noise: <-120 dBV (1 µVrms) at 40 dB input gain

CMRR: >60 dB typical

Input Gain Adjustment: -18 dB to +80 dB in 0.1 dB steps, adjustable per input

Phantom Power: +48 VDC, ±10% (inputs 1-6), switchable on or off per input

Audio Outputs: 4 mono (or 2 stereo), line, balanced/unbalanced

Audio Output Connectors: (2) 3.5 mm captive screw, 6 pole, mono, balanced/unbalanced

Audio Output Impedance: 100 ohms balanced, 50 ohms unbalanced

Audio Output Gain Error: ±0.1 dB channel to channel

Audio Output Maximum Level (Hi-Z): >+21 dBu balanced, >+15 dBu unbalanced

Dante Audio Transport: Dante/AES-67, software selectable

Dante Connectors: 2 RJ-45, 2-port 1 Gbps switch to Dante interface

Dante Channels: 32 channels Rx, 16 channels Tx

Dante Audio Format: Uncompressed, 24-bit, 48 kHz

Dante Latency: Deterministic, based on user selections: 0.25 ms, 0.5 ms, 1.0 ms (default), 2.0 ms, 5.0 ms

EXP Port: 1 RJ-45, proprietary transmission

EXP Port Channels: 16 channels Rx, 16 channels Tx

EXP Port Audio Format: Uncompressed, 24-bit, 48 kHz

EXP Cable: Shielded CAT6 up to 10 meters (1 foot cable included)

USB Audio Port: 1 rear panel USB mini-B, USB 2.0 high speed; configurable 0x8, 2x6, 4x4, 6x2 or 8x0

Serial Control Port: 1 bidirectional RS-232, 3.5 mm captive screw, 3 pole; 38400 baud, 8 data bits, 1 stop bit, no parity

USB Control Port: 1 front panel USB mini-B, USB 2.0 high speed

ACP Control Port: (1) 3.5 mm captive screw, 4 pole, supports up to 8 panels, 6 Watts max

Digital I/O: (6) 3.5 mm captive screw, 6 pole (shared with audio input); input 0V to +12V, output 0V (low) / 5V (high), software programmable

Ethernet Host Port: 1 RJ-45, 10/100/1000 Base-T

Ethernet Protocols: ARP, ICMP, IEEE 802.1X, IP, TCP, DHCP, HTTPS, Telnet, SSH

Ethernet Default Settings: IP address 192.168.254.254, subnet mask 255.255.255.0, default gateway 0.0.0.0, DHCP off

Web Server: Up to 200 simultaneous sessions

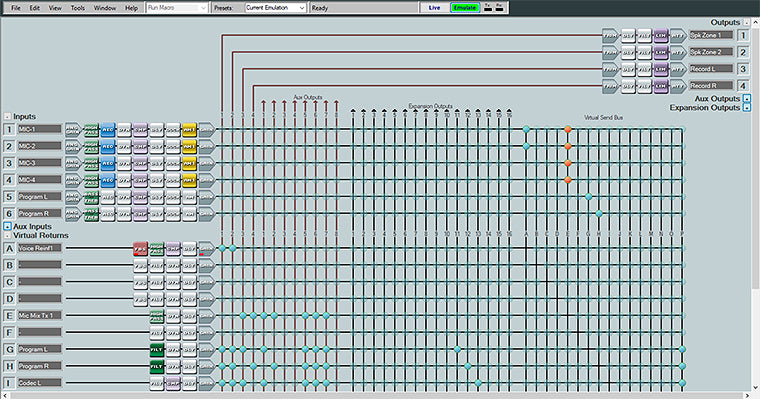

Program Control: Extron DSP Configurator software for Windows, Extron Simple Instruction Set (SIS), web browser, Telnet

Power Supply: External; input 100-240 VAC, 50-60 Hz; output 12 VDC, 2 A, 24 watts

Power Input Requirements: 12 VDC or Power over Ethernet Plus (PoE Plus IEEE 802.3at)

Power Consumption: PI 140 power injector: 17.6 watts (device), 23.6 watts (device and injector); PoE+ PSE: 21.8 watts (device); PS 1220 supply: 18.2 watts (device), 19.6 watts (device and supply)

Thermal Dissipation: PI 140 power injector: 49.7 BTU/hr (device), 70.2 BTU/hr (device and injector); PoE+ PSE: 57.2 BTU/hr (device); PS 1220 supply: 48.2 BTU/hr (device), 52.7 BTU/hr (device and supply)

Temperature/Humidity: Storage -40 to +158 °F (-40 to +70 °C), 10% to 90% noncondensing; Operating +32 to +122 °F (0 to +50 °C), 10% to 90% noncondensing

Cooling: Fan, front to back, fixed speed

Rack Mount: Yes, with optional 1U rack shelf

Furniture Mount: Yes, with optional under-desk mounting kit

Enclosure Type: Metal

Enclosure Dimensions: 1.7 in H x 8.7 in W x 9.5 in D (1U high, half rack wide); 4.3 cm H x 22.1 cm W x 24.1 cm D

Product Weight: 2.35 lbs

Regulatory Compliance: CE, c-UL, UL, C-Tick, FCC Class A, ICES, RoHS, VCCI, WEEE, KC

Warranty: 3 years parts and labor

Diagram

Resources

Brochure | DMP 64 Plus C AT 60-1823-10 | DMP 64 Plus (dmp_64_plus_revA1.pdf)

Brochure | DMP 64 Plus C AT 60-1823-10 | Collaborer en toute sécurité - Guide d'application pour les systèmes audiovisuels Extron

Brochure | DMP 64 Plus C AT 60-1823-10 | Creación de experiencias de reunión más seguras - Guía de aplicación para sistemas AV Extron

Brochure | DMP 64 Plus C AT 60-1823-10 | DMP 64 Plus (dmp_64_plus_REV_A_cn_ONLINE.pdf)

Brochure | DMP 64 Plus C AT 60-1823-10 | DMP 64 Plus (DMP-64-Plus_BR_A4_RU_RevA.pdf)

Brochure | DMP 64 Plus C AT 60-1823-10 | DMP 64 Plus (DMP-64-Plus_BR_A4_FR_revA1.pdf)

Brochure | DMP 64 Plus C AT 60-1823-10 | DMP 64 Plus (DMP-64-Plus_BR_A4_IT_revA1.pdf)

Brochure | DMP 64 Plus C AT 60-1823-10 | DMP 64 Plus (DMP-64-Plus_BR_A4_SP_revA1.pdf)

Brochure | DMP 64 Plus C AT 60-1823-10 | DMP 64 Plus (DMP-64-Plus_BR_A4_GE_revA1.pdf)

Brochure | DMP 64 Plus C AT 60-1823-10 | DMP 64 Plus (DMP-64-Plus_BR_A4_EN_revA_Japanese.pdf)

Brochure | DMP 64 Plus C AT 60-1823-10 | Sichere Zusammenarbeit in Meetingbereichen - Leitfaden für Extrons AV-Systeme

Brochure | DMP 64 Plus C AT 60-1823-10 | Una collaborazione più sicura negli spazi meeting - Guida applicativa per i sistemi AV di Extron

Brochure | DMP 64 Plus C AT 60-1823-10 | Создание более безопасных условий для проведения встреч - Руководство по применению для AV‑систем Extron

Manual | DMP 64 Plus C AT 60-1823-10 | Cleaning Instruction Card

Manual | DMP 64 Plus C AT 60-1823-10 | DMP 64 Plus Setup Guide

Manual | DMP 64 Plus C AT 60-1823-10 | DMP 64 Plus User Guide

Manual | DMP 64 Plus C AT 60-1823-10 | Network Ports, Protocols, and Licenses

Specifications | DMP 64 Plus C AT 60-1823-10 | DMP 64 Plus

Panel Drawing | DMP 64 Plus C AT 60-1823-10 | DMP 64 Plus
