Details

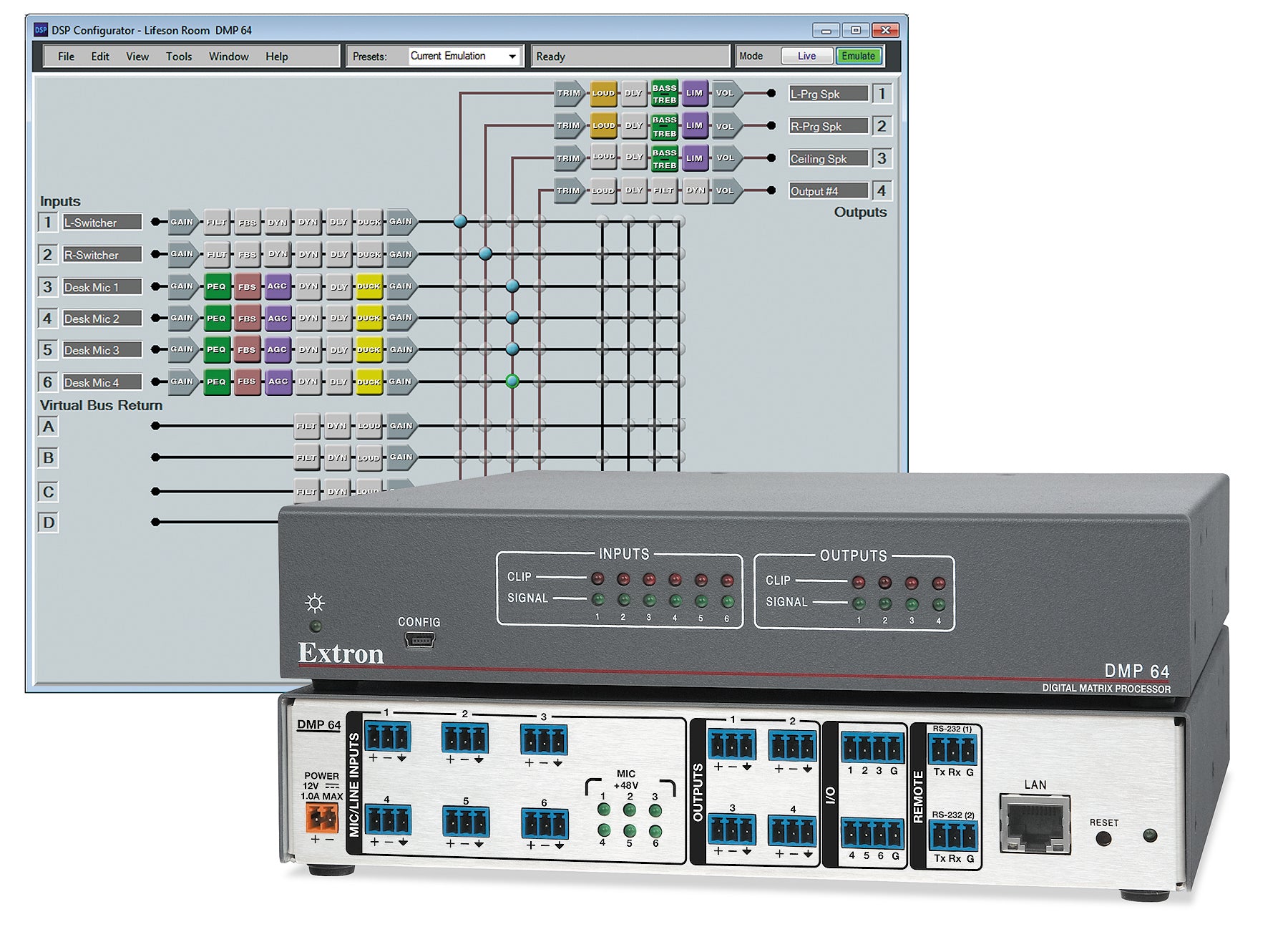

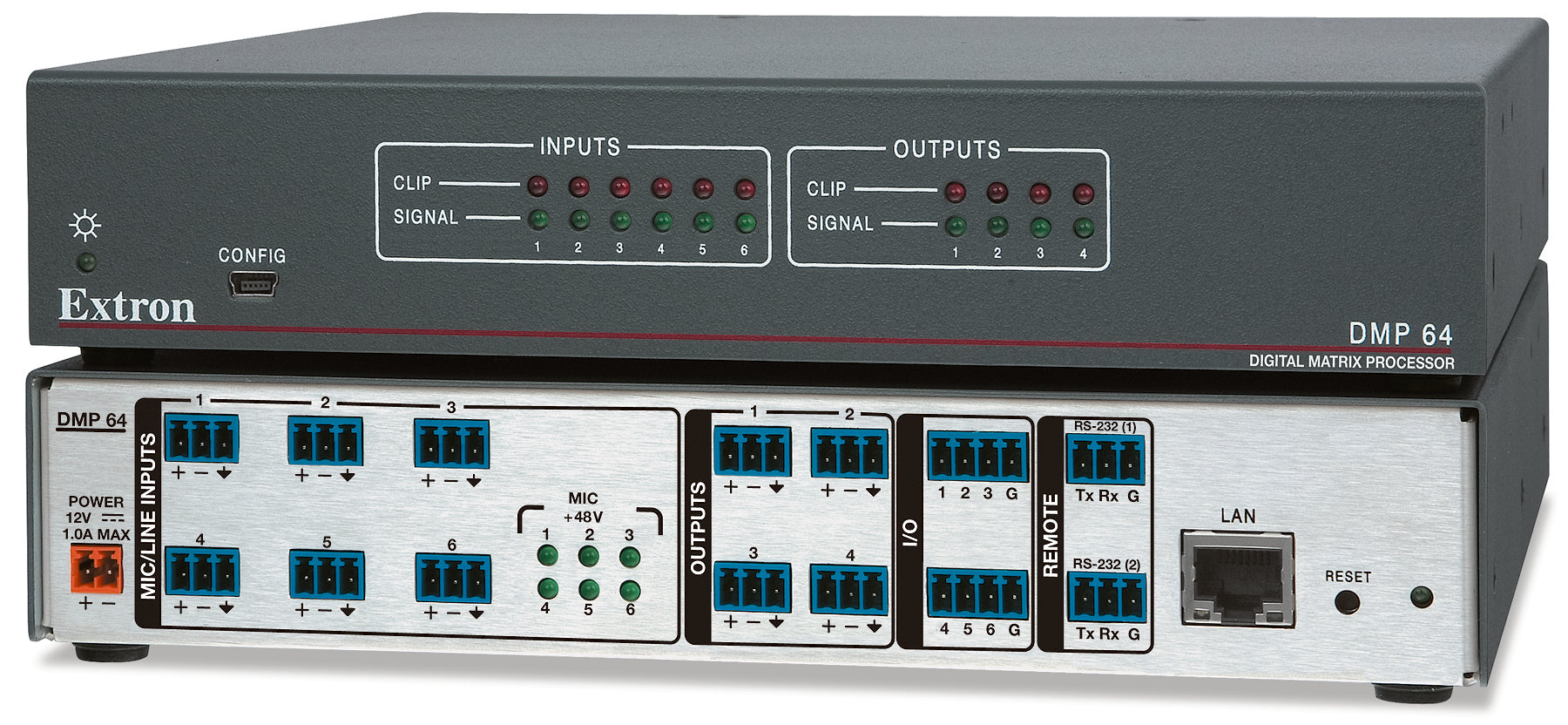

Extron DMP 64 (part number 60-1054-01) — a 6x4 ProDSP digital audio matrix processor in a half-rack, fanless enclosure.

The DMP 64 takes six microphone or line sources, runs them through a 64-bit floating point DSP engine with 24-bit/48 kHz conversion, and routes the result to four balanced line outputs. Gain trims across a wide 98 dB window per input, phantom power is switchable for condenser microphones, and six configurable digital I/O ports let the processor respond to contact closures or drive indicators. Two RS-232 ports and a 10/100Base-T Ethernet port give a control system more than one way in.

Key Capabilities

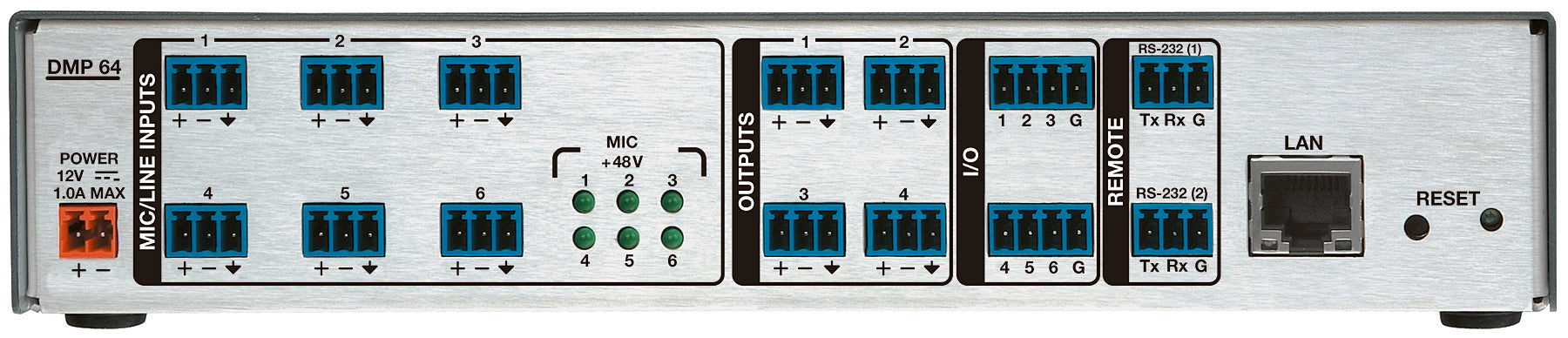

Six mono mic/line inputs, balanced or unbalanced, on six 3-pole captive screw connectors.
Four mono balanced/unbalanced line outputs on four 3-pole captive screw connectors.
Per-input volume range from -18 dB to +80 dB for microphone or line sources.
Switchable +48 VDC microphone phantom power.
Six configurable digital I/O ports, software programmable, 0 to +12 V in and 0 or 5 V out.
Two bidirectional RS-232 ports plus an Ethernet host port with a 200-session web server and 6.5 MB of nonvolatile user memory.

Where It Is Used

Classrooms, training rooms, small auditoriums, houses of worship and paging systems where a handful of microphones and program sources have to be mixed and sent to a few zones. The fanless half-rack metal enclosure runs silently on an external 12 VDC supply and mounts on an optional 1U shelf or under a desk.

Specifications at a Glance

Matrix: 6 mic/line inputs by 4 line outputs, 24-bit/48 kHz sampling
Frequency response 20 Hz to 20 kHz, ±0.1 dB; CMRR better than 70 dB at 1 kHz
Signal to noise better than 105 dB; crosstalk better than -90 dB at 1 kHz
Power consumption 13.5 W device, 16.2 W with the external supply
Enclosure 1.7 in H x 8.75 in W x 9.5 in D, 1.9 lbs (0.9 kg)

Also referenced as Extron DMP64, DMP-64, part number 60105401.

Specifications

Part Number: 60-1054-01

Manufacturer: Extron

Model: DMP 64

Condition: New

Gain: Unbalanced output: -6 dB; balanced output: 0 dB

Frequency Response: 20 Hz to 20 kHz, ±0.1 dB

THD + Noise: <0.02% @ 1 kHz, at maximum output level

S/N: >105 dB, 20 Hz to 20 kHz, at maximum output, unweighted

Crosstalk: <-90 dB @ 1 kHz, fully loaded

CMRR: >70 dB @ 1 kHz

A/D, D/A Conversion: 24 bit, 48 kHz sampling

Audio Inputs: 6 mono, mic/line, balanced/unbalanced

Audio Input Connectors: (6) 3.5 mm captive screw connectors, 3 pole

Audio Input Impedance: >10k ohms unbalanced/balanced

Audio Input Nominal Level: +4 dBu when level is set to 0 dB gain; adjustable from -60 dBu to +4 dBu

Audio Input Maximum Level: +24 dBu, balanced, when input gain is set to -3 dB

Input Noise Level: <-120 dBV (1 µVrms) at 40 dB gain

Volume Range: -18 dB to +80 dB, mic/line input, adjustable per input

Mic Phantom Power: +48 VDC, which can be switched on or off

Audio Outputs: 4 mono, balanced/unbalanced

Audio Output Connectors: (4) 3.5 mm captive screw connectors, 3 pole

Audio Output Impedance: 50 ohms unbalanced, 100 ohms balanced

Audio Output Gain Error: ±0.1 dB channel to channel

Audio Output Maximum Level (Hi-Z): >+21 dBu balanced, >+15 dBu unbalanced

Serial Control Ports: 2 bidirectional RS-232, 3.5 mm captive screw connector, 3 pole; 38400 baud, 8 data bits, 1 stop bit, no parity

Serial Control Pin Configuration: 1 = Tx, 2 = Rx, 3 = Gnd

USB Control Port: 1 front panel female mini USB B, USB 2.0 low speed

Digital I/O: (2) 3.5 mm captive screw connectors, 4 pole; each port shares a common ground; 6 configurable digital I/O ports; input 0V to +12V, output 0V (low) / 5V (high), software programmable

Ethernet Host Port: 1 RJ-45 female, 10/100Base-T, half/full duplex with autodetect

Ethernet Default Settings: IP address 192.168.254.254, subnet mask 255.255.0.0, default gateway 0.0.0.0, DHCP off

Web Server: Up to 200 simultaneous sessions; 6.5 MB nonvolatile user memory

Program Control: Extron control/configuration software for Windows, Extron Simple Instruction Set (SIS), web browser, Telnet

Power Supply: External; input 100-240 VAC, 50-60 Hz; output 12 VDC, 1.5 A, 18 watts

Power Input Requirements: 12 VDC

Power Consumption: 13.5 W (device); 16.2 W (device and power supply)

Thermal Dissipation: 45.8 BTU/hr (device); 55.2 BTU/hr (device and power supply)

Temperature/Humidity: Storage -40 to +158 °F (-40 to +70 °C), 10% to 90% noncondensing; Operating +32 to +122 °F (0 to +50 °C), 10% to 90% noncondensing

Cooling: Convection, no vents

Rack Mount: Yes, with optional 1U rack shelf

Furniture Mount: Yes, with optional under-desk mounting kit

Enclosure Type: Metal

Enclosure Dimensions: 1.7 in H x 8.75 in W x 9.5 in D (1U high, half rack wide); 4.3 cm H x 22.2 cm W x 24.1 cm D; depth excludes connectors

Product Weight: 1.9 lbs (0.9 kg)

Regulatory Compliance: CE, C-tick, c-UL, FCC Class A, ICES, RoHS, UL, VCCI, WEEE, KC

Warranty: 3 years parts and labor

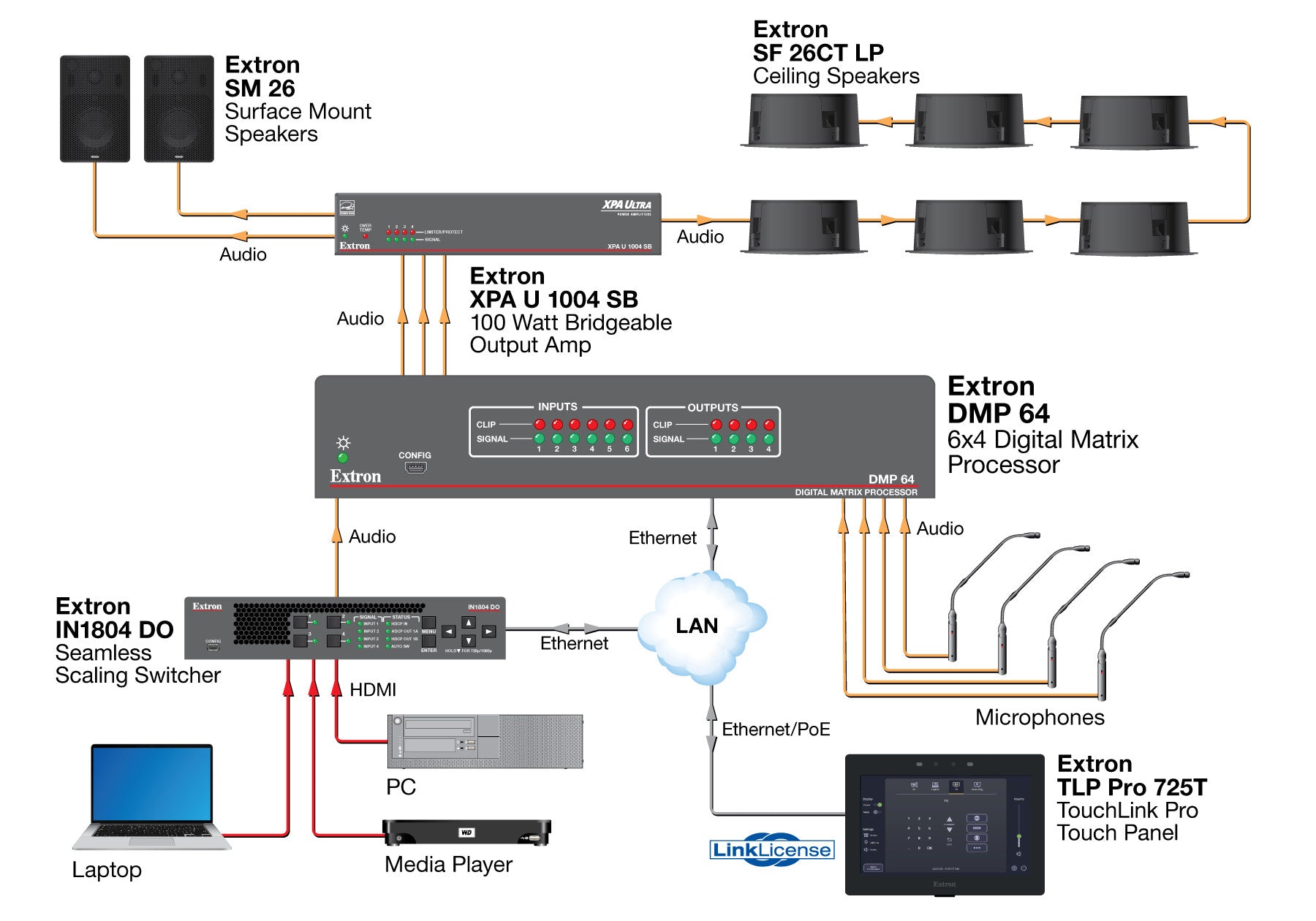

Diagram

Resources

Brochure | DMP 64 60-1054-01 | DMP 64 (dmp64_revB.pdf)

Brochure | DMP 64 60-1054-01 | Everlast Power Supplies

Brochure | DMP 64 60-1054-01 | Alimentatori Everlast

Brochure | DMP 64 60-1054-01 | DMP 64 (dmp64_jpRevA.pdf)

Brochure | DMP 64 60-1054-01 | DMP 64 (dmp64_A4_CH_revA.pdf)

Brochure | DMP 64 60-1054-01 | DMP 64 (DMP-64_BR_A4_GE_RevB.pdf)

Brochure | DMP 64 60-1054-01 | DMP 64 (DMP-64_BR_A4_SP_RevB.pdf)

Brochure | DMP 64 60-1054-01 | DMP 64 (DMP-64_BR_A4_FR_RevB.pdf)

Brochure | DMP 64 60-1054-01 | Everlast 电源

Brochure | DMP 64 60-1054-01 | Everlast-Netzteile

Brochure | DMP 64 60-1054-01 | Fuentes de alimentación Everlast

Brochure | DMP 64 60-1054-01 | Sources d'alimentation Everlast

Manual | DMP 64 60-1054-01 | Cleaning Instruction Card

Manual | DMP 64 60-1054-01 | DMP 64 Setup Guide

Manual | DMP 64 60-1054-01 | DMP 64 User Guide

Specifications | DMP 64 60-1054-01 | DMP 64

Panel Drawing | DMP 64 60-1054-01 | DMP 64
