Details

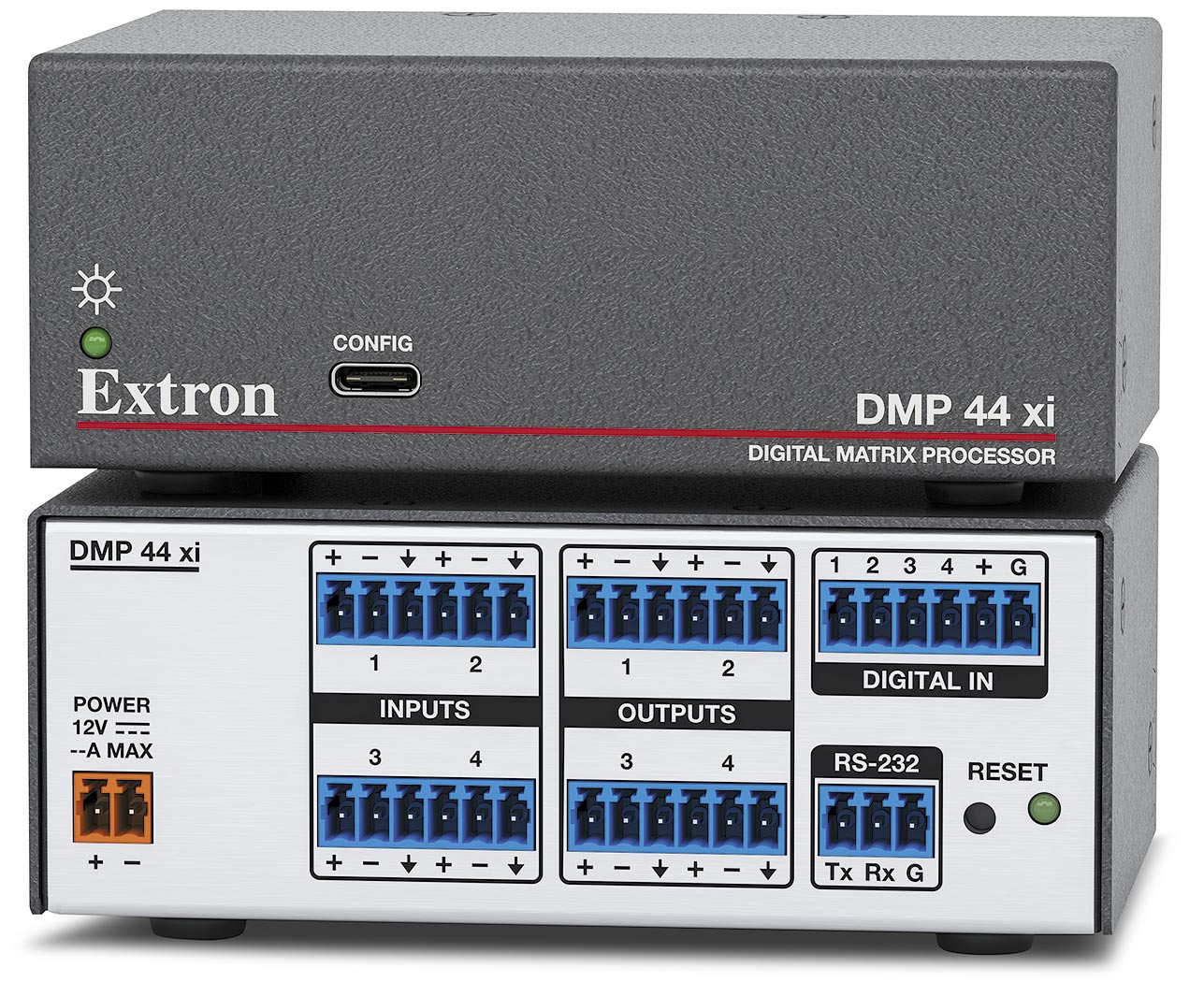

Extron DMP 44 xi (part number 60-2041-01) — a compact 4x4 line-level audio matrix processor with digital signal processing in a quarter-rack chassis.

Not every room needs a conferencing DSP. The DMP 44 xi exists for the far more common job of taking four line-level sources, processing them and sending them to four destinations — zone feeds, an amplifier, an assistive listening transmitter, a recorder. It measures 4.3 inches wide, weighs half a pound and runs on convection cooling with no vents and no fan, so it can sit inside furniture or above a ceiling without adding noise or a dust path. Configuration and control come over RS-232, front-panel USB-C and software-programmable digital inputs.

Key Capabilities

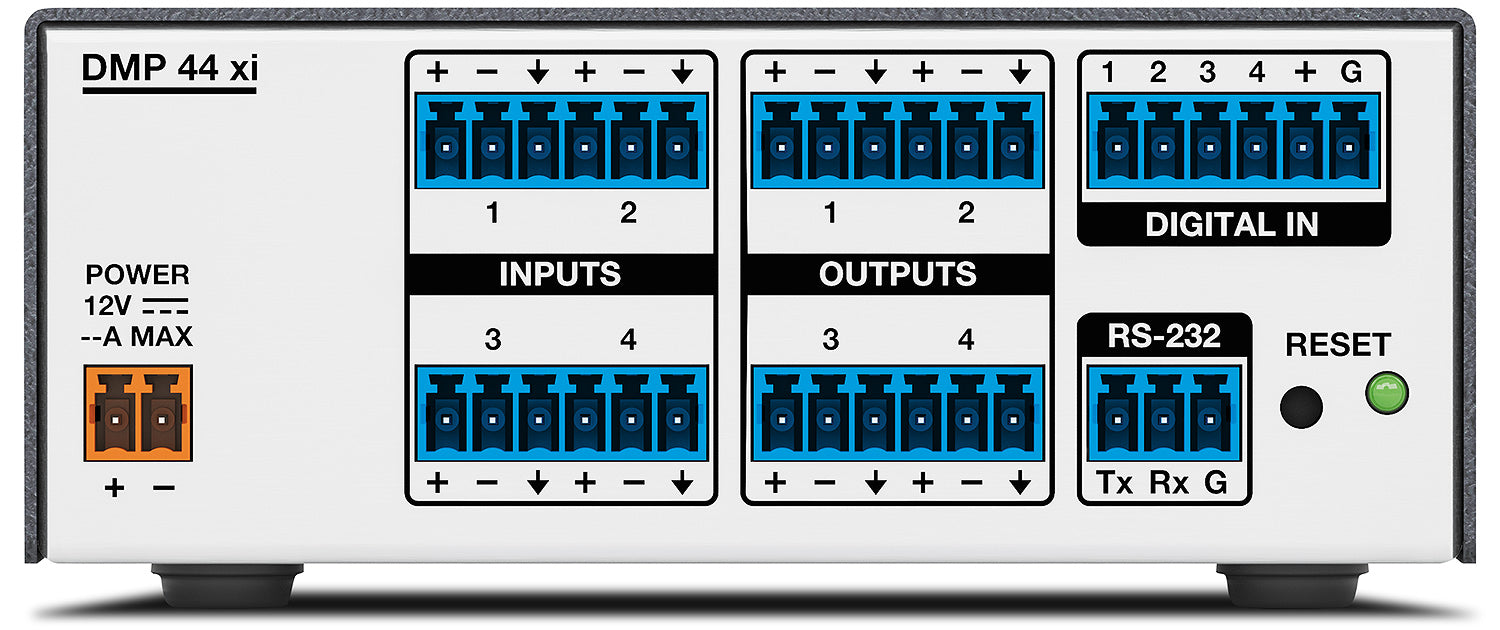

Four mono balanced/unbalanced line inputs on two 6-pole captive screw connectors.
Four mono (or two stereo) balanced/unbalanced line outputs, also on two 6-pole connectors.
Per-input gain adjustment from -18 dB to +24 dB in 0.1 dB steps.
Output attenuation across a -100 dB to 0 dB range in 0.1 dB steps.
Software-programmable digital inputs accepting 0 to 24 VDC with a 1k ohm pullup to +5 VDC.

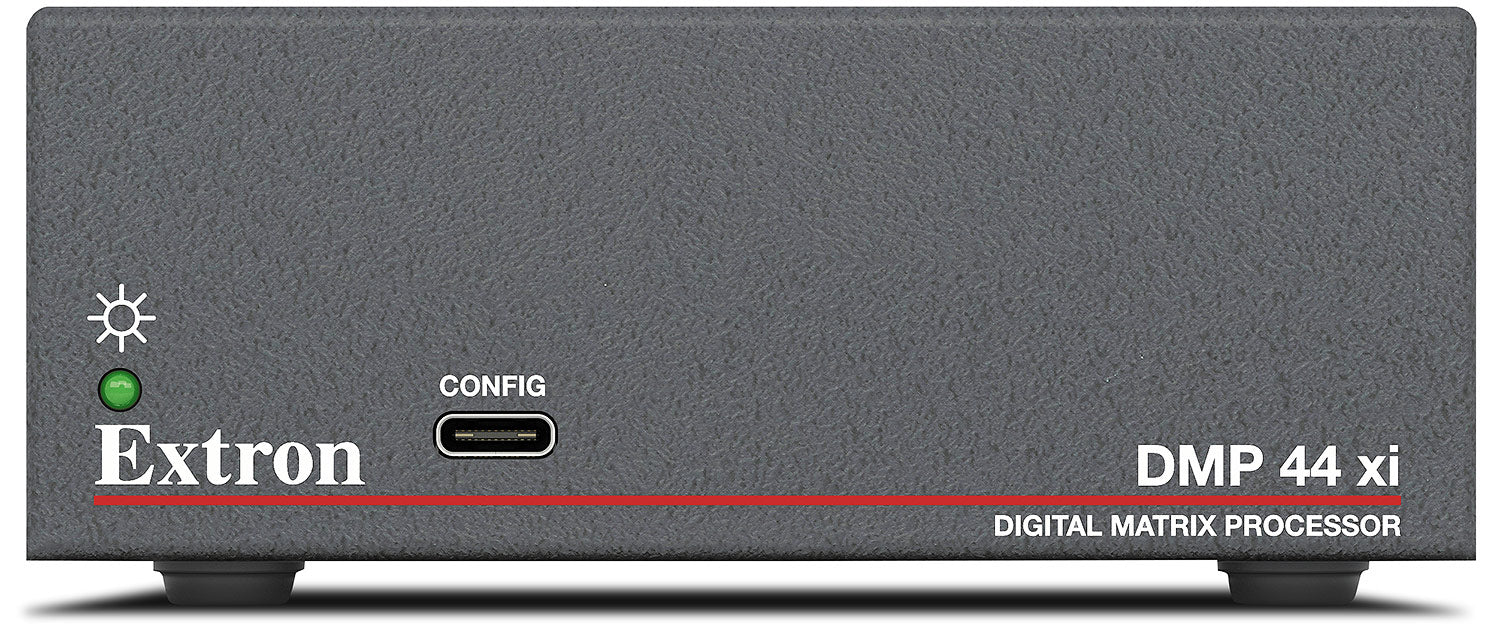

Front-panel USB-C and rear RS-232 at 38400 baud for configuration and control.

Where It Is Used

Classrooms, small meeting rooms, retail and hospitality background music zones, museum and exhibit audio, and any place a designer needs clean routing and level control without a rack. The quarter-rack metal enclosure mounts on an optional 1U shelf or under a desk and draws just 4.2 watts.

Specifications at a Glance

Matrix: 4 line inputs by 4 line outputs, 24-bit/48 kHz conversion
Frequency response 20 Hz to 20 kHz, ±0.3 dB; THD+Noise under 0.01%
Signal to noise better than 100 dB; crosstalk better than -90 dB
Power consumption 4.2 W device, 5.0 W with the PS 1205 C supply
Enclosure 1.7 in H x 4.3 in W x 3.0 in D, 0.5 lbs (0.2 kg)

Also referenced as Extron DMP44xi, DMP-44-xi, part number 60204101.

Specifications

Part Number: 60-2041-01

Manufacturer: Extron

Model: DMP 44 xi

Condition: New

Gain: Balanced output: 0 dB, unbalanced output: -6 dB

Frequency Response: 20 Hz to 20 kHz, ±0.3 dB

THD + Noise: <0.01%, 20 Hz to 20 kHz, at maximum balanced output (unweighted)

S/N, Analog In to Analog Out: >100 dB, 20 Hz to 20 kHz, at maximum balanced output (unweighted)

Crosstalk: <-90 dB @ 20 Hz to 20 kHz, fully loaded

Output Attenuation: -100 dB to 0 dB (control 0 to 100 in 0.1 dB steps)

A/D, D/A Conversion: 24-bit, 48 kHz

Audio Inputs: 4 mono line, balanced/unbalanced

Audio Input Connectors: (2) 3.5 mm captive screw, 6 pole, mono, balanced/unbalanced

Audio Input Impedance: >10k ohms balanced/unbalanced

Audio Input Nominal Level: +4 dBu when level is set to 0 dB gain; adjustable from -60 dBu to +4 dBu

Audio Input Maximum Level: +21 dBu (at rated THD+N) when input gain is set to 0 dB

Equivalent Input Noise: <-120 dBV (1 µVrms) at 40 dB input gain

Input Gain Adjustment: -18 dB to +24 dB, 0.1 dB steps, adjustable per input

CMRR: >65 dB typical

Audio Outputs: 4 mono (or 2 stereo), line level, balanced/unbalanced

Audio Output Connectors: (2) 3.5 mm captive screw, 6 pole, mono, balanced/unbalanced

Audio Output Impedance: 100 ohms balanced, 50 ohms unbalanced

Audio Output Gain Error: ±0.1 dB channel to channel

Audio Output Maximum Level (Hi-Z): >+21 dBu balanced, >+15 dBu unbalanced

Serial Control Port: 1 bidirectional RS-232, 3.5 mm captive screw, 3 pole; 38400 baud, 8 data bits, 1 stop bit, no parity

USB Control Port: 1 front panel USB-C, USB 2.0 low speed

Digital Inputs: 3.5 mm captive screw, 6 pole, software programmable

Digital Input Voltage Range: 0 to 24 VDC, clamped at +30 VDC

Digital Input Impedance: >10k ohms

Programmable Pullup: 1k ohms to +5 VDC

Threshold Low to High: 2.8 VDC

Threshold High to Low: 2.0 VDC

Program Control: Extron control/configuration software for Windows, Extron Simple Instruction Set (SIS)

Power Supply: External; input 100-240 VAC, 50-60 Hz; output 12 VDC, 0.5 A, 6.0 watts

Power Input Requirements: 12 VDC

Power Consumption: With PS 1205 C supply: 4.2 watts (device); 5.0 watts (device and power supply)

Thermal Dissipation: With PS 1205 C supply: 11.7 BTU/hr (device); 14.4 BTU/hr (device and power supply)

Temperature/Humidity: Storage -40 to +158 °F (-40 to +70 °C), 10% to 90% noncondensing; Operating +32 to +122 °F (0 to +50 °C), 10% to 90% noncondensing

Cooling: Convection, no vents

Rack Mount: Yes, with optional 1U high rack shelf

Furniture Mount: Yes, with optional under-desk mounting kit

Enclosure Type: Metal

Enclosure Dimensions: 1.7 in H x 4.3 in W x 3.0 in D (1U high, quarter rack wide); 4.3 cm H x 10.9 cm W x 7.6 cm D; depth excludes connectors

Product Weight: 0.5 lbs (0.2 kg)

Regulatory Compliance: CE, C-tick, c-UL, UL, FCC Class A, ICES, KCC, VCCI, RoHS, WEEE

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

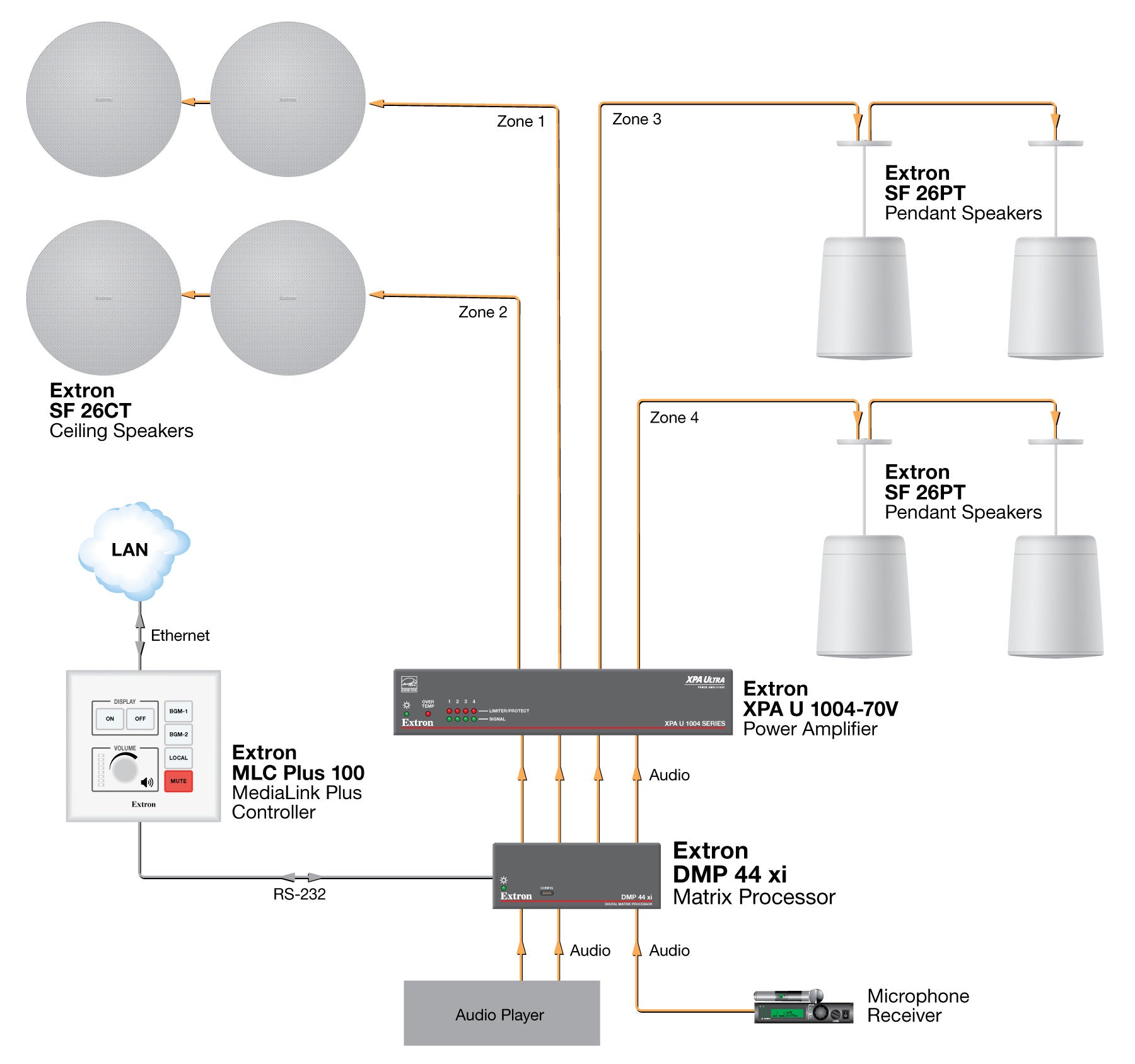

Diagram
