Extron DMP 128 Plus C V AT 12x8 ProDSP Processor with AEC, VoIP and Dante
- • AEC, VoIP and Dante all built into one 1U ProDSP processor
- • Twelve independent channels of Extron acoustic echo cancellation
- • Up to 8 concurrent SIP extensions per RFC 3261 on a dedicated port
- • 48 Dante channels received and 24 transmitted, 24-bit/48 kHz uncompressed
- • 12 mono mic/line inputs and 8 line outputs, 4x4 USB audio interface
- • Selectable Dante latency: 0.25, 0.5, 1.0, 2.0 or 5.0 ms
- • Switchable +48 VDC phantom power on inputs 1 through 8
- • 3-year Extron parts and labor warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

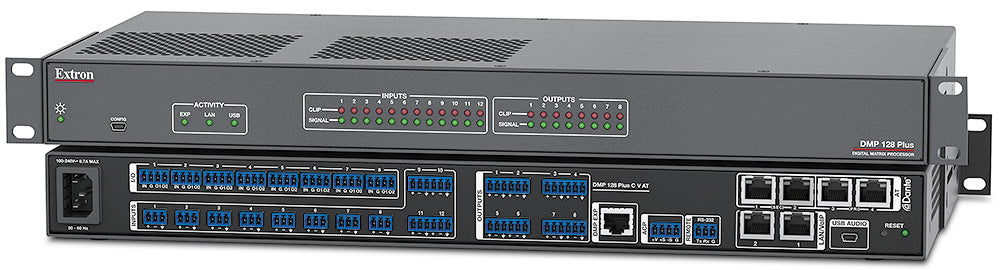

Extron DMP 128 Plus C V AT (part number 60-1513-10) — the fully loaded DMP 128 Plus: 12x8 ProDSP matrix processing with acoustic echo cancellation, VoIP telephony and Dante audio networking in one 1U chassis.
Nothing is left as an add-on in this configuration. Twelve AEC processors handle the conferencing side, each referencing whichever input, output or virtual return bus the designer picks. A SIP endpoint gives the room up to eight telephone extensions on its own network port and its own web page. A four-port gigabit switch adds Dante and AES-67 transport with 48 channels in and 24 out, so the same processor serves the local room and the building-wide audio network at once.
Key Capabilities
- Twelve independent AEC channels, tail length above 200 msec, convergence up to 60 dB per second.
- Up to eight concurrent SIP extensions per RFC 3261, with wideband and other ITU codecs.
- Dante/AES-67 transport on four RJ-45 ports: 48 channels Rx, 24 channels Tx, uncompressed 24-bit/48 kHz.
- Selectable network latency of 0.25, 0.5, 1.0 (default), 2.0 or 5.0 ms.
- Twelve mono mic/line inputs with switchable +48 VDC phantom power on inputs 1-8, plus eight line outputs.
- 4x4 USB digital audio interface, EXP expansion port, RS-232, Ethernet, digital I/O and ACP panel control.
Where It Is Used
Executive briefing centers, hospital and university conference floors, government and military command rooms, and any multi-building deployment that has to bridge networked audio, video calls and the telephone system in one device. It installs in 1U of full-rack width and draws from an internal 100-240 VAC supply.
Specifications at a Glance
- Matrix: 12 mic/line inputs by 8 line outputs, 24-bit/48 kHz conversion
- AEC 12 channels; VoIP up to 8 SIP extensions; Dante 48 Rx / 24 Tx
- Frequency response 20 Hz to 20 kHz, ±0.2 dB; crosstalk better than -90 dB
- Power consumption 32.4 W, thermal dissipation 78.0 BTU/hr
- Enclosure 1.69 in H x 17.40 in W x 9.48 in D, 4.5 lbs (2.1 kg)
Also referenced as Extron DMP128PlusCVAT, DMP-128-Plus-C-V-AT, part number 60151310.
