Extron DMP 128 Plus C AT 12x8 ProDSP Processor with AEC and Dante
- • Twelve independent channels of Extron acoustic echo cancellation
- • Dante/AES-67 networking on a 4-port 1 Gbps switch, software selectable
- • 48 Dante channels received and 24 transmitted, uncompressed 24-bit/48 kHz
- • AEC tail length over 200 msec, convergence up to 60 dB/sec
- • 12 mono mic/line inputs and 8 line outputs in a 1U full-rack chassis
- • 4x4 USB digital audio interface for room PC and soft codec audio
- • Switchable +48 VDC phantom power on inputs 1 through 8
- • 3-year Extron parts and labor warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

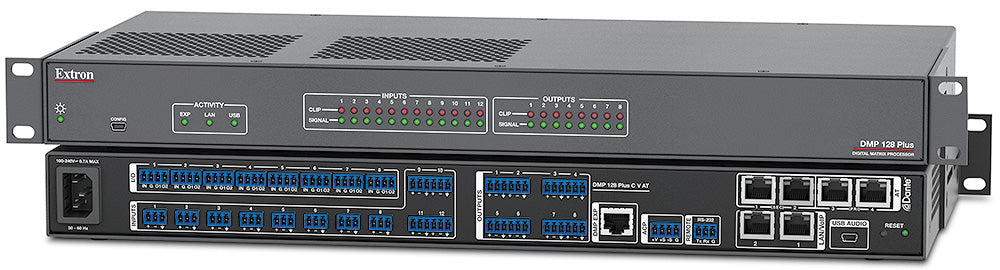

Extron DMP 128 Plus C AT (part number 60-1512-10) — a 12x8 ProDSP digital audio matrix processor that combines twelve channels of acoustic echo cancellation with Dante audio networking.
This is the DMP 128 Plus configuration for conferencing systems that outgrow a single rack. Twelve AEC processors keep far-end audio out of the near-end microphones, each with its own reference signal selected from any input, output or virtual return bus. A four-port gigabit switch then puts the room on a Dante network, adding 48 received and 24 transmitted channels alongside the twelve analog mic/line inputs and eight analog outputs. Dante and AES-67 are software selectable and Dante Domain Manager is supported.
Key Capabilities
- Twelve independent AEC channels, tail length above 200 msec, convergence up to 60 dB per second.
- Software-selectable noise cancellation of up to 20 dB.
- Dante/AES-67 transport on four RJ-45 ports: 48 channels Rx and 24 channels Tx, uncompressed 24-bit/48 kHz.
- Selectable network latency of 0.25, 0.5, 1.0 (default), 2.0 or 5.0 ms.
- Twelve mono mic/line inputs with switchable +48 VDC phantom power on inputs 1-8, and eight line outputs.
- Control from RS-232, Ethernet, front-panel USB, eight digital I/O ports and up to eight ACP panels.
Where It Is Used
Corporate campuses, university lecture halls, medical education and telemedicine suites, houses of worship and multi-room conference centers all use this model when the microphones, the DSP and the amplifiers are not in the same room. Rack mounting brackets ship with the unit and an under-desk kit is available.
Specifications at a Glance
- Analog matrix: 12 mic/line inputs by 8 line outputs, 24-bit/48 kHz
- AEC: 12 channels, tail length greater than 200 msec
- Dante/AES-67: 48 channels Rx, 24 channels Tx
- Power consumption 32.1 W, thermal dissipation 77.0 BTU/hr
- Enclosure 1.69 in H x 17.40 in W x 9.48 in D, 4.5 lbs (2.1 kg)
Also referenced as Extron DMP128PlusCAT, DMP-128-Plus-C-AT, part number 60151210.
