Extron DMP 128 Plus 12x8 ProDSP Digital Matrix Processor
- • 12 mono mic/line inputs and 8 line outputs in a 1U full-rack chassis
- • Extron ProDSP 64-bit floating point engine, 24-bit/48 kHz conversion
- • 4x4 USB digital audio interface for room PC and soft codec audio
- • EXP port links a second unit with 16 channels Rx and 16 channels Tx
- • Switchable +48 VDC phantom power on inputs 1 through 8
- • Per-input gain from -18 dB to +80 dB in 0.1 dB steps
- • RS-232, Ethernet, USB, 8 digital I/O and ACP panel control
- • 3-year Extron parts and labor warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

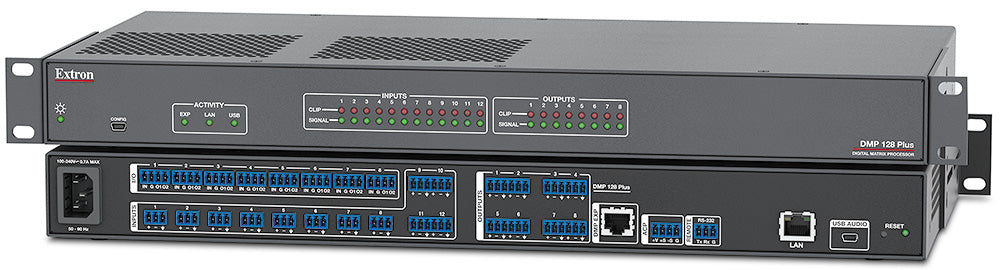

Extron DMP 128 Plus (part number 60-1511-01) — a 12x8 ProDSP digital audio matrix processor for fixed-install conferencing and presentation rooms.
The DMP 128 Plus gives an integrator a complete audio back end in one rack space: twelve analog mic/line inputs, eight analog line outputs, and a matrix that routes and processes every path at 24-bit, 48 kHz. Extron's ProDSP engine runs 64-bit floating point math, so gain staging, filtering and dynamics stay clean from input to output. A built-in 4x4 USB digital audio interface passes audio to and from a laptop or room PC without an outboard converter, and up to eight audio file players cover chimes, paging tones and background beds.
Key Capabilities
- Twelve mono mic/line inputs, balanced or unbalanced; inputs 1-8 carry switchable +48 VDC phantom power.
- Eight mono (or four stereo) balanced/unbalanced line outputs on 3.5 mm captive screw connectors.
- Per-channel input gain trim spanning -18 dB to +80 dB in 0.1 dB steps.
- EXP expansion port moves 16 channels in and 16 channels out over shielded CAT6 to a second Extron unit.
- Control reaches the unit over RS-232, Ethernet, front-panel USB, eight digital I/O ports, and up to eight ACP audio control panels.

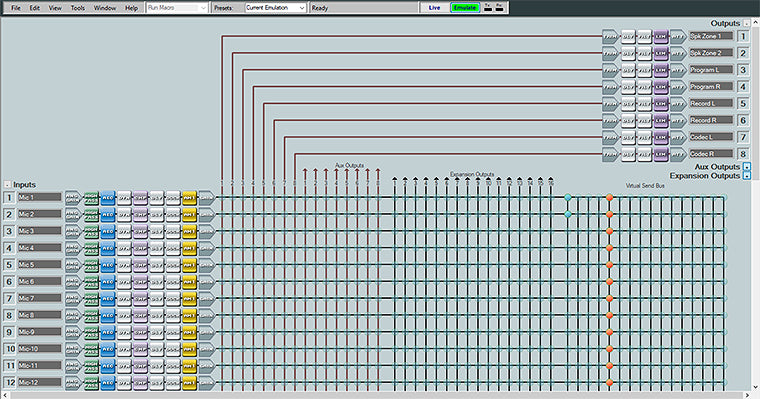

- Set up in Extron DSP Configurator software; day-to-day operation runs on Extron SIS commands or the on-board web server.
Where It Is Used
This processor suits boardrooms, divisible training rooms, lecture halls, courtrooms and command centers — anywhere a dozen microphone and program sources have to be mixed, shaped and distributed to zoned loudspeakers. The 1U full-rack metal enclosure and internal 100-240 VAC supply drop it straight into an existing equipment rack or credenza.
Specifications at a Glance
- Matrix: 12 mic/line inputs by 8 line outputs, 24-bit/48 kHz conversion
- Frequency response 20 Hz to 20 kHz, ±0.2 dB; THD+Noise under 0.02%
- Crosstalk better than -90 dB, 20 Hz to 20 kHz, fully loaded
- Enclosure 1.69" H x 17.40" W x 9.48" D, 4.5 lbs (2.1 kg)
- Power consumption 29.0 W, thermal dissipation 66.4 BTU/hr
Also referenced as Extron DMP128Plus, DMP-128-Plus, part number 60151101.
Specifications
Specifications

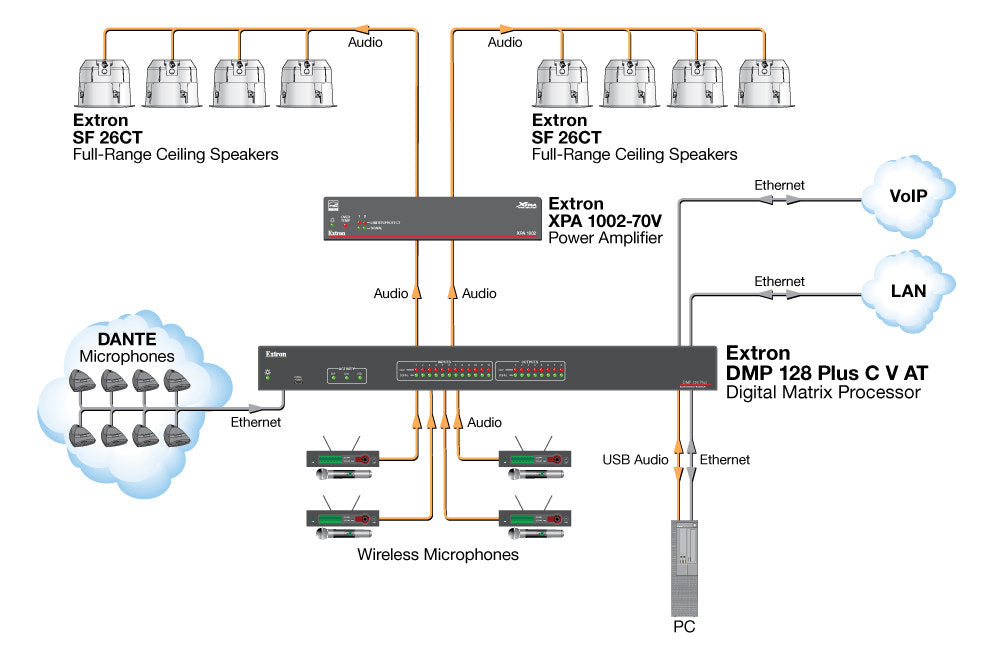

Diagram
