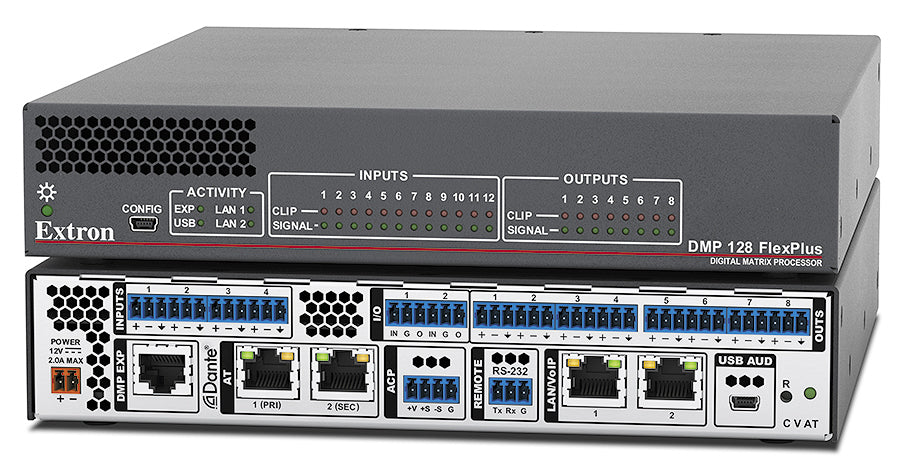

Extron DMP 128 FlexPlus C V AT 60-1821-10

Details

Manufacturer: Extron; Model: DMP 128 FlexPlus C V AT; Part number: 60-1821-10 (also written 60182110)

The Extron DMP 128 FlexPlus C V AT (60-1821-10) is a new half-rack ProDSP digital matrix processor available through Ampronix with AEC, SIP telephony, and Dante/AES-67 networking. 12 FlexInput DSP channels (full AEC). Up to 8 concurrent SIP 2.0 extensions (RFC 3261; wideband codecs). 4 analog mic/line inputs (all phantom); 8 mono/4 stereo analog line outputs. Dante/AES-67: 48 ch Rx, 24 ch Tx on 2-port 1 Gbps switch. AEC tail >200 ms. EXP port; USB audio; RS-232; Ethernet; 2 digital I/O. External 12 VDC, 15.6 W. 1.7 x 8.7 x 9.5 in, 2.4 lbs. 3-year warranty.

Key capabilities

12 FlexInput DSP channels with full AEC; up to 8 SIP VoIP extensions (RFC 3261, wideband)
4 analog mic/line in (all phantom); 8 mono/4 stereo out
Dante/AES-67: 48 ch Rx / 24 ch Tx on 2-port 1 Gbps switch; AEC tail >200 ms
External 12 VDC, 15.6 W; half-rack 1.7 x 8.7 x 9.5 in, 2.4 lbs; 3-year warranty

Where it is used

Small and mid-size conference rooms that still receive dial-in callers, telehealth consultation rooms, executive offices, classrooms, and hybrid collaboration spaces bridging phone, video, and Dante audio.

Specifications at a glance

FlexInputs: 12 AEC DSP ch; VoIP: up to 8 SIP ext; Dante: 48 Rx/24 Tx; power: 12 VDC, 15.6 W
Enclosure: 1.7 x 8.7 x 9.5 in, 2.4 lbs; warranty: 3-year

Frequently asked questions about the Extron DMP 128 FlexPlus C V AT ProDSP AEC VoIP Dante DSP

Is the Extron DMP 128 FlexPlus C V AT 60-1821-10 available new or refurbished?

As an authorized Extron distributor, Ampronix offers the DMP 128 FlexPlus C V AT (60-1821-10) as a new unit.

What is the difference between the C V AT (60-1821-10) and the C AT (60-1820-10)?

The C V AT adds up to 8 SIP telephone extensions to the AEC and Dante features of the C AT. Choose the C V AT when telephone dialing is also required.

Does Ampronix offer replacement and exchange for Extron DMP FlexPlus processors?

Ampronix supplies the full Extron DMP 128 FlexPlus family and related DSP accessories.

Ampronix is an authorized Extron distributor and carries a full range of Extron DMP ProDSP audio matrix processors.

Also referenced as Extron DMP128FlexPlusCVAT, DMP-128-FlexPlus-C-V-AT, part number 60182110.

Specifications

Part Number: 60-1821-10

Manufacturer: Extron

Model: DMP 128 FlexPlus C V AT

Condition: New

Gain: Balanced output: 0 dB, unbalanced output: -6 dB

Frequency Response: 20 Hz to 20 kHz, ±0.2 dB

THD + Noise: <0.02%, 20 Hz to 20 kHz, at maximum level

S/N, Analog In to Analog Out: >107 dB, 20 Hz to 20 kHz, at maximum balanced output (unweighted)

S/N, Analog In to Digital Out: 110 dB, 20 Hz to 20 kHz, at full-scale output (unweighted)

S/N, Digital In to Analog Out: 115 dB, 20 Hz to 20 kHz, at maximum balanced output (unweighted)

Crosstalk: <-90 dB @ 20 Hz to 20 kHz, fully loaded

Volume Control: -100 dB to 0 dB (control 0 to 100 in 0.1 dB steps)

A/D, D/A Conversion: 24-bit, 48 kHz

AEC Tail Length: >200 msec

AEC Convergence: Up to 60 dB/sec

Noise Cancellation: Up to 20 dB, software selectable

Audio Inputs: 4 mono (or 2 stereo), mic/line, balanced/unbalanced, 4 with phantom power

Audio Input Connectors: (2) 3.5 mm captive screw, 6 pole, mono, balanced/unbalanced

Audio Input Impedance: >10k ohms balanced/unbalanced

Audio Input Nominal Level: -60 dBV, +4 dBu, -10 dBV adjustable via input gain

Audio Input Maximum Level: +21 dBu at rated THD+N when mic gain is set to 0 dB

Equivalent Input Noise: <-120 dBV (1 µVrms) at 40 dB input gain

CMRR: >60 dB typical

Input Gain Adjustment: -18 dB to +80 dB in 0.1 dB steps, adjustable per input

Phantom Power: +48 VDC, +10% (inputs 1-4), switchable on or off per input

Audio Outputs: 8 mono (or 4 stereo), line, balanced/unbalanced

Audio Output Connectors: (4) 3.5 mm captive screw, 6 pole, mono, balanced/unbalanced

Audio Output Impedance: 100 ohms balanced, 50 ohms unbalanced

Audio Output Gain Error: ±0.1 dB channel to channel

Audio Output Maximum Level (Hi-Z): >+21 dBu balanced, >+15 dBu unbalanced

Dante Audio Transport: Dante/AES-67, software selectable

Dante Connectors: 2 RJ-45, 2-port 1 Gbps switch to Dante interface

Dante Channels: 48 channels Rx, 24 channels Tx

Dante Audio Format: Uncompressed, 24-bit, 48 kHz

Dante Latency: Deterministic, based on user selections: 0.25 ms, 0.5 ms, 1.0 ms (default), 2.0 ms, 5.0 ms

VoIP Port Connector: 1 RJ-45

VoIP Data Rate: 10/100/1000 Base-T

VoIP Signaling Protocol: Session Initiation Protocol (SIP), RFC 3261 and related RFCs

VoIP Discovery Protocol: LLDP-MED (optional)

VoIP Lines: Up to 8 concurrent, independent extensions

VoIP Codec Support: Various ITU, including wideband

VoIP Default Settings: IP address 192.168.1.254, subnet mask 255.255.255.0, default gateway 0.0.0.0, DHCP off

EXP Port: 1 RJ-45, proprietary transmission

EXP Port Channels: 16 channels Rx, 16 channels Tx

EXP Port Audio Format: Uncompressed, 24-bit, 48 kHz

EXP Cable: Shielded CAT6 up to 10 meters (1 foot cable included)

USB Audio Port: 1 rear panel USB mini-B, USB 2.0 high speed

Serial Control Port: 1 bidirectional RS-232, 3.5 mm captive screw, 3 pole; 38400 baud, 8 data bits, 1 stop bit, no parity

USB Control Port: 1 front panel USB mini-B, USB 2.0 high speed

ACP Control Port: (1) 3.5 mm captive screw, 4 pole, supports up to 8 panels, 6 Watts max

Digital I/O: (2) 3.5 mm captive screw, 3 pole; input 0V to +12V, output 0V (low) / 5V (high), software programmable

Ethernet Host Port: 1 RJ-45, 10/100/1000 Base-T

Ethernet Protocols: ARP, ICMP, IEEE 802.1X, IP, TCP, DHCP, HTTPS, Telnet, SSH

Ethernet Default Settings: IP address 192.168.254.254, subnet mask 255.255.255.0, default gateway 0.0.0.0, DHCP off

Web Server: Up to 200 simultaneous sessions

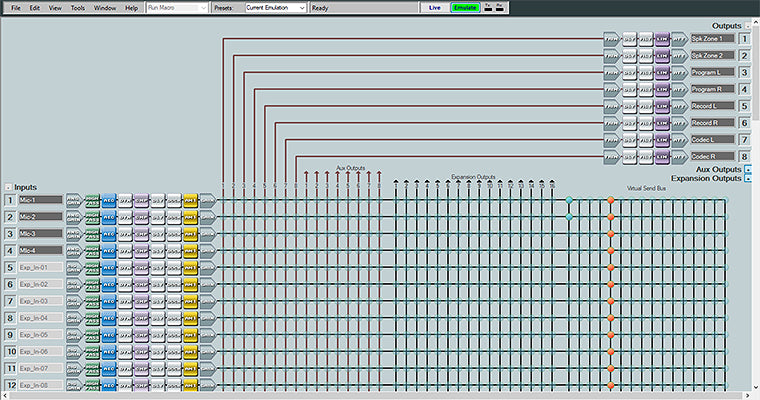

Program Control: Extron DSP Configurator software for Windows, Extron Simple Instruction Set (SIS), web browser, Telnet

Power Supply: External; input 100-240 VAC, 50-60 Hz; output 12 VDC, 2 A, 24 watts

Power Consumption: 15.6 watts (device); 17.9 watts (device and power supply)

Thermal Dissipation: 43.1 BTU/hr (device); 50.8 BTU/hr (device and power supply)

Temperature/Humidity: Storage -40 to +158 °F (-40 to +70 °C), 10% to 90% noncondensing; Operating +32 to +122 °F (0 to +50 °C), 10% to 90% noncondensing

Cooling: Variable-speed fan, front to back, off when internal temperature is below 45 °C

Rack Mount: Yes, with optional 1U rack shelf

Furniture Mount: Yes, with optional under-desk mounting kit

Enclosure Type: Metal

Enclosure Dimensions: 1.7 in H x 8.7 in W x 9.5 in D (1U high, half rack wide); 4.3 cm H x 22.1 cm W x 24.1 cm D

Product Weight: 2.4 lbs (1.1 kg)

Regulatory Compliance: CE, c-UL, UL, C-Tick, FCC Class A, ICES, RoHS, VCCI, WEEE, KC

Warranty: 3 years parts and labor
