Extron DMP 128 C P AT 12x8 ProDSP AEC Phone Dante DSP 60-1179-10

Details

Manufacturer: Extron; Model: DMP 128 C P AT; Part number: 60-1179-10 (also written 60117910)

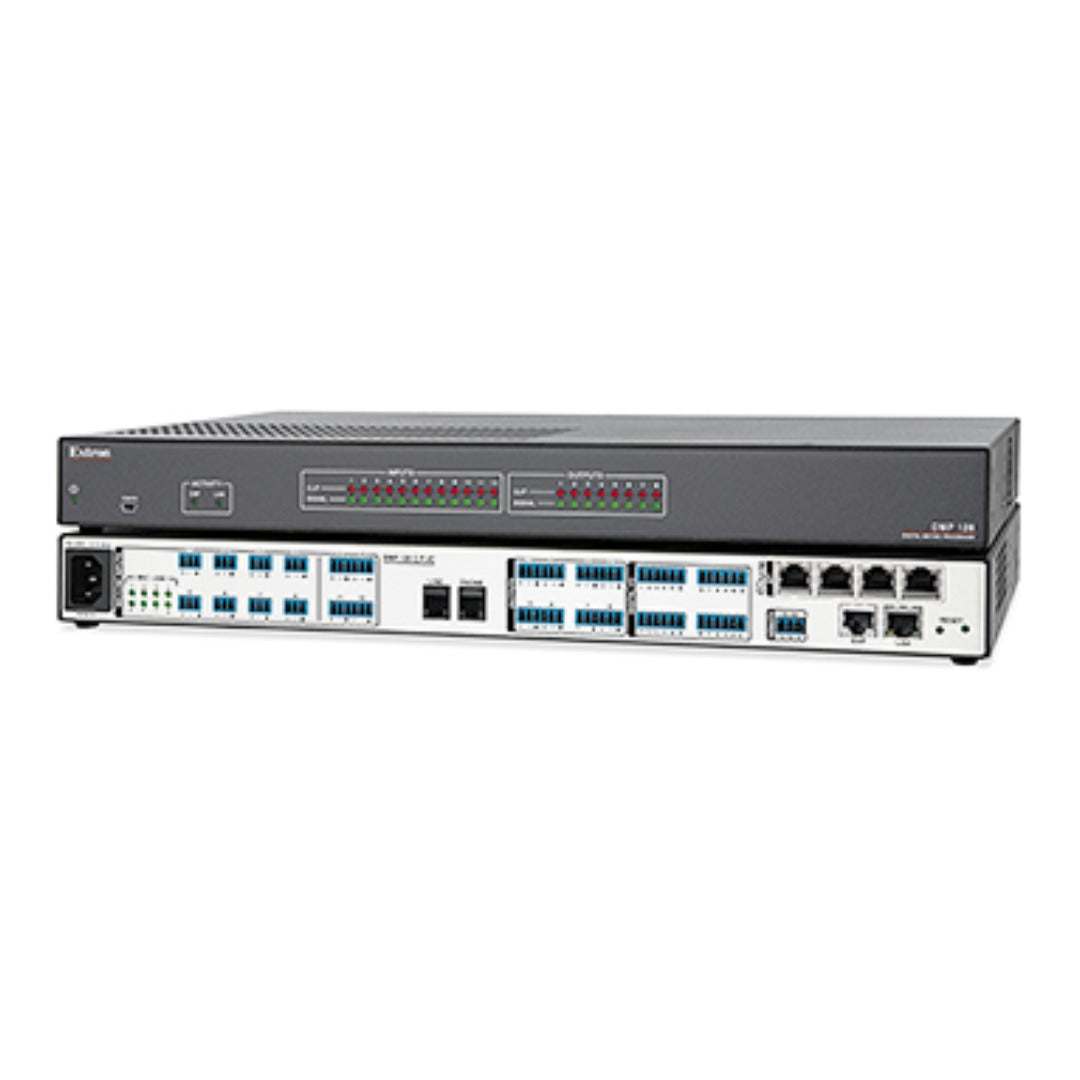

The Extron DMP 128 C P AT (60-1179-10) is a new 12x8 ProDSP digital audio matrix processor available through Ampronix combining acoustic echo cancellation, an analog telephone interface, and Dante audio networking. An internal four-port gigabit switch supports 56 received and 24 transmitted Dante channels alongside the twelve analog mic/line inputs and eight analog outputs.

Key capabilities

Twelve mic/line inputs: eight with switchable +48 VDC phantom power
POTS telephone interface with RJ-11 connectors for line and handset; multi-country support
Dante/AES-67 transport: 56 channels Rx, 24 channels Tx, 24-bit/48 kHz
AEC tail length above 200 msec, plus up to 20 dB of noise cancellation
EXP expansion port, RS-232, front-panel USB, Ethernet control

Where it is used

Boardrooms and conference suites mixing video calls with analog phone participants, courtrooms, training centers, and facilities on a Dante backbone.

Specifications at a glance

Analog matrix: 12 in, 8 out, 24-bit/48 kHz
Dante/AES-67: 56 Rx, 24 Tx on 4 RJ-45 ports
Enclosure: 1U full rack, 2.8 lbs

Frequently asked questions about the Extron DMP 128 C P AT 12x8 ProDSP AEC Phone Dante DSP

Is the Extron DMP 128 C P AT 60-1179-10 available new or refurbished?

Ampronix stocks the DMP 128 C P AT (60-1179-10) as a new unit through its authorized Extron distribution agreement.

What does the AT designation add to the DMP 128 C P?

The AT adds Dante/AES-67 audio networking with 56 Rx and 24 Tx channels via a four-port gigabit switch, enabling the processor to serve as a node on a campus-wide Dante audio network in addition to its local AEC and POTS capabilities.

Does Ampronix offer replacement and exchange for the Extron DMP 128 C P AT?

Yes. Ampronix provides sales, replacement and exchange for the DMP 128 C P AT and the broader Extron ProDSP audio processor line.

Ampronix is an authorized Extron distributor. Need a replacement or exchange for your Extron DMP 128 C P AT? Ampronix provides sales, replacement and exchange for this product and the broader Extron audio line.

Also referenced as Extron DMP128CPAT, DMP-128-C-P-AT, part number 60117910.

Specifications

Part Number: 60-1179-10

Manufacturer: Extron

Model: DMP 128 C P AT

Condition: New

Gain: Unbalanced output: -6 dB; balanced output: 0 dB

Frequency Response: 20 Hz to 20 kHz, ±0.2 dB

THD + Noise: <0.02%, 20 Hz to 20 kHz, at maximum level

S/N: >105 dB, 20 Hz to 20 kHz, at maximum balanced output, unweighted

Crosstalk: <-90 dB @ 20 Hz to 20 kHz, fully loaded

Volume Control: -100 dB to 0 dB (control 0 to 100 in 1 dB steps)

A/D, D/A Conversion: 24 bit, 48 kHz sampling

AEC Tail Length: >200 msec

AEC Convergence: Up to 60 dB/sec

Noise Cancellation: Up to 20 dB, software selectable

Audio Inputs with Phantom Power: 8 mono, mic/line, balanced/unbalanced

Connectors, Phantom-Powered Inputs: (8) 3.5 mm captive screw connectors, 3 pole

Audio Inputs without Phantom Power: 4 mono, mic/line, balanced/unbalanced

Connectors, Non-Phantom Inputs: (2) 3.5 mm captive screw connectors, 6 pole

Audio Input Impedance: >10k ohms unbalanced/balanced

Audio Input Nominal Level: -60 dBV, +4 dBu, -10 dBV adjustable via input gain

Audio Input Maximum Level: +21 dBu at rated THD+N when mic gain is set to 0 dB

Equivalent Input Noise: <-120 dBV (1 µVrms) at 40 dB input gain

CMRR: >60 dB typical

Input Gain Adjustment: -18 dB to +80 dB in 0.1 dB steps, adjustable per input

Phantom Power: +48 VDC, +10% (inputs 1-8), can be switched on or off

Audio Outputs: 8 mono (or 4 stereo), balanced/unbalanced

Audio Output Connectors: (4) 3.5 mm captive screw connectors, 6 pole

Audio Output Impedance: 50 ohms unbalanced, 100 ohms balanced

Audio Output Gain Error: ±0.1 dB channel to channel

Audio Output Maximum Level (Hi-Z): >+21 dBu balanced, +15 dBu unbalanced

Telephone Port Frequency Response: 300 to 3200 Hz

Telephone Input Gain: -18 to +20 dB in 0.1 dB steps, software adjustable

Telephone Output Gain: -100 to 0 dB in 0.1 dB steps, software adjustable

Telephone Off Hook Loop Current: 10 mA (minimum)

Telephone Dynamic Range: >60 dB, A-weighted

Telephone Country Codes: USA, Canada, Europe, Australia, Japan, Singapore, United Arab Emirates

Dante Audio Transport: Dante/AES-67, software selectable

Dante Connectors: (4) RJ-45 connectors, 4-port 1 Gbps switch to Dante interface

Dante Channels: 56 channels Rx, 24 channels Tx

Dante Audio Format: 24 bit, 48 kHz sampling, uncompressed

Dante Latency: Deterministic, based on user selections: 0.25 ms, 0.5 ms, 1.0 ms (default), 2.0 ms, 5.0 ms

EXP Port: (1) RJ-45 connector, proprietary transmission

EXP Port Channels: 16 channels Rx, 16 channels Tx

EXP Port Audio Format: 24 bit, 48 kHz sampling, uncompressed

EXP Cable: Shielded CAT6 up to 10 meters (1 foot cable included)

Serial Control Port: 1 bidirectional RS-232, 3.5 mm captive screw connector, 3 pole; 38400 baud, 8 data bits, 1 stop bit, no parity

USB Control Port: 1 front panel female mini USB B, USB 2.0 low speed

Digital I/O: (4) 3.5 mm captive screw connectors, 6 pole; each port shares a common ground; input 0V to +12V, output 0V (low) / 5V (high), software programmable

Ethernet Host Port: 1 RJ-45 female, 10/100Base-T, half/full duplex with autodetect

Ethernet Default Settings: IP address 192.168.254.254, subnet mask 255.255.0.0, default gateway 0.0.0.0, DHCP off

Web Server: Up to 200 simultaneous sessions; 6.5 MB nonvolatile user memory

Program Control: Extron control/configuration software for Windows, Extron Simple Instruction Set (SIS), web browser, Telnet

Power: Internal; input 100-240 VAC, 50-60 Hz

Power Input Requirements: 28 watts

Temperature/Humidity: Storage -40 to +158 °F (-40 to +70 °C), 10% to 90% noncondensing; Operating +32 to +122 °F (0 to +50 °C), 10% to 90% noncondensing

Cooling: Fan, right to left

Rack Mount: Yes, with included brackets

Furniture Mount: Yes, with optional under-desk mounting kit

Enclosure Type: Metal

Enclosure Dimensions: 1.7 in H x 17.4 in W x 9.5 in D (1U high, full rack wide); 4.3 cm H x 44.2 cm W x 24.1 cm D; depth excludes connectors

Product Weight: 2.8 lbs (1.3 kg)

Vibration: ISTA 1A in carton (International Safe Transit Association)

Regulatory Compliance, Safety: CE, c-UL, UL

Regulatory Compliance, EMI/EMC: CE, C-tick, FCC Class A, ICES, VCCI

Regulatory Compliance, Environmental: Complies with the appropriate requirements of RoHS, WEEE

Warranty: 3 years parts and labor

Diagram

Resources

Brochure | DMP 128 C P AT 60-1179-10 | DMP 128 Series

Brochure | DMP 128 C P AT 60-1179-10 | Everlast Power Supplies

Brochure | DMP 128 C P AT 60-1179-10 | Alimentatori Everlast

Brochure | DMP 128 C P AT 60-1179-10 | DMP 128

Brochure | DMP 128 C P AT 60-1179-10 | DMP 128 系列

Brochure | DMP 128 C P AT 60-1179-10 | DMP 128-Serie

Brochure | DMP 128 C P AT 60-1179-10 | DMP128 Series

Brochure | DMP 128 C P AT 60-1179-10 | Everlast 电源

Brochure | DMP 128 C P AT 60-1179-10 | Everlast-Netzteile

Brochure | DMP 128 C P AT 60-1179-10 | Fuentes de alimentación Everlast

Brochure | DMP 128 C P AT 60-1179-10 | Gamme DMP 128

Brochure | DMP 128 C P AT 60-1179-10 | Serie DMP 128

Brochure | DMP 128 C P AT 60-1179-10 | Sources d'alimentation Everlast

Brochure | DMP 128 C P AT 60-1179-10 | Серия DMP 128

Manual | DMP 128 C P AT 60-1179-10 | Cleaning Instruction Card

Manual | DMP 128 C P AT 60-1179-10 | DMP 128 Setup Guide

Manual | DMP 128 C P AT 60-1179-10 | DMP 128 User Guide

Manual | DMP 128 C P AT 60-1179-10 | Extron Dante FAQ

Specifications | DMP 128 C P AT 60-1179-10 | DMP 128

Panel Drawing | DMP 128 C P AT 60-1179-10 | DMP 128
