Extron DisplayPort M-M/3 DisplayPort Cable
- • DisplayPort 1.2 compliant and 4K Verified by Extron
- • Carries 4096x2160 at 60 Hz across this 3 ft run
- • Aggregate data rate up to 21.6 Gbps, 5.4 Gbps per pair
- • Latching connectors at both ends resist accidental disconnects
- • Multi-Stream Transport lets one output feed several monitors
- • 28 AWG tinned copper with a braided tinned copper shield
- • UL CL2 rated jacket with an 80 degree C temperature rating
- • Covered by the Extron Limited Lifetime Performance warranty
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

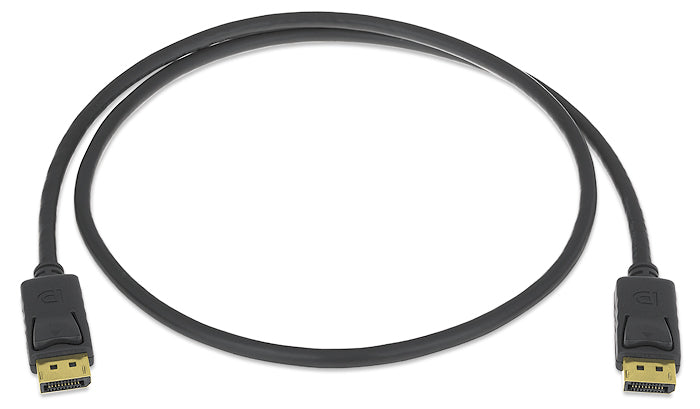

Extron DisplayPort M-M/3 (part number 26-657-03) — a 3 foot latching DisplayPort cable from Extron's 4K Verified DisplayPort Series.
Short runs are where cheap cable does the most damage, because a rack or lectern is exactly where a dropped link gets noticed. This assembly is built to the DisplayPort 1.2 standard with a male latching connector at each end, so the plug stays seated when a shelf gets pulled out or a cart moves. Extron measures cables of 3 feet and under neck to neck, between the strain reliefs, so the usable length is what you actually get between chassis. Anything up to 12 feet in this series is rated for 4096x2160 at 60 Hz, which puts this length comfortably inside the 4K envelope.
Key Capabilities
- DisplayPort 1.2 compliant and 4K Verified by Extron, supporting 4096x2160 at 60 Hz on this length.
- Aggregate throughput of up to 21.6 Gbps, from lanes running at 1.62, 2.7 or 5.4 Gbps per pair.
- Multi-Stream Transport support, so a single DisplayPort output can drive several displays.
- 28 AWG tinned copper conductors with 30 AWG drains and a braided tinned copper shield.
- 0.30 inch outer diameter and a 3.0 inch bend radius keep it manageable in tight rack dressing.
- Certified for use inside Extron AVEdge, Cable Cubby and HSA surface access enclosures.
Where It Is Used
This is the jumper length: source to switcher inside a rack, laptop to a plate on a conference table, PC to monitor at an operator position in a control room, or workstation to display in an imaging reading room. The latching connectors matter most in shared and mobile spaces where cables are handled daily.
Specifications at a Glance
- Length: 3' (90 cm), measured neck to neck
- Standard: DisplayPort 1.2, up to 21.6 Gbps
- Connectors: male latching DisplayPort both ends, gold plated contacts
- Construction: 28 AWG tinned copper, PVC jacket, UL CL2, 80 °C rated
- Warranty: Extron Limited Lifetime Performance
Also referenced as Extron DisplayPortM-M/3, DisplayPort-M-M-3, part number 2665703. Extron lists this part number as retired.
