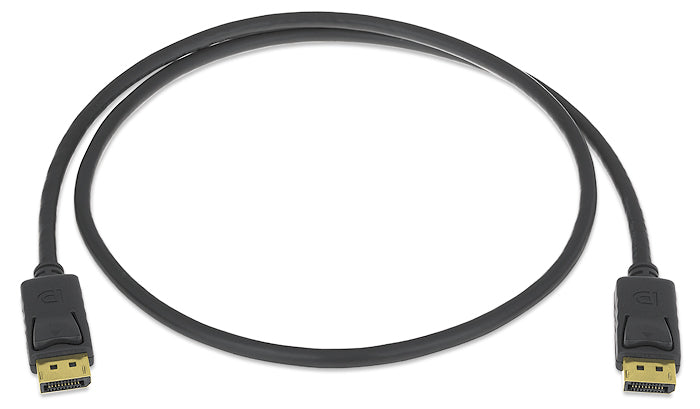

Extron DisplayPort M-M/25 (part number 26-657-25) — the 25 foot member of Extron's DisplayPort Series, and the only length in the family Extron still lists as an active part.

At 7.6 metres this is the long run in the range, and Extron is explicit about the trade: 4096x2160 is supported at 30 Hz rather than the 60 Hz the shorter lengths carry. For signage, room displays, presentation content and most static or slow-motion 4K material that is a non-issue, and it saves adding an extender to bridge the distance. The construction is unchanged from the shorter cables, DisplayPort 1.2 with 28 AWG tinned copper conductors, a braided tinned copper shield and a male latching connector at each end.

Key Capabilities

• Spans 25 feet on a single passive assembly, carrying 4096x2160 at 30 Hz.
• DisplayPort 1.2 with up to 21.6 Gbps aggregate; pairs run at 1.62, 2.7 or 5.4 Gbps.
• Multi-Stream Transport support for feeding more than one monitor from a single output.
• Latching connectors and gold plated contacts, sized 2.17" L x 0.79" W x 0.44" H.
• Attenuation stays under 5 dB per 3 m through 450 MHz and under 12.6 dB per 3 m to 2 GHz.
• Ships at 1.34 lbs in a 2.0" x 6.75" x 6.75" carton; UL CL2 rated to 80 degrees C.

Where It Is Used

Long horizontal or vertical runs: rack room to lectern, ceiling projector plate to floor box, digital signage player to a distant panel, or an operator console to a wall-mounted status display. It is also the practical choice for retrofit work where conduit is already in place and pulling an extender pair is not an option.

Specifications at a Glance

• Length: 25' (7.6 m), measured tip to tip
• Resolution: 4096x2160 at 30 Hz, up to 21.6 Gbps
• Connectors: male latching DisplayPort both ends, gold plated contacts
• Shipping: 1.34 lbs (0.61 kg), 2.0" H x 6.75" W x 6.75" D
• Warranty: Extron Limited Lifetime Performance

Also referenced as Extron DisplayPortM-M/25, DisplayPort-M-M-25, part number 2665725.
