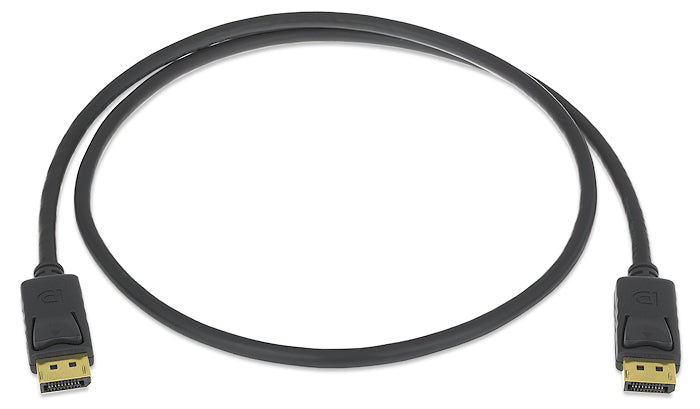

Extron DisplayPort M-M/12 (part number 26-657-12) — a 12 foot latching DisplayPort cable, the longest length in Extron's DisplayPort Series still rated for 4K at 60 Hz.

Twelve feet is the boundary. Extron rates every cable in this series up to and including this length for 4096x2160 at 60 Hz; the 25 foot version drops to 30 Hz. That makes the M-M/12 the choice when a display sits across the room from the rack but the source still has to deliver full-rate 4K. Construction is identical to the shorter members of the family: DisplayPort 1.2, 28 AWG tinned copper, braided shielding and a male latching connector at each end. Measurement is tip to tip, connectors included.

Key Capabilities

• Longest length in the series that still carries 4096x2160 at 60 Hz, per Extron's own rating.
• DisplayPort 1.2 with up to 21.6 Gbps aggregate across pairs running at 1.62, 2.7 or 5.4 Gbps.
• Multi-Stream Transport support for daisy-chained or multi-monitor desktops from one output.
• Pair impedance held to 100 ohms plus or minus 10 ohms, with interpair skew at or under 4 ns per 2 m.
• 28 AWG tinned copper conductors, 30 AWG drains, braided tinned copper shield, PVC jacket.
• Certified for use inside Extron AVEdge, Cable Cubby and HSA surface access enclosures.

Where It Is Used

Boardrooms where the rack is in a credenza and the display is on the far wall, classrooms running from a lectern to a ceiling-mounted projector plate, control rooms feeding a monitor wall, and radiology reading rooms where the workstation sits away from the diagnostic display.

Specifications at a Glance

• Length: 12' (3.6 m), measured tip to tip
• Resolution: 4096x2160 at 60 Hz, up to 21.6 Gbps
• Connectors: male latching DisplayPort both ends, gold plated contacts
• Construction: 28 AWG tinned copper, 0.30" outer diameter, 3.0" bend radius
• Warranty: Extron Limited Lifetime Performance

Also referenced as Extron DisplayPortM-M/12, DisplayPort-M-M-12, part number 2665712. Extron lists this part number as retired.
