Details

Part number 70-1256-13 — DAK SF 3C driver/baffle assembly only, sold as a matched pair (2 of 2).

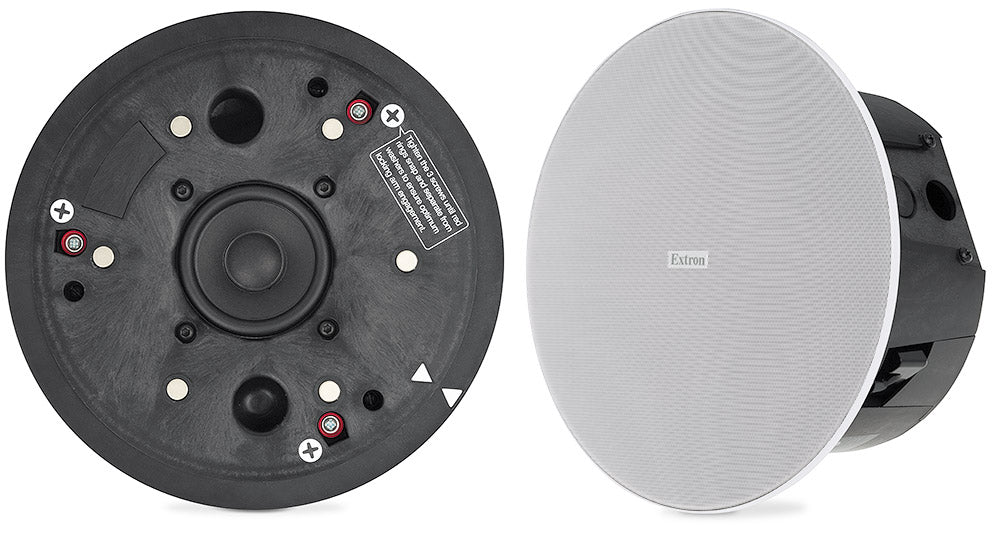

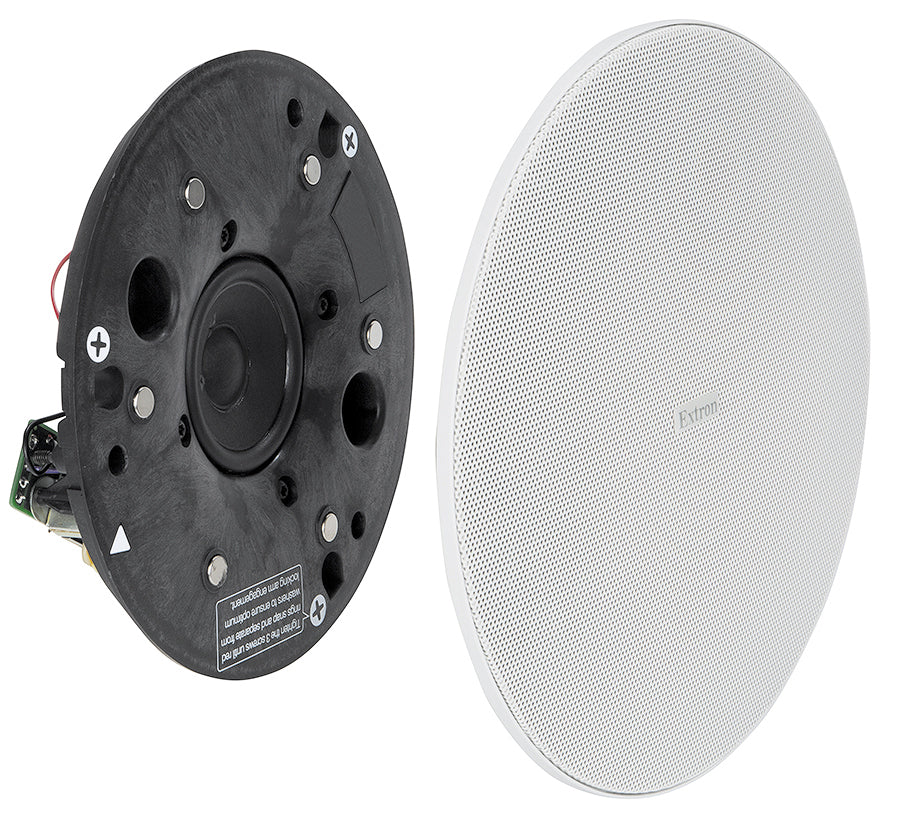

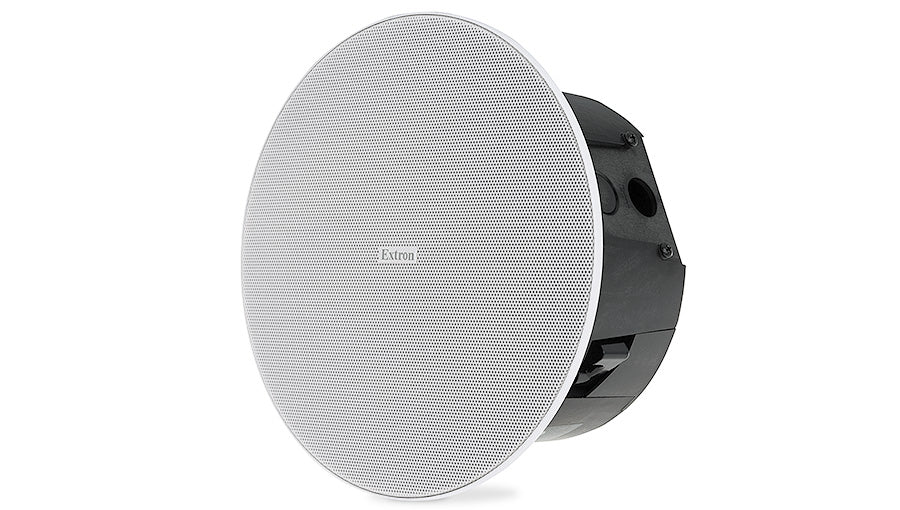

The DAK SF 3C supplies the 3 in paper cone driver that installs into a BCK SF 3C LP low-profile back can to complete a fully functional SF 3C LP SoundField XD full-range ceiling speaker. The back can enclosure, cutout template, ceiling mounting hardware, and captive screw input connector are supplied separately with the BCK SF 3C LP.

Each driver assembly covers 65 Hz to 20 kHz with 165 degree conical dispersion, accepts 16 W continuous pink noise or 32 W program, and operates at a fixed 8 ohms direct with no distributed 70V/100V taps.

Specifications

Part Number: 70-1256-13

Manufacturer: Extron

Model: DAK SF 3C

Condition: New

Speaker Type: Full-range ceiling speaker driver assembly, 8 ohms direct (low-profile composite back can required, sold separately as BCK SF 3C LP)

Frequency Range: 65 Hz to 20 kHz, -10 dB, half space (per IEC 60268-5)

Frequency Response: 265 Hz to 19 kHz, +/-3 dB, half space

Power Capacity: 16 W (rms) continuous pink noise (per IEC 60268-5); 32 W (rms) continuous program

Nominal Sensitivity: 83 dB SPL, 1 W, 1 m, 8 ohms direct, half space (per IEC 60268-5)

Nominal Impedance: 8 ohms

Nominal Coverage Angle: 165° conical coverage (1 kHz to 4 kHz)

Driver: (1) 3" (76 mm) paper cone

Package: 2 speakers (1 pair)

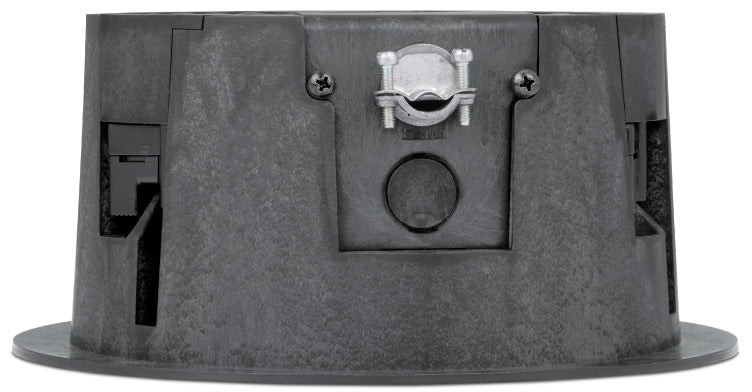

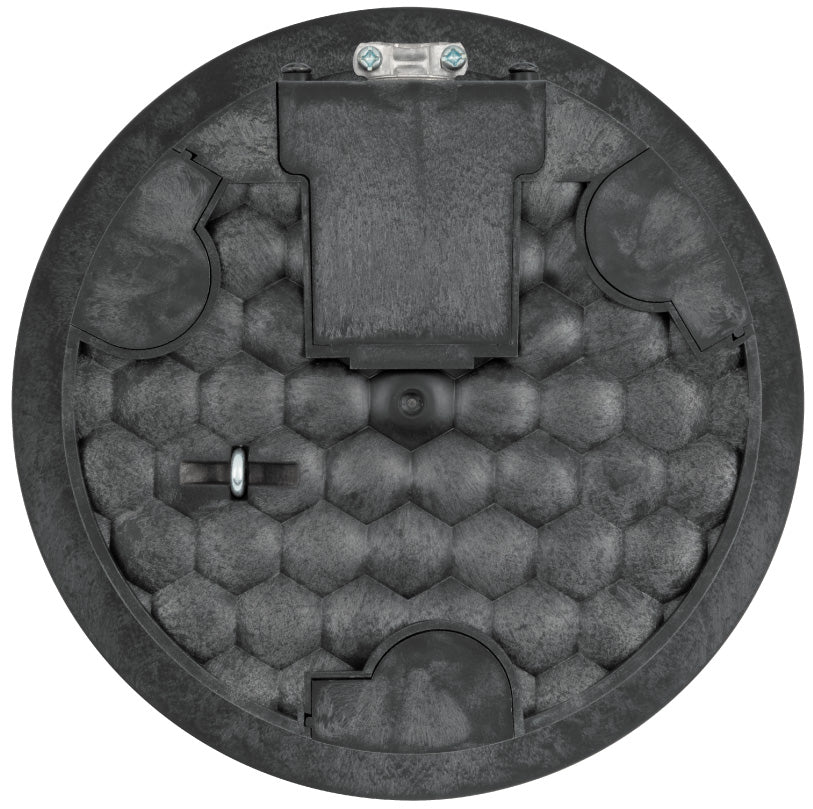

Compatible Enclosure: BCK SF 3C LP back can (required to complete the SF 3C LP speaker assembly; sold separately)

Environmental: RoHS, WEEE

Warranty: 5 years parts and labor

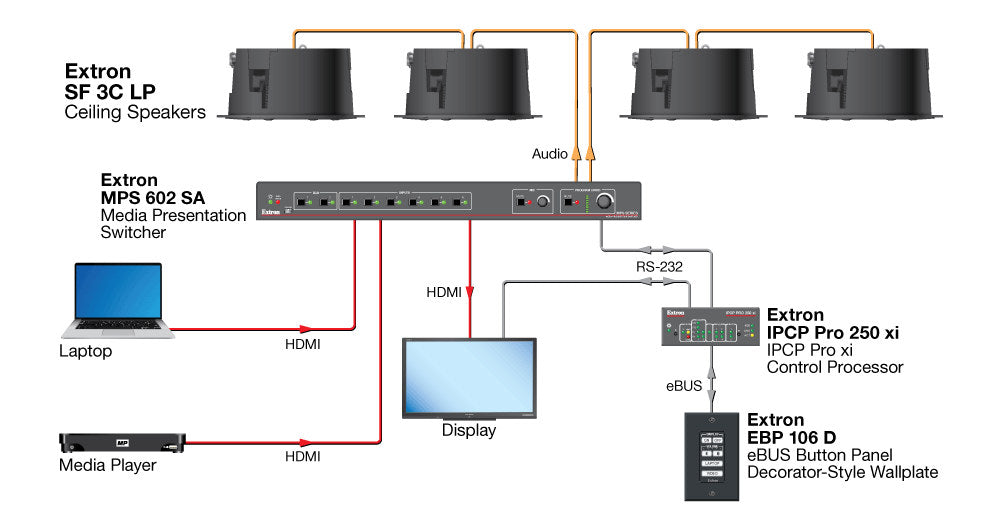

Diagram

Resources

Brochure | DAK SF 3C 70-1256-13 | SF 3C LP

Brochure | DAK SF 3C 70-1256-13 | SF 3C LP - Spec Sheet

Manual | DAK SF 3C 70-1256-13 | BCK SF 3CT LP and BCK SF 3C LP Setup Guide

Manual | DAK SF 3C 70-1256-13 | Cleaning Instruction Card

Manual | DAK SF 3C 70-1256-13 | DAK SF 3CT and DAK SF 3C Setup Guide

Manual | DAK SF 3C 70-1256-13 | SF 3C LP and SF 3CT LP Setup Guide

Manual | DAK SF 3C 70-1256-13 | SF 3C LP and SF 3CT LP User Guide

Specifications | DAK SF 3C 70-1256-13 | SF 3C LP

Panel Drawing | DAK SF 3C 70-1256-13 | SF 3C LP

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron DAK SF 3C Driver Assembly Kit 70-1256-13

Name: Extron DAK SF 3C Driver Assembly Kit 70-1256-13
Brand: Extron
SKU: EXTRON-DAKSF3C-70125613
Availability: InStock

Manufacturer: Extron

Type: Speakers

Extron DAK SF 3C Driver Assembly Kit

• 3 inch paper cone driver assembly for the SF 3C LP
• 165 degree conical coverage across 65 Hz to 20 kHz
• 16 W continuous pink noise, 32 W continuous program power handling
• Fixed 8 ohm direct operation, no distributed taps
• Installs into a BCK SF 3C LP back can to complete the speaker
• Sold as a matched pair

Product discontinued.
