Extron DA6 HD 4K PLUS HDMI Distribution Amplifier
- • Drives six HDMI displays from one source at full 4K/60 4:4:4
- • 18 Gbps maximum data rate with a 600 MHz pixel clock
- • HDMI 2.0b with HDCP 1.4 and 2.3 authentication on every port
- • HDR10, HDR10+ and Dolby Vision all pass through intact
- • Internal 100-240 VAC supply draws 10.6 watts, 30.5 BTU/hr
- • Supplies 1.1 W per port, 6.6 W total, for active HDMI cables
- • 1U half-rack metal chassis at 1.6 lbs, convection cooled
- • 3 year product warranty plus 7 years on the Everlast power supply
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

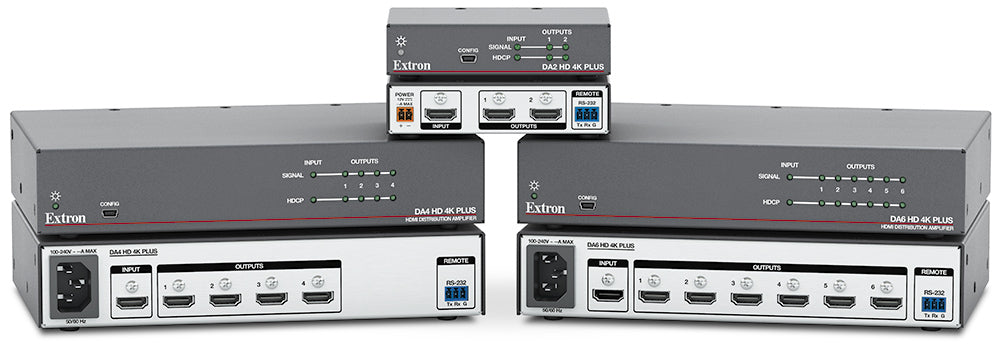

Extron DA6 HD 4K PLUS (part number 60-1609-01) — the six output member of the DA HD 4K PLUS family, a 1U half-rack 4K/60 HDMI distribution amplifier with an internal power supply.
When one feed has to reach six screens, the constraint is usually HDCP key exchange rather than bandwidth. This unit handles both: HDMI 2.0b with HDCP 1.4 and 2.3 across all six ports, and the full 18 Gbps needed for 4096x2160 at 60 Hz with 4:4:4 chroma. HDR10, HDR10+ and Dolby Vision travel through unchanged, along with LPCM 7.1 at 24-bit 192 kHz, Dolby Atmos and DTS:X. Automatic input equalization covers a 15 foot input run at 600 MHz. Every output can also bus-power an active HDMI cable, 1.1 W per port up to 6.6 W in total, so long DIY-terminated runs stay viable.
Key Capabilities
- Six single link HDMI outputs on female 19-pin type A connectors from one HDMI input.
- 18 Gbps maximum data rate at a 600 MHz pixel clock, VESA 640x480 through 4096x2160.
- Internal universal supply on 100-240 VAC at 50-60 Hz, drawing 10.6 watts.
- 6.6 W of active-cable bus power across the six ports, 1.1 W each.
- Ultra Wide formats up to 3840x1600 and SMPTE up to 1080p at 240 Hz.
- Controlled over RS-232 or a front panel mini USB B port using Extron Simple Instruction Set.
Where It Is Used
Video wall feeds, sports and hospitality venues driving a bank of panels from one player, lecture theatres with repeat screens down the room, airport and transit information displays, and command centres duplicating a source across an operator row. It rack mounts with an optional shelf kit or tucks under a counter.
Specifications at a Glance
- I/O: 1 HDMI in, 6 HDMI out, all female 19-pin type A
- Signal: HDMI 2.0b, HDCP 1.4 and 2.3, 18 Gbps, 600 MHz
- Power: internal 100-240 VAC supply; 10.6 watts, 30.5 BTU/hr
- Enclosure: metal, 1.75" H x 8.75" W x 6.00" D, 1.6 lbs
- Warranty: 3 years product, 7 years Everlast power supply
Also referenced as Extron DA6HD4KPLUS, DA6-HD-4K-PLUS, part number 60160901.
