Details

Manufacturer: Extron; Model: DA4 HD 8K L; Part number: 60-1871-01 (also written 60187101)

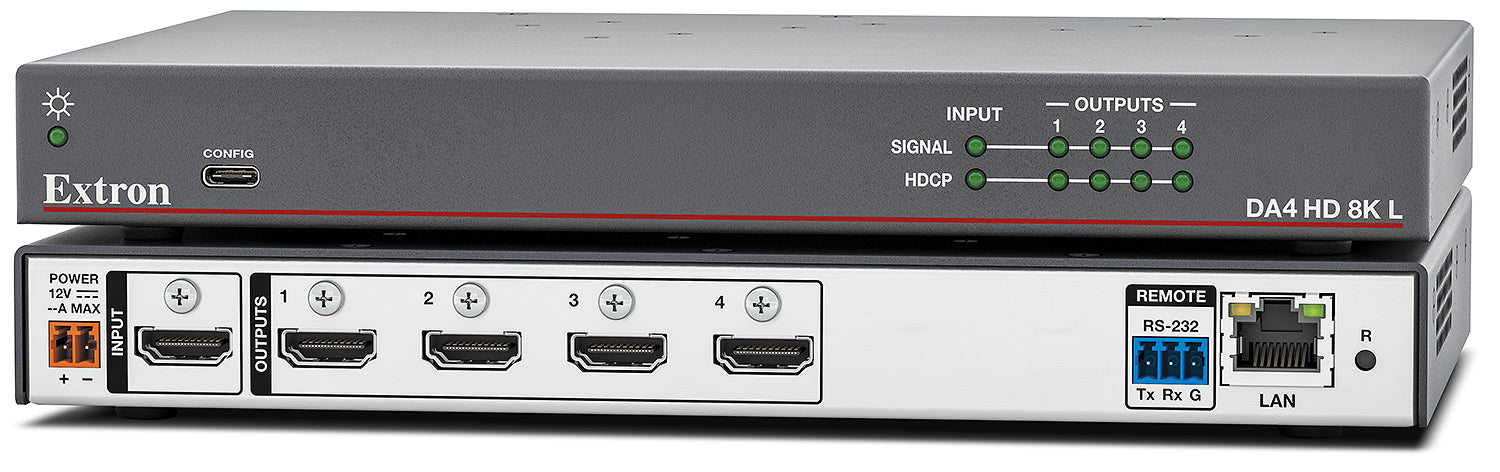

The Extron DA4 HD 8K L (60-1871-01) is a new 1x4 HDMI 2.1 distribution amplifier available through Ampronix with RS-232, Ethernet, and front USB-C control. 40.1 Gbps, 2376 MHz pixel clock. 8K/60 Hz (4:2:0), 4K/120 Hz. HDMI 2.1, HDCP 2.3. EDID Minder Plus (128-512 bytes including DisplayID). Key Minder. +5 VDC 250 mA per HDMI output. RS-232 (9600 baud, 3-pole captive screw), Ethernet 802.1X. External 12 VDC 2.0 A, 16.3 W. Half-rack metal, 1.00 x 8.75 x 6.00 in, 2.95 lbs. 3-year warranty; 7-year Everlast supply.

Key capabilities

1 HDMI in, 4 HDMI out; 40.1 Gbps, HDMI 2.1, HDCP 2.3; 8K/60, 4K/120
EDID Minder Plus with DisplayID; Key Minder; +5 VDC 250 mA per output
RS-232 (9600 baud) + Ethernet 802.1X + front USB-C; 16.3 W, fanless
Half-rack metal, 1.00 x 8.75 x 6.00 in, 2.95 lbs; 3-year warranty, 7-year Everlast supply

Where it is used

Multi-display boardrooms, Microsoft Teams Rooms with 5K panels, esports and simulation venues at 4K/120 Hz, broadcast and post-production monitoring walls, and clinical imaging suites feeding several review stations from one source.

Specifications at a glance

I/O: 1 HDMI in, 4 HDMI out; data rate: 40.1 Gbps; enclosure: 1.00 x 8.75 x 6.00 in, 2.95 lbs
Control: RS-232, Ethernet 802.1X, USB-C; power: 12 VDC, 16.3 W; warranty: 3-year

Frequently asked questions about the Extron DA4 HD 8K L 1x4 8K/60 HDMI Distribution Amplifier

Is the Extron DA4 HD 8K L 60-1871-01 available new or refurbished?

As an authorized Extron distributor, Ampronix offers the DA4 HD 8K L (60-1871-01) as a new unit.

What is the difference between the DA4 HD 8K L and the DA2 HD 8K L (60-1870-01)?

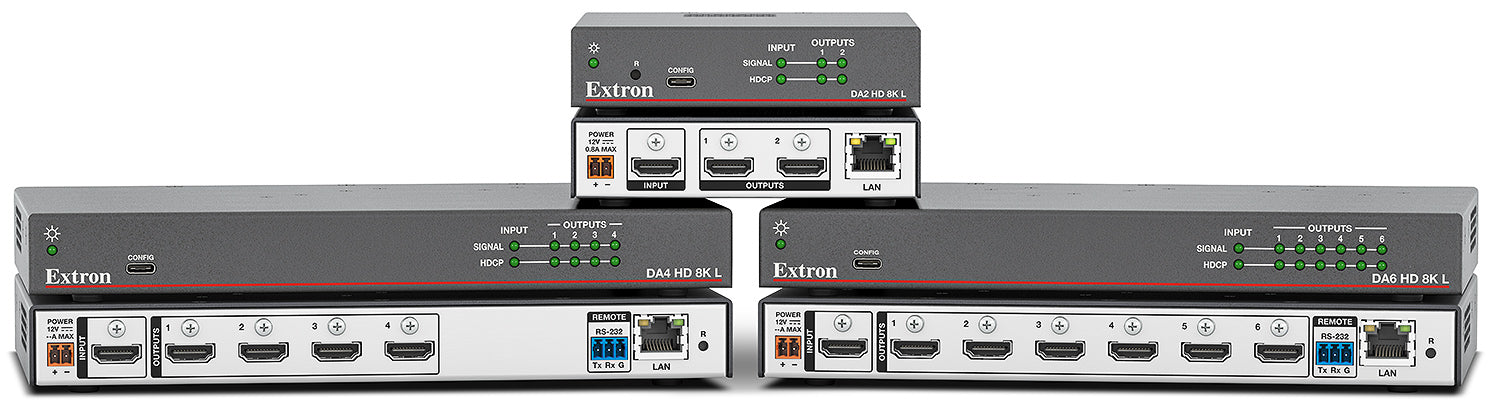

The DA4 has 4 outputs and adds a rear RS-232 port; the DA2 has 2 outputs with Ethernet and USB-C only. Both share the same 40.1 Gbps HDMI 2.1 handling.

Does Ampronix offer replacement and exchange for Extron DA HD 8K distribution amplifiers?

Ampronix supplies the full Extron DA HD 8K L/AE/AI family and related HDMI accessories.

Ampronix is an authorized Extron distributor and carries a full range of Extron HDMI distribution amplifiers.

Also referenced as Extron DA4HD8KL, DA4-HD-8K-L, part number 60187101.

Specifications

Part Number: 60-1871-01 (Four Output 8K HDMI DA)

Manufacturer: Extron

Model: DA4 HD 8K L

Condition: New

Maximum 8K Capability: 7680x4320 at 60 Hz with 4:2:0 chroma sampling, or at 30 Hz with 4:4:4; 10 bit maximum depth per color

Maximum 4K and 5K Capability: 4096x2160 and 3840x2160 with 4:4:4 chroma sampling at 12 bit maximum per color; 3840x2160 at 120 Hz; 5120x1440 and 5120x2880 supported

Frame Rate: 24, 25, 30, 50, 60, or 120 fps

Chroma Sampling: 4:4:4, 4:2:2, or 4:2:0

Color Bit Depth: 8, 10, or 12 bits per color, subject to the maximum data rate

Signal Type: HDMI 2.1, HDCP 2.3

Maximum Video Data Rate: 40.1 Gbps

Maximum Pixel Clock: 2376 MHz

Resolution Range (VESA): 640x480 to 7680x4320

Resolution Range (SMPTE): Up to 1080p @ 240 Hz or 8K @ 60 Hz (4:2:0 chroma sampling)

Resolution Range (Ultra Wide and 5K): 2560x1080, 3440x1440, 3840x1080, 3840x1440, 3840x1600, 5120x1080, 5120x1440, 5120x2160, 5120x2560, 5120x2880

Formats: RGB and YCbCr digital video

Standards: DVI 1.0, HDMI 2.1, HDCP 1.x, HDCP 2.3. Appropriate DVI-D to HDMI cables or adapters are required for DVI signal input and output.

HDR: HDR10, HDR10+, and Dolby Vision

Video Input: 1 single link HDMI (or DVI-D) on 1 female 19-pin HDMI type A connector

Input Cable Length: Up to 15 feet (4.0 m)

Horizontal Frequency: 15 kHz to 270 kHz for resolutions up to 40.1 Gbps

Vertical Frequency: 24 Hz to 240 Hz for resolutions up to 40.1 Gbps

EDID Emulation: 128 to 512 byte EDID support (1 to 4 blocks)

Video Output: 4 single link HDMI (or DVI-D) on 4 female 19-pin HDMI type A connectors

Power for Active Cables: 1.25 W total power for HDMI port

Peripheral Device Power: +5 VDC, 250 mA per HDMI output

Audio Input: 1 digital embedded audio on HDMI, 1 female 19-pin HDMI type A connector

Audio Output: 4 digital embedded audio on HDMI, 4 female HDMI connectors

HDMI Audio Pass-Through: LPCM up to 7.1/24-bit/192 kHz, Dolby Digital EX, Dolby Digital Plus, Dolby Digital 5.1, Dolby Digital 2.0 Surround, Dolby Digital 2.0, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS-X, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS-Digital Surround 5.1, DTS 2-Channel

USB Control Port: 1 female USB-C on front panel, USB 2.0 high speed

Serial Control Port: 1 RS-232, rear panel 3.5 mm captive screw connector, 3-pole

Baud Rate: 9600

Serial Protocol: Data bits 7 or 8 (default); stop bits 1 (default) or 2; parity odd, even, or none (default)

Serial Control Pin Configuration: 1 = Tx, 2 = Rx, 3 = Gnd

LAN Ethernet Port: 1 RJ-45 connector

Ethernet Data Rate: 10/100Base-T, half/full duplex with autodetect

Ethernet Protocol: ARP, DHCP, DNS, HTTP, HTTPS, ICMP (ping), IEEE 802.1X, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, Telnet, UDP/IP

Program Control: Extron Simple Instruction Set (SIS), Extron PCS

Power Supply: External; input 100-240 VAC, 50-60 Hz; output 12 VDC, 2.0 A, 18 watts

Power Consumption: Device 16.3 watts; device and power supply 19.6 watts

Ambient Temperature/Humidity: Storage -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing; operating +32 to +104 °F (0 to +40 °C) / 10% to 90%, noncondensing

Cooling: Convection, no vents

Thermal Dissipation: 38.5 BTU/hr

Rack Mount: Yes, with optional rack shelf kit

Enclosure Type: Metal

Enclosure Dimensions: 1.00" H x 8.75" W x 6.00" D (25 mm H x 222 mm W x 152 mm D)

Product Weight: 2.95 lbs (1.34 kg)

Regulatory Compliance: CE, c-UL, UL, C-Tick, FCC Class A, ICES, VCCI

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

Diagram

Resources

Brochure | DA4 HD 8K L 60-1871-01 | DA HD 8K L Series

Brochure | DA4 HD 8K L 60-1871-01 | Everlast Power Supplies

Brochure | DA4 HD 8K L 60-1871-01 | Alimentatori Everlast

Brochure | DA4 HD 8K L 60-1871-01 | DA2 HD 8K L (DA2-HD-8K-L_BR_A4_FR_RevA2.pdf)

Brochure | DA4 HD 8K L 60-1871-01 | DA2 HD 8K L (DA2-HD-8K-L_BR_A4_IT_RevA2.pdf)

Brochure | DA4 HD 8K L 60-1871-01 | DA2 HD 8K L (DA2-HD-8K-L_BR_A4_SP_RevA2.pdf)

Brochure | DA4 HD 8K L 60-1871-01 | DA2 HD 8K L (DA2-HD-8K-L_BR_A4_GE_RevA2.pdf)

Brochure | DA4 HD 8K L 60-1871-01 | Everlast-Netzteile

Brochure | DA4 HD 8K L 60-1871-01 | Fuentes de alimentación Everlast

Brochure | DA4 HD 8K L 60-1871-01 | Sources d'alimentation Everlast

Manual | DA4 HD 8K L 60-1871-01 | Cleaning Instruction Card

Manual | DA4 HD 8K L 60-1871-01 | DA HD 8K L Series User Guide

Manual | DA4 HD 8K L 60-1871-01 | DA2 HD 8K L Setup Guide

Manual | DA4 HD 8K L 60-1871-01 | DA4 HD 8K L and DA6 HD 8K L Setup Guide

Specifications | DA4 HD 8K L 60-1871-01 | DA HD 8K L Series

Panel Drawing | DA4 HD 8K L 60-1871-01 | DA HD 8K L Series
