Extron DA4 HD 4K PLUS HDMI Distribution Amplifier
- • Drives four HDMI displays from one source at full 4K/60 4:4:4
- • 18 Gbps maximum data rate with a 600 MHz pixel clock
- • HDMI 2.0b with HDCP 1.4 and 2.3 authentication
- • HDR10, HDR10+ and Dolby Vision all pass through intact
- • Internal 100-240 VAC supply draws 8.6 watts, no external brick
- • Supplies 1.1 W per port, 4.3 W total, for active HDMI cables
- • 1U half-rack metal chassis at 1.6 lbs, convection cooled
- • 3 year product warranty plus 7 years on the Everlast power supply
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

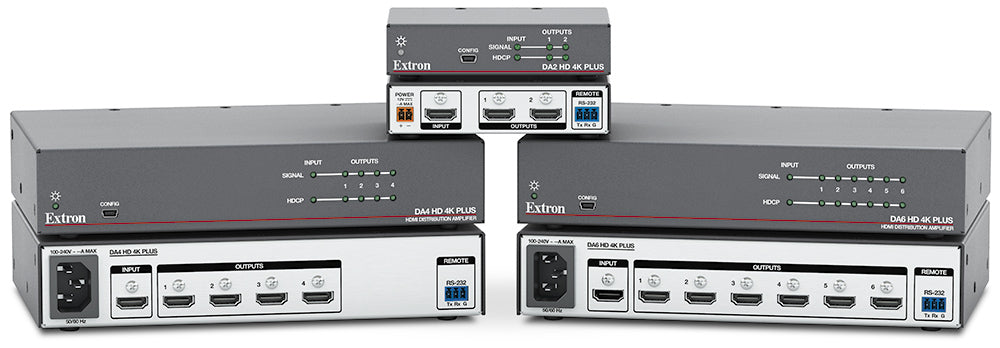

Extron DA4 HD 4K PLUS (part number 60-1608-01) — a one input, four output 4K/60 HDMI distribution amplifier with an internal universal power supply, in a 1U half-rack metal enclosure.
Four displays from one source, with none of the HDCP arguments that usually follow. This model runs HDMI 2.0b with HDCP 1.4 and 2.3, and carries the full 18 Gbps at a 600 MHz pixel clock, so 4096x2160 at 60 Hz with 4:4:4 chroma reaches every output. HDR10, HDR10+ and Dolby Vision pass through, as do LPCM 7.1, Dolby Atmos and DTS:X. Unlike the two-output model in the family, power is internal here: the unit takes 100-240 VAC directly and draws 8.6 watts. Each of the four HDMI ports can also feed an active cable, at 1.1 W per port up to 4.3 W in total.
Key Capabilities
- Four single link HDMI outputs on female 19-pin type A connectors, from a single HDMI input.
- 18 Gbps maximum data rate, 600 MHz pixel clock, VESA resolutions from 640x480 to 4096x2160.
- Internal universal supply accepting 100-240 VAC at 50-60 Hz, consuming 8.6 watts.
- Bus power for active HDMI cables at 1.1 W per port and 4.3 W across all four.
- Automatic input equalization for a 15 foot 600 MHz input run, or 100 feet at 165 MHz.
- RS-232 on a 3-pole captive screw and a front panel mini USB B port, both taking SIS commands.
Where It Is Used
Boardrooms with a main display plus repeat screens, sports bars and waiting areas running one feed to several panels, classrooms with a projector and multiple flat panels, and control or dispatch rooms mirroring a source across an operator row. The 1U half-rack body fits a standard shelf or sits under a desk.
Specifications at a Glance
- I/O: 1 HDMI in, 4 HDMI out, all female 19-pin type A
- Signal: HDMI 2.0b, HDCP 1.4 and 2.3, 18 Gbps, 600 MHz
- Power: internal 100-240 VAC supply; 8.6 watts
- Enclosure: metal, 1.75" H x 8.75" W x 6.00" D, 1.6 lbs
- Warranty: 3 years product, 7 years Everlast power supply
Also referenced as Extron DA4HD4KPLUS, DA4-HD-4K-PLUS, part number 60160801.
