Details

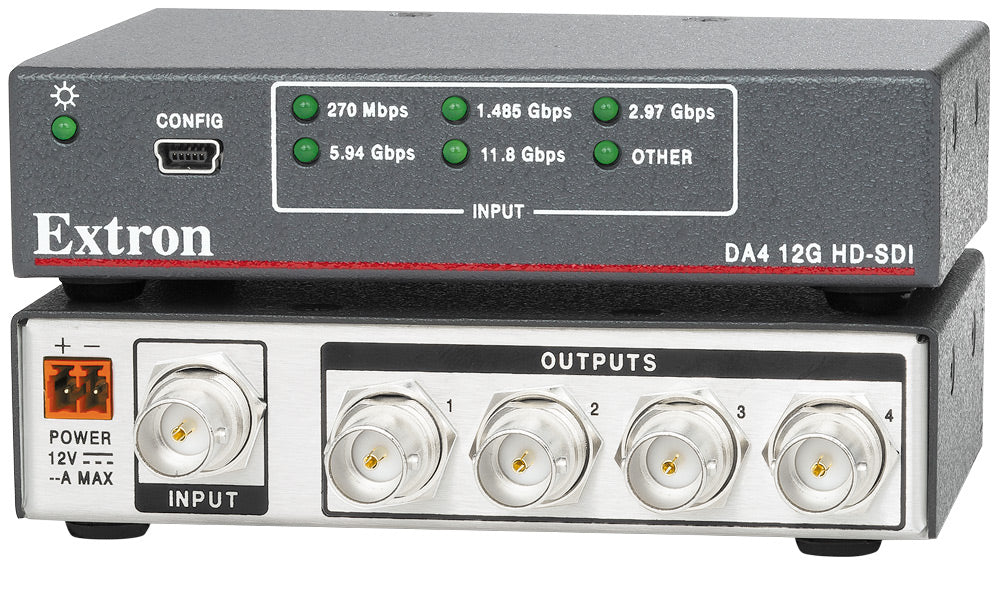

Extron DA4 12G HD-SDI (part number 60-1674-01) — a four output multi-rate SDI distribution amplifier in a quarter-rack metal enclosure, covering everything from SD-SDI up to 12G-SDI.

SDI infrastructure tends to be a mix of vintages, and this amplifier deals with that by identifying the incoming rate itself. It locks to any common serial digital rate between 270 Mbps and 11.88 Gbps, adapting automatically to the relevant SMPTE and ITU standard, then equalizes the input and reclocks each output. Practically, the equalizer buys back real distance: roughly 230 feet on RG6 at 12G-SDI, 590 feet at 3G-SDI and 984 feet at SDI. HDR metadata, up to 16 channels of embedded audio, closed caption and time code all pass through untouched. Front panel LEDs report the detected input rate, so a technician can identify a feed without a scope.

Key Capabilities

One BNC input drives four BNC outputs at up to 11.88 Gbps per 12G-SDI connection.
Automatic input equalization for as much as -30 dB of cable loss.
Automatic output reclocking at 270 Mbps, 1.485, 2.97, 5.94 and 11.88 Gbps, selectable per output or bypassed.
Latency of 10 ns with unity gain and 75 ohm impedance throughout.
Handles both level A and level B mapping on 3G-SDI and 6G-SDI.
Front panel USB configuration port for setup and firmware updates.

Where It Is Used

Broadcast facilities and production trucks, live event and house-of-worship video systems, stadium and venue camera feeds, post-production monitoring, and medical or scientific imaging chains that carry SDI to several recorders and displays at once.

Specifications at a Glance

I/O: 1 female BNC in, 4 female BNC out
Rates: SDI, HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI; 270 Mbps to 11.88 Gbps
Power: external 12 VDC 0.5 A 6 W Everlast supply; 12 VDC 0.2 A at the unit
Enclosure: metal, 1.0" H x 4.3" W x 3.0" D, 0.33 lbs
Warranty: 3 years product, 7 years Everlast power supply

Also referenced as Extron DA412GHDSDI, DA4-12G-HD-SDI, part number 60167401. Extron lists this part number as retired.

Specifications

Part Number: 60-1674-01 (listed by Extron as Retired)

Manufacturer: Extron

Model: DA4 12G HD-SDI

Condition: New

Signal Type: SDI, HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI digital video

Maximum Video Data Rate: 11.88 Gbps per 12G-SDI connection

Frame Rate: 23.97, 24, 29.97, 30, 50, 59.94 and 60 fps

Chroma Sampling: 4:4:4, 4:2:2, and 4:2:0

Color Bit Depth: 8, 10, or 12 bits per color

Bit Depth by Rate: 12G-SDI up to 10 bits; 6G-SDI up to 10 bits; 3G-SDI up to 12 bits; HD-SDI up to 12 bits; SDI up to 12 bits

Gain: Unity

Resolution: 8, 10, or 12 bits, automatic

Operation Standards: SMPTE-259M, SMPTE-292M, SMPTE-424M, SMPTE-372M, SMPTE ST-2081, SMPTE 2082, ITU-RBT.601, ITU-RBT.1120

Auto Data Rate Lock: Yes

Latency: 10 ns

Level Mapping: Supports both level A and level B mapping (3G-SDI and 6G-SDI)

Video Input: 1 single link SDI, HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI digital component video on 1 female BNC connector

Input Nominal Level: 0.8 Vp-p

Input Minimum/Maximum Levels: 0.5 Vp-p to 1 Vp-p with no offset

Input Impedance: 75 ohms

Input Return Loss: ≥15 dB @ 5 MHz to 2.97 GHz

Input DC Offset (Maximum Allowable): 5 V

Input Coupling: AC

Equalization: Automatic for up to -30 dB of cable loss

Equalized Cable Distance: 12G-SDI 70 m (230 ft); 6G-SDI 90 m (295 ft); 3G-SDI 180 m (590 ft); HD-SDI 240 m (787 ft); SDI 300 m (984 ft). Distance varies with resolution, cable type, source and display.

Video Output: 4 single link SDI, HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI digital component video on 4 female BNC connectors

Re-clocking: Automatic for 270 Mbps, 1.485 Gbps, 2.97 Gbps, 5.94 Gbps, and 11.88 Gbps (bypassed for other rates)

Output Nominal Level: 0.8 Vp-p

Output Minimum/Maximum Levels: 0.5 Vp-p to 1 Vp-p

Output Impedance: 75 ohms

Output Return Loss: ≤25 dB @ 100 MHz

Output DC Offset: ±5 mV with input at 0 offset

Audio Channels: Supports up to 16 channels of embedded audio

Ancillary Data: Passes HDR, closed caption and time code

Front Panel Indicators: Input rate LEDs for 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI and SDI

Configuration Port: Front panel USB port for setup, configuration and firmware updates

Power Supply: External Extron Everlast; input 100-240 VAC, 50-60 Hz; output 12 VDC, 0.5 A, 6 watts (PS 1205 C, replacement part 70-1175-01)

Power Input Requirements: 12 VDC, 0.2 A

Ambient Temperature/Humidity: Storage -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing; operating +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Cooling: Convection, unvented

Rack Mount: Yes, with optional 1U rack shelf or back of rack mounting kit

Furniture Mount: Yes, with optional under desk mounting kit

Enclosure Type: Metal

Enclosure Dimensions: 1.0" H x 4.3" W x 3.0" D (quarter rack wide) (2.5 cm H x 11 cm W x 7.6 cm D). Depth excludes connectors.

Product Weight: 0.33 lbs (0.15 kg)

Regulatory Compliance: CE, CUL, UL, FCC Class A, VCCI, AS/NZS, ICES

Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

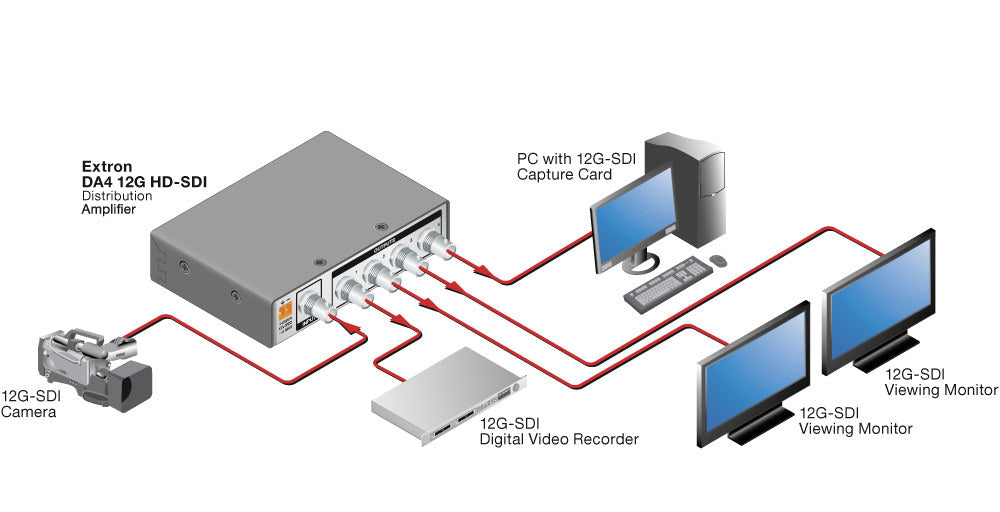

Diagram

Resources

Brochure | DA4 12G HD-SDI 60-1674-01 | DA4 12G HD‑SDI (da4_12g_hd_sdi_revA1.pdf)

Brochure | DA4 12G HD-SDI 60-1674-01 | DA4 12G HD-SDI (da4_12g_hd_sdi_REV_A_jp_ONLINE.pdf)

Brochure | DA4 12G HD-SDI 60-1674-01 | DA4 12G HD-SDI (da4_12g_hd_sdi_REV_A_cn_ONLINE.pdf)

Brochure | DA4 12G HD-SDI 60-1674-01 | DA4 12G HD-SDI (DA4-12G-HD-SDI_BR_A4_SP_RevA1.pdf)

Brochure | DA4 12G HD-SDI 60-1674-01 | DA4 12G HD‑SDI (DA4-12G-HD-SDI_BR_A4_IT_RevA1.pdf)

Brochure | DA4 12G HD-SDI 60-1674-01 | DA4 12G HD‑SDI (DA4-12G-HD-SDI_BR_A4_FR_RevA1.pdf)

Manual | DA4 12G HD-SDI 60-1674-01 | Cleaning Instruction Card

Manual | DA4 12G HD-SDI 60-1674-01 | DA4 12G HD-SDI Setup Guide

Manual | DA4 12G HD-SDI 60-1674-01 | DA4 12G HD-SDI User Guide

Specifications | DA4 12G HD-SDI 60-1674-01 | DA4 12G HD-SDI

Panel Drawing | DA4 12G HD-SDI 60-1674-01 | DA4 12G HD-SDI

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron DA4 12G HD-SDI 1x4 12G-SDI Distribution Amplifier 60-1674-01

Name: Extron DA4 12G HD-SDI 1x4 12G-SDI Distribution Amplifier 60-1674-01
Brand: Extron
SKU: EXTRON-DA412GHDSDI-60167401
Availability: InStock

Manufacturer: Extron

Type: Distribution Amplifier

Extron DA4 12G HD-SDI Distribution Amplifier

• One SDI input feeds four reclocked BNC outputs
• Locks automatically to any rate from 270 Mbps to 11.88 Gbps
• Input equalization recovers up to -30 dB of cable loss
• Reaches 230 ft at 12G-SDI and 984 ft at SDI on RG6 cable
• Passes HDR, 16 channels of embedded audio, caption and time code
• Latency of just 10 ns at unity gain across 75 ohm paths
• Front panel LEDs identify the detected input data rate at a glance
• 3 year product warranty plus 7 years on the Everlast power supply

Product discontinued.
