Extron DA HD 4K PLUS Series 4K/60 HDMI Distribution Amplifiers
- • Supports computer and video resolutions up to 4K/60 @ 4:4:4
- • Supported HDMI 2.0b specification features include data rates up to 18 Gbps, HDR, Deep Color up to 12-bit, 3D, HD lossless audio formats, and CEC control
- • HDCP 2.3 compliant
- • Automatic input cable equalization
- • EDID Minder® automatically manages EDID communication between connected devices
- • Key Minder&rq; continuously verifies HDCP compliance
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

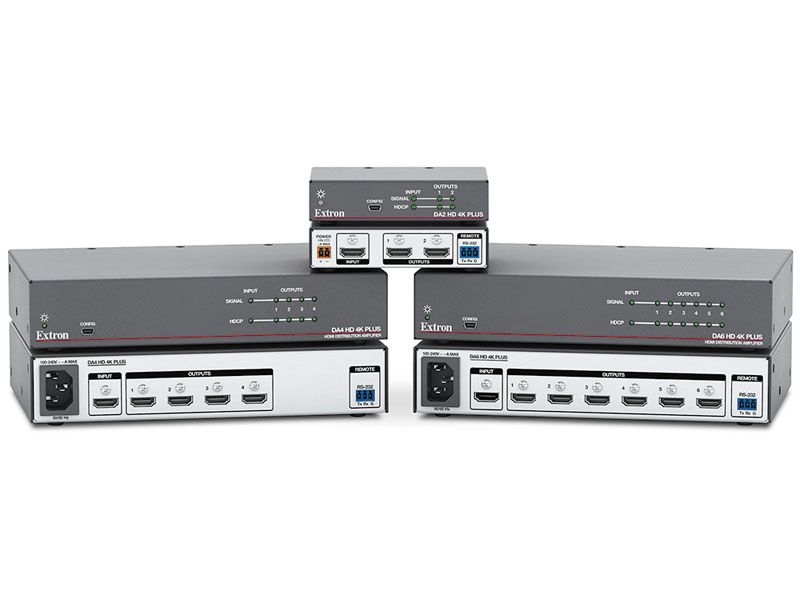

The Extron DA HD 4K PLUS Series are HDCP 2.3 compliant distribution amplifiers for HDMI signals at resolutions up to 4K/60 @ 4:4:4 chroma sampling. They support data rates up to 18 Gbps, HDR, Deep Color up to 12-bit, 3D, HD lossless audio formats, and CEC control, along with integrator-friendly features such as automatic input cable equalization, automatic color bit depth management, and selectable output muting. They also feature Extron EDID Minder® and Key Minder® technologies to maintain continuous EDID communication between connected devices and ensure simultaneous distribution of HDCP-encrypted content. The DA HD 4K PLUS Series distribution amplifiers are available in sizes from two to six outputs, and are ideal for applications that require reliable distribution of a single HDMI source signal to multiple displays.
Model: DA2 HD 4K PLUS - Two Output 4K/60 HDMI DA - Part number: 60-1607-01
Model: DA4 HD 4K PLUS - Four Output 4K/60 HDMI DA - Part number: 60-1608-01
Model: DA6 HD 4K PLUS - Six Output 4K/60 HDMI DA - Part number: 60-1609-01
