Extron DA2 HD 4K PLUS HDMI Distribution Amplifier
- • Drives two HDMI displays from one source at full 4K/60 4:4:4
- • 18 Gbps maximum data rate with a 600 MHz pixel clock
- • HDMI 2.0b with HDCP 1.4 and 2.3 authentication
- • HDR10, HDR10+ and Dolby Vision all pass through intact
- • Supplies 1.1 W per port, 2.2 W total, for active HDMI cables
- • Handles a 15 ft input run at 600 MHz, 100 ft at 165 MHz
- • Quarter-rack metal chassis at 0.35 lbs, drawing just 3.6 watts
- • 3 year product warranty plus 7 years on the Everlast power supply
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

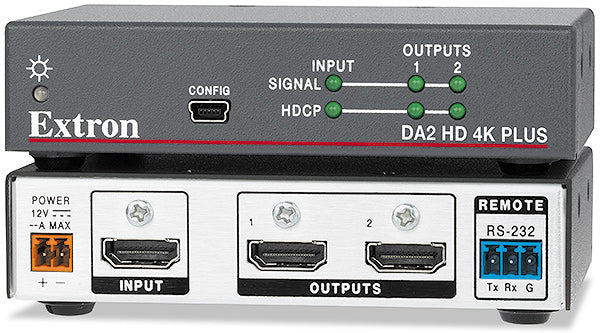

Extron DA2 HD 4K PLUS (part number 60-1607-01) — a one input, two output 4K/60 HDMI distribution amplifier in a quarter-rack metal chassis.
Two displays, one source, no compromise on picture. The DA2 HD 4K PLUS is built to HDMI 2.0b with HDCP 1.4 and 2.3, and passes the full 18 Gbps a modern 4K source can throw at it. That means 4096x2160 at 60 Hz with 4:4:4 chroma at 8-bit, or 4:2:0 at 12-bit, plus HDR10, HDR10+ and Dolby Vision. Automatic input cable equalization tolerates a 15 foot input run at the full 600 MHz pixel clock, stretching to 100 feet if the signal only needs 165 MHz. Both outputs also supply bus power for active HDMI cables, 1.1 W per port up to 2.2 W across the pair.
Key Capabilities
- Two single link HDMI outputs, each on a female 19-pin HDMI type A connector, fed from one HDMI input.
- 18 Gbps maximum data rate at a 600 MHz pixel clock, spanning 640x480 through 4096x2160.
- Carries embedded audio untouched: LPCM to 7.1 at 24-bit 192 kHz, Dolby Atmos and TrueHD, DTS:X and DTS-HD Master Audio.
- Ultra Wide formats including 3440x1440 and 3840x1600 are supported alongside SMPTE up to 1080p at 240 Hz.
- RS-232 on a 3-pole captive screw plus a front panel mini USB B port, both driven by Extron Simple Instruction Set commands.
- Quarter rack chassis at 1.00" H x 4.30" W x 3.00" D, weighing 0.35 lbs and drawing 3.6 watts.
Where It Is Used
Small huddle rooms with a main display and a confidence monitor, digital signage with a mirrored preview, classroom lecterns feeding a projector and a local panel, and clinical or laboratory positions duplicating a source to a second screen. The quarter-rack footprint suits a shallow credenza or a shelf behind a display.
Specifications at a Glance
- I/O: 1 HDMI in, 2 HDMI out, all female 19-pin type A
- Signal: HDMI 2.0b, HDCP 1.4 and 2.3, 18 Gbps, 600 MHz
- Power: external 12 VDC 0.5 A 6 W supply; 3.6 W at the device
- Enclosure: metal, 1.00" H x 4.30" W x 3.00" D, 0.35 lbs
- Warranty: 3 years product, 7 years Everlast power supply
Also referenced as Extron DA2HD4KPLUS, DA2-HD-4K-PLUS, part number 60160701.
