Extron CTLP/1000 Plenum Comm-Link Control Cable
- • Plenum rated: NEC CMP, NFPA 262 and CSA FT-6 for return-air ceilings
- • 1,000 ft (304.8 m) spool for full-building control backbones
- • Foamed FEP insulation with PVC and FEP inner jackets under a blue jacket
- • 24 AWG tinned copper drain wire sits beneath 100% aluminum/polyester tape
- • Slim 0.207 in (5.26 mm) nominal OD eases fill in crowded conduit
- • 18 AWG power legs at 6.2 ohms/1,000 ft feed remote control panels
- • Spool ships at 46 lbs (20.7 kg)
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

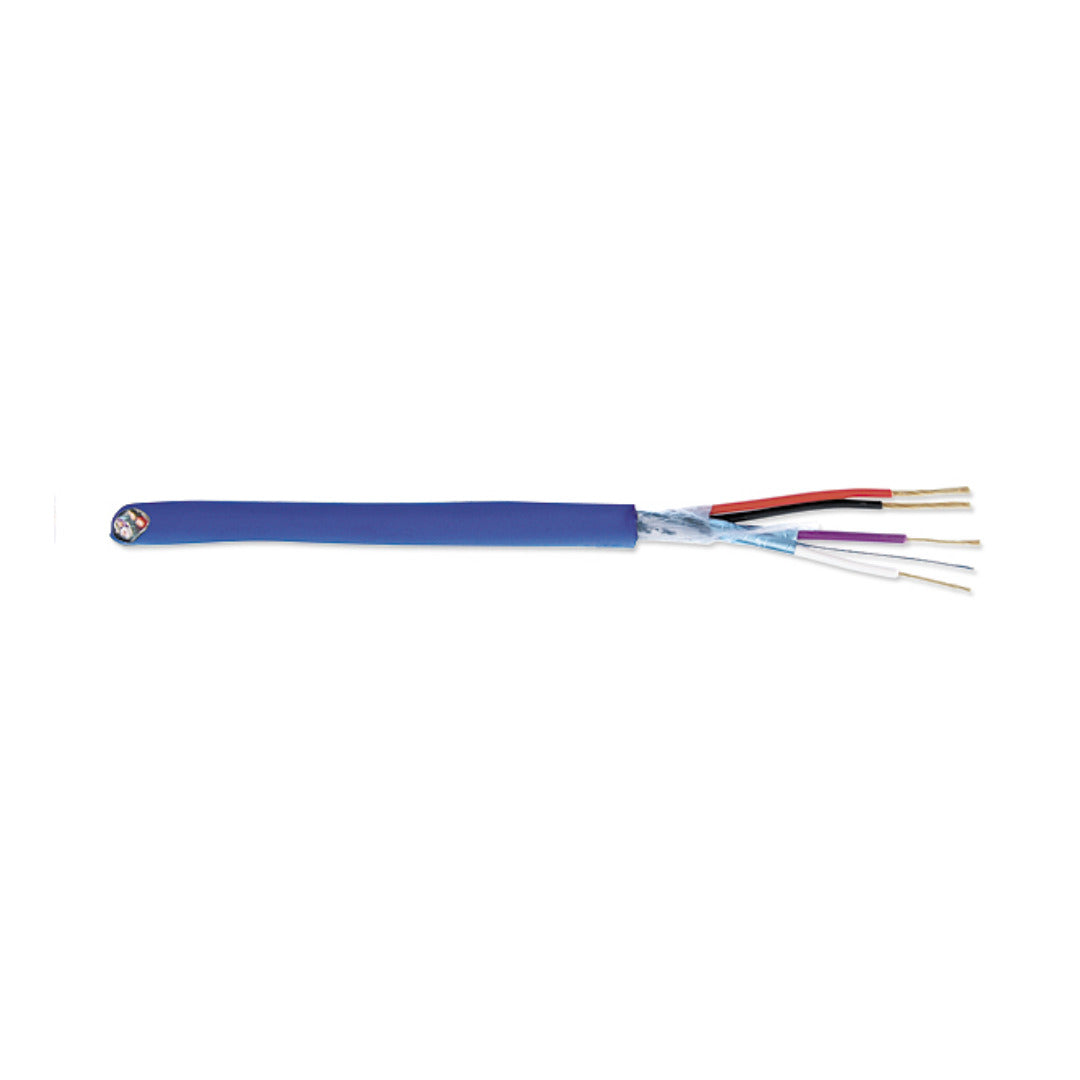

Extron CTLP/1000 (part number 22-119-03) — 1,000 ft of plenum-rated Comm-Link cable on one spool, for control backbones that cross return-air ceilings.
CTLP is the plenum member of the Comm-Link family. Its conductor count matches the non-plenum version, but the materials change: insulation is gas-injected foamed FEP, the inner jackets are PVC and FEP, and the outer jacket is a blue fire-resistant PVC that also makes plenum stock easy to spot on a job site. The shield is an aluminum/polyester tape at full coverage with a 24 AWG tinned copper drain wire tucked underneath.
Key Capabilities
- Plenum ratings: NEC CMP, NFPA 262 and CSA FT-6
- Two 18 AWG power conductors at 6.2 ohms/1,000 ft (20.3 ohms/km) nominal
- Shielded 22 AWG communication pair at 14.7 ohms/1,000 ft (48.2 ohms/km) nominal
- Tape shield DCR of 26 ohms/1,000 ft (85.3 ohms/km) nominal
- Blue fire-resistant PVC jacket, 0.207 in (5.26 mm) nominal overall diameter
- 60 °C temperature rating
Where It Is Used
This is the reel to specify when the control path leaves the rack room and travels above a suspended ceiling — multi-room campus AV, hospital imaging corridors, command and operations centers, and any tenant-improvement build where the inspector will look for a CMP marking on the jacket.
Specifications at a Glance
- Length: 1,000 ft (304.8 m) spool
- Rating: Plenum (CMP)
- Outer jacket: Blue fire-resistant PVC
- Nominal OD: 0.207 in (5.26 mm)
- Shipping weight: 46 lbs (20.7 kg)
Also referenced as Extron CTLP1000, CTLP-1000, part number 2211903.
