Extron CTLP/100 Plenum Comm-Link Control Cable
- • Extron CTLP/100 plenum Comm-Link control cable, 100 ft
- • Pre-cut 100 ft (30.5 m), NEC CMP rated
- • 18 AWG power pair plus shielded 22 AWG pair
- • Sales, replacement and exchange
- • Part# 26-461-02 / 2646102
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

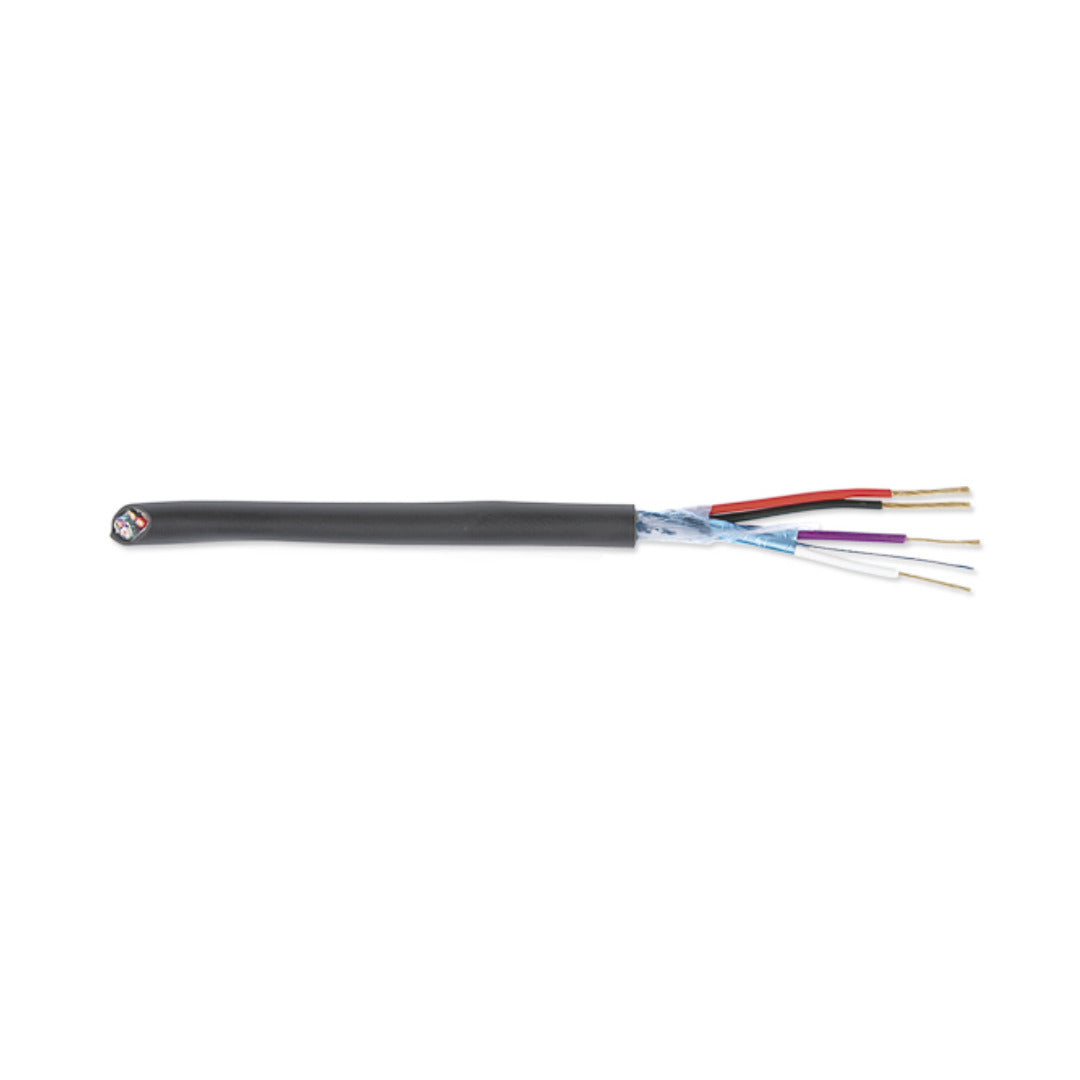

Extron CTLP/100 (part number 26-461-02) - 100 ft of plenum Comm-Link control cable, supplied as a finished pre-cut length.
At 100 ft the cable comfortably covers a rack-to-room run that crosses a corridor or turns a corner above the ceiling grid. Power and data travel together: the 18 AWG pair feeds the panel, the shielded 22 AWG pair carries the control link, and both sit inside one blue FEP and PVC jacket stack that carries the CMP marking an inspector expects in return-air space.
Key Capabilities
- Pre-cut 100 ft (30.5 m) length ready to pull
- NEC CMP, NFPA 262 and CSA FT-6 plenum listings
- Gas-injected foamed FEP insulation with PVC and FEP inner jackets
- Tape shield at 100% coverage, 26 ohms/1,000 ft (85.3 ohms/km) nominal DCR
- 18 AWG power conductors, 0.048 in (1.22 mm), bare copper
- Blue fire-resistant outer jacket, 0.207 in (5.26 mm) nominal OD
Where It Is Used
Divisible meeting rooms, lecture theatres, worship spaces and clinical corridors where the processor lives in a remote rack. Also used to reach third-party control heads and contact-closure devices that draw their power from the same controller they report to.
Specifications at a Glance
- Length: 100 ft (30.5 m), pre-cut
- Rating: Plenum (CMP)
- Shield: Aluminum/polyester tape with 24 AWG drain wire
- 22 AWG pair: 7/30 stranding, 0.030 in (0.76 mm)
- Temperature rating: 60 °C
Also referenced as Extron CTLP100, CTLP-100, part number 2646102.
Frequently asked questions about the Extron CTLP/100 Plenum Comm-Link Control Cable 100 ft
Does Ampronix sell the Extron CTLP/100 Plenum Comm-Link Control Cable 100 ft?
Yes. Ampronix is an authorized Extron distributor and sells the Extron CTLP/100 Plenum Comm-Link Control Cable 100 ft (26-461-02). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron CTLP/100 Plenum Comm-Link Control Cable 100 ft?
Yes. Ampronix provides sales, replacement and exchange for the Extron CTLP/100 Plenum Comm-Link Control Cable 100 ft. Call Ampronix for a quote.
What are the key features of the Extron CTLP/100 Plenum Comm-Link Control Cable 100 ft?
Key points: Pre-cut 100 ft (30.5 m) length ready to pull; NEC CMP, NFPA 262 and CSA FT-6 plenum listings; Gas-injected foamed FEP insulation with PVC and FEP inner jackets; Tape shield at 100% coverage, 26 ohms/1,000 ft (85.3 ohms/km) nominal DCR. Call Ampronix to confirm details for your application.
