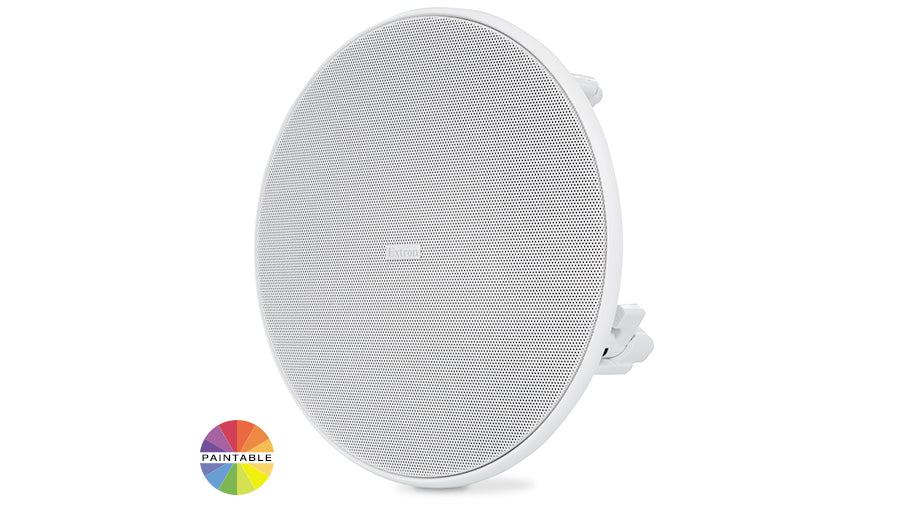

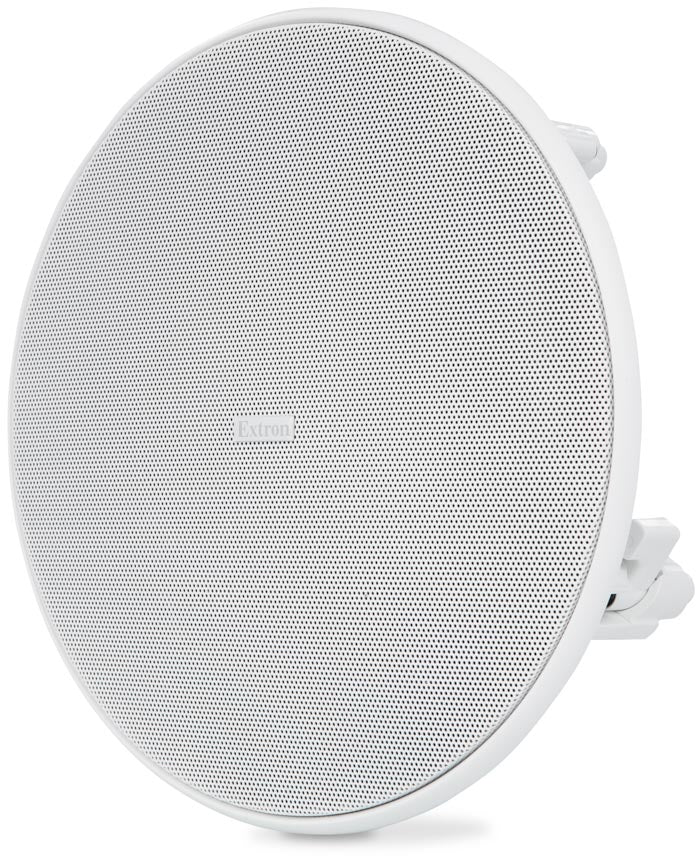

Extron CS 3T (part number 60-1463-03) — open-back full-range ceiling speaker cartridge for non-plenum installations.

CS 3T pairs a single 3" paper-cone driver with an open-back, infinite-baffle enclosure for paging and voice announcements where a sealed plenum can isn't required. It mounts with an optional ceiling kit or the CS 120P enclosure, and a six-position rotary selector switches the driver between 70 V, 100 V, and direct 8 ohm operation for flexible amplifier matching.

Key Capabilities

Open-back full-range ceiling speaker cartridge for non-plenum spaces
3" paper-cone driver with 165° conical coverage for wide paging dispersion
16 W continuous pink noise / 32 W continuous program power handling
Six-position rotary taps for 70 V or 100 V lines, or direct 8 ohm operation
Frequency range of 118 Hz to 20 kHz (-10 dB)

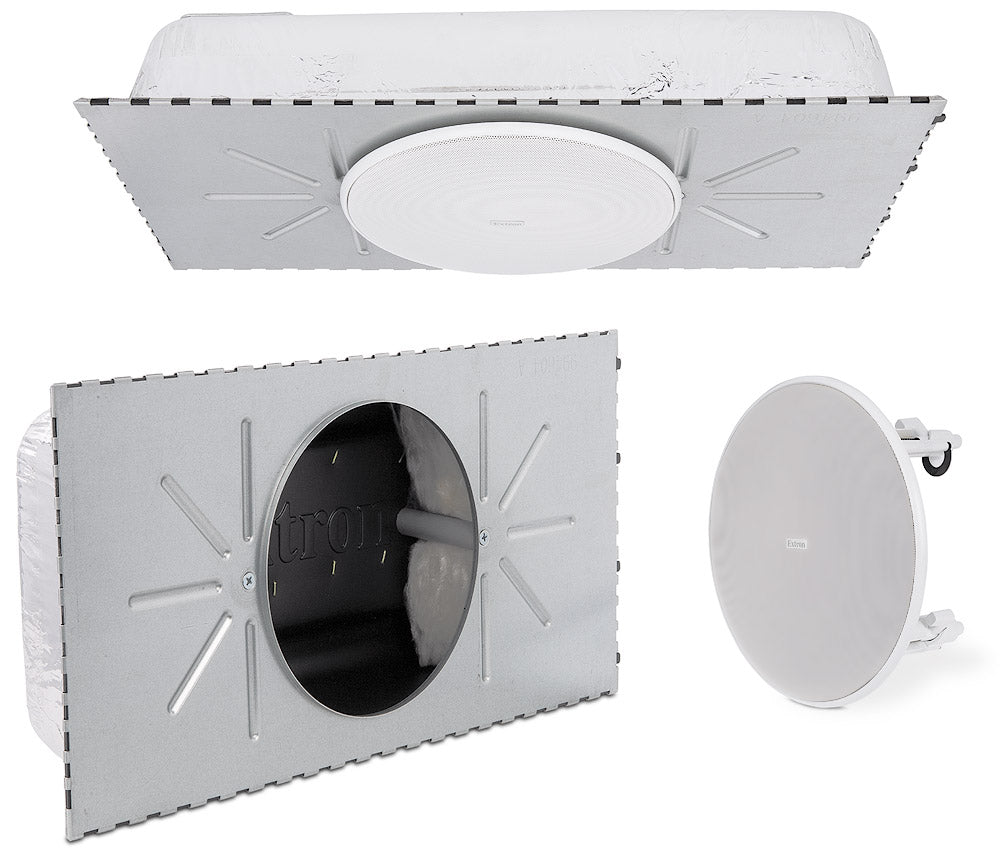

Mounts with an optional ceiling kit or the CS 120P plenum enclosure

Where It Is Used

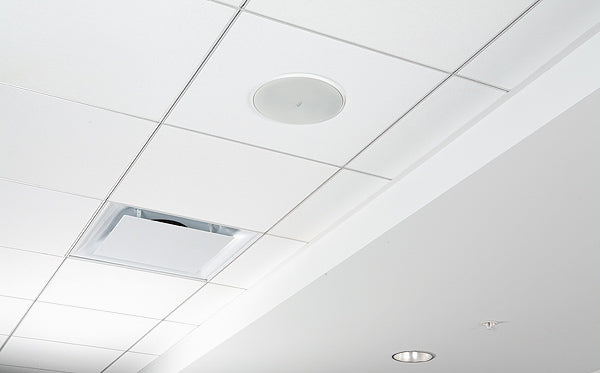

Used for paging and voice reinforcement in non-plenum ceiling spaces — conference rooms, classrooms, lecture halls, and huddle spaces — where full-range music reproduction isn't the priority.

Specifications at a Glance

Enclosure: 3.0" H x 10.3" diameter, open back, infinite baffle
Coverage: 165° conical
Power: 16 W pink noise / 32 W program
Weight: 3.4 lbs (1.6 kg) each

Also referenced as ExtronCS3T, Extron-CS-3T, part number 60146303.

Specifications

Part Number: 60-1463-03

Manufacturer: Extron

Model: CS 3T

Condition: New

Speaker Type: 1-way full-range in-ceiling speaker, open back

Frequency Range: 118 Hz to 20 kHz, -10 dB, half space

Power Capacity: 16 W (rms) continuous pink noise (per IEC 60268-5); 32 W (rms) continuous program

Nominal Sensitivity: 87 dB SPL, 1 W @ 1 m, half space

Nominal Impedance: 8 ohms per speaker

Nominal Coverage Angle: 165° conical coverage

Rotary Switch Taps: 70 V input: 16 W, 8 W, 4 W, 2 W, 1 W, 8 ohms direct. 100 V input: 16 W, 8 W, 4 W, 2 W, 8 ohms direct

Driver: (1) 3" (76.2 mm) paper cone

Overload Protection: Full range power limiter

Input/Output Connectors: (1) 5 mm captive screw connector, 4 pole with loop out

Package: 2 speakers (1 pair)

Mounting: Ceiling mountable with optional ceiling mounting kit or CS 120P enclosure

Enclosure Materials: High-impact, fire-resistant (UL94V-0) plastic, open back, infinite baffle

Grille Material: Steel

Enclosure Outer Dimensions: 3.0" H x 10.3" diameter (7.6 cm H x 26.2 cm diameter), measured from front of ceiling tile to top of withdrawn locking arms

Cutout Dimensions: 9.2" diameter (23.4 cm diameter)

Product Weight: Single: 3.4 lbs (1.6 kg); Shipping weight pair: 9 lbs (4.0 kg)

Temperature/Humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing. Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Safety: CE, NFPA 70, NFPA 90A; UL listed for plenum air spaces only when used with CS 120P (UL 2043 heat/smoke release); UL 1480 listed for commercial and professional audio systems

Environmental: RoHS, WEEE

Warranty: 5 years parts and labor

Diagram

Resources

Brochure | CS 3T 60-1463-03 | CS 123T (cs_123t_a1.pdf)

Brochure | CS 3T 60-1463-03 | CS 123T (CS-123T_BR_A4_SP_RevA1.pdf)

Manual | CS 3T 60-1463-03 | CS 120P Setup Guide

Manual | CS 3T 60-1463-03 | CS 3T and CS 120P User Guide

Specifications | CS 3T 60-1463-03 | CS 123T SpeedMount® Ceiling Speaker System

Specifications | CS 3T 60-1463-03 | CS 3T Speakers

Panel Drawing | CS 3T 60-1463-03 | CS 123T
