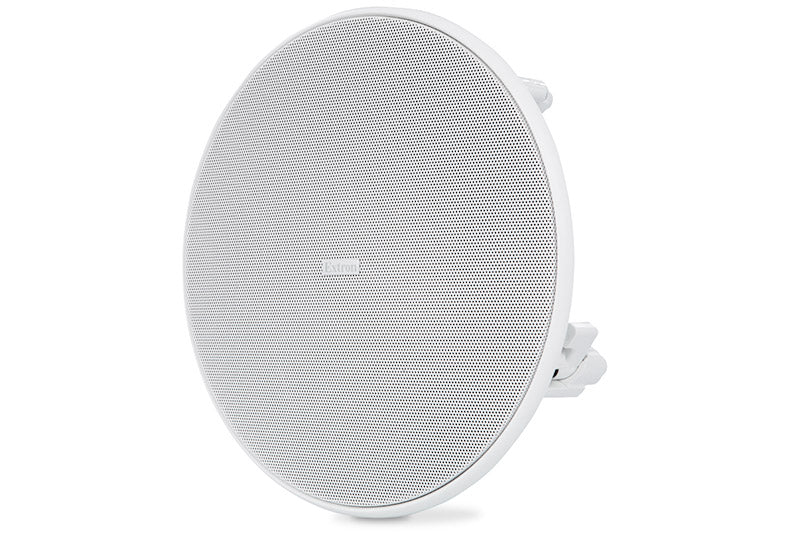

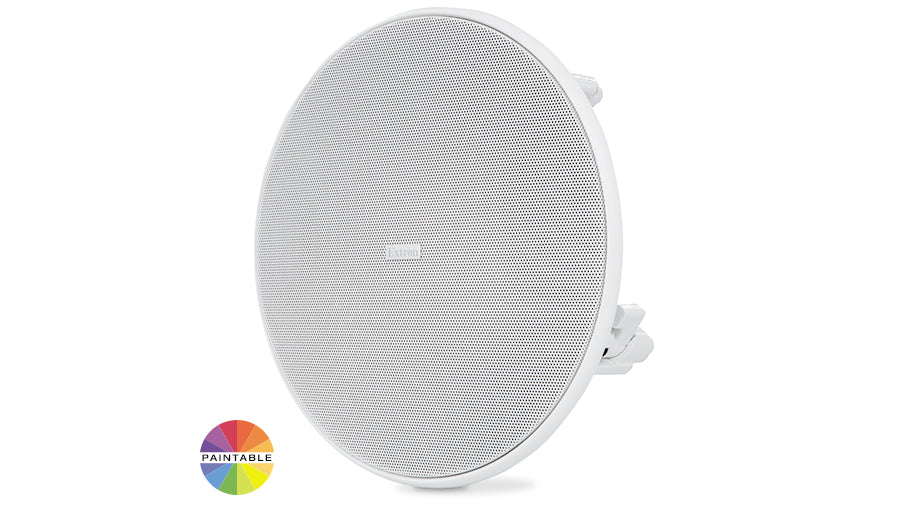

Extron CS 26T Plus (part number 60-1505-03) — open-back two-way ceiling speaker cartridge for non-plenum installations.

Where a plenum enclosure isn't required, CS 26T Plus mounts directly with an optional ceiling kit or the CS 120P enclosure, using an infinite-baffle plastic back instead of a sealed can. The 6.5" woofer and 0.75" dome tweeter deliver 112° conical coverage, and a six-position rotary selector switches between 70 V, 100 V, or direct 8 ohm operation, so the same cartridge covers distributed and direct-drive amplifier setups.

Key Capabilities

Open-back two-way ceiling speaker cartridge for non-plenum spaces
6.5" polypropylene woofer and 0.75" PEI dome tweeter, 112° conical coverage
60 W continuous pink noise / 120 W continuous program power handling
Six-position rotary taps for 70 V or 100 V lines, or direct 8 ohm operation
Frequency range of 42 Hz to 20 kHz (-10 dB) with a 2.5 kHz crossover

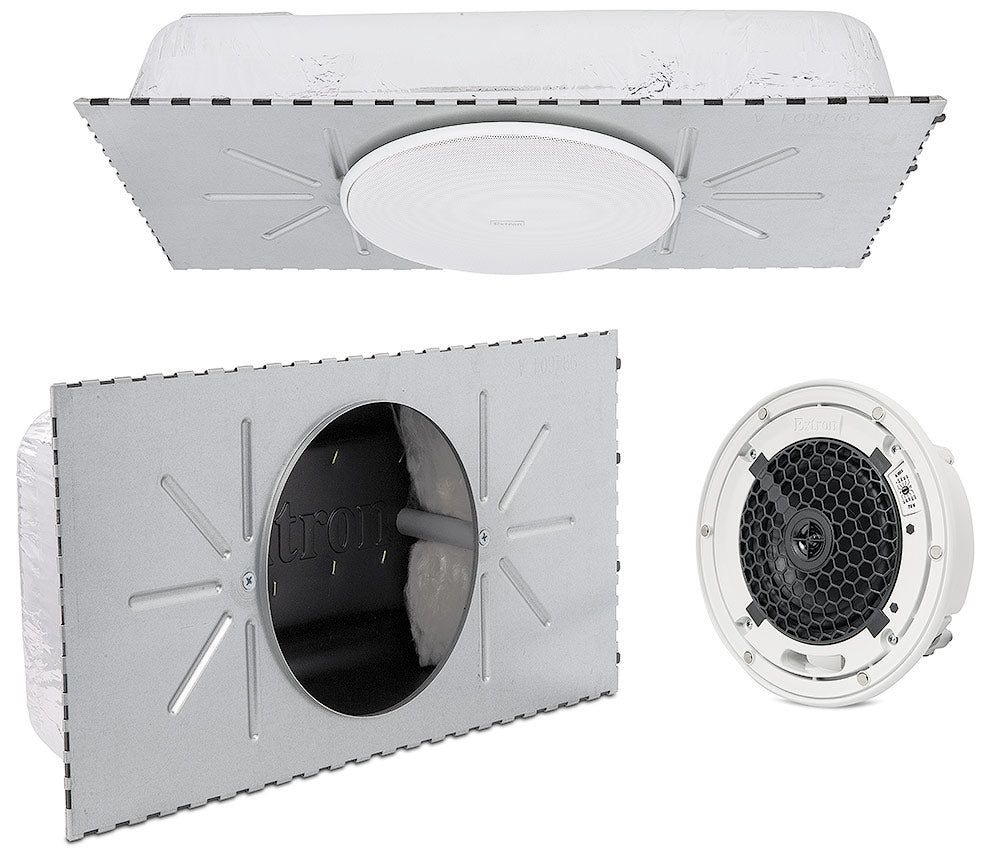

Mounts with an optional ceiling kit or the CS 120P plenum enclosure

Where It Is Used

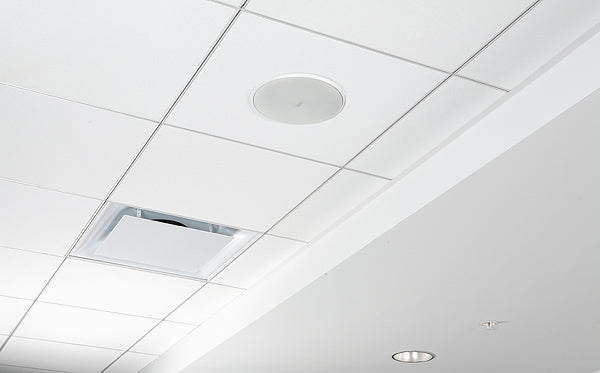

Used in non-plenum ceiling spaces — conference rooms, classrooms, lecture halls, auditoriums — where full plenum-rated enclosures aren't required by code.

Specifications at a Glance

Enclosure: 3.97" H x 10.3" diameter, open back, infinite baffle
Coverage: 112° conical
Power: 60 W pink noise / 120 W program
Weight: 5.7 lbs (2.6 kg) each

Also referenced as ExtronCS26TPlus, Extron-CS-26T-Plus, part number 60150503.

Specifications

Part Number: 60-1505-03

Manufacturer: Extron

Model: CS 26T Plus

Condition: New

Speaker Type: 2-way ceiling speaker, open back

Frequency Range: 42 Hz to 20 kHz, -10 dB, half space (per IEC 60268-5)

Frequency Response: 58 Hz to 16 kHz, +/- 3 dB, half space

Power Capacity: 60 W (rms) continuous pink noise (per IEC 60268-5); 120 W (rms) continuous program

Nominal Sensitivity: 86 dB SPL, 1 W @ 1 m, half space

Nominal Impedance: 8 ohms per speaker

Crossover Frequency: 2.5 kHz

Nominal Coverage Angle: 112° conical coverage

Rotary Switch Taps: 70 V input: 32 W, 16 W, 8 W, 4 W, 2 W, 8 ohms direct. 100 V input: 32 W, 16 W, 8 W, 4 W, 8 ohms direct

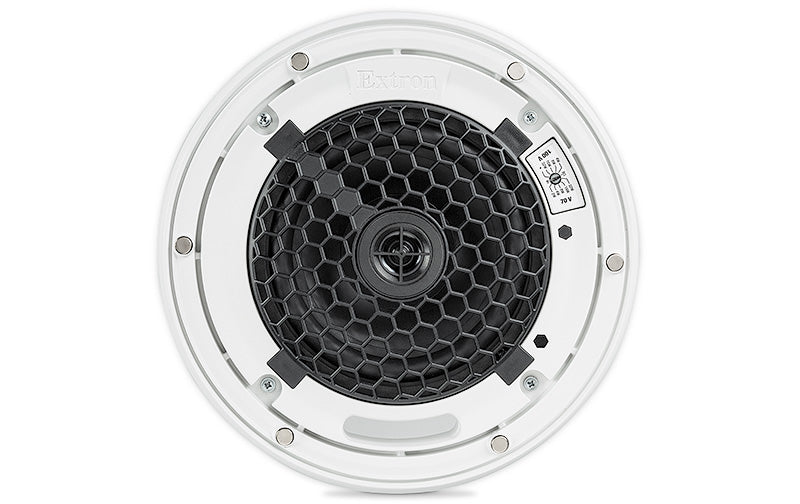

Woofer: (1) 6.5" (165 mm) polypropylene cone with moisture resistant coating

Tweeter: (1) 0.75" (19.1 mm) PEI dome

Overload Protection: Full range power limiter, protecting the tweeter, woofer, and crossover

Input/Output Connectors: (1) 5 mm captive screw connector, 4 pole with loop out

Package: 2 speakers (1 pair)

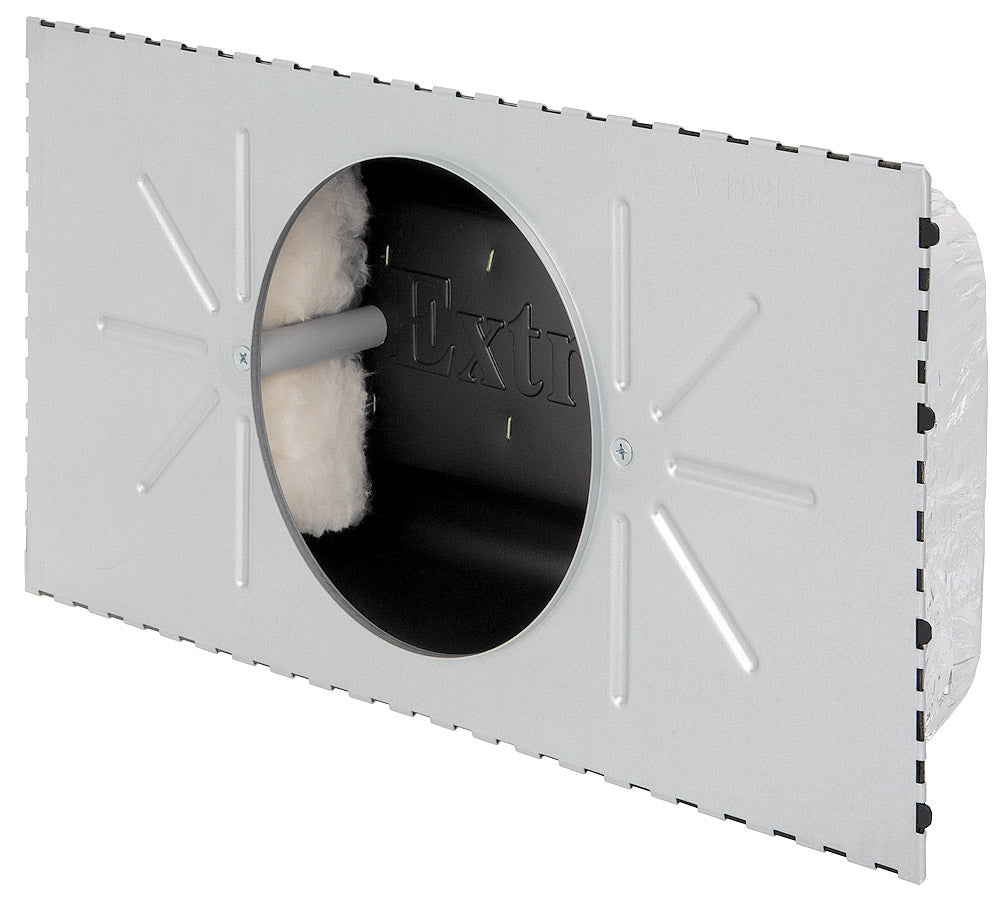

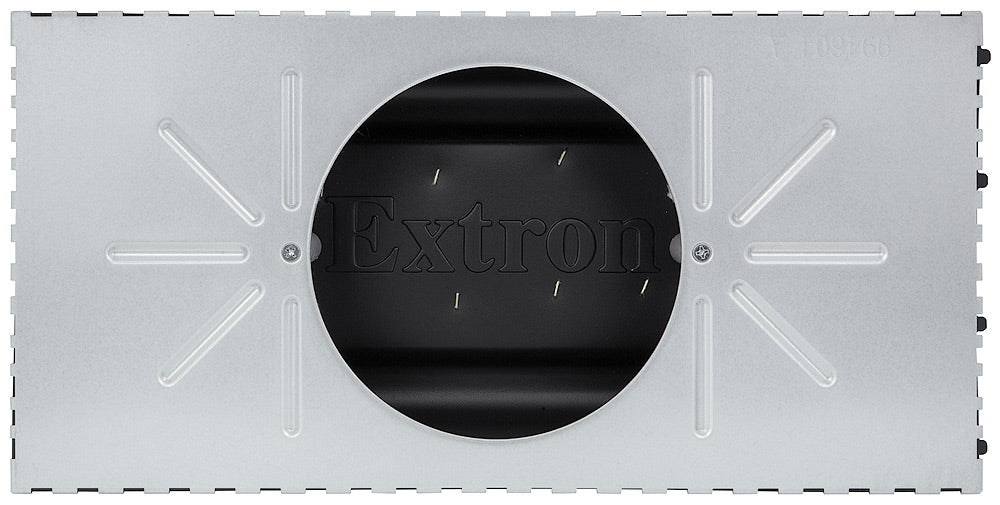

Mounting: Ceiling mountable with CS 120P enclosure or optional ceiling mounting kit

Enclosure Materials: High-impact, fire-resistant (UL94V-0) plastic, open back, infinite baffle

Grille Material: Steel

Enclosure Outer Dimensions: 3.97" H x 10.3" diameter (10.1 cm H x 26.2 cm diameter); 3.63" (9.2 cm) from front of ceiling tile to top of connected captive screw connector

Cutout Dimensions: Without fiberglass tile adapter: 9.07" (230.5 mm) diameter. With fiberglass tile adapter: 9.21" (234 mm) diameter

Product Weight: 5.7 lbs (2.6 kg) each

Temperature/Humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing. Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Safety: CE, UL 2043, UL 1480, NFPA 90A, NFPA 70; UL listed for plenum air spaces only when used with CS 120P; UL 1480 listed for commercial and professional audio systems

EMI/EMC: CE

Warranty: 5 years parts and labor

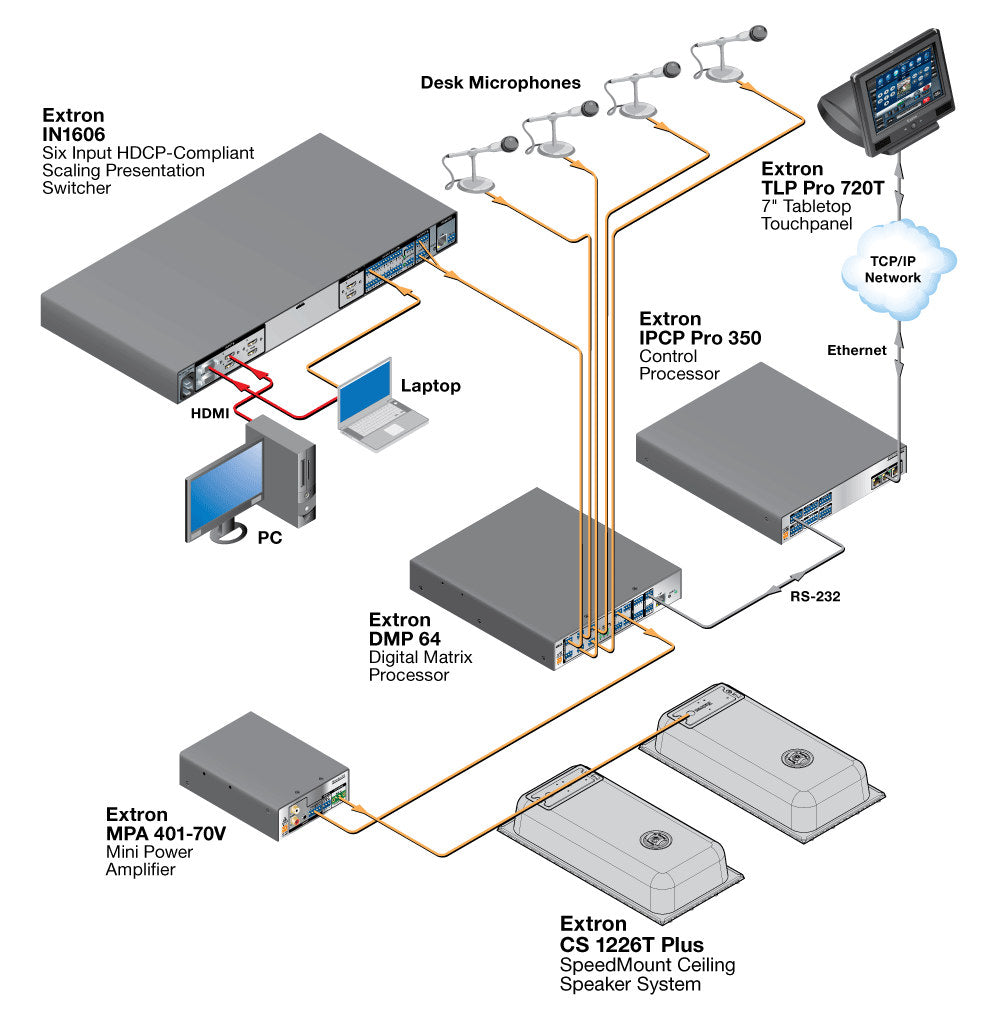

Diagram

Resources

Brochure | CS 26T Plus 60-1505-03 | CS 1226T Plus (cs_1226t_plus_revA.pdf)

Brochure | CS 26T Plus 60-1505-03 | CS 1226T Plus (CS-1226T-Plus_BR_A4_SP_RevA.pdf)

Manual | CS 26T Plus 60-1505-03 | CS 120P Setup Guide

Manual | CS 26T Plus 60-1505-03 | CS 26T Plus and CS 120P User Guide

Manual | CS 26T Plus 60-1505-03 | CS 26T Plus Setup Guide

Specifications | CS 26T Plus 60-1505-03 | SpeedMount® Ceiling Speaker System

Panel Drawing | CS 26T Plus 60-1505-03 | CS 1226T Plus
