Details

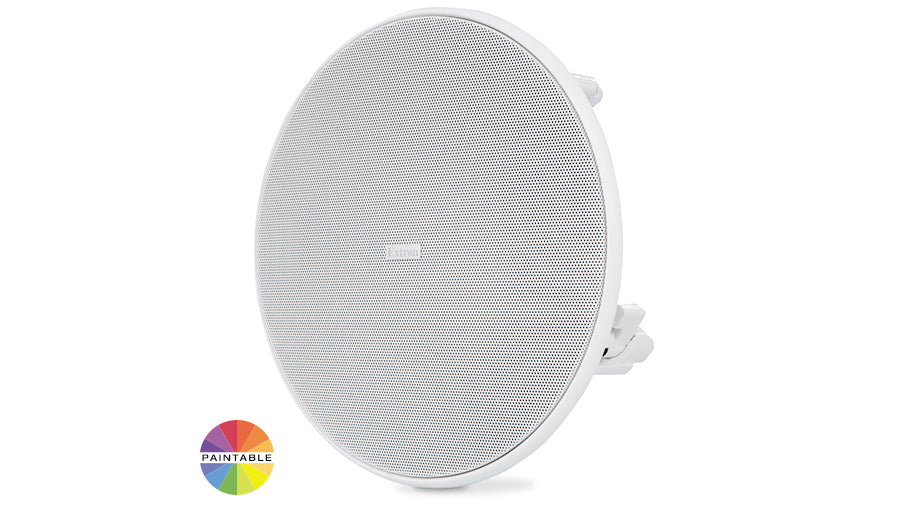

Extron CS 123T (part number 42-242-03) — complete full-range SpeedMount ceiling speaker system, pairing a CS 120P plenum enclosure with a CS 3T speaker cartridge.

CS 123T combines Extron's plenum enclosure with a single 3" full-range driver for paging and voice reinforcement where wide, even coverage matters more than bass extension. Because the enclosure and cartridge remain separate parts even when bought together, low-voltage and AV crews can rough in the enclosures on one visit and drop in the driver cartridges on another, without losing plenum compliance.

Key Capabilities

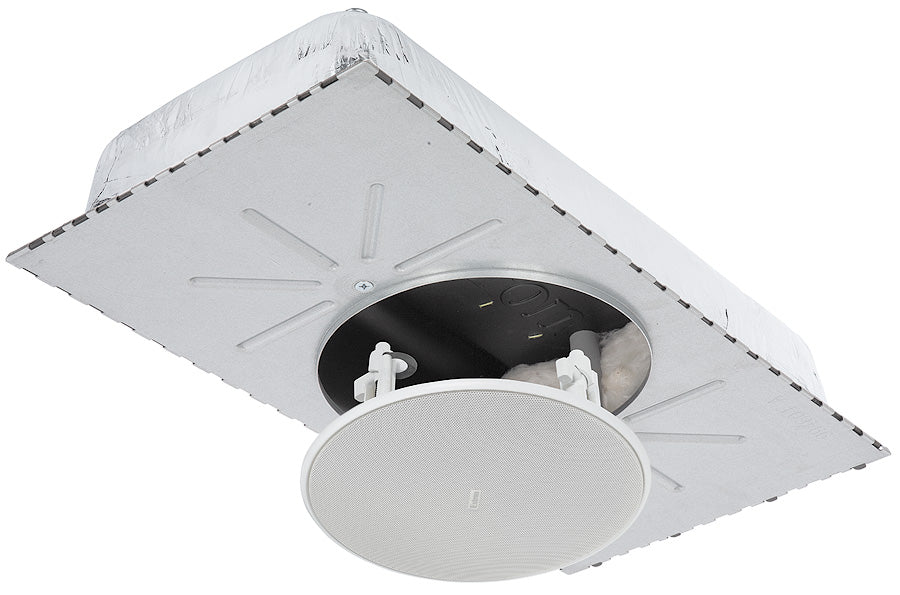

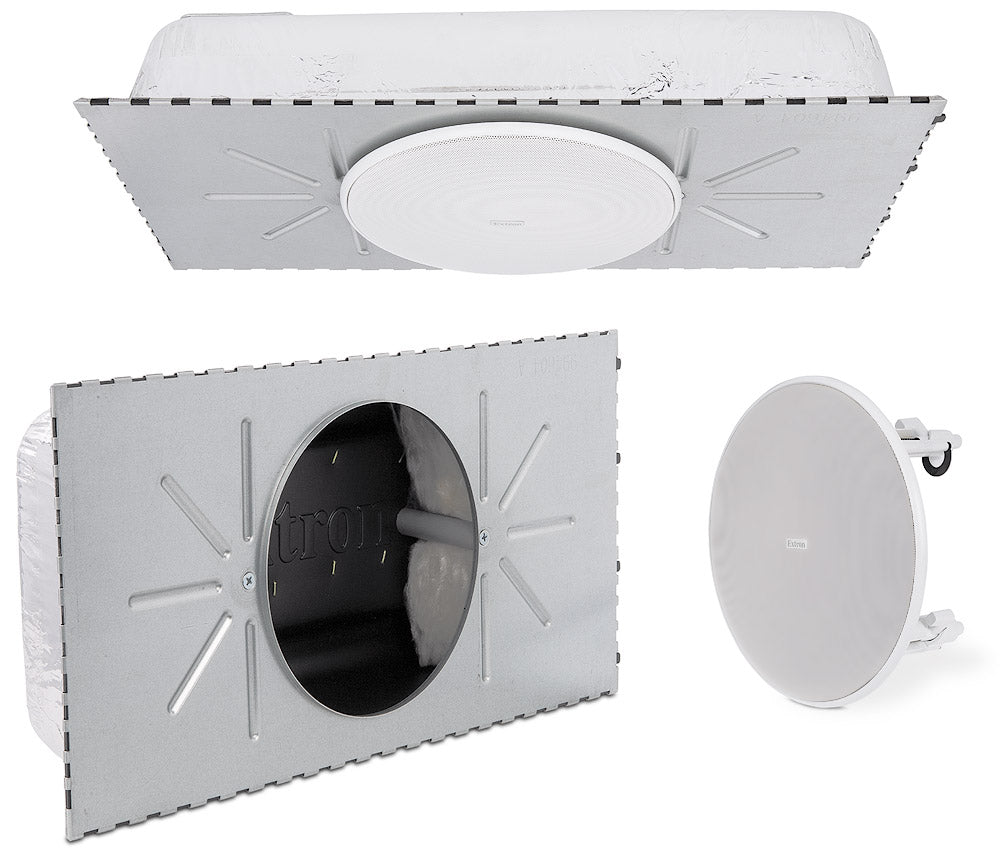

Complete SpeedMount system: CS 120P plenum enclosure plus CS 3T speaker cartridge
3" full-range paper cone driver with 165° conical coverage for wide paging dispersion
16 W continuous pink noise / 32 W continuous program power handling
Six-position rotary taps for 70 V or 100 V lines, or direct 8 ohm operation
Frequency range of 118 Hz to 20 kHz (-10 dB)
UL 2043 listed for plenum airspace use when the CS 3T cartridge is installed in the CS 120P

Where It Is Used

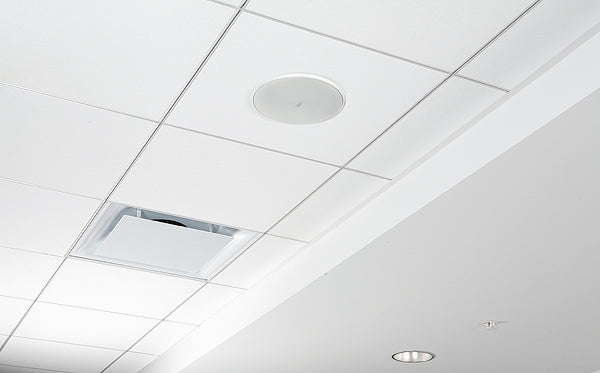

Used for paging and voice announcements in conference rooms, classrooms, and lecture halls where wide coverage and intelligibility matter more than full-range music reproduction.

Specifications at a Glance

Enclosure (CS 120P): 23.7" L x 11.7" W x 4.9" D, 6.0 lbs
Cartridge (CS 3T): 3.0" H x 10.3" diameter, 3.4 lbs each
Coverage: 165° conical
Power: 16 W pink noise / 32 W program

Also referenced as ExtronCS123T, Extron-CS-123T, part number 4224203.

Specifications

Part Number: 42-242-03

Manufacturer: Extron

Model: CS 123T

Condition: New

System: CS 120P plenum enclosure paired with CS 3T speaker cartridge

Speaker Type: 1-way full range in-ceiling speaker

Frequency Range: 118 Hz to 20 kHz, -10 dB, half space (per IEC 60268-5)

Power Capacity: 16 W (rms) continuous pink noise (per IEC 60268-5); 32 W (rms) continuous program

Nominal Sensitivity: 83 dB SPL, 1 W, 1 m, 8 ohms direct, half space (per IEC 60268-5)

Nominal Impedance: 8 ohms per speaker

Nominal Coverage Angle: 165° conical coverage (1 kHz to 4 kHz, weighted 2 kHz - 4 kHz)

Rotary Switch Taps: 70 V input: 16 W, 8 W, 4 W, 2 W, 1 W, 8 ohms direct. 100 V input: 16 W, 8 W, 4 W, 2 W, 8 ohms direct

Driver: (1) 3" (76.2 mm) paper cone

Overload Protection: Full range power limiter

Input/Output Connectors: (1) 5 mm captive screw connector, 4 pole with loop out

Enclosure (CS 120P) Dimensions: 23.7" L x 11.7" W x 4.9" D (60.1 cm L x 29.7 cm W x 12.4 cm D); weight 6.0 lbs (2.72 kg)

Cartridge (CS 3T) Dimensions: 3.0" H x 10.3" diameter (7.6 cm H x 26.2 cm diameter); weight 3.4 lbs (1.6 kg) each

Cutout Dimensions: Without fiberglass tile adapter: 9.07" (230.5 mm) diameter. With fiberglass tile adapter: 9.21" (234 mm) diameter

Enclosure Materials: Enclosure: aluminized fiberglass, plastic, MDF, steel. Cartridge: high-impact fire-resistant (UL94V-0) plastic, open back, infinite baffle

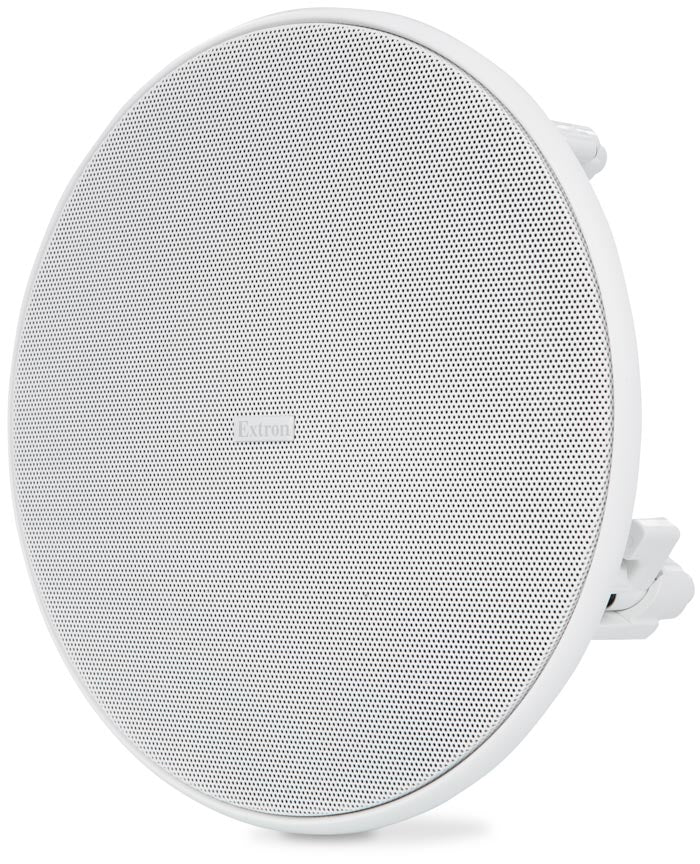

Grille Material: Steel

Package: 2 plenum enclosures and 2 speaker cartridges (1 pair each)

Mounting: Ceiling mountable with included hardware

Temperature/Humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing. Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Safety: CE, NFPA 70, NFPA 90A; UL listed for plenum air spaces when CS 3T is used with CS 120P (UL 2043 heat/smoke release); UL 1480 listed for commercial and professional audio systems

Environmental: RoHS, WEEE

Warranty: 5 years parts and labor

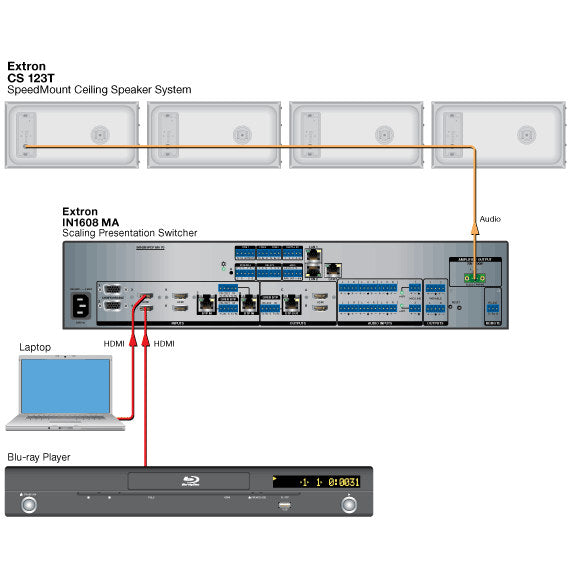

Diagram

Resources

Brochure | CS 123T 42-242-03 | CS 123T (cs_123t_a1.pdf)

Brochure | CS 123T 42-242-03 | CS 123T (CS-123T_BR_A4_SP_RevA1.pdf)

Manual | CS 123T 42-242-03 | CS 120P Setup Guide

Manual | CS 123T 42-242-03 | CS 3T and CS 120P User Guide

Specifications | CS 123T 42-242-03 | CS 123T SpeedMount® Ceiling Speaker System

Specifications | CS 123T 42-242-03 | CS 3T Speakers

Panel Drawing | CS 123T 42-242-03 | CS 123T
