Extron CS 1226T Plus SpeedMount Speaker System
- • Complete SpeedMount system: CS 120P enclosure plus CS 26T Plus cartridge
- • 6.5 inch woofer and 0.75 inch PEI dome tweeter with 112 degree coverage
- • 60 W continuous pink noise, 120 W continuous program power handling
- • Six-position rotary taps for 70V or 100V lines, or direct 8 ohm operation
- • Frequency range of 42 Hz to 20 kHz with a 2.5 kHz crossover
- • UL 2043 plenum listed when cartridge is installed in the CS 120P
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

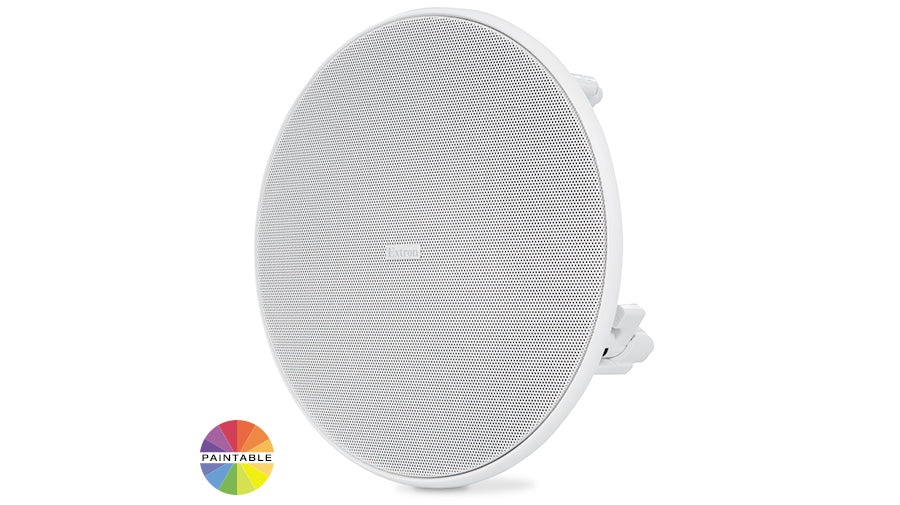

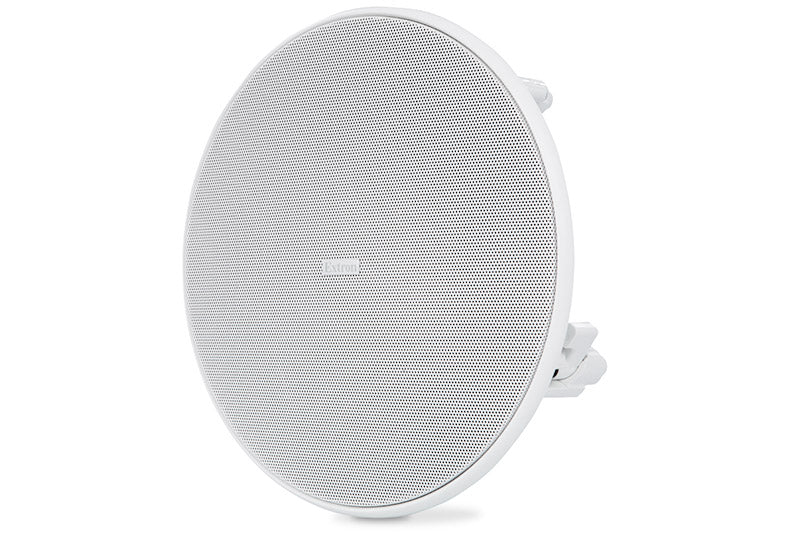

Extron CS 1226T Plus (part number 42-244-03) — complete two-way SpeedMount ceiling speaker system, pairing a CS 120P plenum enclosure with a CS 26T Plus speaker cartridge.

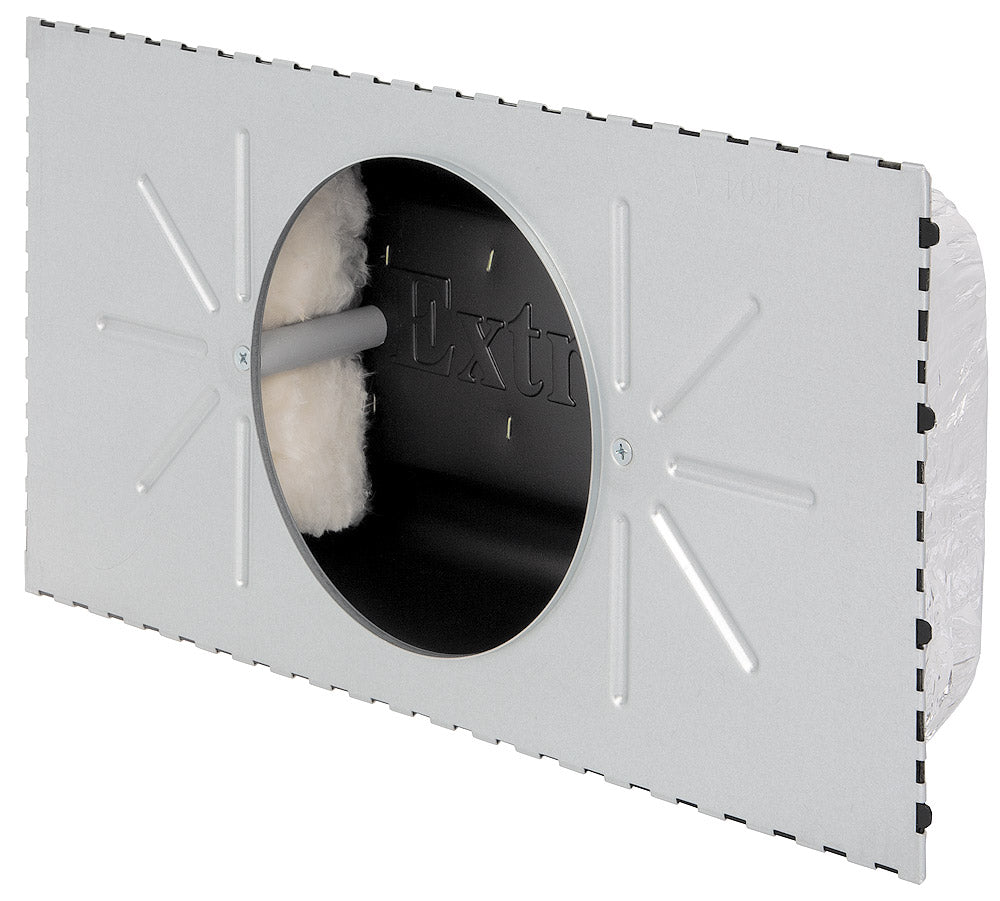

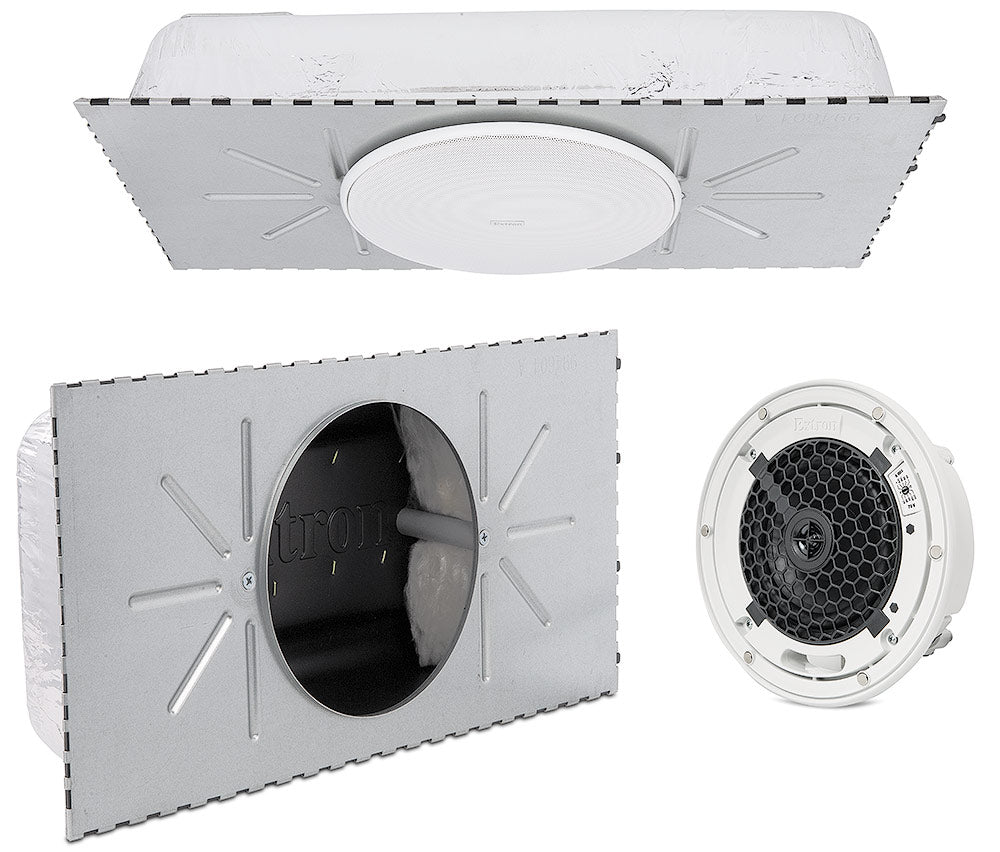

CS 1226T Plus bundles the two halves of Extron's SpeedMount system: a plenum-rated enclosure sized for 2 ft x 2 ft or 600 mm grids, and a coaxial cartridge carrying a 6.5" woofer and 0.75" dome tweeter on an open-back plastic baffle. Because the enclosure and cartridge are still distinct, physically separate parts, low-voltage and AV crews can rough in the enclosure and drop in the cartridge later on a separate schedule, without losing plenum compliance.
Key Capabilities
- Complete SpeedMount system: CS 120P plenum enclosure plus CS 26T Plus speaker cartridge

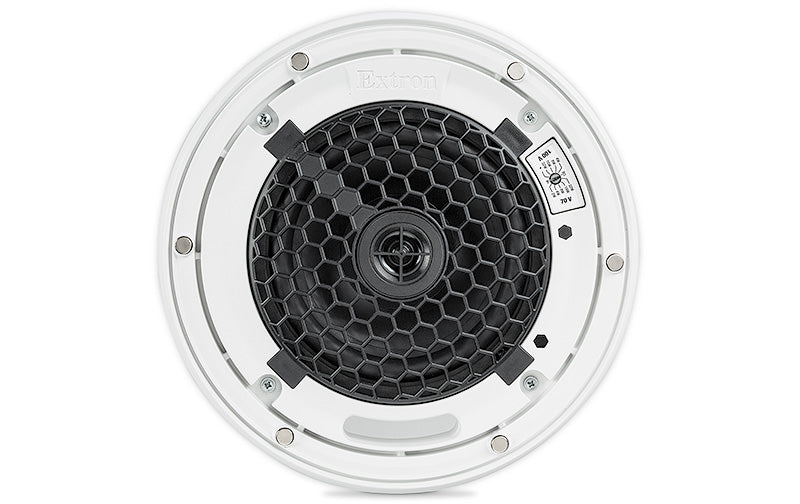

- 6.5" woofer and 0.75" PEI dome tweeter with 112° conical coverage
- 60 W continuous pink noise / 120 W continuous program power handling
- Six-position rotary taps for 70 V or 100 V lines, or direct 8 ohm operation
- Frequency range of 42 Hz to 20 kHz (-10 dB) with a 2.5 kHz crossover
- UL 2043 listed for plenum airspace use when the cartridge is installed in the CS 120P
Where It Is Used

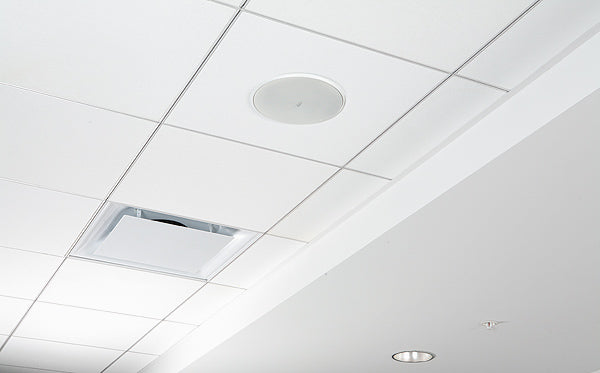

Used in conference rooms, classrooms, lecture halls, and auditoriums where a project benefits from installing the plenum enclosure and the speaker cartridge as separate phases of work.
Specifications at a Glance

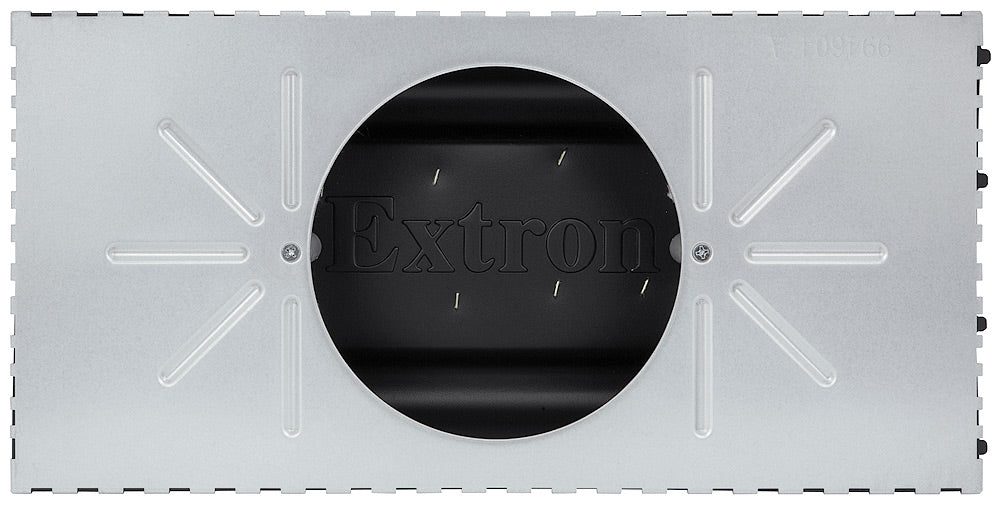

- Enclosure (CS 120P): 23.7" L x 11.7" W x 4.9" D, 6.0 lbs
- Cartridge (CS 26T Plus): 3.97" H x 10.3" diameter, 5.7 lbs
- Coverage: 112° conical
- Power: 60 W pink noise / 120 W program
Also referenced as ExtronCS1226TPlus, Extron-CS-1226T-Plus, part number 4224403.
