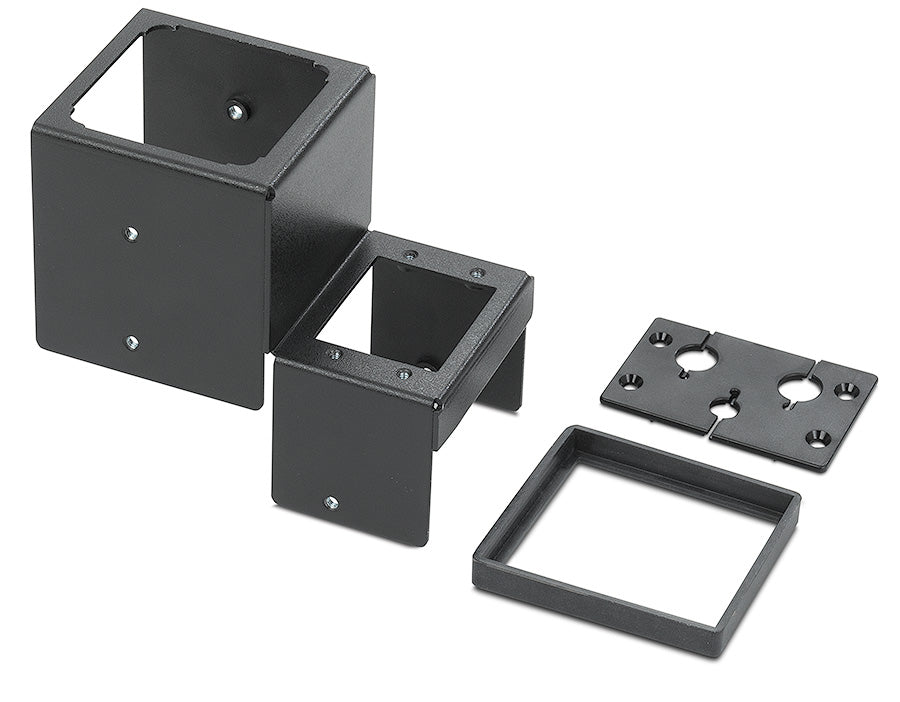

Extron CCM 155 (part number 70-1164-01) — a black mounting bracket that drops Flex55 and EU modules into most Cable Cubby cable access enclosures.

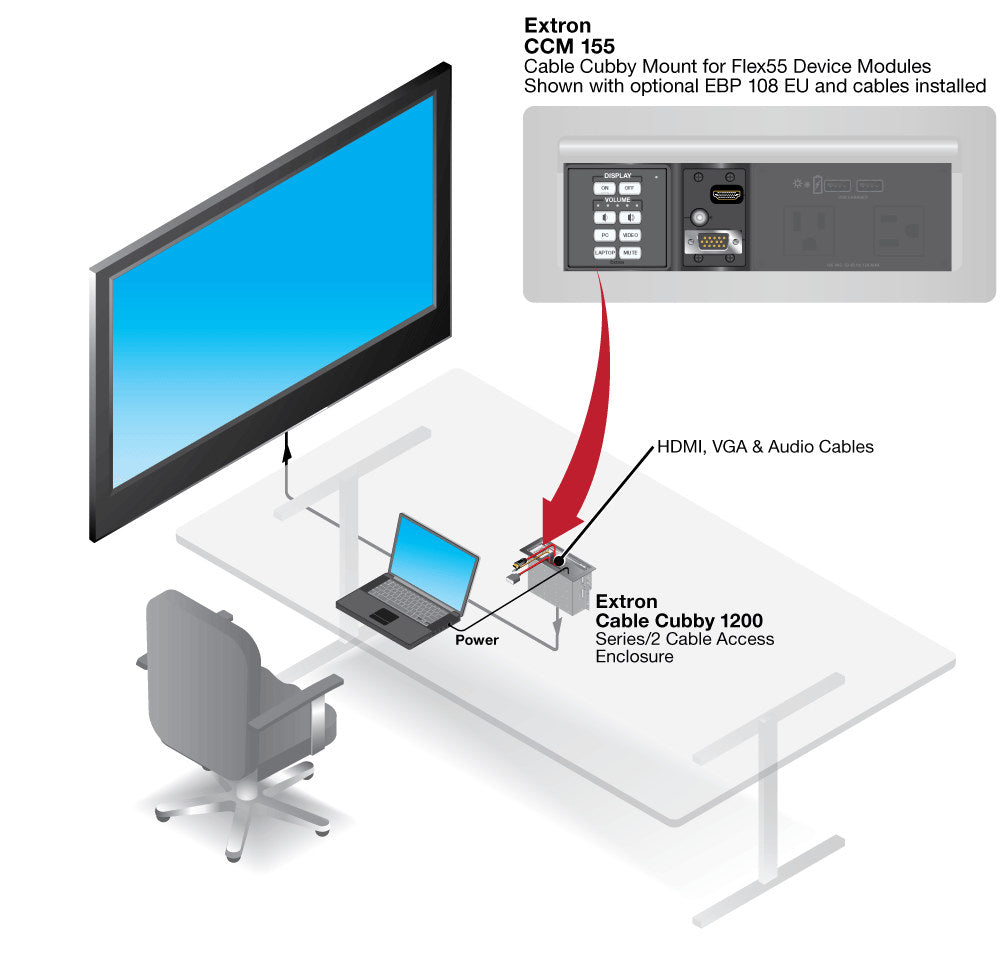

A table box that only hides cables is a wasted opportunity. This bracket turns one into a control point: a Flex55 or EU module snaps into the frame with the supplied silicone spacer, and the bracket then slides up through the bottom of the Cable Cubby and secures with three screws and star washers. Alongside the module space sits a two-space MAAP opening, so an installer can add connectivity modules or a pass-through bracket holding up to three AV cables. A separate three split-ring plate handles routing with two 3/8 in holes and one 1/4 in hole.

Key Capabilities

• Integrates Extron Flex55 connectivity and control modules into Cable Cubby enclosures.
• Accepts two single-space MAAP Mini AV Connectivity Modules, sold separately.
• Alternatively takes a cable pass-through bracket holding up to three AV cables.

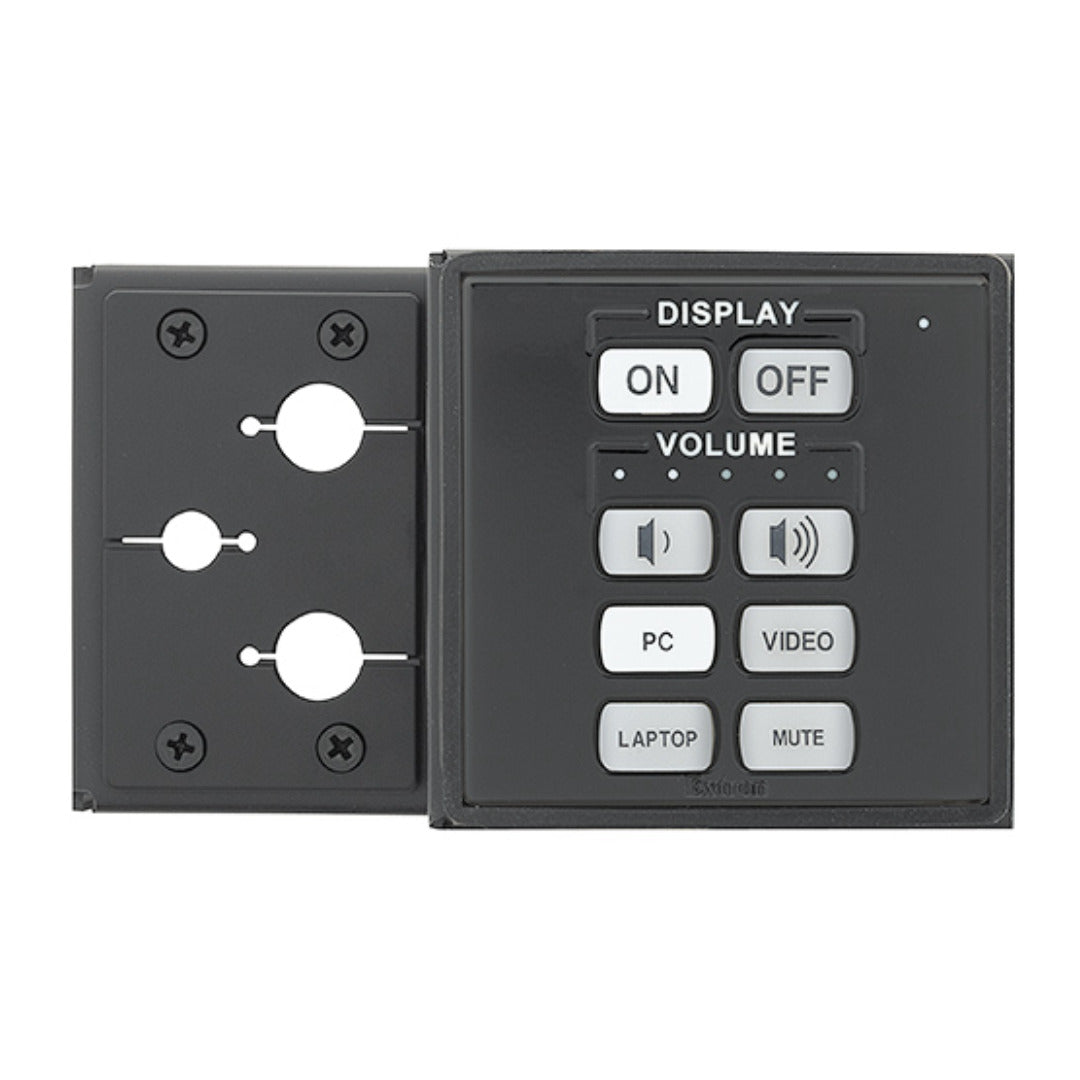

• Three split-ring hole pass-through plate: two 3/8 in holes and one 1/4 in hole.
• Fits Cable Cubby 500, 650, 700, 1202, 1252 and 1402 enclosures.
• Also installable in an EBP 1200C or a TLP Pro 725C.
• Durable black finish that disappears inside the enclosure.

Where It Is Used

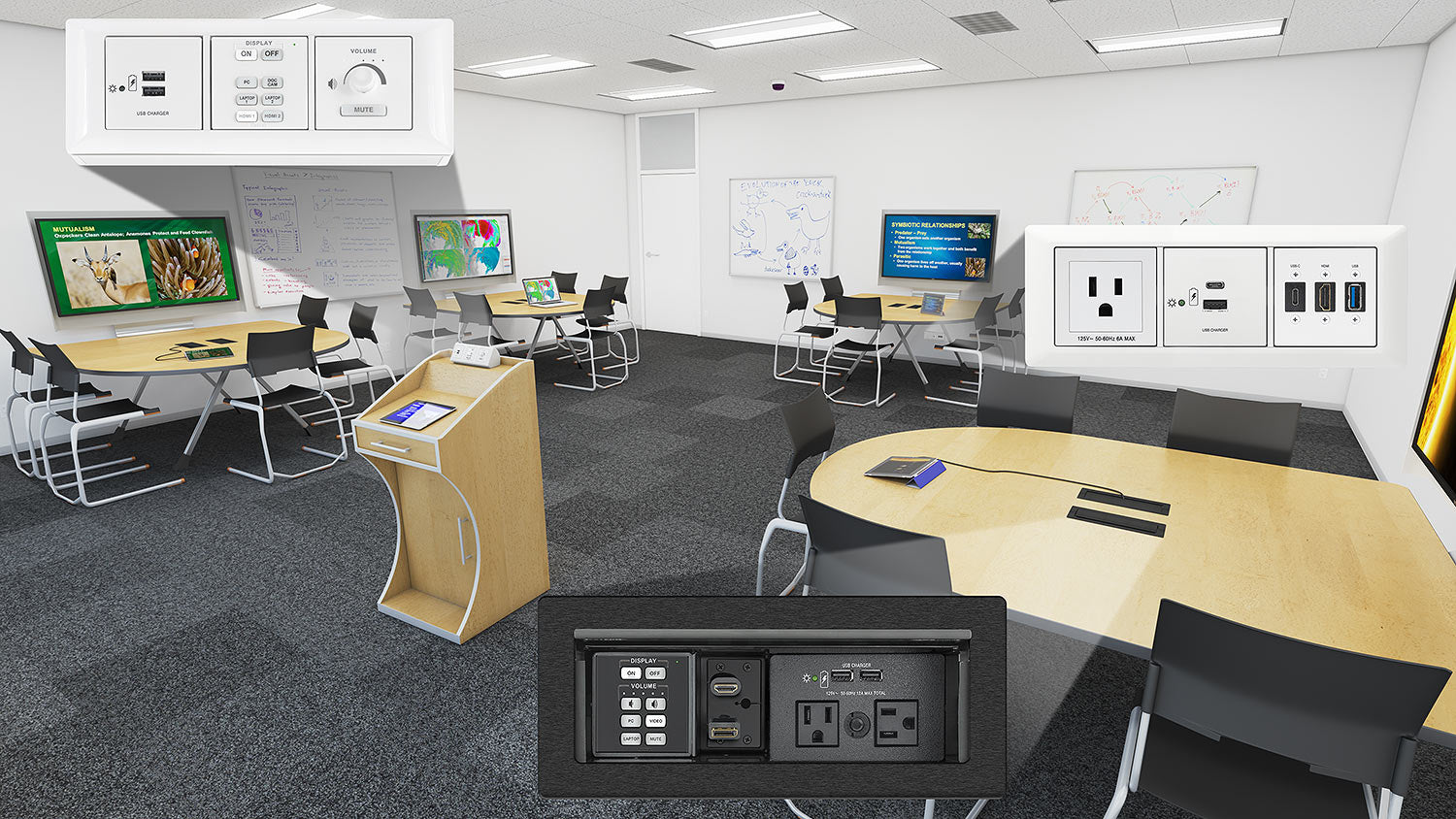

Specified for boardroom and classroom tables, lecterns and conference furniture where a Cable Cubby already provides cable access and the room now needs a volume control, button panel or connectivity module in the same opening.

Specifications at a Glance

• Version: for Flex55 and EU modules in CC 500/650/700/1202/1252/1402
• Module opening: two-space MAAP Mini AV Connectivity Module
• Pass-through plate: three split-ring holes (two 3/8 in, one 1/4 in)
• Finish: durable black
• Installation: inserted through the bottom of the enclosure, secured with three bracket screws and star washers

Also referenced as Extron CCM155, CCM-155, part number 70116401.
