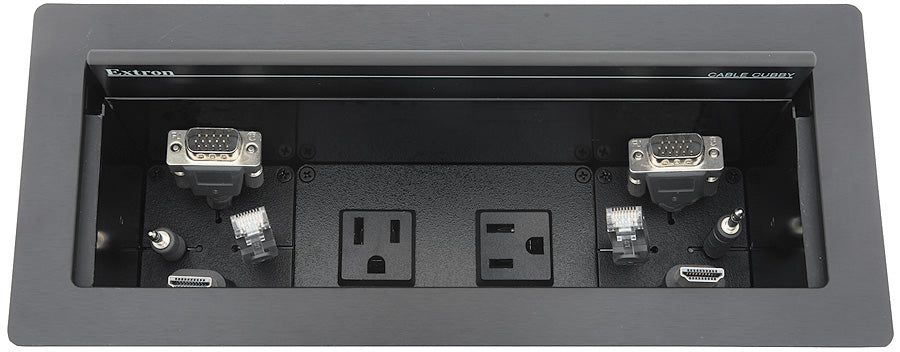

Extron Cable Cubby Cable Bracket Kit – Quad (part number 70-1040-01) — a supplemental cable pass-through bracket kit that puts four AV cables at the outer edges of a Cable Cubby enclosure.

Every Cable Cubby ships with its own set of Cable Pass-Through, AAP and Retractor brackets. Connectivity Bracket Kits exist for the jobs those standard brackets cannot cover — typically when the power module sits in the centre of the enclosure and the connectivity has to move outboard of it. This Quad kit is the cable-only member of that family: it mounts on either side of a centre-fitted power module and presents four cable positions, with a grommet plate that pins the cables and hole plugs that close off any position left unused.

Key Capabilities

• Positions four AV cables at the outer edges of the enclosure
• Supplements, rather than replaces, the brackets included with the enclosure
• Allows a centre-mounted power module with connectivity either side of it
• Grommet plate secures with four module screws; hole plugs fill unused openings
• Brackets fix into the enclosure with the supplied mounting screws and star washers
• Part of Extron's Cable Cubby Series Connectivity Bracket Kit range

Where It Is Used

Conference tables and lecterns being reworked rather than rebuilt: an existing Cable Cubby that must now carry more show-me cables, a training room adding a second laptop position, or a courtroom bench where the power module has to sit centrally and the cabling has to move to the sides.

Specifications at a Glance

• Kit type: Cable Bracket Kit – Quad (cable pass-through)
• Cable capacity: four AV cables
• Mounting position: outer edges of the Cable Cubby enclosure
• Manufacturer part number: 70-1040-01 (legacy Extron order code)

Also referenced as Extron CableCubbyCableBracketKitQuad, Cable-Cubby-Cable-Bracket-Kit-Quad, part number 70104001.
