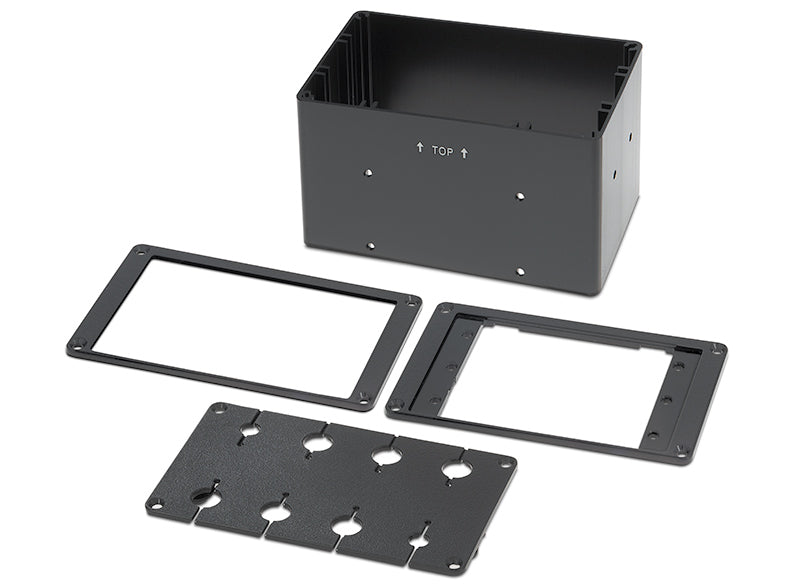

Extron Cable Cubby Cable/AAP Bracket Kit (part number 70-1039-01) — the high-capacity member of Extron's Cable Cubby connectivity bracket range, taking either AV cables or AAP AV Connectivity Modules.

Where the Quad kit is cable-only and the Retractor kits are retraction-only, this one is deliberately dual-purpose. A single bracket accepts up to eight AV cables, or three AAP modules if the room needs terminated connectors rather than tails. That flexibility is why it is the kit most often specified when the final connector schedule is still moving: the bracket is bought once and populated later, whichever way the design lands.

Key Capabilities

• Holds up to eight AV cables in cable pass-through configuration
• Alternatively carries three AAP AV Connectivity Modules
• Supplements the brackets supplied as standard with the enclosure
• Belongs to the Cable Cubby Series Connectivity Bracket Kit family
• Family is compatible with Cable Cubby 500 through Cable Cubby 1402 and select TouchLink enclosures
• Secures with the provided mounting screws and star washers

Where It Is Used

Boardrooms and lecture theatres where a single Cable Cubby has to serve several source positions, medical and imaging review rooms with mixed signal types, and control desks where the connector list changes between design and commissioning.

Specifications at a Glance

• Kit type: Cable/AAP Bracket Kit
• Capacity: eight AV cables, or three AAP modules
• Family compatibility: Cable Cubby 500 through Cable Cubby 1402, select TouchLink enclosures
• Manufacturer part number: 70-1039-01 (legacy Extron order code)

Also referenced as Extron CableCubbyCableAAPBracketKit, Cable-Cubby-Cable-AAP-Bracket-Kit, part number 70103901.
