Extron Cable Cubby 700 (part number 60-1405-02) — a furniture-mountable cable access enclosure for AV connectivity, remote control and power, sized between the compact 500 and the long 1202.

Where the 500 runs out of room, the 700 is the next step: the same clamp-and-cam installation and the same modular internals, but enough width for six Retractor modules, eight AV cables, or four single-space AAP AV Connectivity Modules alongside a power module. The Retractor Trim Kit, Cable Pass-Through bracket and AAP bracket are all supplied, so the enclosure can be configured for retraction, loose cables or terminated plates without ordering extra hardware.

Key Capabilities

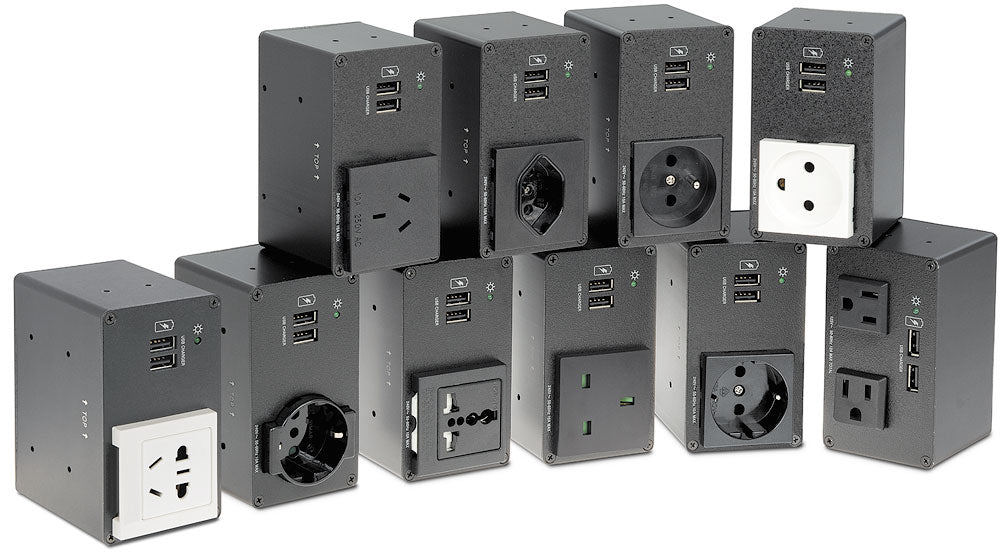

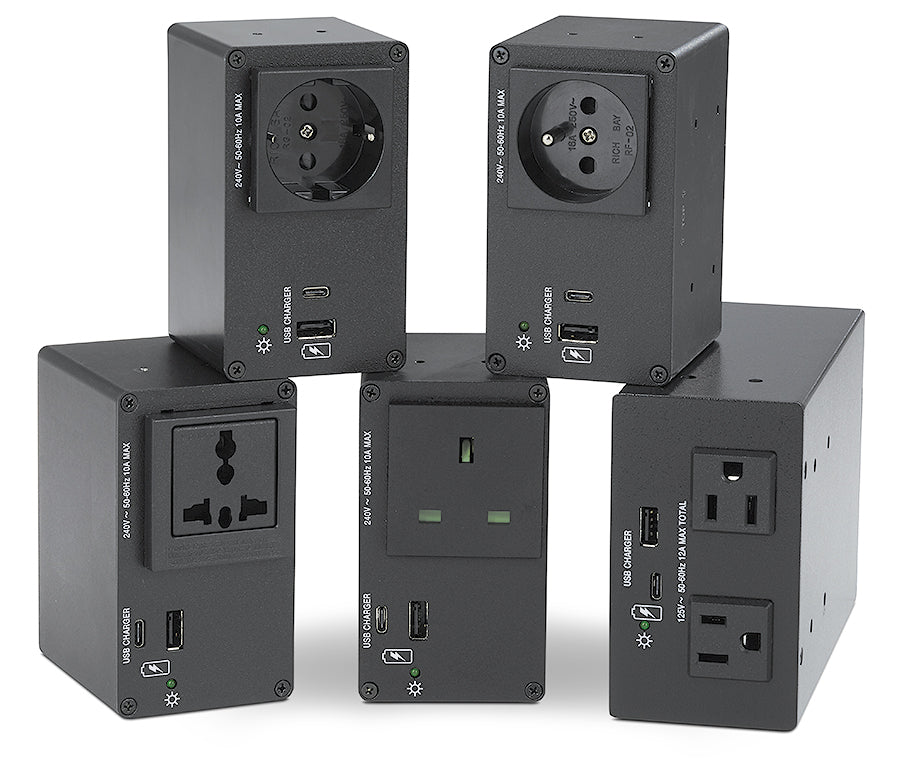

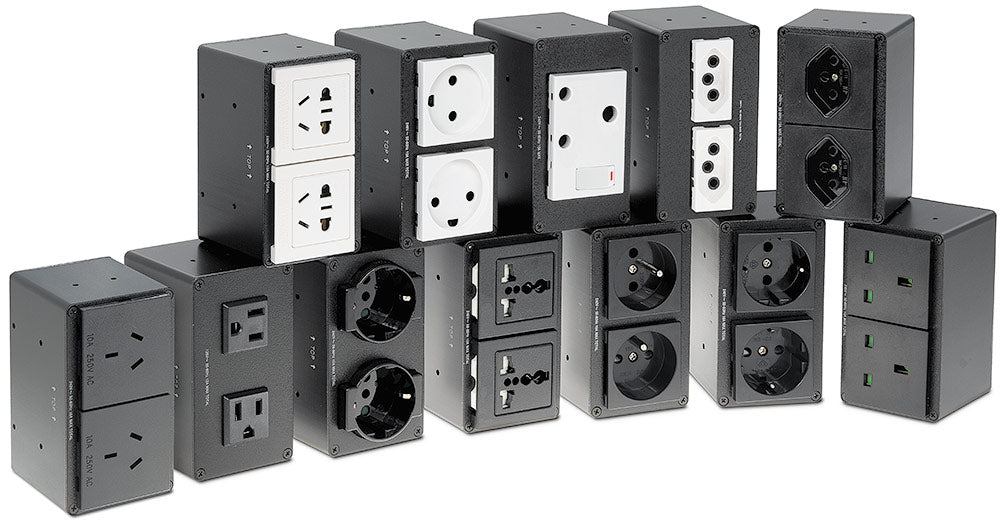

• Takes one AC or AC+USB series power module.

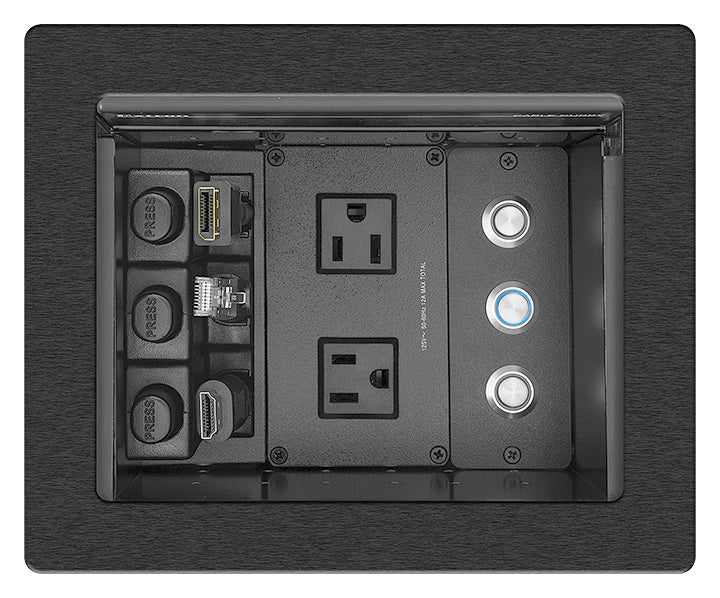

• Capacity for six Retractor modules, eight AV cables, or four AAP modules.

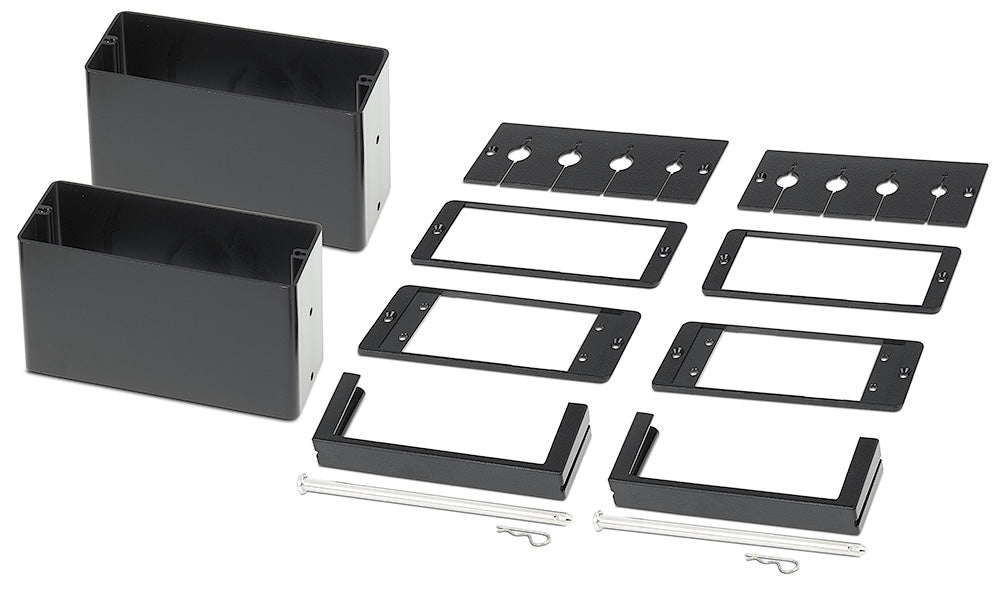

• Retractor Trim Kit, Cable Pass-Through bracket and AAP bracket included.
• Retractor Trim Kit holds three Retractor or Retractor XL retraction modules.
• Patented modular design for fast assembly and top-side service.
• Metal enclosure weighing 2.5 lbs (1.1 kg) before a power module is fitted.

Where It Is Used

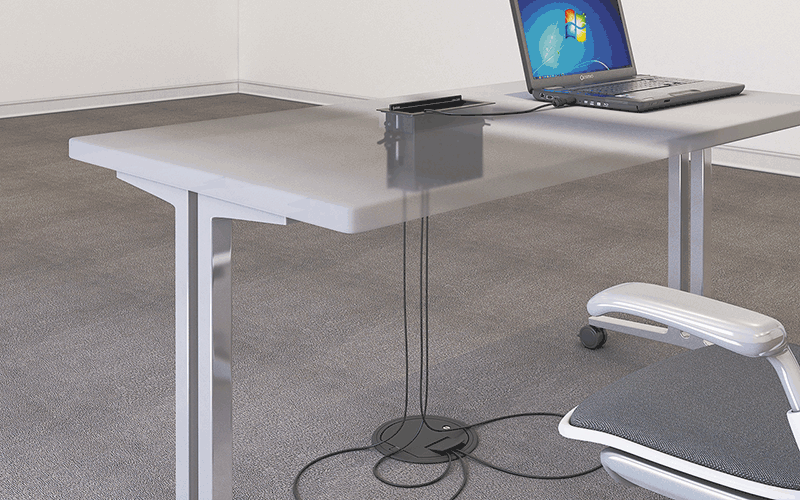

Conference and boardroom tables that host several source types, training rooms with multiple laptop positions, and lecterns where retraction, fixed cables and terminated plates all have to share one opening in the surface.

Specifications at a Glance

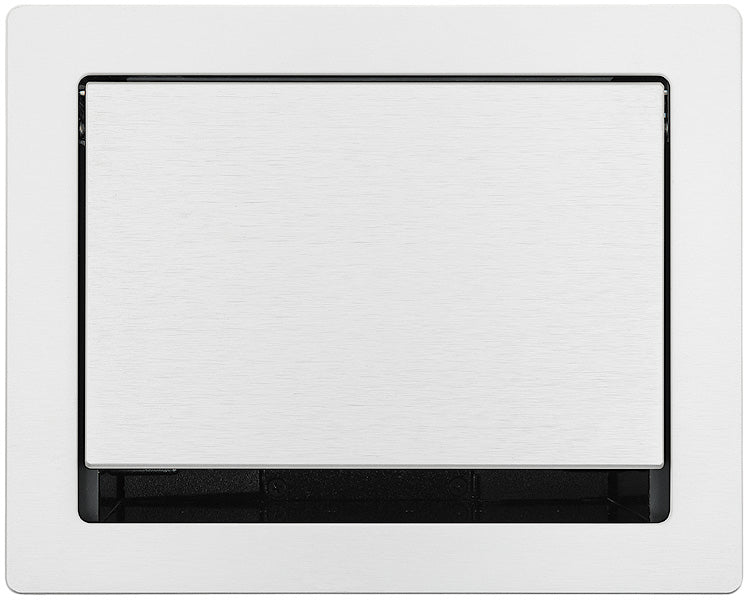

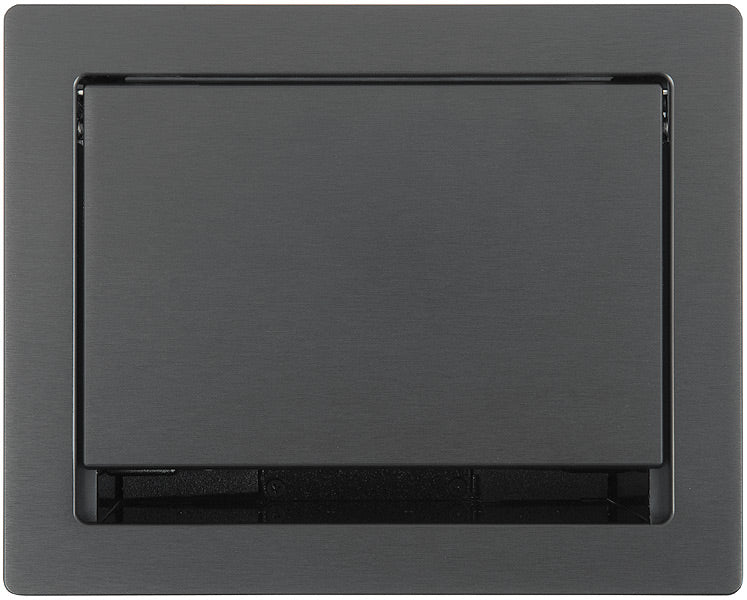

• Top plate (outer rim): 7.79 in W x 6.38 in D (198 mm x 162 mm)
• Surface cutout: 7.13 in W x 5.75 in D (181 mm x 146 mm)
• Table thickness range: 0.50 in to 2.50 in (13 mm to 63 mm)
• Enclosure weight: 2.5 lbs (1.1 kg), enclosure only
• Regulatory: CE, RoHS, WEEE; warranty 3 years parts and labor

The Cable Cubby 500 CCB & Cable Cubby 700 Routing Template is part 70-1049-80. Also referenced as Extron CableCubby700, Cable-Cubby-700, part number 60140502.
