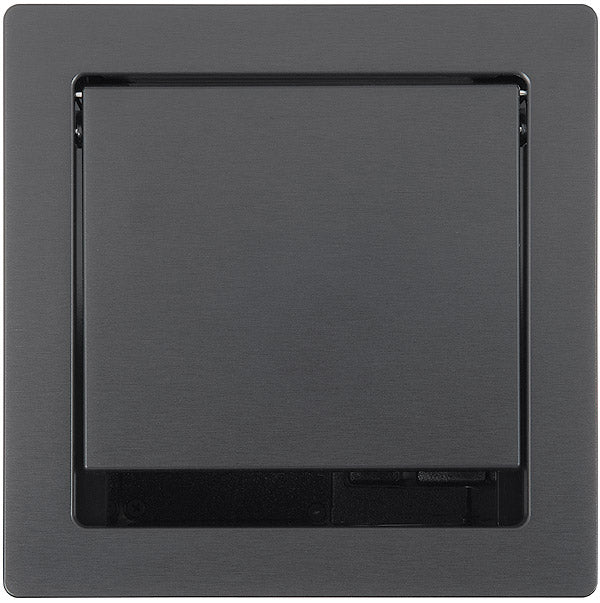

Extron Cable Cubby 500 CCB (part number 70-1125-02) — the control-button version of the Cable Cubby 500 enclosure, adding three contact closure switches at the table surface.

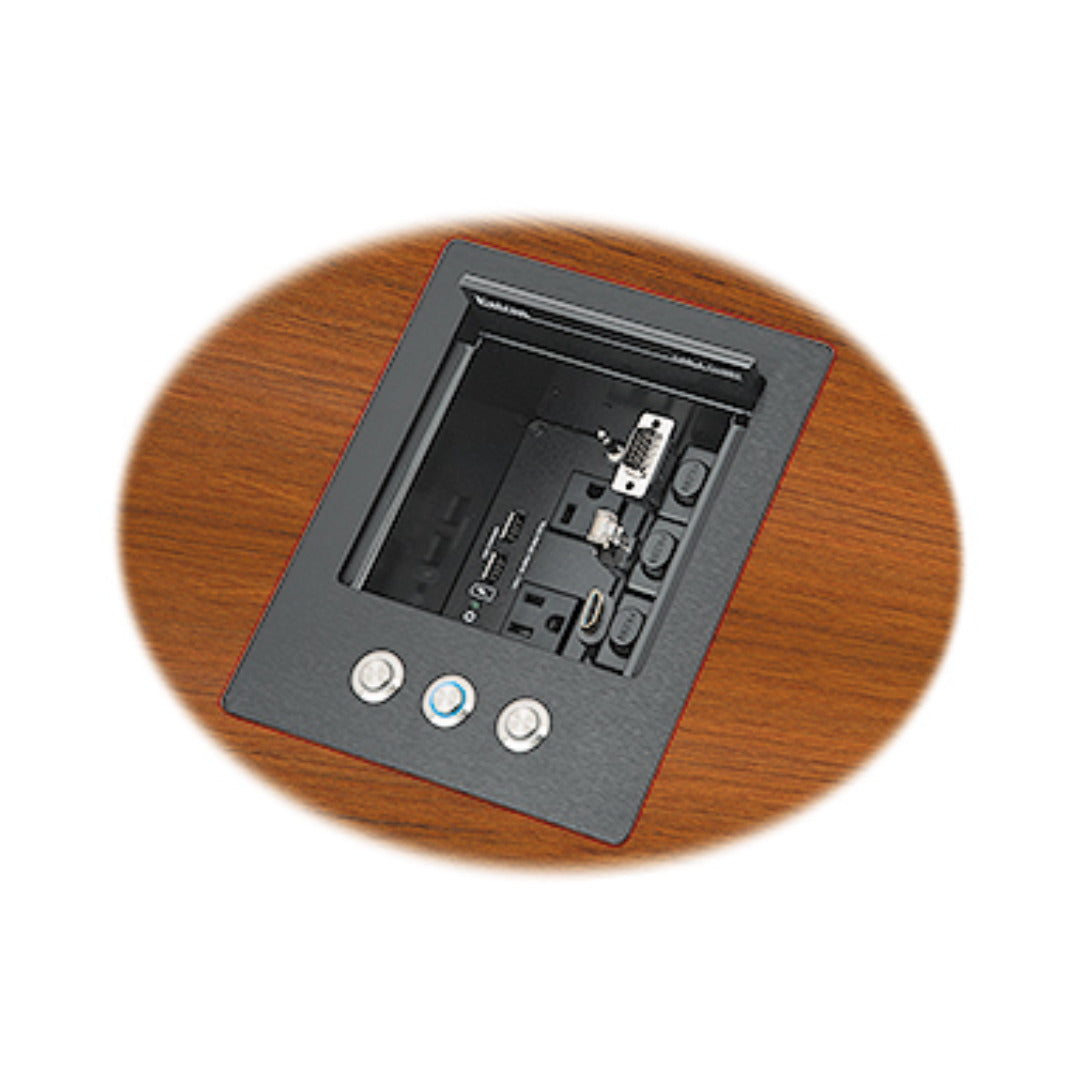

Most rooms end up needing one simple thing at the table: a way to pick a source without a touch panel. The 500 CCB builds that into the enclosure. Three momentary switches sit in the lid area, each wired out on its own captive screw connector, so each button can select an input on a connected switcher that has contact closure ports. Blue LEDs show which selection is live. Because the buttons occupy space, the CCB body is longer front to back than a standard 500, and its surface cutout is correspondingly deeper.

Key Capabilities

• Three momentary single pole, double throw contact closure switches.
• Each switch can select an input on a switcher with contact closure ports.
• Blue LED indicators running from a 5 VDC input.
• Three 5-pole 3.5 mm captive screw connectors on 4 in pigtails.
• Contacts rated 1 A at 24 VDC or 125 VAC.

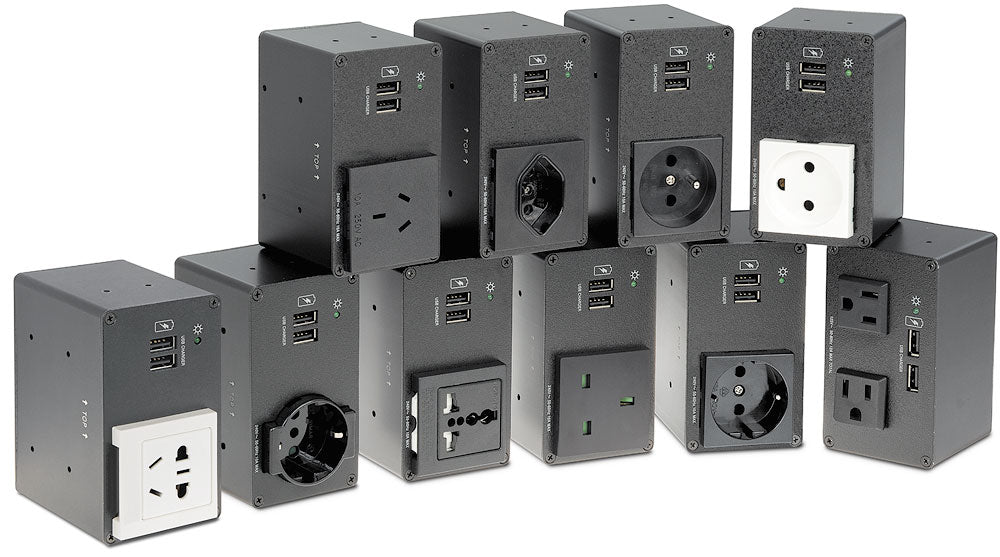

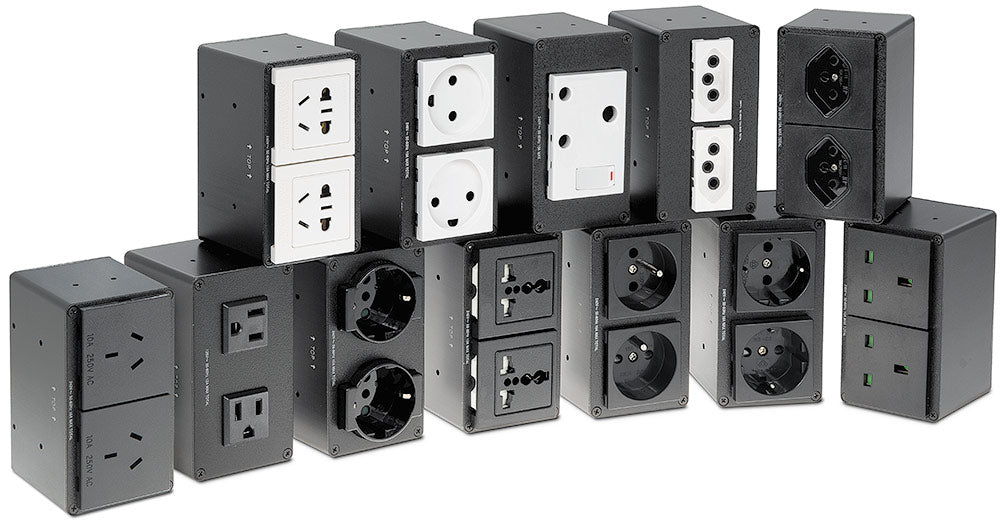

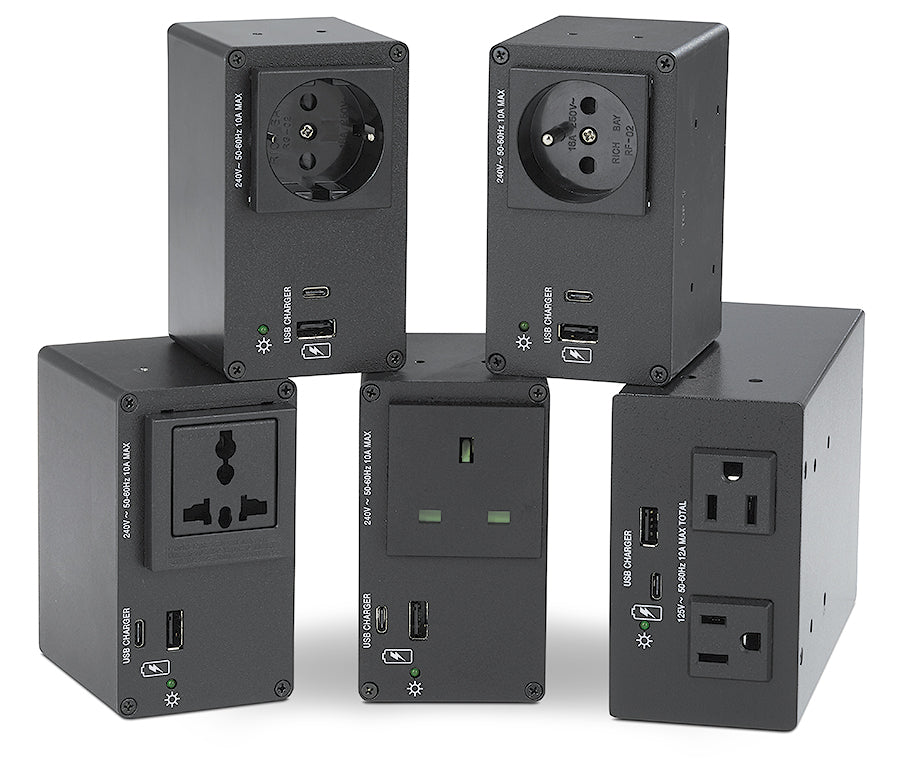

• Accepts an AC or AC+USB power module rated 125 VAC, 12 A max total in the US.

Where It Is Used

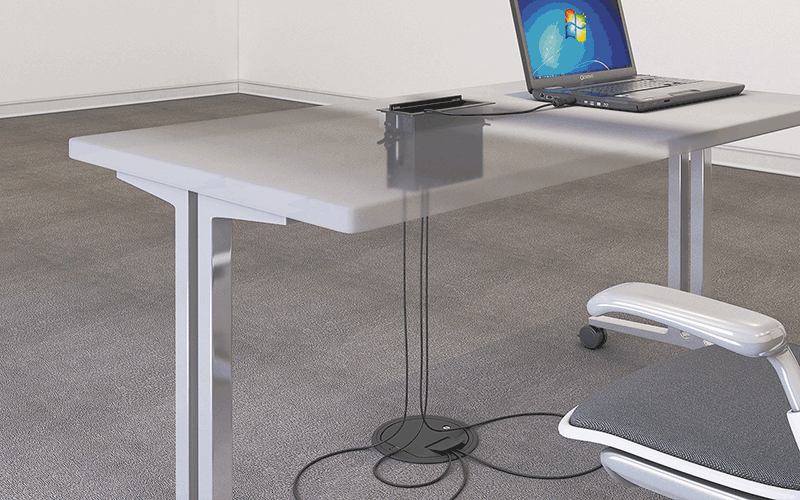

Meeting rooms and classrooms that need one-touch source selection at the table, huddle spaces without a control panel, and training rooms where a presenter should be able to switch between a resident PC and a laptop without leaving their seat.

Specifications at a Glance

• Top plate (outer rim): 6.38 in W x 7.79 in D (162 mm x 198 mm)
• Surface cutout: 5.75 in W x 7.13 in D (146 mm x 181 mm)

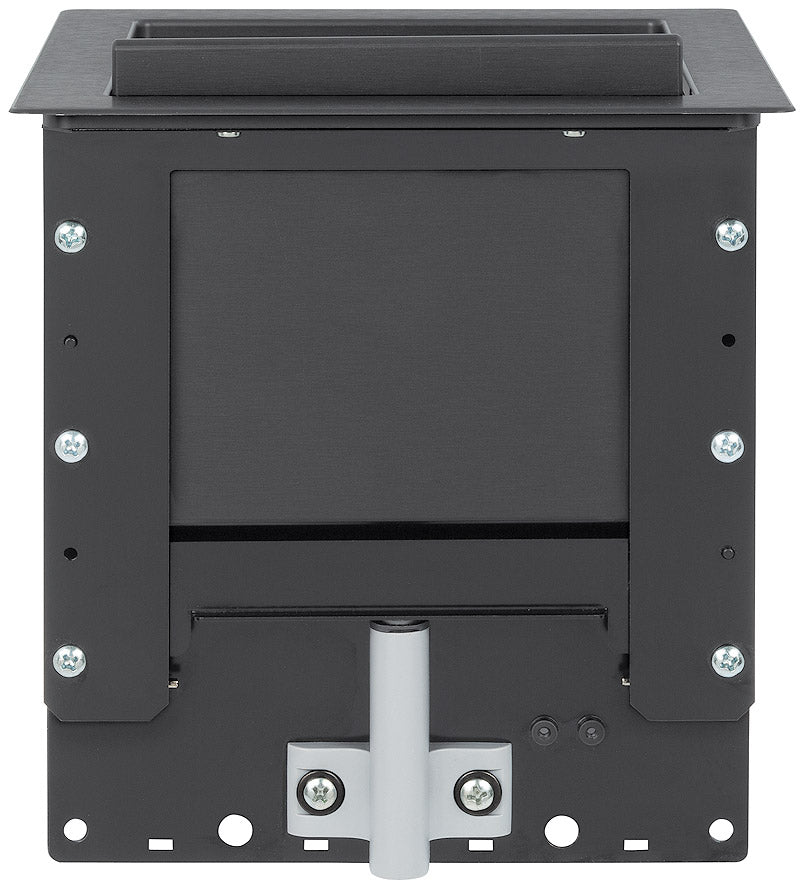

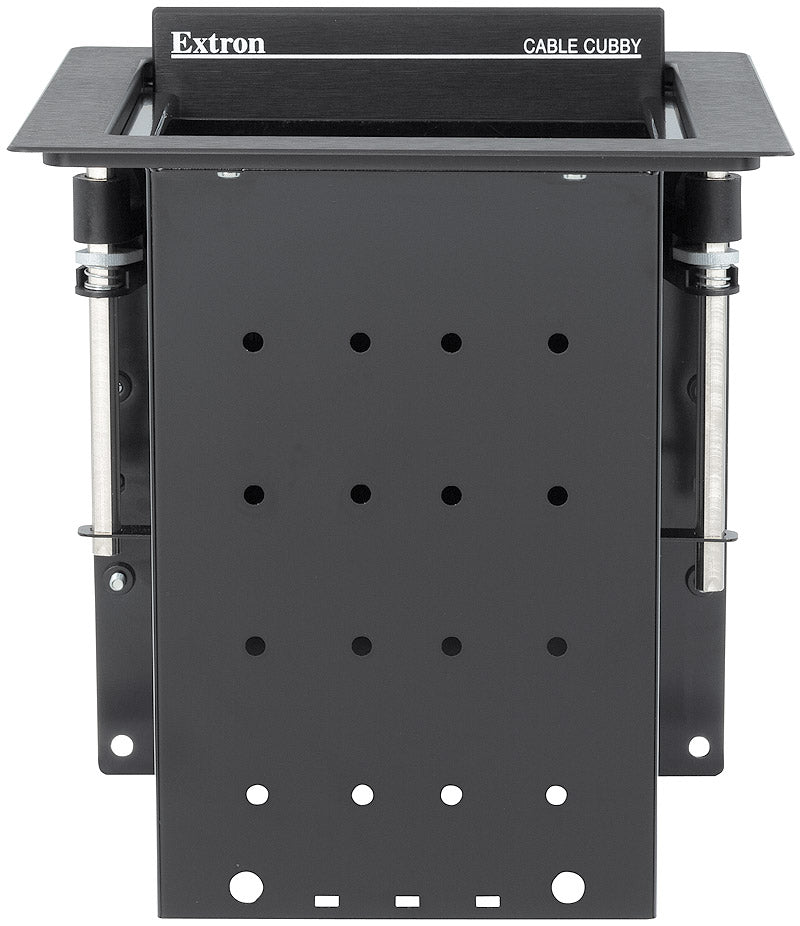

• Enclosure depth: 6.46 in H (164 mm)
• Product weight: 2.5 lbs (1.1 kg)
• Regulatory: CE, RoHS, WEEE; UL and c-UL in the US configuration
