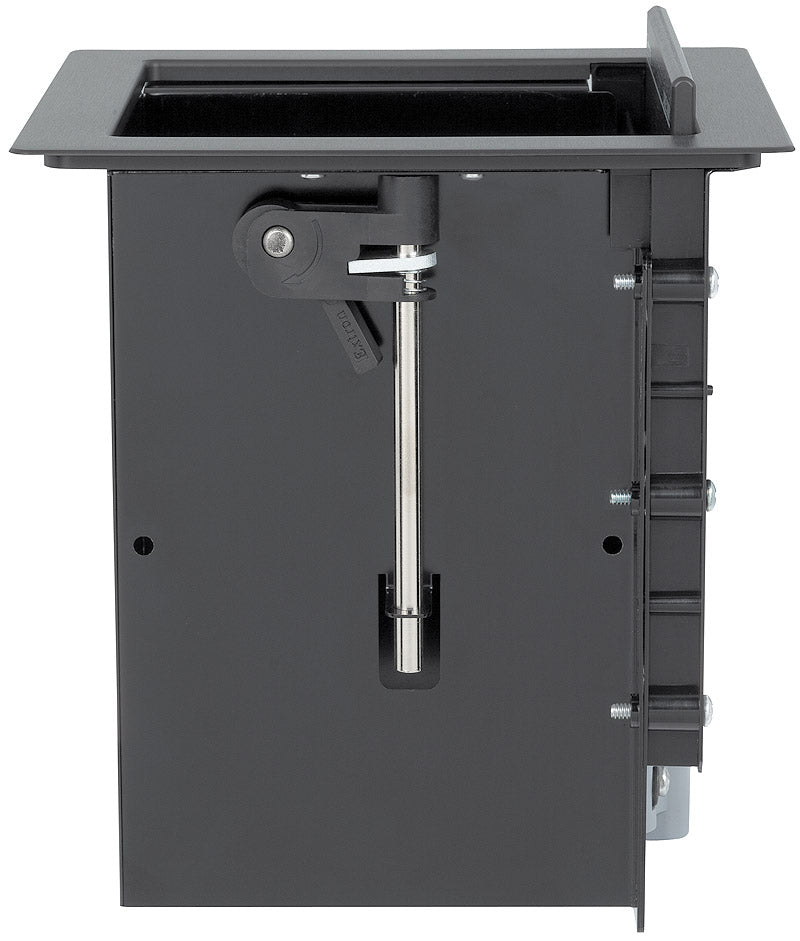

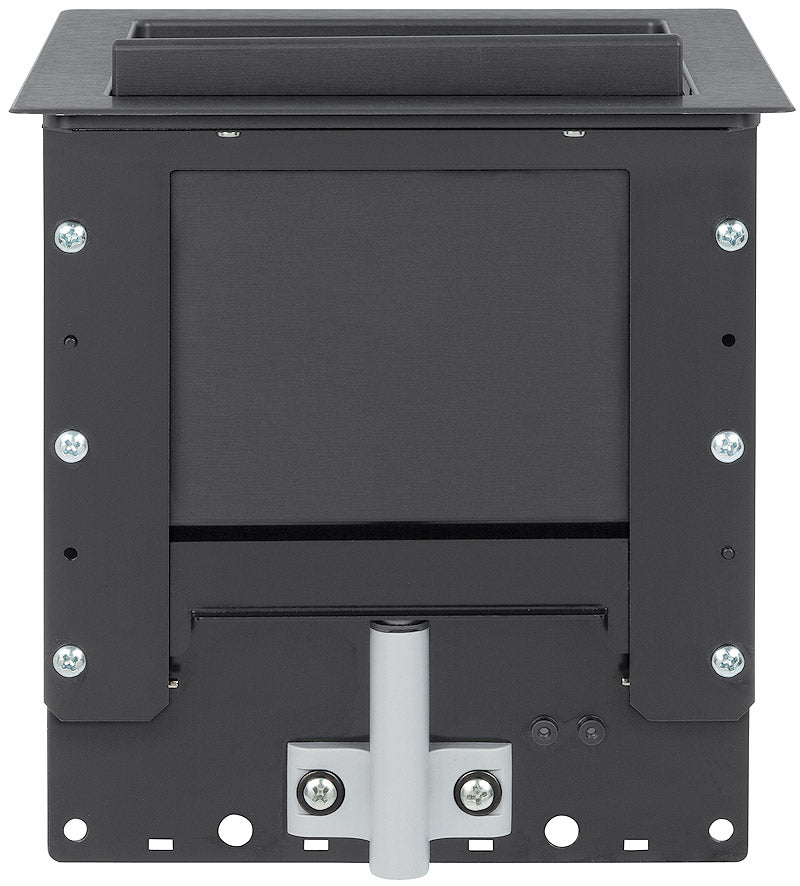

Extron Cable Cubby 500 (part number 60-1404-02) — a compact, modular furniture-mountable enclosure providing AV, data and power connectivity at the working surface.

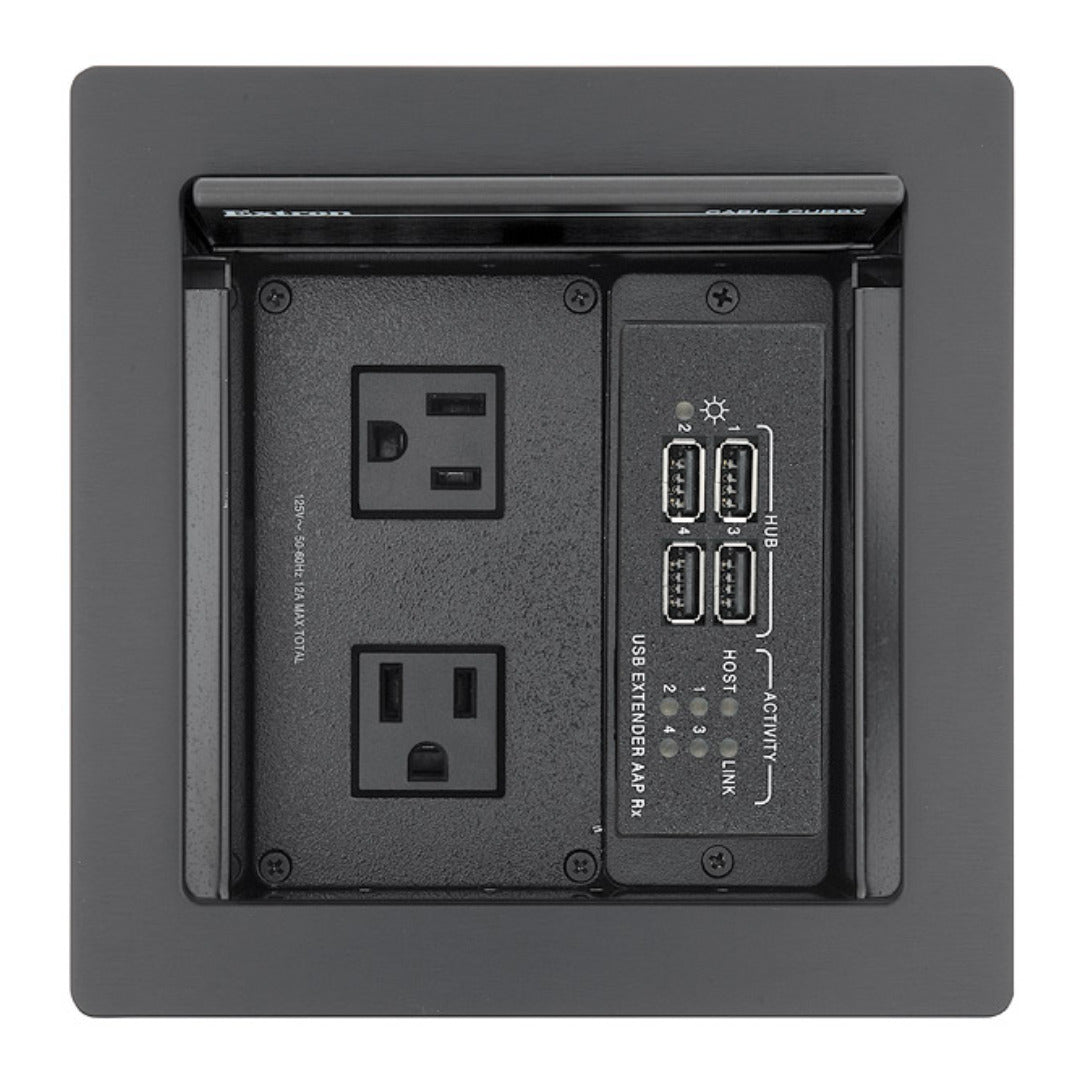

The 500 exists for rooms where the connection point has to be within arm's reach but the table cannot spare a long opening. Its square body accepts one AC or AC+USB power module alongside three Retractor cable retraction modules, four AV cables, or two single-space AAP AV Connectivity Modules, with the brackets for all three options included. Installation is deliberately simple: drop the enclosure into the opening, slide the clamp up against the underside of the surface, and rotate the cam to lock it.

Key Capabilities

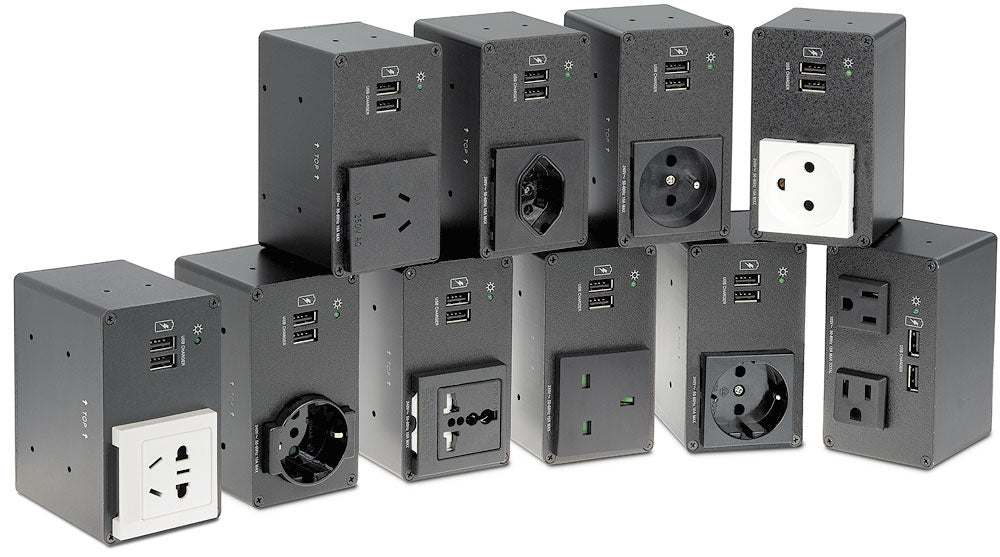

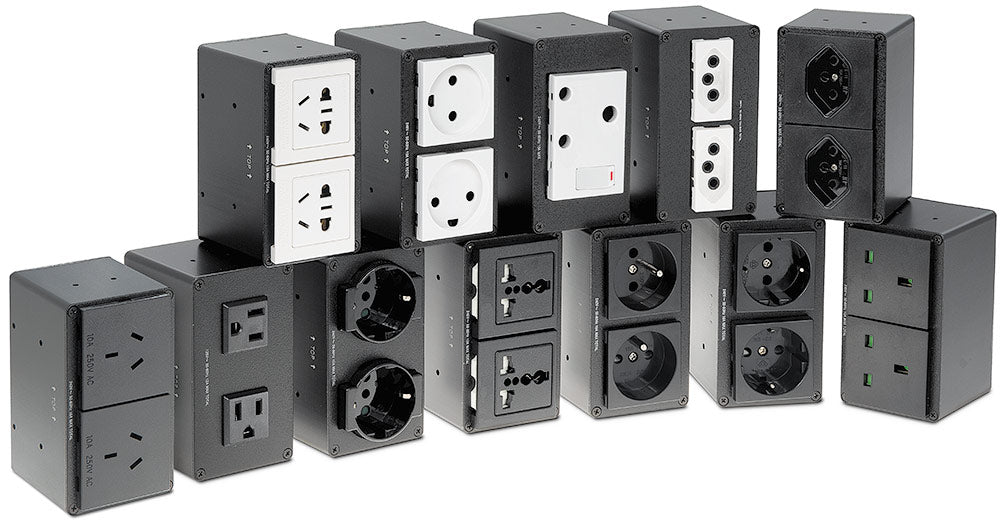

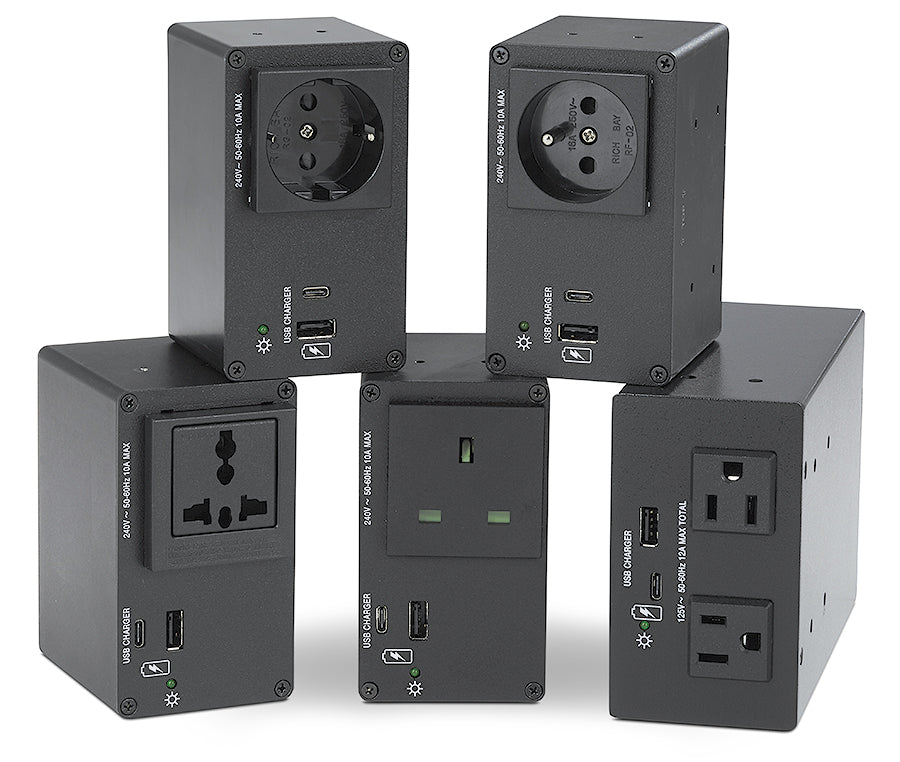

• Takes one AC or AC+USB series power module.
• Three Retractor modules, four AV cables, or two AAP modules.

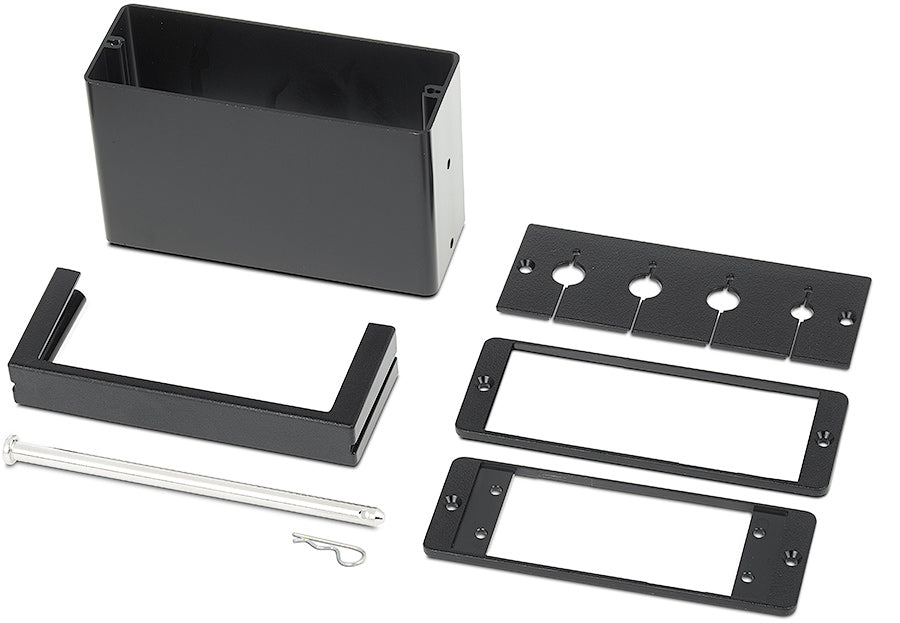

• Retractor, Cable Pass-Through and AAP brackets included.

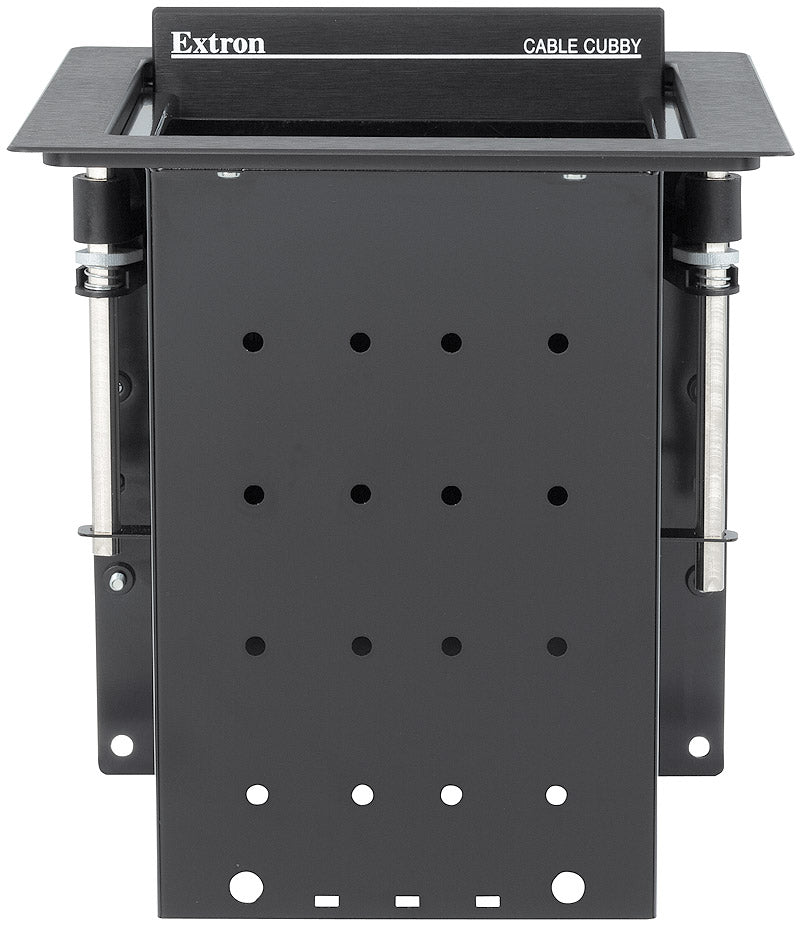

• Integrated side clamps with a cam lock — no additional parts or tools.
• Patented modular design allows top-side service after installation.
• Metal enclosure; CE, RoHS and WEEE compliant.

Where It Is Used

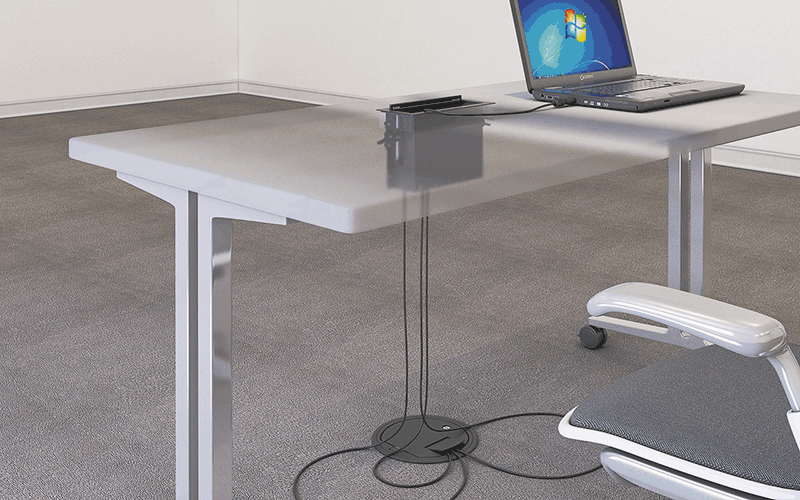

Training rooms and conference tables where tabletop connectivity needs to be close at hand, plus classroom benches, laboratory desks and clinical review positions that require power and a small number of AV connections.

Specifications at a Glance

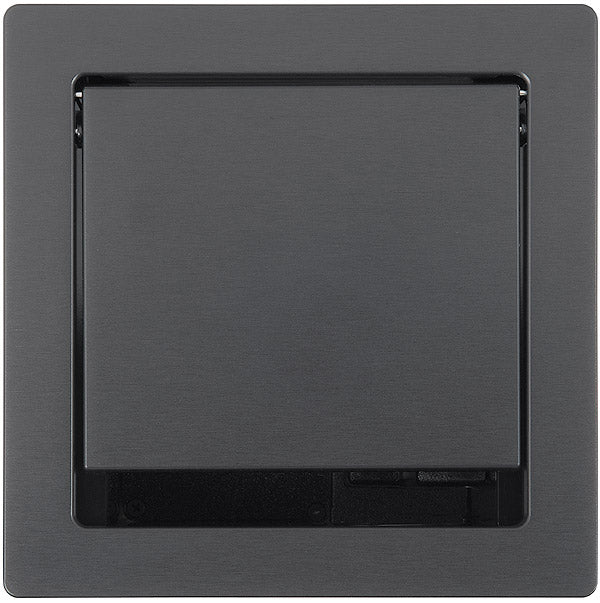

• Top plate (outer rim): 6.38 in W x 6.38 in D (162 mm x 162 mm)
• Surface cutout: 5.75 in W x 5.75 in D (146 mm x 146 mm)
• Table thickness range: 0.50 in to 2.50 in (13 mm to 63 mm)
• Mounting: furniture mount; enclosure type metal
• Warranty: 3 years parts and labor

Also referenced as Extron CableCubby500, Cable-Cubby-500, part number 60140402.
