Extron Cable Cubby 202 US (part number 60-1399-02) — the US build of the compact Cable Cubby 202 furniture-mount cable access enclosure.

The 202 family exists for surfaces where a full-size table box is simply too big. The enclosure is a shallow metal body that drops into a rectangular cut and is drawn tight by an integrated clamp system using common hand tools. Inside, a Cable Pass-Through Bracket routes up to four AV cables, and because the bracket is split, a cable can be introduced or removed from the tabletop after the enclosure is already installed.

Key Capabilities

• Cable Pass-Through Bracket routes up to four AV cables.
• Split-ring bracket design supports cable service from the top of the enclosure.

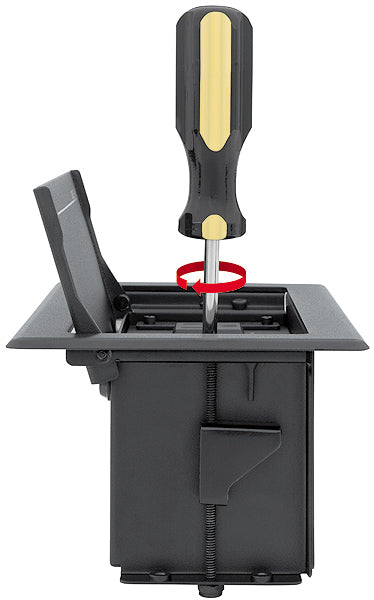

• Integrated clamp system fixes the box with common hand tools.
• Top plate 7.99 in W x 4.39 in D (203 mm x 112 mm) over a 7.00 in x 3.25 in cutout.
• Shallow metal body only 3.20 in (81 mm) deep beneath the surface.
• Fits table surfaces 0.25 in to 1.75 in (6 mm to 44 mm) thick.

Where It Is Used

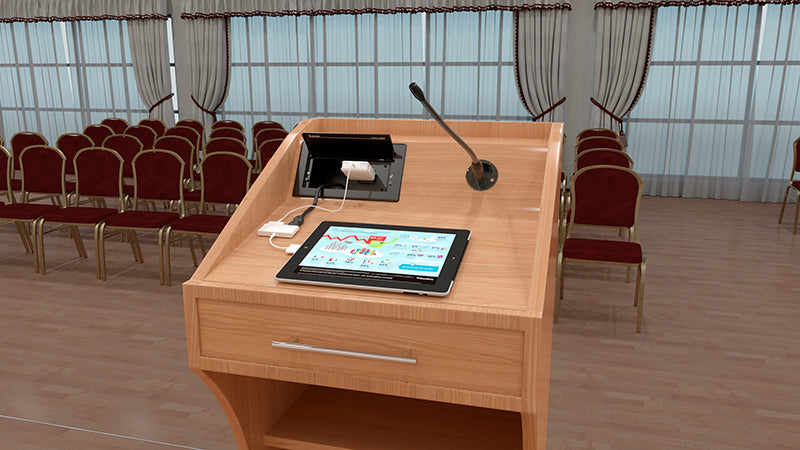

North American meeting rooms, agile-working benches, classroom tables, and clinical review desks. The reduced depth suits thin desktops and any position where under-surface clearance is limited by a frame or drawer pedestal.

Specifications at a Glance

• Top plate (outer rim): 7.99 in W x 4.39 in D (203 mm x 112 mm)
• Surface cutout: 7.00 in W x 3.25 in D (178 mm x 82 mm)
• Enclosure depth: 3.20 in H (81 mm)
• Material: metal; mounting: furniture mount
• Warranty: 3 years parts and labor

Optional Retractor and AAP bracket kits are ordered separately. Also referenced as Extron CableCubby202US, Cable-Cubby-202-US, part number 60139902.
